Full-face mask with a glass visor
The SR 200 full-face mask with a glass visor offers uncompromising protection and maximum comfort
for demanding applications. Made from high-quality silicone and fitted with
a scratch-resistant glass visor, it ensures excellent optical clarity as well as
exceptional resistance to chemicals and mechanical stress.
The mask is available in two versions – with a fabric headband or
rubber headband – for maximum flexibility in use.
System & Application
The SR 200 full-face mask is designed for use with appropriate filters and blower systems
and offers reliable protection against particles, gases and vapours. The generous
face seal ensures a secure fit, whilst the large visor provides a wide field of vision.
Thanks to its ergonomic design, the mask is ideal for long periods of use in demanding
working environments.
Typical areas of application include industrial applications, coating processes, the chemical industry
and working environments with high levels of pollutants.
Versions
SR 200 Glass – with fabric headband
SR 200 Glass / Rubber headband – for robust and intensive applications
Technical specifications
Standards: EN 136:1998, EN 148-1
Protection factor: 400 (P3), 400 (GasX)
ATEX classification: II G Ex ib IIB T3 Gb, II 2 D Ex ib IIIC T195°C Db
Material: Silicone, glass (additionally EPDM depending on variant)
Colour: Blue
Operating temperature: -10 °C to +55 °C (< 90 % RH)
Storage temperature: -20 °C to +40 °C (< 90 % RH)
Shelf life: up to 10 years
Downloadable files
Price excl. VAT
New
Select:
Full-face mask with PC lens and elastic straps
The Sundström SR 200 PC full-face masks offer uncompromising respiratory protection combined with maximum comfort.
Thanks to high-quality materials, an ergonomic design and a wide field of vision, they are ideal for professional use in demanding working environments.
The masks are made of soft silicone and adapt perfectly to different face shapes.
The robust polycarbonate visor ensures clear vision and additional eye protection, whilst the integrated valve system ensures particularly low breathing resistance.
Variants & Differences
SR 200 PC – Standard version with fabric headband
SR 200 PC with rubber headband – particularly robust and suitable for demanding or frequently changing operating conditions
Contents
SR 200 full-face mask with PC visor
Headband (fabric or rubber depending on variant)
Carrying strap
Filter adapter SR 280-3
Pre-filter SR 221
Pre-filter holder
Cleaning cloth
ID label
Features & benefits
Full-face mask offering a high level of protection for demanding applications
Large, scratch-resistant polycarbonate visor for an optimal field of vision
Very low breathing resistance thanks to three inhalation and two exhalation valves
Secure fit thanks to a wide face seal and adjustable headband
High wearing comfort even during prolonged use
Materials approved by the FDA and BGA – reduces the risk of allergies
Can be used with filters, blower units (SR 500 / SR 700) or compressed air systems
Suitable for use in potentially explosive atmospheres (with SR 500 EX)
Improved communication thanks to optimised valve arrangement
Areas of application
Industry and manufacturing
Chemical and petrochemical applications
Construction and refurbishment work
Dusty, gaseous and vapour-laden environments
Painting and maintenance work
Technical properties
Standards: EN 136, EN 166, EN 148-1
Material: Silicone, polycarbonate
Size: One size fits all
Operating temperature: -10 °C to +55 °C (< 90% RH)
Storage temperature: -20 °C to +40 °C (< 90% RH)
Weight: approx. 450 g
Shelf life: up to 10 years
Compatibility: SR filter series, SR 500, SR 500 EX, SR 700, SR 307 compressed air system
Downloadable files
Price excl. VAT
New
Select:
Size M/L
The SR 100 half mask combines reliable respiratory protection with a high level of comfort
for professional use. Made from soft, skin-friendly silicone,
it offers an excellent fit and minimises skin irritation.
Thanks to its well-designed construction with two exhalation valves, breathing resistance is reduced
and a comfortable fit is ensured even during prolonged use.
System & Application
The SR 100 half mask is designed as an air-purifying respiratory protection system (APR) and
can be combined with a wide range of filters and gas filters. It provides reliable protection against
particles, gases and vapours and is also compatible with the SR 307 compressed air supply unit.
Typical applications include grinding and coating work, chemical applications,
maintenance work and industrial environments with high levels of pollutants.
The mask is part of the modular Sundström system and can be flexibly configured.
Models
SR 100 S/M – for smaller face sizes
SR 100 M/L – standard size
SR 100 L/XL – for larger face sizes
Technical specifications
Standard: EN 140:1998
Material: Silicone
Colours: Blue / Black (depending on variant)
Protection factor: up to 50 (GasX)
System: Half mask (APR)
Operating temperature: -10 °C to +55 °C (< 90 % RH)
Storage temperature: -20 °C to +40 °C (< 90 % RH)
Shelf life: up to 10 years
Downloadable files
Price excl. VAT
New
Select:
Small
The SR 900 half mask combines high wearing comfort with reliable respiratory protection
for professional use. Manufactured from an innovative TPE/PP combination
using a dual-injection moulding process, it offers a stable shape and is gentle on the skin.
The ergonomic design ensures an optimal fit and even weight distribution.
System & Application
The SR 900 is designed as an air-purifying respiratory protection system (APR) and can be combined with
various particle and gas filters. It provides reliable protection against
particles, gases and vapours and forms part of the modular Sundström system.
Thanks to its robust construction, the mask is particularly suitable for industrial applications,
maintenance work and environments with increased mechanical stress.
The two exhalation valves reduce breathing resistance and increase wearing comfort during prolonged use.
Versions
SR 900 S – for smaller face sizes
SR 900 M – standard size
SR 900 L – for larger face sizes
Technical specifications
Standard: EN 140:1998
Material: TPE, PP
Colour: Grey
Protection factor: up to 50 (GasX)
System: Half mask (APR)
Operating temperature: -10 °C to +55 °C (< 90 % RH)
Storage temperature: -20 °C to +40 °C (< 90% RH)
Shelf life: up to 5 years
Downloadable files
Price excl. VAT
New
Select:
SR 587 with SR 580 safety helmet system
The SR 500 / SR 580 complete respiratory protection system combines
a high-performance powered air-purifying respirator with a
robust safety helmet fitted with a visor, offering reliable protection
for demanding industrial applications. The continuous
supply of fresh air ensures a high level of protection and a comfortable wearing experience, even
during prolonged use.
System & Application
The system consists of the SR 500 blower and the
SR 580 safety helmet with visor, forming a fully
integrated respiratory protection solution. The filtered air is supplied via a hose
and creates positive pressure in the breathing zone, thereby
reliably preventing the ingress of particles and pollutants.
The SR 580 safety helmet also offers effective
mechanical head protection as well as face protection and is ideal for
industrial applications, construction work, and grinding and machining processes.
The system is specifically designed for work in dusty or contaminated
environments.
The combination of respiratory protection, face protection and head protection provides a
comprehensive level of safety, whilst the constant air flow
significantly increases wearing comfort.
Specification
Complete system comprising SR 500 blower and SR 580 safety helmet with visor
Positive pressure system for reliable protection against particles and pollutants
Integrated head and face protection for industrial applications
Constant air supply for high breathing comfort
Suitable for dusty working environments
Ergonomic design for extended wear
Comprehensive package including battery, charger, filter and accessories
Technical specifications
Standard: EN 12941:1998 + A2:2008, EN 397, EN 166 (B, 120 m/s)
Assigned protection factor: 100 (TH3)
Nominal protection factor: 500 (TH3)
Battery type: Li-ion 14.4 V, 2.25 Ah
Colour: Black, Blue
Country of manufacture: Sweden
Directive: (EU) 2016/425 PPE
Operating temperature: -10 °C to +55 °C (< 90 % RH)
Storage temperature: -20 °C to +40 °C (< 90 % RH)
Shelf life: up to 5 years
Reference number: H06-8112
Downloadable files
Variants
€848.47*
€1,968.97*
Price excl. VAT
New
Select:
SR 500 with SR 580 helmet system
The SR 700 HD blower with PVC belt is a powerful,
battery-powered respiratory protection system designed for professional use in
demanding conditions. Equipped with a high-performance battery
(3.5 Ah), it offers extended runtime and is ideal for long
operating periods in industrial environments with high particle levels.
System & Application
The SR 700 HD blower is used in combination with
particle filters (e.g. SR 510 P3 R or SR 710 P3 R) and
various headpieces in powered air-purifying respirators.
The filtered air is supplied via a hose and creates
positive pressure in the breathing zone, thereby
reliably preventing the ingress of contaminants.
Thanks to the powerful HD battery (3.5 Ah), the system is
particularly suitable for long operating times, harsh working conditions and warm
environments. The constant airflow also provides noticeable
relief for the user and increases wearing comfort.
The PVC belt offers a robust, durable and easy-to-clean
fastening solution and is ideal for industrial applications with
increased requirements for hygiene and durability.
Specifications
Battery-powered blower with high-performance battery (3.5 Ah)
Extended runtime for long and intensive use
Constant air supply for high breathing comfort
Positive pressure system prevents the ingress of particles
Compatible with various headpieces and respiratory protection systems
Robust and hygienic PVC belt
Suitable for demanding industrial applications
Simple operation and low-maintenance system
Technical specifications
Standard: EN 12941:1998 + A2:2008, EN 12942:1998 + A2:2008
Assigned protection factor: 100 (TH3), 500 (TM3)
Nominal protection factor: 500 (TH3), 2000 (TM3)
Cell type: Li-ion 14.4 V, 3.5 Ah (HD)
Colour: Blue, Black
Country of manufacture: Sweden
Directive: (EU) 2016/425 PPE
Operating temperature: -10 °C to +55 °C (< 90% RH)
Storage temperature: -20 °C to +40 °C (< 90% RH)
Shelf life: up to 5 years
Reference number: H06-7410
Downloadable files
Variants
€1,586.63*
€1,346.40*
Price excl. VAT
New
Select:
SR 588-2 with SR 580 safety helmet system
The SR 587 / SR 580 system combines the tried-and-tested safety helmet
with a gold-plated heat-protective visor, thereby offering a
highly effective solution for working in conditions of extreme heat.
The special gold coating significantly reduces radiant heat and
enables safe working in high-temperature environments.
System & Application
The SR 580 safety helmet is part of a
fan-assisted respiratory protection system and can be combined with fan units such as
the SR 500 or SR 700. The filtered air is
supplied via a hose and creates positive pressure in the visor area,
which prevents the ingress of particles and pollutants :contentReference[oaicite:0]{index=0}.
The SR 587 gold visor has been specially developed for use in
extreme heat. The thin gold coating reflects
a large proportion of the heat radiation, thereby significantly reducing
the thermal stress on the user.
The system is ideal for applications such as:
welding work in high radiant heat
Metalworking and foundries
High-temperature processes
Grinding, flame cutting and industrial applications
Model
SR 580 safety helmet with gold-plated SR 587 visor
Effective protection against radiant heat
Can be combined with SR 500 / SR 700 blower units
Positive pressure system for respiratory protection
Protection against particles, gases and heat
Ergonomic design for longer periods of use
Modular system with a wide range of accessories
Suitable for extreme working conditions
Technical specifications
Standard: EN 12941:1998 + A2:2008, EN 14594:2005, EN 397, EN 166 (B, 120 m/s)
Assigned protection factor: 100 (3A, 3B), 100 (TH3)
Nominal protection factor: 200 (3A, 3B), 500 (TH3)
Tint: EN 5
Colour: Blue, Gold
Country of manufacture: Sweden
Directive: (EU) 2016/425 PPE
Operating temperature: -10 °C to +55 °C (< 90% RH)
Storage temperature: -20 °C to +40 °C (< 90% RH)
Shelf life: up to 5 years
Downloadable files
Price excl. VAT
New
The SR 280-3 filter adapter enables the flexible use of
Sundström SR filters on respirators with
an EN 148-1 threaded connection. This creates a
compatible connection between different systems and
significantly expands the range of applications for existing respiratory protection solutions.
System & Application
The adapter is specifically designed to connect Sundström filters to masks
from other systems that feature a standardised
EN 148-1 thread. This allows existing
respiratory protection masks to be efficiently fitted with high-performance SR filters. :contentReference[oaicite:0]{index=0}
To use, simply screw the adapter onto the mask,
then insert the filter into the adapter. The design ensures
a secure and tight connection and guarantees
reliable protection during use. :contentReference[oaicite:1]{index=1}
The SR 280-3 is ideal for industrial applications where a
flexible combination of respiratory protection components is required,
as well as for users who wish to expand or adapt their existing equipment.
Design
Adapter for connecting SR filters to EN 148-1 masks
Enables flexible system combinations
Secure and tight screw connection
Quick and easy assembly
Robust and durable construction
Suitable for industrial applications
Technical specifications
Standard: EN 148-1
Material: PA (polyamide), silicone
Colour: Black
Model: SR 280-3
Reference number: H09-0212
Country of manufacture: Sweden
Operating temperature: -10 °C to +55 °C (< 90 % RH)
Storage temperature: -20 °C to +40 °C (< 90 % RH)
Shelf life: up to 10 years
Downloadable files
Price excl. VAT
New

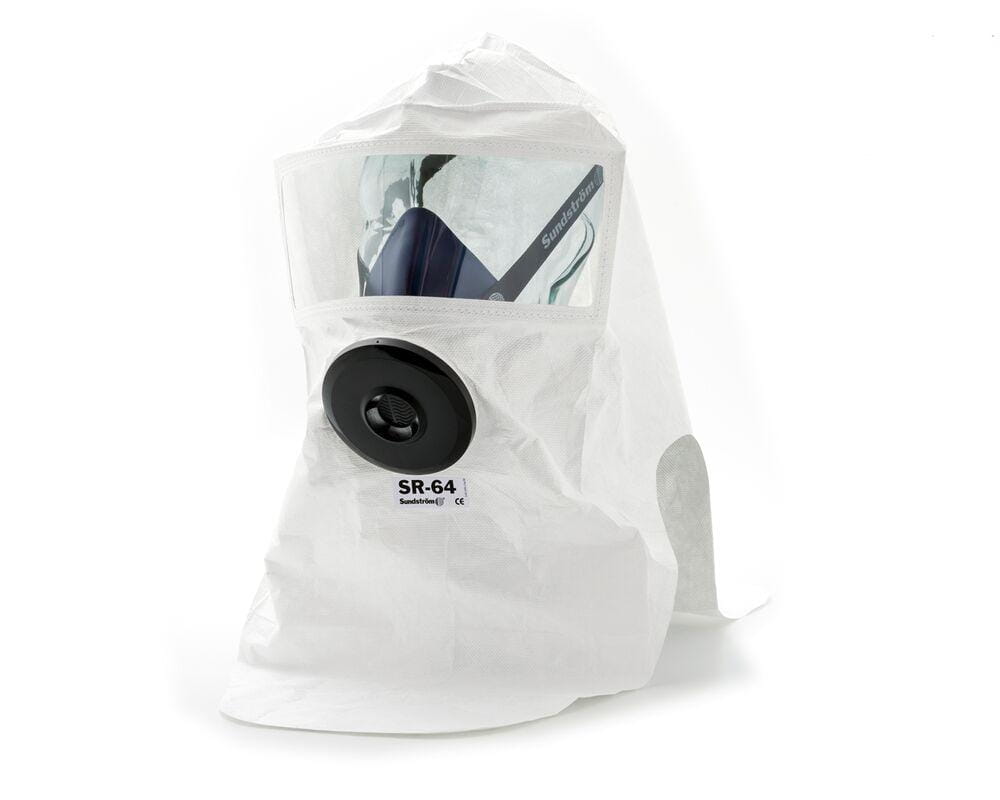

The SR 64 protective hood is a lightweight, short-term
protective solution made from Tyvek® material, designed for use in combination with
Sundström half and full face masks. It provides reliable protection against
dust, particles and light splashes, and extends the
area of protection to cover the head and neck.
System & Application
The SR 64 protective hood is designed for use with Sundström respiratory protection systems,
particularly in combination with half masks, full-face masks,
filters or compressed air systems (e.g. SR 307 or SR 90 Airline). :contentReference[oaicite:0]{index=0}
It offers additional protection for the head and hair during tasks such as grinding,
cleaning or spraying, where dust, particles or
light liquid splashes may occur. :contentReference[oaicite:1]{index=1}
The hood is suitable for situations where a half mask can be used,
but does not provide protection against toxic, corrosive or irritating gases, vapours or aerosols. :contentReference[oaicite:2]{index=2}
Thanks to its lightweight construction, it is particularly comfortable for short-term use,
but is designed as a disposable or short-term solution and is not intended for cleaning. :contentReference[oaicite:3]{index=3}
Design
Protective hood made from Tyvek® non-woven material
Compatible with Sundström respiratory protection systems
Protection against dust, particles and light splashes
Integrated viewing window (PET)
Lightweight and comfortable to wear
Designed for short-term use
Non-reusable / cannot be cleaned
Technical specifications
Material: Tyvek®, PET
Colour: White
Model: SR 64
Reference number: H09-0301
Country of manufacture: Sweden
Operating temperature: -10 °C to +55 °C (< 90 % RH)
Storage temperature: -20 °C to +40 °C (< 90% RH)
Shelf life: up to 5 years
Downloadable files
Price excl. VAT
New
The SR 345 protective hood is a robust and versatile
protective solution for use with Sundström respiratory protection systems. It is made of
chemical-resistant material and offers reliable protection
against splashes and particles – both liquid and solid. :contentReference[oaicite:0]{index=0}
System & Application
The protective hood is designed for use with Sundström half masks, full face masks and
compressed air systems such as the SR 307 or SR 90 Airline.
It extends respiratory protection to provide additional protection for the head and
upper body. :contentReference[oaicite:1]{index=1}
Thanks to its design, the SR 345 provides reliable protection against
splashes, particles and many acids and solvents in low concentrations.
However, prolonged contact with certain liquid solvents may damage the material. :contentReference[oaicite:2]{index=2}
The generous fit allows for the wearing of
a helmet and ear protection under the hood. It also covers the shoulders,
back and chest, thus providing extended protection in demanding
working conditions. :contentReference[oaicite:3]{index=3}
Design
Chemical-resistant protective hood
Compatible with half and full face masks as well as compressed air systems
Protection against liquid and solid particles
Suitable for many acids and solvents (low concentration)
Generous fit for helmets and ear protectors
Covers shoulders, back and chest
Anti-fog polycarbonate visor
Washable (up to approx. 10 washes at max. 40 °C, do not spin)
Suitable for industrial, chemical and maintenance work
Technical specifications
Colour: Orange
Material: PVC, polyester, CA
Model: SR 345
Reference number: H09-1012
Country of manufacture: Sweden
Operating temperature: -10 °C to +55 °C (< 90 % RH)
Storage temperature: -20 °C to +40 °C (< 90% RH)
Shelf life: 5 years
Downloadable files
Price excl. VAT
New
Select:

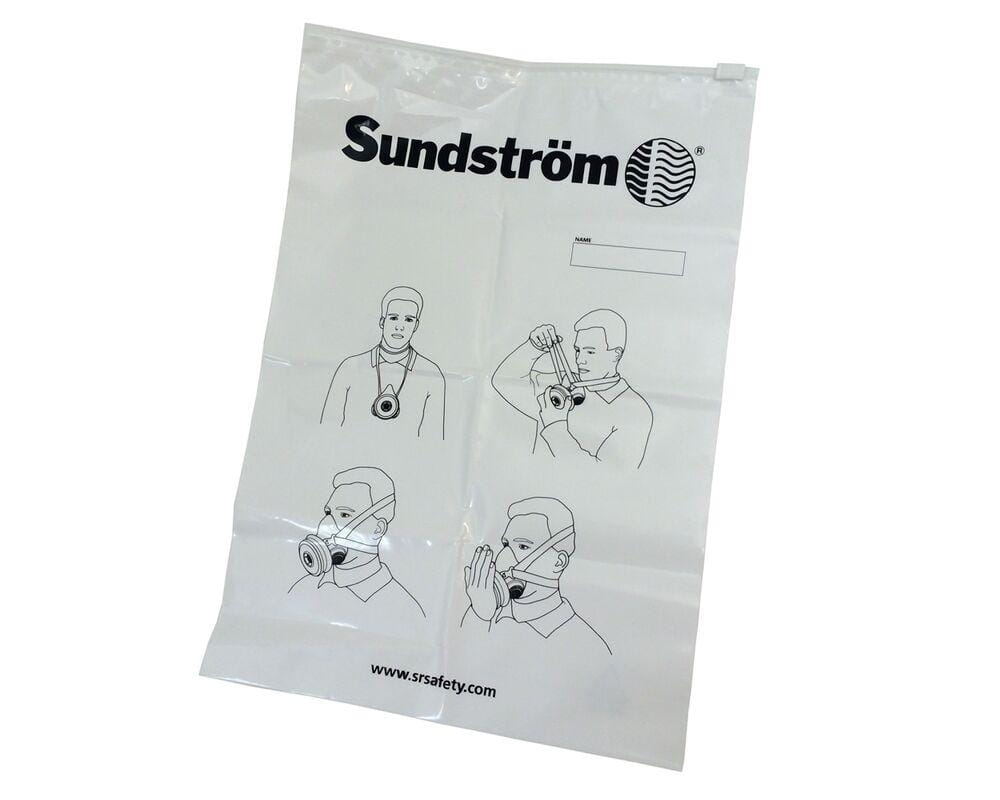

SR 339-2 Storage bag 6.3 L
The SR 588-2 / SR 580 system combines a safety helmet with a
2/3 visor meeting EN 5 protection standards and offers reliable protection
during welding and cutting work. The visor provides effective protection against
light emissions and radiation whilst ensuring
excellent optical clarity during demanding applications. :contentReference[oaicite:0]{index=0}
System & Application
The SR 580 safety helmet is part of a fan-assisted
respiratory protection system and can be combined with the SR 500 or SR 700 fan units.
Filtered air is supplied via a hose and
creates a slight positive pressure inside the helmet, thereby preventing the ingress of particles
and pollutants.
The SR 588-2 visor (2/3 version) with
protection level EN 5 has been specially developed for applications involving intense
light emissions. It offers protection during:
welding
Cutting processes
Metalworking
Industrial applications with high light intensity
In addition , the system protects the face, head and respiratory tract and
can also be used in combination with compressed air systems. The
continuous air supply ensures high wearing comfort and reduces
fogging of the visor. :contentReference[oaicite:1]{index=1}
Model
SR 580 safety helmet with 2/3 visor SR 588-2
Visor with protection level EN 5 for welding and cutting applications
Excellent optical clarity
Protection against light emissions and radiation
Positive pressure system for respiratory protection
Can be combined with SR 500 / SR 700 blower units
Compatible with the SR 507 compressed air system
Ergonomic and lightweight design
Technical specifications
Standard: EN 12941:1998 + A2:2008, EN 14594:2005, EN 397, EN 166 (B, 120 m/s)
Assigned protection factor: 100 (3A, 3B), 100 (TH3)
Nominal protection factor: 200 (3A, 3B), 500 (TH3)
Tint: EN 5
Colour: Blue, Green
Model: SR 588-2
Country of manufacture: Sweden
Directive: (EU) 2016/425 PPE
Operating temperature: -10 °C to +55 °C (< 90 % RH)
Storage temperature: -20 °C to +40 °C (< 90% RH)
Shelf life: up to 5 years :contentReference[oaicite:2]{index=2}
Downloadable files
Price excl. VAT
New
The SR 230 storage box is a robust and practical solution
for the safe storage of Sundström half-masks with filters. It reliably protects the
equipment from dirt, dust and mechanical damage
and ensures hygienic and portable storage. :contentReference[oaicite:0]{index=0}
System & Application
The box is specially designed for half masks with combination filters
and offers sufficient space for complete respiratory protection systems of this type. :contentReference[oaicite:1]{index=1}
Thanks to its sturdy construction, the storage box is ideal for
use in everyday working life, on construction sites or in industry, where
respiratory protection must be transported and protected on a regular basis. :contentReference[oaicite:2]{index=2}
Design
Sturdy storage box for half masks with filters
Protects against dust, dirt and damage
Triangular shape with securely fastened lid
With carrying strap for easy transport
Additional clip for attaching to a belt
Robust and durable design for daily use
Ideal for industry, trade and maintenance
Technical specifications
Colour: Blue, Black
Material: Polypropylene (PP)
Model: SR 230
Reference number: H09-3012
Country of manufacture: Sweden
Operating temperature: -10 °C to +55 °C (< 90 % RH)
Storage temperature: -20 °C to +40 °C (< 90 % RH)
Shelf life: 5 years
Downloadable files
Price excl. VAT
New
Select:
SR 5226 Cleaning Wipes, Bulk Pack
The SR 5226 cleaning wipes have been specially developed for the
daily care and cleaning of Sundström respiratory protection products.
They enable the quick and effective removal of
dirt, sweat and contaminants, thereby contributing to
the hygiene and longevity of the equipment. :contentReference[oaicite:0]{index=0}
System & Application
The cleaning wipes are designed for use with Sundström half masks, full-face masks
and other protective equipment. They are ideal for
regular cleaning routines in industrial, trade and laboratory environments,
where hygienic equipment is crucial. :contentReference[oaicite:1]{index=1}
The pre-moistened disposable wipes reliably remove
dust, sweat and other residues without damaging sensitive materials
such as rubber or silicone. :contentReference[oaicite:2]{index=2}
Once dry, the residues are neutral to the skin and respiratory tract,
making the wipes suitable for cleaning
the inner surfaces of masks. :contentReference[oaicite:3]{index=3}
Versions
Available in various pack sizes to suit different requirements:
50 pieces (individually wrapped)
250 pieces (dispenser box)
1000 pieces (bulk pack)
All variants are individually packaged and ready for immediate use,
ideal for mobile applications or use directly at the workplace. :contentReference[oaicite:4]{index=4}
Design
Pre-moistened disposable cleaning wipes
Suitable for Sundström respiratory protection products
Gentle on materials (rubber, silicone, plastic)
Removes dirt, sweat and contaminants
Individually wrapped for hygienic use
Suitable for industry, workshops and laboratories
Quick and easy to use
Technical specifications
Colour: White
Model: SR 5226
Reference numbers: H09-0401 / H09-0402 / H09-0403
Country of manufacture: Sweden
Operating temperature: -10 °C to +55 °C (< 90 % RH)
Storage temperature: -20 °C to +40 °C (< 90 % RH)
Shelf life: up to 2 years
Downloadable files
Price excl. VAT
New
The SR 346 protective hood is an extended protection solution for
Sundström respiratory protection systems and offers enhanced protection for the entire
upper body. It is made from chemical-resistant material
and provides reliable protection against splashes and particles in industrial applications. :contentReference[oaicite:0]{index=0}
System & Application
The protective hood is designed for use with Sundström half masks, full-face masks
and compressed air systems (SR 307 or SR 90 Airline). It extends
respiratory protection to include additional protection for the head, shoulders and the entire
upper body down to approximately knee height. :contentReference[oaicite:1]{index=1}
It offers protection against splashes, droplets and particles, as well as against
most acids and solvents in low concentrations. However, prolonged
contact with certain liquid solvents may
compromise the material. :contentReference[oaicite:2]{index=2}
Thanks to its generous design,a
safety helmet and ear protection can be worn under the hood without any problems. The extended
version provides a particularly large protective area for demanding
work. :contentReference[oaicite:3]{index=3}
Design
Extended protective hood for enhanced upper body protection
Compatible with half masks, full-face masks and compressed air systems
Protection against liquid and solid particles as well as splashes
Suitable for many acids and solvents (low concentration)
Extra spacious – suitable for helmets and ear protectors
Anti-fog visor for clear vision
Washable (approx. 10 washes at max. 40 °C, do not spin)
Ideal for industry, chemical work and maintenance tasks
Technical specifications
Colour: Orange
Material: PVC, polyester, CA
Model: SR 346
Reference number: H09-1112
Country of manufacture: Sweden
Operating temperature: -10 °C to +55 °C (< 90 % RH)
Storage temperature: -20 °C to +40 °C (< 90% RH)
Shelf life: 5 years
Downloadable files
Price excl. VAT
New
The SR 580 safety helmet, featuring a visor, lamp mount and reflective strip,
is part of a powered air-purifying respirator system from Sundström and has been specially
designed for demanding working environments. When used in combination with the
SR 500 or SR 700 blower units, the system ensures a continuous flow of air
and provides reliable protection against particles and pollutants. :contentReference[oaicite:0]{index=0}
System & Application
The helmet is connected to a filter blower via a breathing tube. The resulting
positive pressure in the visor prevents particles and pollutants
from entering the breathing zone. :contentReference[oaicite:1]{index=1}
Alternatively, the system can be operated with the SR 507 compressed air unit and is
therefore also suitable for applications requiring a continuous air supply. It is particularly suitable
for use during heavy, hot or prolonged work. :contentReference[oaicite:2]{index=2}
The integrated lamp holder and the reflective tape
increase visibility and safety when working in dark or poorly lit areas.
Model
Fan-assisted safety helmet with visor
Constant fresh air supply for high wearing comfort
Positive pressure system to protect against particles and pollutants
With lamp holder for additional lighting
Reflective strip for increased visibility
Protects the head, face and respiratory tract simultaneously
Suitable for industry, construction, maintenance and demanding working environments
Can also be used with a compressed air system (SR 507)
Technical specifications
Certification: EN 12941:1998 + A2:2008, EN 14594:2005, EN 166 (B, 120 m/s), EN 397
Assigned protection factor: 100 (3A, 3B), 100 (TH3)
Nominal protection factor: 200 (3A, 3B), 500 (TH3)
Colour: Blue, Black
Country of manufacture: Sweden
Directive: (EU) 2016/425 PPE
Reference number: H10-0008
Operating temperature: -10 °C to +55 °C (< 90% RH)
Storage temperature: -20 °C to +40 °C (< 90% RH)
Shelf life: 5 years
Downloadable files
Price excl. VAT
New
The Pro Pack SR 200 is a comprehensive respiratory protection kit featuring a full-face mask,
designed for a wide range of industrial applications. It combines high levels of protection
with excellent comfort and is ideal for working in environments with dust, gases, vapours and particles. :contentReference[oaicite:0]{index=0}
System & Application
The SR 200 full-face mask is made of skin-friendly silicone and adapts perfectly to the shape of the face,
ensuring a high seal and low breathing resistance. :contentReference[oaicite:1]{index=1}
The system can be flexibly combined with various filters and, depending on the filter chosen,
protects against a wide range of contaminants such as organic gases, acid vapours and fine particles. :contentReference[oaicite:2]{index=2}
Thanks to its modular design, the mask can also be fitted with a blower or compressed air system,
making it particularly versatile for a wide range of applications. :contentReference[oaicite:3]{index=3}
Contents of the package
SR 200 full-face mask made of silicone
Filter adapter SR 280-3
Particle filter SR 510 P3 R / P100
Gas filter SR 315 ABE1 or combination filter
Pre-filter SR 221
Pre-filter holder
Cleaning cloth
Storage box SR 344
Model
Complete set for immediate use
Full-face protection for eyes and respiratory tract
Large polycarbonate visor for a wide field of vision
Very low breathing resistance thanks to efficient valve technology
High wearing comfort thanks to ergonomic design
Modularly expandable (e.g. fan or compressed air systems)
Suitable for construction, industry, painting and chemical applications
Technical specifications
Certification: EN 136:1998, EN 14387:2004 + A1:2008, EN 143:2000 + A1:2006, EN 166 (B, 120 m/s)
Material: Silicone, polycarbonate
Filter type: Combinable (gas and particle filters)
Size: Universal (One Size / M-L)
Respirator type: Full-face mask (APR system)
Country of manufacture: Sweden
Operating temperature: -10 °C to +55 °C (< 90% RH)
Storage temperature: -20 °C to +40 °C (< 90% RH)
Shelf life: approx. 5 years
Selection assistance
We are happy to assist you in selecting the right respiratory protection solution for your application.
Get advice now
-----
Price excl. VAT
New
The SR 570 / SR 507 kit is a professional compressed-air breathing apparatus,
consisting of the SR 570 facepiece and the SR 507 compressed-air unit. It has been specially developed for
spray painting work and industrial applications, and provides a reliable
supply of clean breathing air whilst ensuring a high level of comfort. :contentReference[oaicite:0]{index=0}
System & Application
The system operates with an external compressed air source and delivers a
continuous air flow, creating positive pressure in the headpiece.
This reliably prevents the ingress of pollutants and particles into the breathing zone. :contentReference[oaicite:1]{index=1}
The integrated regulator with CEJN connection allows direct connection
to a spray gun, making the system particularly well-suited for painting work.
The PVC strap also ensures easy cleaning and decontamination. :contentReference[oaicite:2]{index=2}
Thanks to the use of compressed air, the kit is ideal for long, intensive or health-critical
tasks where filter devices reach their limits or are unsuitable. :contentReference[oaicite:3]{index=3}
Specification
Complete system with SR 570 face shield and SR 507 compressed air regulator
Constant fresh air supply via compressed air connection
Positive pressure system for high protection against particles and pollutants
Particularly suitable for painting and coating work
Control valve with CEJN 342 connection for spray guns
PVC strap for easy cleaning and high durability
Suitable for industrial applications with high demands
Expandable within the modular Sundström system
Technical specifications
Air flow: 175 – 260 l/min
Approval: EN 14594:2018, EN 166 (B, 120 m/s)
Assigned protection factor: 100 (3A, 3B)
Nominal protection factor: 200 (3A, 3B)
Operating pressure: 5 – 7 bar
Material: PA, PC, PC/ABS, PVC
Colour: Blue, Black
Country of manufacture: Sweden
Directive: (EU) 2016/425 PPE
Reference number: H10-0041
Operating temperature: -10 °C to +55 °C (< 90% RH)
Storage temperature: -20 °C to +40 °C (< 90% RH)
Shelf life: 5 years
Downloadable files
Price excl. VAT
New
Select:
SR 507 with SR 570 set and TAC sight
The SR 570 visor with TAC visor is a state-of-the-art
face shield designed for demanding industrial applications, offering
reliable respiratory and eye protection even in challenging
working environments. The chemical-resistant triacetate (TAC) visor
ensures optimum protection when working with solvents, paints and corrosive substances, and impresses with its high durability and clear vision.
System & Application
The face shield is part of a modular system and can be used flexibly with
the SR 500, SR 500 EX or SR 700 blower units, as well as with the
SR 507 compressed air fitting. This makes the system
suitable for a wide range of applications – from painting work and chemical processes to industrial cleaning and decontamination tasks. :contentReference[oaicite:0]{index=0}
The flip-up visor allows for comfortable working whilst
providing unrestricted vision. The design is tailored for ergonomic use
and offers even air distribution to prevent fogging
as well as high wearing comfort even during prolonged use. :contentReference[oaicite:1]{index=1}
Thanks to its robust construction and wide range of expansion options, the
SR 570 can be individually adapted to different working conditions and
thus offers maximum flexibility in professional use. :contentReference[oaicite:2]{index=2}
Model
Face protection system with flip-up visor
Chemical-resistant TAC triacetate visor
Compatible with fan-assisted and compressed air systems
Ergonomic headband with individual adjustment
Integrated air flow to reduce fogging
Device for attaching hearing protection
Expandable with an extensive range of accessories
Technical specifications
Standards: EN 12941:1998 + A2:2008, EN 14594, EN 166 (F, 45 m/s)
System compatibility: SR 500, SR 500 EX, SR 700, SR 507
Material: PC/ABS, PA, TAC
Air flow: 175–240 l/min (depending on the system)
Operating pressure: 5–7 bar
Operating temperature: -10 °C to +55 °C (< 90 % RH)
Storage temperature: -20 °C to +40 °C (< 90% RH)
Visor properties: chemical-resistant, flip-up, scratch-resistant
Weight: approx. 850 g (incl. hose)
Certification: PPE (EU) 2016/425
Downloadable files
User manual SR 570
– PDF
Spare parts & components SR 570
– PDF
SR 570 Product Data Sheet
– PDF
Operating instructions SR 570
– PDF
-----
Variants
€674.61*
€992.10*
Price excl. VAT
New
Select:
SR 76-3 ABEK1-Hg-P3 respiratory protection system, size S/M, stationary
The SR 76-3 ABEK1-Hg-P3 escape hood is a reliable
emergency solution for use in the event of chemical accidents and hazardous gas releases.
It offers comprehensive protection against organic and inorganic gases, acidic gases, ammonia,
mercury vapours and particulates, and enables a quick and safe evacuation without the need for prior fitting.
System & Application
The escape hood has been specially developed for use in emergency situations involving hazardous chemical substances
and combines a silicone half-mask with a
chemical-resistant hood. It can be donned within seconds without any preparation or adjustment
and is ideal for evacuations
in industrial, chemical or infrastructure facilities.
The integrated ABEK1-Hg-P3 combination filter provides reliable protection
against a wide range of contaminants, including organic solvents,
inorganic gases, acidic gases, ammonia, mercury vapours
and ultra-fine particles. The system thus offers a broad spectrum of protection for
critical operating conditions. :contentReference[oaicite:0]{index=0}
The hood is vacuum-packed in an aluminium pouch and is therefore
ready for long-term use. It is available for both stationary storage and
mobile applications and offers maintenance-free operational readiness
for many years. :contentReference[oaicite:1]{index=1}
Design
Escape hood with integrated respiratory protection system
ABEK1-Hg-P3 combination filter with particle protection
Protection against gases, vapours and particles, including Hg
Quick to put on without adjustment or fitting
Silicone half-mask for a secure fit and high comfort
Chemical-resistant hood with a wide field of vision
Vacuum-packed in a sturdy aluminium pouch
Available in two sizes (S/M and M/L)
Suitable for stationary or mobile deployment
Technical specifications
Standards: EN 403:2004, EN 14387:2004 + A1:2008
Filter class: ABEK1-Hg-P3
Nominal protection factor: 50
Material: Silicone, PVC
Colour: Yellow
Operating temperature: -20 °C to +55 °C (< 90 % RH)
Storage temperature: -20 °C to +40 °C (< 90 % RH)
Shelf life: up to 10 years
Packaging: Vacuum-packed (aluminium pouch)
Weight: approx. 680–1000 g (depending on model)
Country of manufacture: Sweden
Directive: (EU) 2016/425 PPE
Model: SR 76-3
Reference number: H15-0312
Downloadable files
Product data sheet SR 76-3 ABEK1-Hg-P3
– PDF
-----
Price excl. VAT
New
![Sundström SR 500 with SR 570, PVC strap and TAC visor [EU/UK]](https://beschicht.imgbolt.de/media/77/22/44/1776185566/263160-2189370_Sundstrom.jpeg?ts=1776185566 "Sundström SR 500 with SR 570, PVC strap and TAC visor [EU/UK]")
Select:
SR 500 with SR 570, PVC strap and TAC visor [EU/UK]
The SR 500 / SR 570 full-face respirator system, featuring
a PVC harness, a protective cap and a triacetate (TAC) visor, offers a
high-performance solution for professional applications requiring enhanced protection.
The combination of a blower unit and face shield ensures a
continuous air flow as well as reliable protection against
particles and hazardous working environments.
System & Application
The system consists of the SR 500 blower and the
SR 570 face shield with a protective cap and a chemical-resistant
TAC visor. It is specifically designed for applications such as paint spraying, industrial
surface treatment and work in contaminated environments,
where reliable respiratory and eye protection is required.
The filtered air supply creates positive pressure inside the visor,
which prevents the ingress of harmful substances whilst ensuring high
wearing comfort. The robust PVC strap allows for easy cleaning and
is ideal for use in demanding and dirty work environments.
The system has a modular design and can be flexibly adapted to different
working conditions. The combination of a powerful blower unit
and durable face protection offers an optimal solution for
long-term industrial use.
Model
Complete system comprising SR 500 blower and SR 570 face shield
Integrated impact cap for additional head protection
Chemical-resistant triacetate visor (TAC)
PVC strap for easy cleaning and high durability
Includes battery, charger and accessories
SR 510 P3 R particle filter included
Pre-filter, filter adapter and pre-filter holder integrated
Flow meter, blind plug set and cleaning cloth included
Technical specifications
Standards: EN 12941:1998 + A2:2008, EN 166 (F, 45 m/s), EN 812:2012
Assigned protection factor: 100 (TH3)
Nominal protection factor: 500 (TH3)
Cell type: Li-Ion 14.4 V, 2.25 Ah
Material: TPE, PVC, PC/ABS, PA, TAC
Colour: Blue, Black
Operating temperature: -10 °C to +55 °C (< 90% RH)
Storage temperature: -20 °C to +40 °C (< 90% RH)
Shelf life: up to 5 years
Country of manufacture: Sweden
Directive: (EU) 2016/425 PPE
Model: SR 500 / SR 570
Reference number: H10-0051
-----
Variants
€2,387.02*
€2,007.40*
Price excl. VAT
New
The welding lens with protection level 13 is a high-performance
welding shield for the Sundström SR 84 and offers
exceptionally high protection against intense light radiation during demanding
welding tasks. It ensures maximum eye protection
whilst providing a clear view of the work area.
System & Application
The welding lens is specifically designed for use in the
Sundström SR 84 welding hood and serves as a replaceable
protective lens for welding processes involving high light intensity.
Protection level 13 ensures a particularly high reduction
in radiation and is suitable for applications requiring increased protection.
As a consumable part, the lens can be easily replaced as required,
thereby maintaining the protective effect in the long term and
ensuring continuous operational safety.
Further variants with lower
protection levels are available for different requirements, enabling optimal adaptation to the respective
welding process.
Design
Welding protection glass for SR 84
Protection level 13 for maximum shielding
Suitable for intensive welding applications
Replaceable wear part
Available in other protection levels (e.g. 10, 11, 12)
Technical specifications
Colour: Black
Country of manufacture: Sweden
Reference number: R03-0517
Shading: EN 13
Operating temperature: -10 °C to +55 °C (< 90 % RH)
Storage temperature: -20 °C to +40 °C (< 90% RH)
Shelf life: 5 years
Price excl. VAT
New
Select:
SR 77-3 ABEK1-CO-P3 respiratory protection system, size M/L, stationary
The SR 77-3 ABEK1-CO-P3 escape hood has been specially developed for
evacuations during fires and chemical accidents and offers
reliable protection against toxic gases, smoke, carbon monoxide (CO) and particles.
Thanks to the integrated combination filter, it enables rapid self-rescue
in critical emergency situations without the need for prior adjustment.
System & Application
The escape hood is designed for use as a respiratory protection device during evacuations
and provides reliable protection against smoke gases, chemical emissions and
carbon monoxide, which poses one of the greatest dangers, particularly in the event of fires. :contentReference[oaicite:0]{index=0}
The system combines a silicone half-mask with a
flame-retardant and chemical-resistant hood. The integrated
ABEK1-CO-P3 combination filter protects against organic, inorganic
and acidic gases, ammonia, particles and CO, thereby offering a broad
range of protection for emergency situations. :contentReference[oaicite:1]{index=1}
The escape hood is vacuum-packed and maintenance-free, and can be used immediately without
any prior knowledge. It is available for both
stationary storage and mobile applications, and
is suitable for industrial plants, laboratories and safety-critical areas. :contentReference[oaicite:2]{index=2}
Design
Escape hood with integrated respiratory protection system
ABEK1-CO-P3 combination filter with CO protection
Protection against smoke, gases, vapours and particles
Quick to put on without the need for adjustment
Silicone half-mask for a secure fit and high comfort
Flame-retardant and chemical-resistant hood
Wide field of vision with anti-fog visor
Vacuum-packed for extended shelf life
Available in two sizes (S/M and M/L)
Suitable for stationary and mobile deployment
Technical specifications
Standards: EN 403:2004, EN 14387:2004 + A1:2008
Filter class: ABEK1-CO-P3
Nominal protection factor: 50
Material: Silicone, flame-retardant fabric, PVC
Colour: Yellow
Service life: up to approx. 30 minutes
Operating temperature: -20 °C to +55 °C (< 90 % RH)
Storage temperature: -20 °C to +55 °C (< 90% RH)
Shelf life: up to 10 years
Packaging: Vacuum-packed (aluminium pouch)
Country of manufacture: Sweden
Directive: (EU) 2016/425 PPE
Model: SR 77-3
Reference number: H15-3212
Downloadable files
User manual SR 76-3 / SR 77-3
– PDF
Product data sheet SR 77-3 ABEK1-CO-P3
– PDF
Safety labelling SR 76-3 / SR 77-3
– PDF
EU Declaration of Conformity SR 77-3
– PDF
-----
Price excl. VAT
New
The welding lens with protection level 5 is a high-quality
welding shield for the Sundström SR 84 and offers
reliable protection during welding and cutting work involving lower
light intensity. It ensures an optimal balance between protection and visibility
and enables precise work whilst providing safe eye protection.
System & Application
The welding lens is specially designed for use in the
Sundström SR 84 welding helmet and serves as a
replaceable protective lens for applications involving lower radiation intensity.
Protection level 5 is particularly suitable for lighter
welding and cutting work.
As a consumable part, the lens can be quickly replaced if necessary,
ensuring that the protective function is maintained at all times and
consistent occupational safety is guaranteed.
Further variants with higher
protection levels are available for different applications, enabling optimal adaptation to the respective
work process.
Design
Welding protection lens for SR 84
Protection level 5 for lighter applications
Optimal visibility combined with eye protection
Replaceable wear part
Available in further protection levels (e.g. 10, 11, 12, 13)
Technical specifications
Colour: Black
Material: Glass
Country of manufacture: Sweden
Reference number: R03-0520
Shading: EN 5
Operating temperature: -10 °C to +55 °C (< 90 % RH)
Storage temperature: -20 °C to +40 °C (< 90 % RH)
Shelf life: 5 years
Price excl. VAT
New
The welding helmet retention clip is an essential
fastening component for securely holding the welding helmet in place in
Sundström SR 83 and SR 84 welding helmets. It ensures a
secure fit and contributes to the reliable operation of the
entire welding protection system.
System & Application
The retaining bracket is used to secure the welding cartridge within
the welding hood and ensures that the protective screen remains correctly positioned.
It is specifically designed for the SR 83 and SR 84 models and supports
safe use in professional welding environments.
Thanks to its sturdy construction, the bracket ensures
durable and reliable locking, even under intensive
working conditions. This guarantees a consistently high level of protection
and prevents the cassette from slipping during use.
As a replacement and wear part, the retaining bracket enables
quick maintenance of the system and contributes to the long-term operational capability
of the welding hood.
Design
Retaining bracket for welding helmet
Suitable for SR 83 and SR 84
Sturdy fixation of the protective screen
Robust design for industrial use
Replaceable spare part
Technical specifications
Colour: Grey
Material: Steel
Country of manufacture: Sweden
Reference number: R03-0518
Operating temperature: -10 °C to +55 °C (< 90 % RH)
Storage temperature: -20 °C to +40 °C (< 90% RH)
Shelf life: 5 years
Price excl. VAT
New
The SR 348 control valve is a central control unit for the
SR 507 compressed air supply unit and enables precise regulation
of the air flow in the respiratory protection system. It ensures a controlled and
demand-based air supply, thereby supporting safe and
comfortable use in industrial applications.
System & Application
The control valve is specifically designed for use with the
Sundström SR 507 compressed air supply unit and serves to
regulate the air supply within the system. It allows the user to
adjust the air flow individually and thus optimally adapt it to the respective
working conditions.
By integrating into the harness system – even without a belt – the valve
offers flexible use and supports ergonomic positioning on the body.
This helps to reduce strain and enhances
wearing comfort during longer operations.
The control valve is an essential component for the safe operation of
compressed air breathing apparatus and ensures reliable control
of the air supply.
Model
Control valve for SR 507 compressed air supply
Precise adjustment of the air supply
Ergonomic integration into the harness
Version without belt
Suitable for professional respiratory protection applications
Technical specifications
Colour: Black, Blue
Country of manufacture: Sweden
Reference number: R03-0601
Operating temperature: -10 °C to +55 °C (< 90% RH)
Storage temperature: -20 °C to +40 °C (< 90 % RH)
Shelf life: 5 years
Price excl. VAT
New

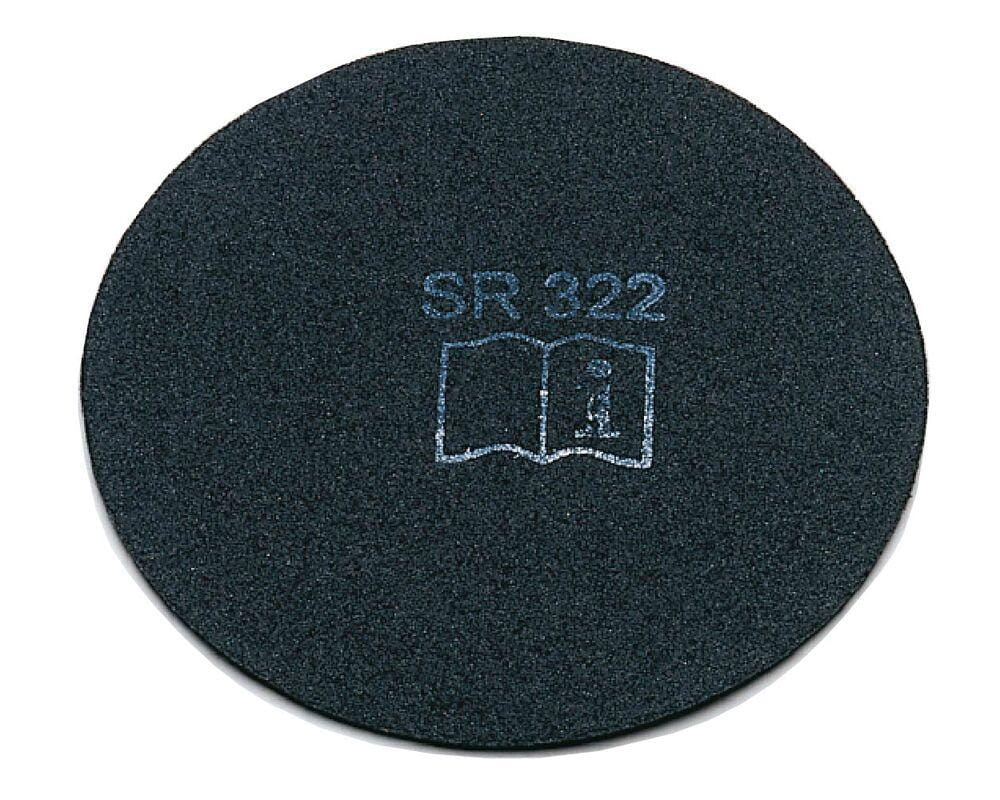

The SR 322 test disc is a specially designed accessory for
half masks and full-face masks, intended forthe quick and reliable
fit testing of respiratory protection systems. It enables
a simple functional check prior to use and plays a key role in
ensuring optimum protection.
System & Application
The test disc is used in combination with compatible respiratory protection masks
and enables a quick fit test of the mask system.
By briefly blocking the airflow, it is possible to check whether the
mask fits correctly and there are no leaks.
It is suitable for both routine checks in everyday working life and
for safety-critical applications in industry, trade and maintenance. The
test disc is part of the modular Sundström system and can be easily integrated into
existing equipment. :contentReference[oaicite:0]{index=0}
The use of the test disc supports compliance with
health and safety regulations and enhances user safety
through regular functional checks of respiratory protective equipment. :contentReference[oaicite:1]{index=1}
Design
Test disc for checking the seal of respiratory protective masks
Suitable for half masks and full-face masks
Quick and easy to use without any tools
Supports safe functional testing prior to use
Part of the modular Sundström system
Robust and durable design
Technical specifications
Material: PE
Colour: Black
Model: SR 322
Reference number: R01-0303
Operating temperature: -10 °C to +55 °C (< 90 % RH)
Storage temperature: -20 °C to +40 °C (< 90 % RH)
Shelf life: up to 5 years
Country of manufacture: Sweden
-----
Price excl. VAT
New
The Sundström pre-filter holder is an essential accessory for
securely attaching SR 221 pre-filters to gas, particle and
combination filters. It protects the pre-filter from mechanical damage and
helps to significantly extend the service life of the main filter.
System & Application
The pre-filter holder is mounted directly onto the filter in use and holds the
pre-filter securely in place. In combination with the pre-filter,
it prevents premature clogging of the main filter by coarse particles
and thus increases the efficiency and service life of the entire respiratory protection system. :contentReference[oaicite:0]{index=0}
In addition, the pre-filter holder can also be used for fit tests
in conjunction with the SR 322 test disc. This
makes it a versatile accessory for both day-to-day use and
safety checks. :contentReference[oaicite:1]{index=1}
It is used in a wide variety of sectors such as industry, trade or
maintenance, where respiratory protection systems are used regularly and a high
level of operational safety must be guaranteed.
Design
Pre-filter holder for securing SR 221 pre-filters
Compatible with gas, particle and combination filters
Protects the pre-filter from damage
Extends the service life of the main filter
Suitable for fit testing with test disc SR 322
Easy to fit and secure
Robust and durable design
Technical specifications
Material: PP
Colour: Black
Model: Pre-filter holder
Reference number: R01-0605
Operating temperature: -10 °C to +55 °C (< 90 % RH)
Storage temperature: -20 °C to +40 °C (< 90 % RH)
Shelf life: up to 10 years
Compatibility: SR 221 pre-filter and Sundström filter systems
Country of manufacture: Sweden
-----
Price excl. VAT
New
The breathing hose for the SR 200 Airline A is a reliable
connecting component for the safe supply of air in compressed-air breathing apparatus systems.
Made from rubber and PUR, it offers high flexibility and
durability and ensures a constant and safe supply of air
in professional use.
System & Application
The air hose is specifically designed for use with the
Sundström SR 200 Airline A full-face mask and serves as a
connection between the air source and the breathing apparatus. It enables a
reliable supply of breathing air, thereby supporting the safe operation
of the entire system.
Equipped with safety couplings, the hose ensures
a stable and leak-proof connection as well as easy handling when
connecting and disconnecting the components.
The robust combination of materials ensures a long service life and is
ideal for use in demanding industrial environments.
Model
Breathing hose for SR 200 Airline A
Made of rubber/PUR for high flexibility and durability
With integrated safety couplings
Reliable air supply in the respiratory protection system
Suitable for industrial applications
Technical specifications
Colour: Black
Material: Rubber, PUR
Country of manufacture: Sweden
Reference number: R03-1003
Operating temperature: -10 °C to +55 °C (< 90 % RH)
Storage temperature: -20 °C to +40 °C (< 90% RH)
Shelf life: 5 years
Price excl. VAT
New
The control valve with spray gun outlet for the SR 507 with PVC belt
is an advanced control unit for the Sundström SR 507 compressed air accessory
and enables precise regulation of the air supply as well as direct connection
of a spray gun. It combines air control and auxiliary functions in a
compact unit and is ideal for applications with cleaning and
decontamination requirements.
System & Application
The control valve is specifically designed for use with the
SR 507 compressed air accessory and allows for
individual adjustment of the air flow within the respiratory protection system.
Additionally, it is equipped with a CEJN 342 fitting, which allows for the
connection of a spray gun.
This combination allows not only the supply of breathing air but also use for
cleaning and decontamination tasks. The integrated
PVC belt ensures a secure and comfortable fit on the body
and enables easy handling during everyday work.
The system offers an efficient solution for applications where
air regulation and additional functionality need to be
combined in a single unit.
Model
Regulating valve with spray gun connection (CEJN 342)
Suitable for SR 507 compressed air accessory
Precise regulation of the air supply
Integrated PVC belt for comfortable attachment
Suitable for cleaning and decontamination applications
Technical specifications
Colour: Blue, Black
Material: PC/ABS, PVC
Country of manufacture: Sweden
Reference number: R03-0603
Operating temperature: -10 °C to +55 °C (< 90 % RH)
Storage temperature: -20 °C to +40 °C (< 90% RH)
Shelf life: 5 years
Price excl. VAT
New
The Sundström storage bag for half masks offers a
practical and secure solution for storing and transporting respiratory masks.
It reliably protects the equipment from dirt, damage and external
factors, thereby helping to maintain its operational readiness.
System & Application
The storage bag is specially designed for half masks with filters
and enables protected storage between operations. It prevents the
entry of dust and dirt and ensures that the respirator remains
ready for use at all times.
Thanks to its compact design, the pouch is ideal for use in
industry, trade and maintenance, where respiratory protection equipment
needs to be transported regularly or kept within easy reach. Depending on the model,
it can also be attached to a belt, allowing for
convenient access whilst working. :contentReference[oaicite:0]{index=0}
The robust construction ensures a long service life and reliably protects the
equipment from mechanical impacts in everyday working life.
Model
Storage bag for half masks with filters
Protection against dust, dirt and damage
Compact design for easy transport
Part of the modular Sundström system
Can be used with a belt attachment in some cases
Robust and durable construction
Easy to use in everyday work
Technical specifications
Material: Textile fabric / Nylon
Fastening: Velcro
Colour: Black / Orange
Volume: approx. 2.5 litres
Compatibility: Half masks with a filter (e.g. SR 100, SR 90-3)
Attachment: Can be attached to a belt
Model: SR 339 / comparable version
Country of manufacture: Sweden
-----
Price excl. VAT
