Gewindeanschluss:
1/4" NPS
The large stainless steel high-pressure ball valve is designed for applications up to
500 bar and is suitable for safe shut-off in
airless and high-pressure systems.
The product family is available in either 3/8" NPS or
1/4" NPS.
System & design
Max. operating pressure: 500 bar
Material: stainless steel
Connection variants:
• 3/8" NPS
• 1/4" NPS
Typical areas of application
• Shut-off in high-pressure airless systems
• Pressure relief within coating systems
• Industrial applications up to 500 bar
Variants
3/8" NPS – Item no.: MA-BV-B-3/8N-SS
1/4" NPS – Item no.: MA-BV-B-1/4N-SS
Assistance with selection
We can assist you in selecting the right high-pressure ball valve for your airless system.
Get advice now
Price excl. VAT
%
System:
AirCombi
The Airless Regulator 0–16 bar is used for precise pressure control in the air range of airless systems.
It is equipped with a 3/8" internal thread and has a
1/4" coupling plug (air) for quick and secure connection to the compressed air system.
System & application
The regulator is used for precise adjustment and control of the air pressure in airless systems.
It enables constant pressure control in the range from 0 to 16 bar, thus contributing to a
uniform spray pattern and optimum material processing.
Technical design
Pressure range: 0–16 bar
Connection: 3/8" internal thread
Air connection: 1/4" coupling plug
Design: with pressure gauge
Assistance with selection
We are happy to assist you in selecting the right pressure regulator for your airless system.
Get advice now
The AirCombi regulator 0–16 bar is specially designed for AirCombi systems and enables
precise control of the air pressure in the range from 0 to 16 bar.
It has a 3/8" female thread, a
1/4" coupling plug (air) and a
1/4" elbow with male thread for flexible integration into existing systems.
System & application
The regulator is used in AirCombi systems for precise adjustment of the atomiser or additional air pressure.
Precise pressure control ensures an optimal spray pattern and makes material processing
efficient and reproducible.
Technical design
Pressure range: 0–16 bar
Connection: 3/8" internal thread
Air connection: 1/4" coupling plug
Additional connection: 1/4" external thread elbow
Design: with pressure gauge
Assistance with selection
We are happy to assist you in selecting the right pressure regulator for your AirCombi system.
Get advice now
Variants
€102.63*
€158.00*
Price excl. VAT
%
Ansaugschlauch | Rücklauf | Filter | Biegung:
M36x2 | M20x2 | 1/2" - 15 Maschen | 90°
The complete suction system, including return line and filter,
is a ready-to-install solution for coating and airless systems.
All systems consist of a suction hose with M36x2 internal thread,
return line with M20x2 and matching filter (15 mesh).
Available in a straight version or as a 90° variant with stainless steel components.
Ø 13 mm suction system
Suction hose: M36x2
Return line: M20x2
Filter: M15x1 – 15 mesh
Design: straight or 90°
Diameter: 13 mm
Material: stainless steel components
Ø 19 mm Suction system
Suction hose: M36x2
Return: M20x2
Filter: 1/2" – 15 mesh
Design: straight or 90°
Diameter: 19 mm
Material: stainless steel components
Ø 25 mm suction system
Suction hose: M36x2
Return: M20x2
Filter: M28x1.5 – 15 mesh
Design: straight or 90°
Diameter: 25 mm
Material: stainless steel components
Assistance with selection
We are happy to assist you in selecting the right suction system
in the correct size and design for your system.
Get advice now
Variants
€125.95*
€152.00*
Price excl. VAT
%
Material | Gewindeanschluss:
Edelstahl | 1/4" NPS
The high-pressure filter housing made of stainless steel is designed for applications up to
500 bar and is suitable for safe filtration in
airless and high-pressure coating systems.
The product family comprises two variants:
• Standard version with adapters and connecting nipples
• SET version with integrated M20x2 drain ball valve for safe pressure relief
System & design
Max. operating pressure: 500 bar
Material: stainless steel
Optional (SET version): M20x2 drain ball valve
Connection options:
1/4" (female thread) x 3/8" (male thread)
3/8" (female thread) x 3/8" (male thread)
1/4" (male) x 1/4" (male)
1/4" (male) x 3/8" (male)
Variants & scope of delivery
Standard version:
• High-pressure filter housing made of stainless steel
• 2 adapters
• 2 connecting nipples
SET version:
• High-pressure filter housing, stainless steel
• M20x2 drain ball valve
• 2 adapters
• 2 connecting nipples
Typical areas of application
• Filtration in airless high-pressure systems
• Protection of spray guns and nozzles against particles
• Industrial and coating applications up to 500 bar
Assistance with selection
We can assist you in selecting the right high-pressure filtration for your coating system.
Get advice now
Variants
€30.32*
€34.00*
Price excl. VAT
Schlauch | Länge | Anschluss:
Ø 3/16" | 7,5 m | 1/2" JIC
The AirCombi hose combines the material and air lines
within a single fabric-reinforced protective hose. This makes
the handling of airless or air-assisted systems significantly easier,
as both lines can be neatly bundled together.
The integrated lines are fitted with stainless steel
connectionsand provide a reliable connection for professional
coating applications. The outer protective hose reduces mechanical
stress, prevents individual lines from becoming tangled and extends the
service life of the hose system.
System & Features
AirCombi hoses are used in AirAssist and Airless systems
where the material and air lines need to be routed together.
The robust fabric protection ensures high flexibility and protects
the integrated lines from abrasion and damage during
coating work.
Technical Specifications
• Combined air and material hose
• Fabric-reinforced hose for increased durability
• Stainless steel fittings
• Material line: Ø 1/8" or 3/16"
• Connection types: 1/4" NPS or 1/2" JIC
• Available lengths: 7.5 m / 10 m / 15 m / 20 m
Available versions
• Ø 1/8" – 1/4" NPS – 7.5 m – Item no.: MA-TH-1/8-7.5-SS
• Ø 3/16" – 1/4" NPS – 7.5 m – Item no.: MA-TH-3/16-7.5-SS
• Ø 3/16" – 1/2" JIC – 7.5 m – Item no.: MA-TH-3/16-7.5-J-SS
• Ø 3/16" – 1/4" NPS – 10 m – Item No.: MA-TH-3/16-10-SS
• Ø 3/16" – 1/2" JIC – 10 m – Item no.: MA-TH-3/16-10-J-SS
• Ø 3/16" – 1/4" NPS – 15 m – Item no.: MA-TH-3/16-15-SS
• Ø 3/16" – 1/2" JIC – 15 m – Item no.: MA-TH-3/16-15-J-SS
• Ø 3/16" – 1/4" NPS – 20 m – Item no.: MA-TH-3/16-20-SS
Variants
€198.25*
€196.00*
Price excl. VAT
%
Innengewinde | Biegung:
M20x2 | 90°
The Ø13 mm return hose is designed for safe material return
in coating and airless systems.
It has an M20x2 internal thread and is available in
a straight version and a 90° version.
The stainless steel components ensure high resistance in industrial use.
System & application
The return hose is used for the controlled return of material
to upper containers or supply units.
The choice of straight or 90° versions allows the hose to be optimally
adapted to the respective installation situation.
Technical design
Diameter: 13 mm
Internal thread: M20x2
Design: straight or 90°
Material: stainless steel components
Assistance with selection
We are happy to assist you in selecting the right return hose
for your system and installation situation.
Get advice now
Variants
€44.32*
€54.00*
Price excl. VAT
%
Innengewinde:
3/4"
The stainless steel type "L" suction elbow is the ideal solution
for safe and flow-optimised material suction.
The component has an M36x2 external thread and is available with
different internal thread variants.
A suitable seal is included in the scope of delivery.
System & application
The suction elbow is used in the suction area of high-pressure and conveying systems.
Its 90° design (type "L") enables space-saving pipe routing
while ensuring a secure connection to the material container or suction system.
The stainless steel design ensures high corrosion resistance and a long service life.
Thread variants (internal thread)
1/2"
3/4"
M26x1.25
M36x2
Technical design
Material: stainless steel
Design: 90° suction elbow (type "L")
External thread: M36x2
Internal thread: optionally 1/2", 3/4", M26x1.25 or M36x2
Scope of delivery: including seal
Assistance with selection
We are happy to assist you in selecting the right suction elbow for your system and thread requirements.
Get advice now
Price excl. VAT
%
Material:
Normalstahl
The return valve unit is suitable for the
A4000 / A5000 / A10000 systems and is designed for applications up to
500 bar.
With its 1/4" (IG) x M20x2 (AG) connection combination ,
the return valve is ideal for safe control and shut-off in high-pressure return applications.
Available in carbon steel or stainless steel.
System & application
The return valve is integrated into the material return of high-pressure systems and enables
reliable shut-off and control of the material flow.
It is specially designed for the A4000, A5000 and A10000 units
and ensures safe operation even at high operating pressures.
Connection variant
1/4" (internal thread) x M20x2 (external thread)
Technical design
Max. pressure: 500 bar
Material: Normal steel or stainless steel
Suitable for: A4000 / A5000 / A10000
Connection: 1/4" (female thread) x M20x2 (male thread)
Assistance with selection
We are happy to assist you in selecting the right return valve for your high-pressure system.
Get advice now
Price excl. VAT
Length:
1.5 m

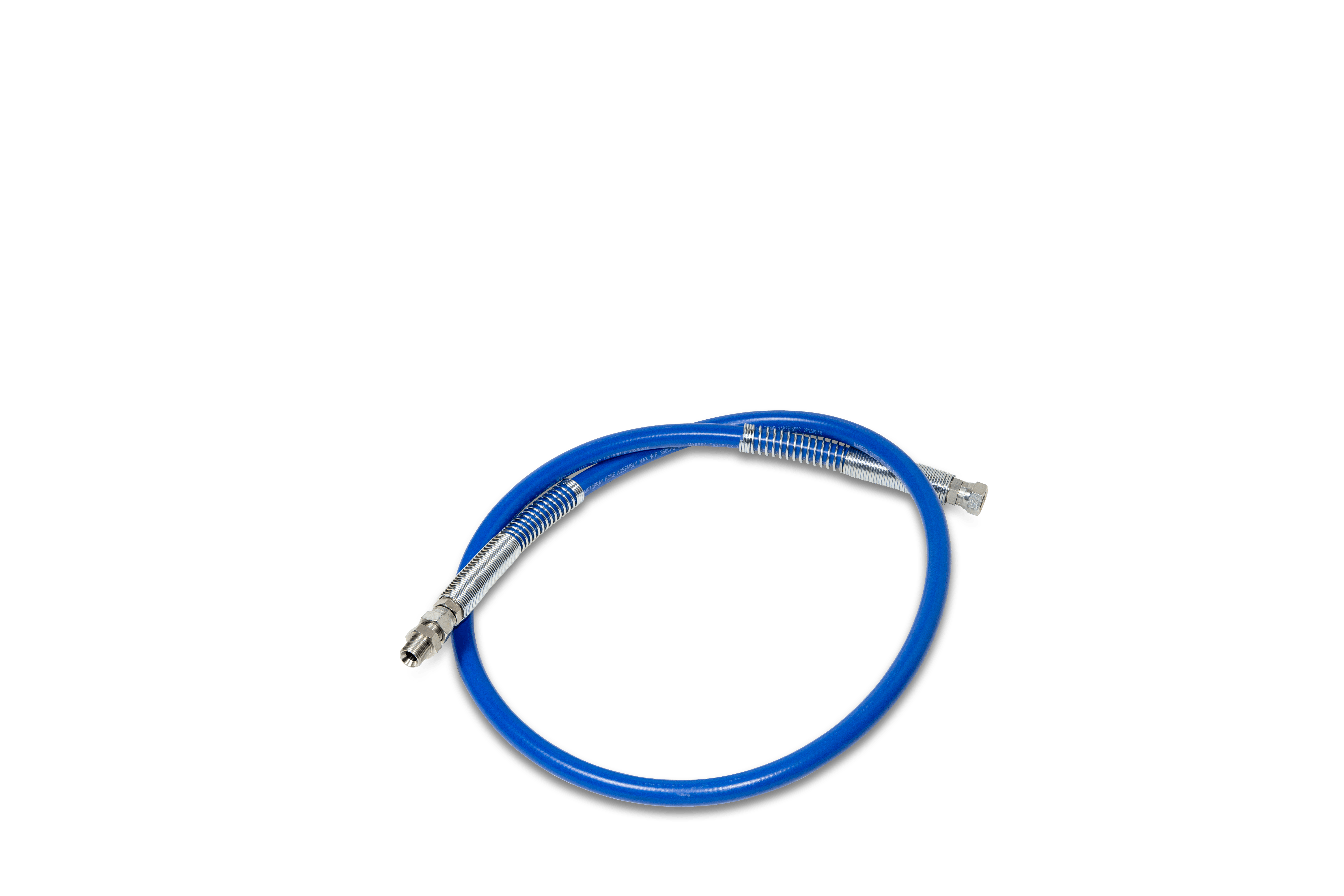

The EASYFLEX high-pressure hose whip – blue with
fabric braiding – is a short, flexible connection
between the high-pressure hose and the airless spray gun. Thanks to its larger
diameter of 3/8" (DN10), it allows for a higher
material flow rate whilst also improving the manoeuvrability of the
gun.
The hose is electrically conductive and
solvent-resistant. Robust
stainless steel fittings ensure a secure connection
within the high-pressure system and guarantee a long service life even with
intensive use.
System & Features
The hose whip reduces the stiffness of the main hose
and significantly facilitates handling of the spray gun. This enables
more comfortable and precise working, particularly during
longer coating jobs or in hard-to-reach areas.
Technical Specifications
• Hose type: Textile braided
• Electrically conductive
• Solvent-resistant
• Working pressure: 250 bar
• Burst pressure: 1,000 bar
• Connection: 3/8" NPS female / male
• Length: 1.5 m
• Diameter: 3/8" (DN10)
• Item number: MA-EF-3/8-1.5-SS
Variants
€30.32*
€26.00*
Price excl. VAT
%
Innengewinde:
M36x2
The stainless steel "U" type suction elbow is designed for safe and
flow-optimised material suction.
It has an M36x2 external thread and is available with
various internal thread variants.
A suitable seal is included in the scope of delivery.
System & application
The type "U" suction elbow is used in the suction area of high-pressure and conveying systems.
Its curved design allows for adapted pipe routing
in confined spaces and ensures a reliable connection
between the material container and the suction system.
The stainless steel design ensures high corrosion resistance
and a long service life in industrial use.
Thread variants (internal thread)
1/2"
3/4"
M26x1.25
M36x2
Technical design
Material: Stainless steel
Design: Suction elbow type "U"
External thread: M36x2
Internal thread: optionally 1/2", 3/4", M26x1.25 or M36x2
Scope of delivery: including seal
Assistance with selection
We are happy to assist you in selecting the right suction elbow for your system and your specific thread requirements.
Get advice now
Price excl. VAT
%
Select:
Axial | Pressure gauge 0-400 bar - 1/4"
The 0–400 bar – 1/4" pressure gauge with safety glass
is designed for use in high-pressure systems and impresses with its
precise pressure display and robust design.
The Ø 50 mm version is available as an axial design and
is manufactured in Germany.
System & application
The pressure gauge is used for reliable monitoring of material or system pressure
in airless and high-pressure systems up to 400 bar.
The clear scale and resistant safety glass
ensure long-lasting and reliable pressure monitoring.
Technical design Ø 50 mm
Measuring range: 0–400 bar
Connection: 1/4"
Diameter: 50 mm
Design: Axial type
Viewing window: Safety glass
Manufacture: Made in Germany
The 0–400 bar pressure gauge – 1/4" in Ø 63 mm
is available in either axial or radial design.
It offers an easy-to-read display and a robust construction
for industrial use.
Technical design Ø 63 mm
Measuring range: 0–400 bar
Connection: 1/4"
Diameter: 63 mm
Design: axial type or radial type
The profile seal for pressure gauges ensures a secure
and pressure-resistant seal when installing the pressure gauge.
It is specially designed for high-pressure applications.
Technical design of profile seal
Area of application: for 1/4" pressure gauges
Design: Profile seal
Minimum order quantity: 10 pieces
Assistance with selection
We are happy to assist you in selecting the right pressure gauge
and the appropriate seal for your high-pressure application.
Get advice now
Variants
€2.33*
€60.00*
Price excl. VAT
Length:
20 m
The EASYFLEX high-pressure hose – black,
1/4" (DN6) version, is designed for professional airless coating applications.
The combination of a flexible hose construction and
steel braided reinforcement ensures high pressure resistance and,
at the same time, good handling in daily use.
The hose is electrically conductive and
solvent-resistant. Robust
stainless steel fittings ensure a secure connection within
the high-pressure system and a long service life even with intensive use.
System & Features
The EASYFLEX hose is suitable for use with airless spray systems
and enables reliable material delivery at high pressures.
The flexible construction reduces hose stiffness and makes it easier
to guide the spray gun during coating work.
Technical Specifications
• Hose type: Steel braided
• Electrically conductive
• Solvent-resistant
• Working pressure: 430 bar
• Burst pressure: 1,300 bar
• Connection: 1/4" NPS female / female
• Diameter: 1/4" (DN6)
Available lengths
• 10 m – Item no.: MA-EF-W1-1/4-10-SS
• 15 m – Item no.: MA-EF-W1-1/4-15-SS
• 20 m – Item no.: MA-EF-W1-1/4-20-SS
Variants
€65.31*
€98.00*
Price excl. VAT
%
Innengewinde:
3/4"
The adapter for intake elbows is used for the secure and precise connection
of intake elbows to different connection sizes.
It has an M36x2 external thread and is available with
various internal thread variants.
A suitable seal is included in the scope of delivery.
System & application
The adapter is used in combination with suction elbows to enable flexible
adaptation to different container or pipe connections.
It ensures a reliable, tight connection in the suction area of
high-pressure and conveying systems and guarantees safe material flow.
Thread variants (internal thread)
1"
1/2"
3/4"
Technical design
Material: steel
External thread: M36x2
Internal thread: optionally 1", 1/2" or 3/4"
Scope of delivery: including seal
Assistance with selection
We are happy to assist you in selecting the right adapter for your intake elbow and your specific connection size.
Get advice now
Price excl. VAT
Length:
1.5 m
The EASYFLEX high-pressure hose whip – blue with
fabric braiding – is a short, flexible connection
between the high-pressure hose and the airless spray gun. With a
diameter of 1/4" (DN6), it improves the
manoeuvrability of the gun and significantly reduces the stiffness of the
main hose.
The hose is electrically conductive and
solvent-resistant. Robust
stainless steel fittings ensure a secure connection
within the high-pressure system and guarantee a long service life in
professional use.
System & Features
The hose whip is fitted between the main hose and the spray gun
and ensures significantly better handling during
coating. This allows airless guns to be guided more precisely,
particularly during longer coating jobs or in hard-to-reach
areas.
Technical Specifications
• Hose type: Textile braided
• Electrically conductive
• Solvent-resistant
• Working pressure: 250 bar
• Burst pressure: 1,000 bar
• Diameter: 1/4" (DN6)
• Length: 1.5 m
• Connection types:
– 1/4" NPS female / male – Item no.: MA-EF-1/4-1.5-SS
– 1/4" / 3/8" – Item no.: MA-EF-1/4-1.5-SS-3
Variants
€23.32*
€22.00*
Price excl. VAT
The EASYFLEX high-pressure hose whip is a flexible
airless high-pressure hose designed for precise coating work.
The electrically conductive hose is solvent-resistant
and fitted with robust stainless steel connectors.
The small diameter of 3/16" (DN5)
enables particularly flexible hose routing,
which significantly improves the handling of the spray gun.
Technical specifications
• Hose type: Steel braided
• Electrically conductive
• Solvent-resistant
• Working pressure: 460 bar
• Burst pressure: 1,400 bar
• Connection: 1/4" NPS female / male
• Length: 1.5 m
• Item number: MA-EF-W1-3/16-1.5-SS
Variants
€20.99*
€18.00*
Price excl. VAT
Execution:
Standard | 2x adapters | 2x connecting nipples
The high-pressure filter housing made of stainless steel is designed for applications up to
500 bar and is used for safe filtration in high-pressure applications.
The scope of delivery includes 2 adapters and
2 connecting nipples.
System & application
The filter housing is integrated into high-pressure lines and enables
reliable filtration in the material flow at pressures up to 500 bar.
Connection variants
1/4" (female thread) x 3/8" (male thread)
3/8" (female thread) x 3/8" (male thread)
1/4" (male) x 1/4" (male)
1/4" (male) x 3/8" (male)
Technical design
Max. pressure: 500 bar
Material: stainless steel
Scope of delivery: 2 adapters, 2 connecting nipples
Assistance with selection
We are happy to assist you in selecting the right high-pressure filter system for your application.
Get advice now
Variants
€139.94*
€120.00*
Price excl. VAT
Innengewinde | Schlauch:
3/8" NPS | Ø 3/8"
The high-pressure fittings for fabric-reinforced hoses are designed for
the reliable assembly of airless high-pressure hoses.
The fittings are made of stainless steel, whilst the
cap nut is madeof carbon steel and ensures a
secure and stable connection.
The fittings are specifically designed for high-pressure textile-braidedhoses
and enable professional assembly of
airless hose lines. The precisely machined threads
ensure a secure and leak-proof connection within the high-pressure system.
System & Application
The high-pressure fittings are suitable for assembling
airless high-pressure hoses in various diameters.
They are mounted directly onto the hose and enable
connection to spray guns, hose extensions or
airless pump systems.
Available versions
• 1/4" NPS female thread – hose Ø 1/8" – Item No.: MA-EF-T-F-SS-1/8
• 1/4" NPS female thread – hose Ø 3/16" – Item No.: MA-EF-T-F-SS-3/16
• 1/4" NPS female thread – hose Ø 1/4" – Item No.: MA-EF-T-F-SS-1/4
• 3/8" NPS female thread – Hose Ø 3/8" – Item no.: MA-EF-T-F-SS-3/8
• 1/2" NPS female thread – Hose Ø 1/2" – Item no.: MA-EF-T-F-SS-1/2
Variants
€4.66*
€5.40*
Price excl. VAT
%
The transport case is a robust and practical solution
for the safe transport and protected storage of your coating equipment
and accessories. Thanks to its sturdy construction and integrated castors,
the case is ideal for mobile use on construction sites or in the service sector.
Features & benefits
Extendable transport handle
Internal pocket with zip
Sturdy metal fasteners
Side carrying handles
Smooth-running wheels for comfortable transport
Technical data
Internal dimensions: approx. 50 × 44 × 60 cm
Weight (case): approx. 15 kg
Max. load capacity: approx. 45 kg
Compatibility
Suitable for:
BS20 / EP21
A4000
Universal applications and accessories
Assistance with selection
We are happy to assist you in selecting the right transport case
for your system and accessories.
Get advice now
Price excl. VAT
%
Innengewinde | Anschlussgewinde | Biegung:
Ø19 mm M36x2 | 1/2" | gerade
The Ø13 mm, Ø19 mm and Ø25 mm suction hoses are designed for
professional use in coating and airless systems.
All versions have an M36x2 internal thread and are available in
straight or 90° versions.
The stainless steel components ensure high durability in industrial use.
Ø 13 mm suction hose
Internal thread: M36x2
Filter connection thread: M15x1
Design: straight or 90°
Material: stainless steel components
Diameter: 13 mm
Ø 19 mm suction hose
Internal thread: M36x2
Filter connection thread: 1/2"
Design: straight or 90°
Material: stainless steel components
Diameter: 19 mm
Ø 25 mm suction hose
Internal thread: M36x2
Filter connection thread: M28x1.5
Design: straight or 90°
Material: stainless steel components
Diameter: 25 mm
Assistance with selection
We are happy to assist you in selecting the right suction hose
in the correct size and design for your system.
Get advice now
Variants
€69.97*
€64.00*
Price excl. VAT
SCHLAUCH:
Ø 1/8"
The kink protection spring for textile hoses reliably protects
airless high-pressure hoses against excessive bending and
mechanical stress at the connection points. It is made of
robust carbon steel and significantly extends the service life
of high-pressure hoses.
The spring is fitted over the hose in the connection area and
prevents kinking or excessive bending during
coating work. This keeps the material flow constant
and protects the hose from premature wear.
System & Application
Kink protection springs are used with airless high-pressure hoses
to stabilise areas subject to particular stress at the hose connections.
They are suitable for both new hose assemblies
and existing hose lines in professional
coating operations.
Available versions
• for hose Ø 1/8" – Item No.: MA-EF-T-SG-1/8
• for hose Ø 3/16" – Item No.: MA-EF-T-SG-3/16
• for hose Ø 1/4" – Item No.: MA-EF-T-SG-1/4
• for hose Ø 3/8" – Item No.: MA-EF-T-SG-3/8
• for hose Ø 1/2" – Item no.: MA-EF-T-SG-1/2
Variants
€2.10*
€1.80*
Price excl. VAT
The swivel joint with ball bearing provides a flexible
connection between high-pressure components and reduces
hose kinking during the spraying process.
Technical specifications
• Material: stainless steel
• Ball-bearing swivel joint
• Maximum operating pressure: 500 bar
• External thread: 3/8" NPS
• Internal thread: 1/4" NPS
• Item number: MA-7012-SS
Variants
€55.98*
€48.00*
Price excl. VAT
%
Rohrdurchmesser:
Ø 50–250 mm
The Mini and Big internal pipe coating systems enable uniform
coating of pipes of various diameters. The systems are designed for
professional applications and ensure controlled material distribution
within pipes and hollow structures.
Both variants use an 11/16" diffuser and feature a
1/4" hose connection. The actual omnidirectional nozzle systems and
matching extensions are available separately and can be
combined individually depending on the application.
System & Operating Principle
The coating units are positioned centrally within the pipe and ensure
even distribution of the coating material along the
inner surface. The sturdy guide arms keep the system centred during the
coating process, thereby achieving an even application
along the pipe wall.
Thanks to the modular design, nozzles, extensions and
omnidirectional nozzle systems can be adapted to suit the pipe diameter and application
.
Variants & Applications
Mini Pipe Interior Coating
• Pipe diameter: Ø 50 – 250 mm
• Diffuser: 11/16"
• Hose connection: 1/4"
• Item number: MA-PNEU-MINI
Big internal pipe coating
• Pipe diameter: Ø 250 – 750 mm
• Diffuser: 11/16"
• Hose connection: 1/4"
• Item number: MA-PNEU-BIG
Typical applications
• Internal coating of pipework
• Corrosion protection in piping systems
• Coating of industrial pipework
• Applications in industry, plant engineering and pipe rehabilitation
Price excl. VAT
%
Länge | Anschlussgewinde:
100 cm | 11/16"
The 100 cm aluminium nozzle extension provides a significantly greater
working range for airless spray systems. It is designed for professional coating work
and is rated for a maximum operating pressure of 250 bar.
System & Design
The extension has a total length of 100 cm and is made of
aluminium.
The symbols shown indicate the key features:
a tape measure for length indication and two possible connection threads
7/8" and 11/16".
Delivery is subject to a minimum order quantity of 5 pieces (mix & match).
Typical applications
• Airless coating of large surfaces
• Work on high walls or ceilings
• Coating without scaffolding or ladders
• Hard-to-reach areas
Variants & models
• Length: 100 cm
• Material: aluminium
• Maximum operating pressure: 250 bar
• Connection thread: 7/8" or 11/16"
• Minimum order quantity: 5 pieces
• Item numbers: MA-EXT-1000-G / MA-EXT-1000-F
Price excl. VAT
%
Länge | Anschlussgewinde:
75 cm | 7/8"
The 75 cm aluminium nozzle extension increases the reach of airless spray systems
for coating work on larger surfaces or in hard-to-reach areas.
It is designed for professional use and can withstand a maximum operating pressure of
250 bar.
System & Design
The extension is made of aluminium and has a total length of
75 cm.
The icons show the key features: a tape measure for length indication and two
available connection threads: 7/8" and 11/16".
The products are available with a minimum order quantity of 5 pieces (mix & match).
Typical applications
• Airless coatings
• Coating of large surfaces
• Work on ceilings or high walls
• Hard-to-reach areas
Variants & models
• Length: 75 cm
• Material: aluminium
• Maximum operating pressure: 250 bar
• Connection thread: 7/8" or 11/16"
• Minimum order quantity: 5 pieces
• Item numbers: MA-EXT-750-G / MA-EXT-750-F
Price excl. VAT
Length:
10 m
The EASYFLEX high-pressure hose – blue with
fabric braiding – is a flexible airless high-pressure hose
for professional coating applications. The lightweight and flexible
hose construction allows for comfortable handling and ensures
reliable material delivery.
The hose is electrically conductive and
solvent-resistant. High-quality
stainless steel fittings ensure a secure connection
within the high-pressure system and a long service life even with intensive use.
System & Features
Thanks to the flexible textile braiding, the EASYFLEX hose
is particularly suitable for applications where a high degree of manoeuvrability of the
spray gun is required. The hose is designed for airless systems
and offers reliable performance in daily
coating applications.
Technical Specifications
• Hose type: Textile braiding
• Electrically conductive
• Solvent-resistant
• Working pressure: 250 bar
• Burst pressure: 1,000 bar
• Connection: 1/4" NPS female / female
• Diameter: 3/16" (DN5)
Available lengths
• 7.5 m – Item no.: MA-EF-3/16-7.5-SS
• 10 m – Item no.: MA-EF-3/16-10-SS
• 15 m – Item no.: MA-EF-3/16-15-SS
Variants
€39.65*
€42.00*
Price excl. VAT
%
Länge | Anschlussgewinde:
50 cm | 7/8"
The 50 cm aluminium nozzle extension increases the reach of airless spray systems and makes it easier
to carry out coating work in hard-to-reach areas or on larger surfaces.
It is designed for professional use and operates at a maximum working pressure of
250 bar.
System & Design
The extension is made of aluminium and has a length of
50 cm.
The symbols in the image show the key features: a tape measure for
length indication and two connection options with
7/8" or 11/16" threads.
The products are available with a minimum order quantity of 5 pieces (mix & match).
Typical applications
• Airless coatings
• Coating of large surfaces
• Working overhead or at height
• Hard-to-reach areas
Variants & versions
• Length: 50 cm
• Material: aluminium
• Maximum operating pressure: 250 bar
• Connection thread: 7/8" or 11/16"
• Minimum order quantity: 5 pieces
• Item numbers: MA-EXT-500-G / MA-EXT-500-F
Price excl. VAT
The swivel joint with ball bearing enables a flexible
connection between high-pressure components in airless systems.
The swivel function reduces hose kinking and makes
the spray system easier to handle.
Technical specifications
• Material: stainless steel
• Ball-bearing swivel joint
• Maximum operating pressure: 500 bar
• External thread: 1/4" NPS
• Internal thread: 1/4" NPS
• Item number: MA-7009-SS
Variants
€55.98*
€48.00*
Price excl. VAT
The high-pressure stainless steel coupling
enables the secure connection of airless components
with different thread sizes. The robust stainless steel construction
is designed for industrial applications up to 500 bar.
Technical specifications
• Material: Stainless steel
• Maximum operating pressure: 500 bar
• Male thread: 3/8" NPS
• Male thread: 1/2" NPS
• Item number: MA-M3/8NxM1/2N-SS
Variants
€13.99*
€12.00*
Price excl. VAT
Schlauchdurchmesser:
Ø 1/2"
The EASYFLEX high-pressure hose – sold by the metre (blue) with
textile braiding is a flexible airless high-pressure hose
for professional coating systems. As it is supplied
by the metre, this allows for customised cutting
to the required length for airless systems, material lines or
customised hose solutions.
The hose is electrically conductive and
solvent-resistant, making it suitable for
use with solvent-based coating materials. The flexible
textile braiding ensures good handling and reliable
material delivery in professional coating operations.
System & Features
The EASYFLEX hose can be cut to the desired length
and fitted with suitable high-pressure connectors.
This makes it ideal for airless systems,
material lines and customised high-pressure hose solutions.
Technical Specifications
• Hose type: Textile braided
• Electrically conductive
• Solvent-resistant
• Working pressure: 250 bar
• Burst pressure: 1,000 bar (up to Ø 3/8")
• Burst pressure: 875 bar (Ø 1/2")
• Version: Sold by the metre without fittings
Available diameters
• Ø 3/16" – Item no.: MA-EF-T-3/16-R
• Ø 1/4" – Item no.: MA-EF-T-1/4-R
• Ø 3/8" – Item no.: MA-EF-T-3/8-R
• Ø 1/2" – Item no.: MA-EF-T-1/2-R
Variants
€3.73*
€7.80*
Price excl. VAT
Hose type
Air hose
Reel size
200 m
Operating pressure
20 bar
Hose diameter
6 x 10 mm
List price
€3.60 / m
Retail price
€1.80 / m
Item number
MA-TPU20-6-AIR
The 6 x 10 mm air hose is a robust and flexible compressed air hose for industrial applications in workshops, production facilities and coating systems.
With a maximum operating pressure of 20 bar, the hose is ideal for use in compressed air systems, pneumatic controls and for airless and AirAssist coating systems. The flexible material ensures easy handling and high kink resistance in daily use.
The hose is supplied in 200 m rolls and can be cut to length as required. This makes it ideal for installations in workshops, production lines or for custom hose assemblies.
Features:
• Compressed air hose for industrial applications
• Operating pressure up to 20 bar
• Hose dimensions 6 x 10 mm
• High flexibility and kink resistance
• Supplied on 200 m rolls
• Ideal for pneumatic systems and coating technology
Variants
€4.20*
€3.60*
Price excl. VAT
