Manufacturer no.: MA-MT-U-115

MASPRA Universal Reversible Nozzle Standard 115 – Airless Spray Nozzle, 10° spray angle · 0.015 inches · 280 bar

Number	Unit price
Until 3	€32.65* €33.00* (1.06% saved) €27.44* (Price excl. VAT)
Away 4	€31.02* €33.00* (6% saved) €26.07* (Price excl. VAT)

Prices include VAT plus shipping costs

€28.00*

Price excl. VAT

Ready for shipping in 1-3 days

14 days free exchange

Select

EU B2B: net prices with valid VAT ID

Scope of delivery

1 Stück

Also interesting

Product information

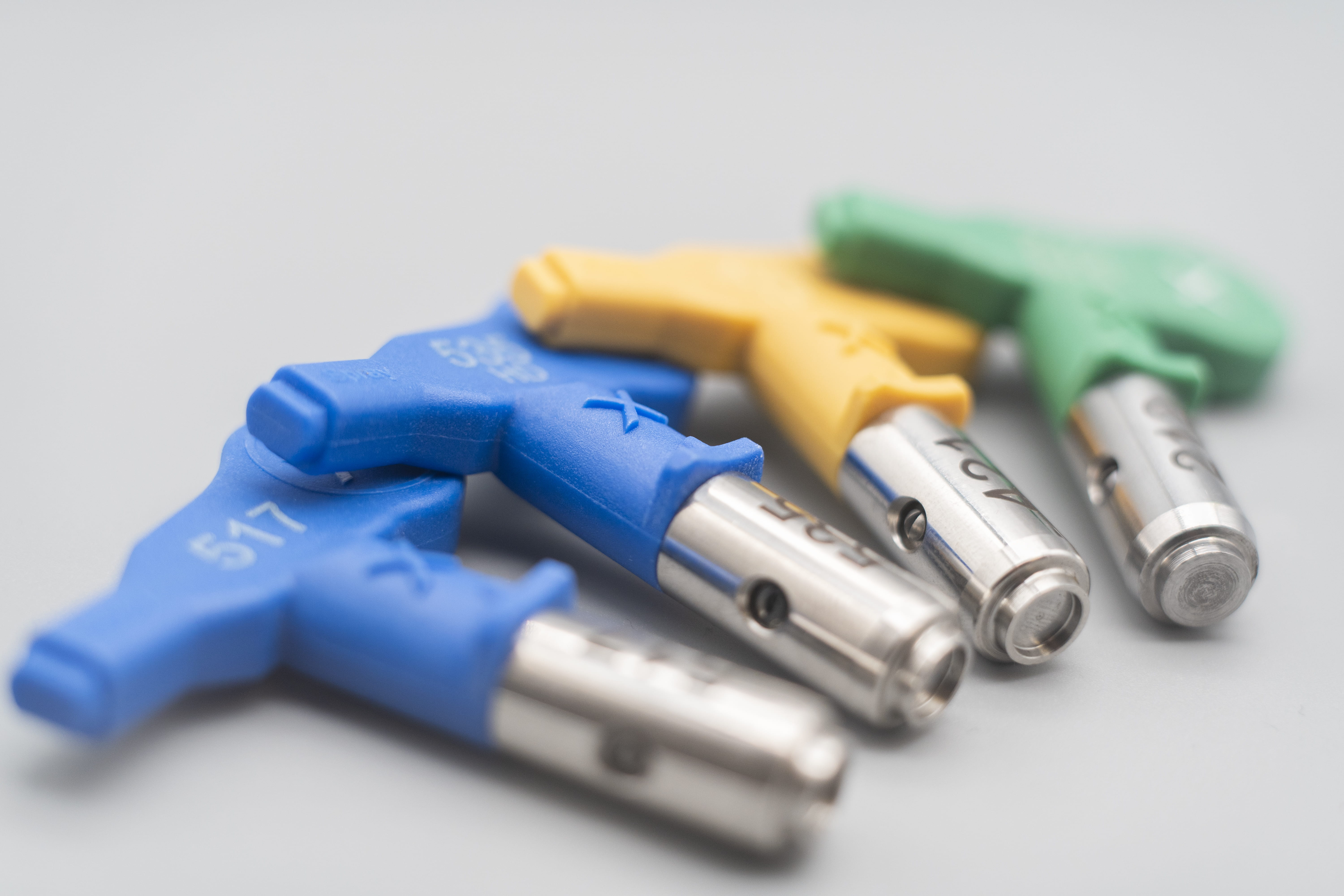

The MASPRA Universal Reversible Nozzle – Standard Type is a high-quality airless reversible nozzle for professional coating work. The universal system is designed for a maximum operating pressure of 280 bar and is available in a wide range of spray angles and nozzle sizes.

The table below shows the available nozzle sizes in inches, as well as the corresponding nozzle specifications for each spray angle.

Standard Nozzle Selection

Spray angle	.007	.009	.011	.013	.015	.017	.019	.021	.023	.025	.027	.029	.031	.033	.035	.037	.039	.041	.043	.045	.047	.049	.051	.053	.055	.057	.059	.061	.063
10°	107	109	111	113	115	117	119	121
20°	207	209	211	213	215	217	219	221	223	225	227	229	231	231	235	237	239	241	243	245	247	249	251	253	255	257	259	261	263
30°	307	309	311	313	315	317	319	321	323	325	327	329	331	331	335	337	339	341	343	345	347	349	351	353	355	357	359	361	363
40°	407	409	411	413	415	417	419	421	423	425	427	429	431	431	435	437	439	441	443	445	447	449	451	453	455	457	459	461	463
50°		509	511	513	515	517	519	521	523	525	527	529	531	531	535	537	539	541	543	545	547	549	551	553	555	557	559	561	563
60°		609	611	613	615	617	619	621	623	625	627	629	631	631	635	637	639	641	643	645	647	649	651	653	655	657	659	661	663
70°			711	713	715	717	719	721	723	725	727	729	731	733	735
80°			811	813	815	817	819	821	823	825	827	829	831	833	835
90°						917	919	821	823	925	927	929	931	933	935

Spray angles of 100°, 110°, 120° and other sizes available on request.

Selection guidance

We’d be happy to help you choose the right MASPRA universal reversible nozzle in terms of spray angle, nozzle size and application.
