Maspra AirCombi PP30-UP pump on trolley, including 6-litre upper tank, return line and high-pressure filter housing – pneumatic piston pumps
€2,618.00*
% €3,332.00* (21.43% saved)Ready for shipping in 2-4 Werktage
Scope of delivery
With a gear ratio of 30:1, a displacement of 40 ccm and a flow rate of 3.8 l/min, the PP30-UP is a reliable solution for medium-sized quantities of material and continuous coating processes.
System & Operating Principle
The PP30-UP operates as a pneumatic piston pump. The piston is driven directly by compressed air, ensuring robust, low-maintenance and spark-free material delivery.
The 30:1 gear ratio enables high material pressures to be built up whilst maintaining a controlled flow rate. When used with suitable spray guns, the system can be employed for both traditional airless and AirCombi applications.
The integrated 6-litre upper tank with return line and high-pressure filter housing ensures clean material flow and consistent application.
Typical areas of application
• Airless and AirCombi coatings
• Industrial and anti-corrosion protection
• Use in potentially explosive atmospheres
• Application of medium- to high-viscosity materials
• Workshop and mass-production applications
Variants & versions of the PP30-UP
The PP30-UP is available as a base pump or as a pre-configured SprayPack. All variants are based on the same pneumatic pump unit and differ only in terms of what is included in the scope of supply.
| Product | Version | Upper tank / filter | Equipment / Set | Key technical data |

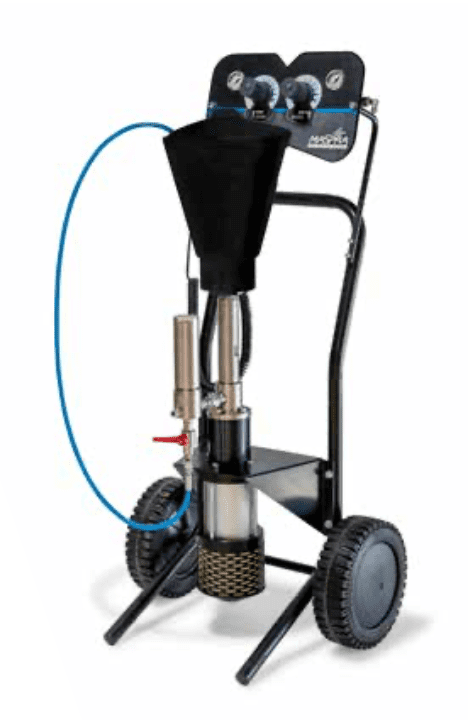

 | PP30-UP Basic version | 6-litre upper tank Return High-pressure filter housing | Pump unit on trolley Excluding hose and spray gun set | Gear ratio: 30:1 Displacement: 40 ccm Flow rate: 3.8 l/min |

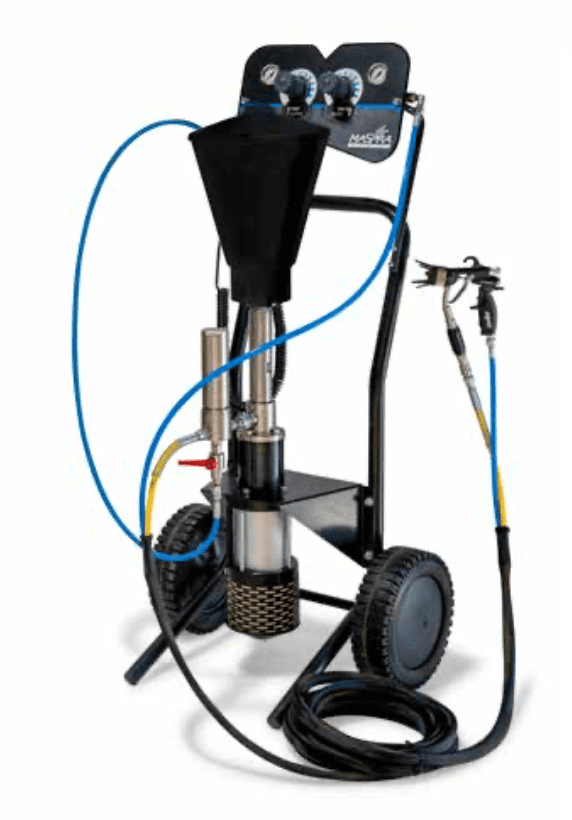

 | SprayPack PP30-UP | 6-litre top tank Return High-pressure filter housing | Tandem hose 3/16" – 7.5 m AC spray gun M140-R Red air cap Nozzle 411 | Ratio: 30:1 Displacement: 40 ccm Flow rate: 3.8 l/min |
| Container size: | 6 L |
|---|---|
| Item type: | Set |
| Pump type: | Pneumatische Pumpe |
- Product number: 2187585
- Manufacturer: Maspra
