Manufacturer no.:
XDL6DA
XDX™ 20, air/water/antifreeze/screen wash, 1/2 in. inlet, no accessories, 1/2 in. x 50 ft (13 mm x 15 m) capacity, NPT, truck bed or workbench mounting, white
€959.62*
% €1,066.24* (10% saved)Prices include VAT plus shipping costs
€806.40*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information

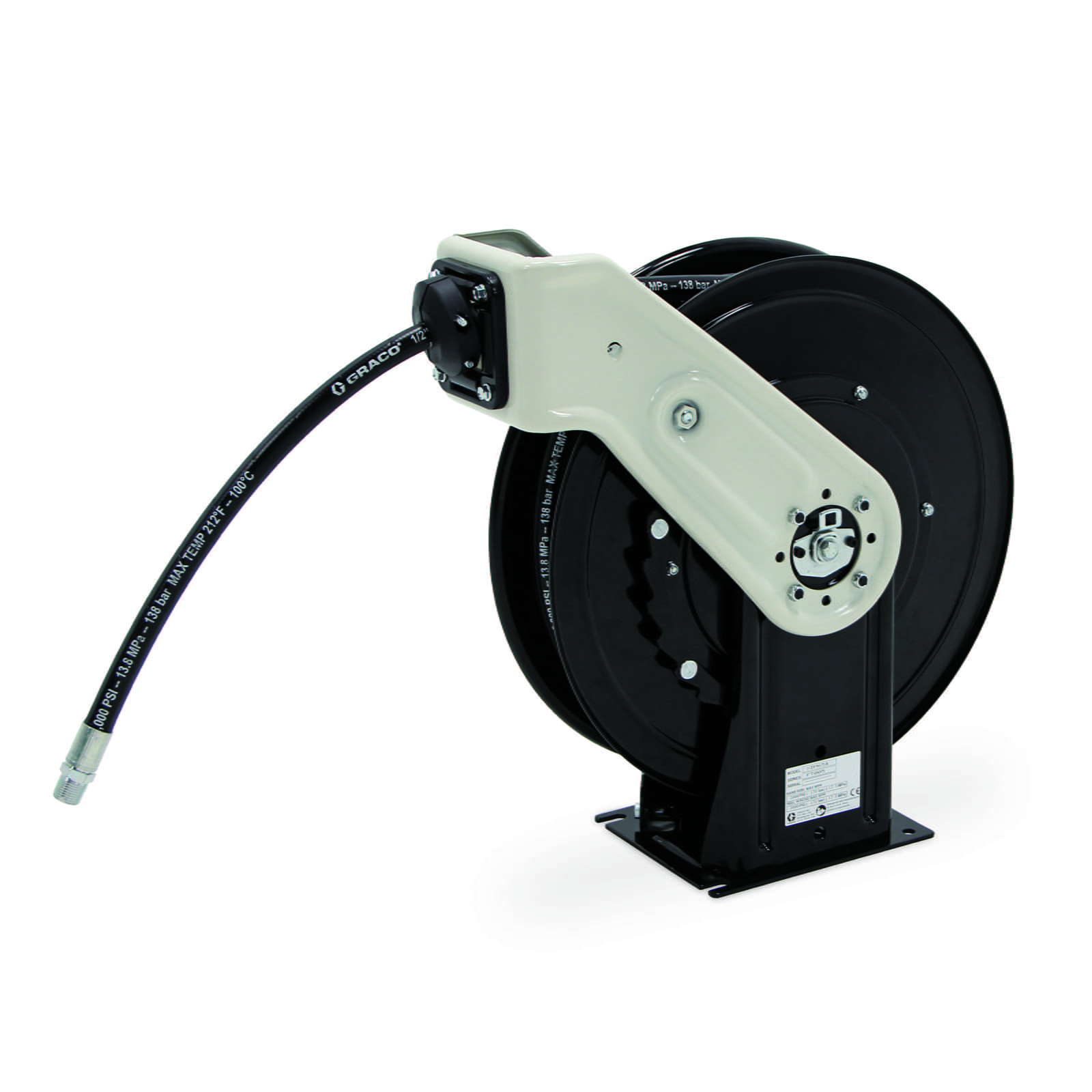

Graco's rugged XDX hose reel features a heavy-duty, rugged double stand; a steel reel; sealed components and an innovative swivel design for high-quality performance even in the most demanding applications.
Ideal for indoor or outdoor use by heavy-duty truck dealers, fleet maintenance, public works, construction vehicle maintenance, and agricultural and emergency vehicle maintenance.
- Spring adjustment – increase or decrease spring tension while the reel is pressurised with material.
- Full-flow swivel – Maximise fluid flow with minimal pressure drop for faster filling – so you can increase throughput in your workshop.
- Optional Adjustable Arm – Easily change the arm position for your application, order with arm (HS models) or without arm (HN models)
- Durable finish – baked-on enamel paint protects the reel from corrosion
- Large hose capacity in a small footprint – Compact stand and reel fit in tight spaces and hold 35-65 feet (10.7-19.8 meters) of hose for a variety of applications
| Application: | Air, water, antifreeze, WWS |
|---|---|
| Colour: | White |
| Frame type: | Double base |
| Gender of the inlet thread: | External thread |
| Gender of the outlet thread: | Internal thread |
| Hose included: | No |
| Hose length (m): | 15 |
| Hose reel type: | Reel without accessories |
| Inlet size (inch): | 1/2 |
| Inlet size (mm): | 12.7 |
| Inlet thread type: | NPSM |
| Inner diameter hose (inch): | 1/2 |
| Inner diameter hose (mm): | 12.7 |
| Maximum operating pressure (psi): | 300 |
| Maximum temperature (°C): | 87 |
| Minimum temperature (°C): | -28 |
| Mounting position: | Truck mount, work surface mounting |
| Outlet size (inch): | 1/2 |
| Outlet size (mm): | 12.7 |
| Recommended environment: | Indoor, For outdoor use |
| Reel thread type: | NPT |
| Series: | 20 |
| Single retractor: | 1 |
| Total height (mm): | 508 |
| Total length (mm): | 533 |
| Total width (mm): | 196 |
| Type: | Spring reel |
| Wetted parts: | Stainless steel, anodised aluminium, nitrile rubber |
More information
- Product number: 1032232
- Manufacturer: Graco
- EAN: 00769946210606
Technical details
Operating specifications
| UPC product | 769946210606 |
|---|---|
| Division | LED |
| Price Block | 150 |
| Country of Origin | US |
| Unit of measurement | EA |
| Height | 0 CM |
| Length | 0 CM |
| Width | 0 CM |
| Volume | 0 M3 |
| Shipping weight | 0 KG |
| HTS code (EU) | 7326905000 |
| HTS code (GB) | 7326905000 |
Technical
| Inner diameter of hose (mm) | 12. 7 |
|---|---|
| Inlet size (in) | 1/2 |
| Inlet size (mm) | 12. 7 |
| Maximum temperature (°C) | 87 |
| Maximum temperature (°F) | 1 90 |
| Maximum working pressure (psi) | 300 |
| Minimum temperature (°C) | -28 |
| Minimum temperature (°F) | - 20 |
| Outlet size (in) | 1/2 |
| Outlet size (mm) | 12. 7 |
| Overall height (in) | 20 |
| Overall height (mm) | 508 |
| Overall Length (in) | 2 1 |
| Overall length (mm) | 5 33 |
| Overall width (in) | 7. 7 |
| Overall width (mm) | 1 96 |
| Series | 20 |
| Frame Type | Dual Pedestal |
| Reel Thread Type | NPT |
| Inlet thread gender | Male |
| Outlet thread gender | Female |
| Recommended fluid type | Air, water, antifreeze, WWS |
| Hose reel type | Bare reel |
| Includes Hose | No |
Further manufacturer information
Produkthandbücher
- 3A8865F, Handbuch, Schlauchaufroller der Serie SDX und XDC 10/20, Montage, Reparatur, Teile (Deutsch)
- 3A8865F, Handbuch, Schlauchaufroller der Serie SDX und XDC 10/20, Montage, Reparatur, Teile (English)
- 3A8865F, Handbuch, Schlauchaufroller der Serie SDX und XDC 10/20, Montage, Reparatur, Teile (Español)
- 3A8865F, Handbuch, Schlauchaufroller der Serie SDX und XDC 10/20, Montage, Reparatur, Teile (Français)
- 3A8865F, Handbuch, Schlauchaufroller der Serie SDX und XDC 10/20, Montage, Reparatur, Teile (русский)
- 3A8865F, Handbuch, Schlauchaufroller der Serie SDX und XDC 10/20, Montage, Reparatur, Teile (中文)
