Manufacturer no.:
HSHCDB

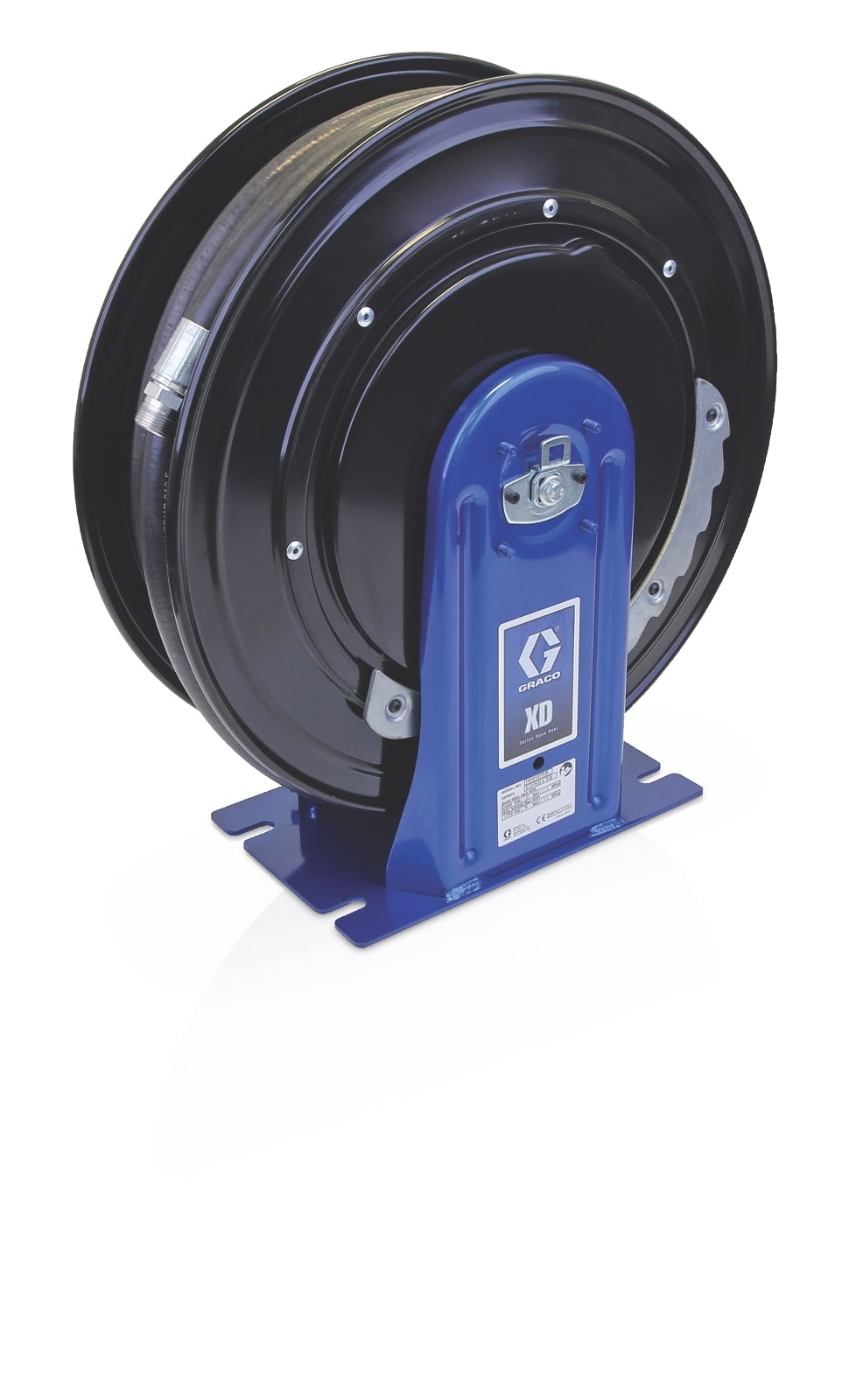

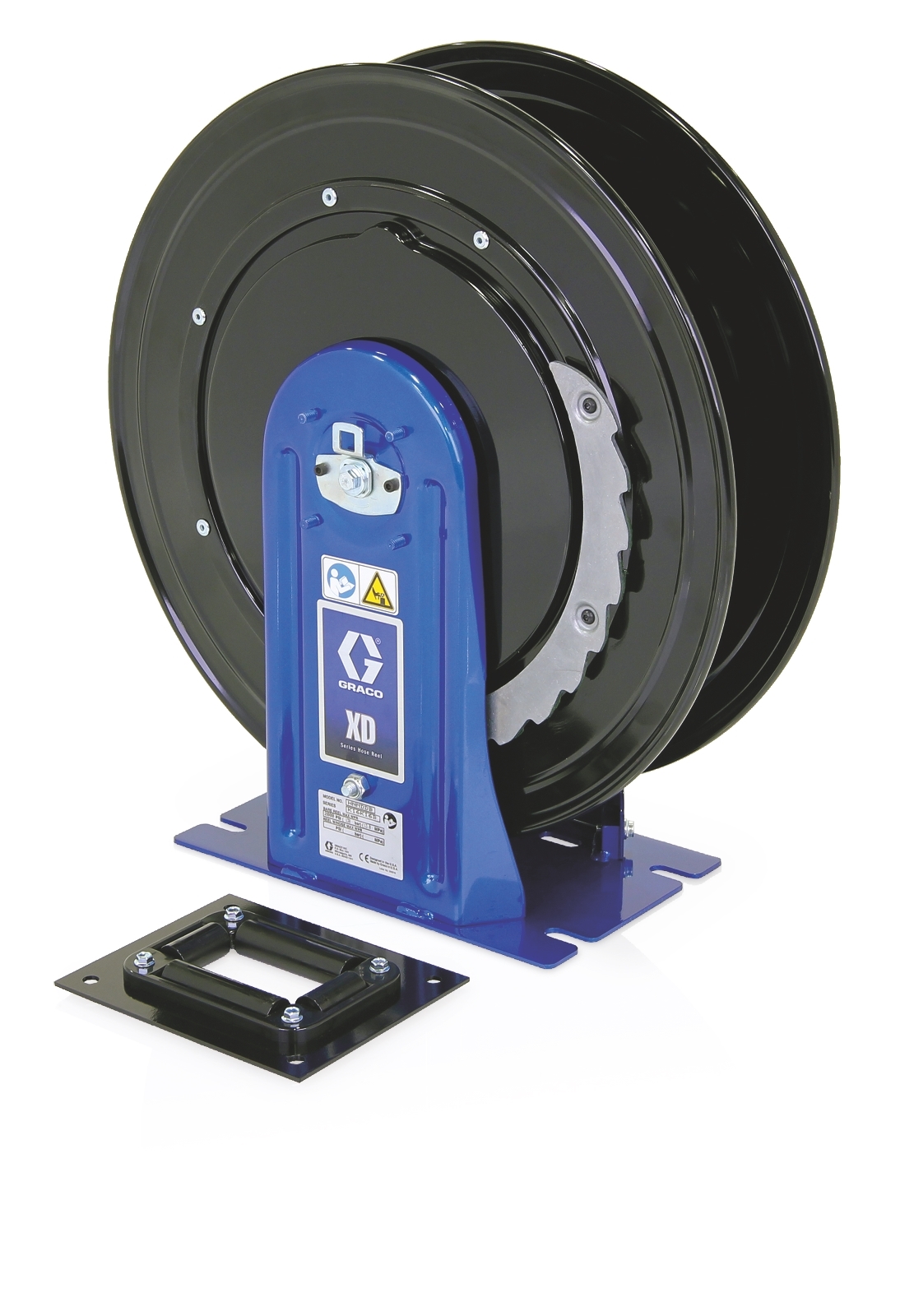

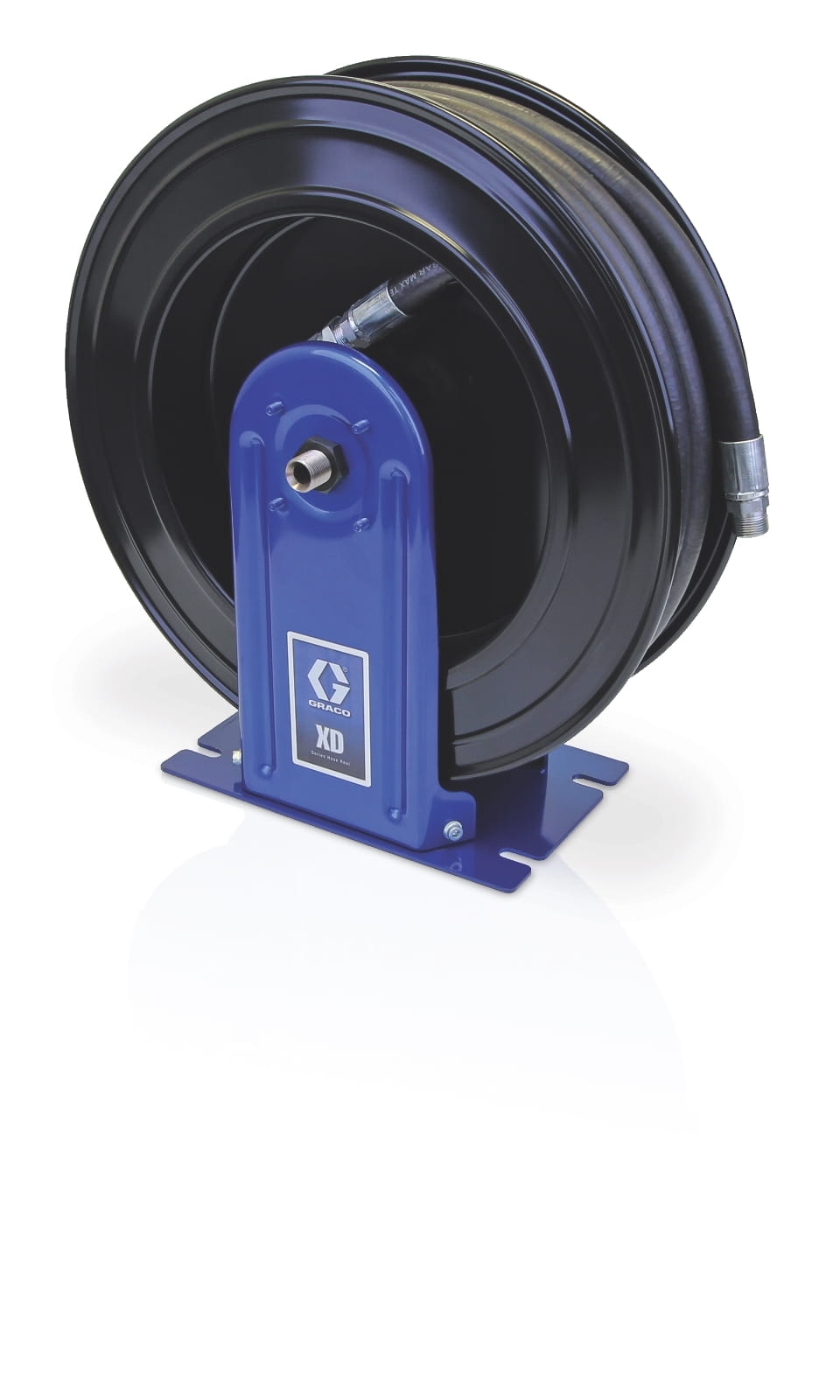

XD30™, grease, 13 mm (1/2") inlet, no accessories (13 mm x 15 m (1/2" x 50') capacity), NPT, mounting on truck bed or workbench, metallic blue
€1,802.85*
Ready for shipping in 5-8 days
Also interesting
Product information
Graco XD30 series hose reels are used in applications that require more reach and capacity than the standard XD10 and XD20 series. The compact stand and reel fit into tight spaces and can accommodate 9.1-22.8 metres (30-75 feet) of hose for a wide range of applications. Typical materials include: petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, screen wash, high-pressure cleaner, waste oil and AdBlue.
Ideal for use in both indoor and outdoor applications at heavy-duty vehicle dealerships, fleet maintenance, public works, construction vehicle maintenance, and agricultural and emergency service vehicles.
- Spring adjustment – increase or decrease spring tension while the reel is pressurised with material.
- Full-flow swivel – Maximise fluid flow with minimal pressure drop for faster filling – so you can increase throughput in your workshop.
- Optional Adjustable Arm – Easily change the arm position for your application, order with arm (HS models) or without arm (HN models)
- Durable finish – baked-enamel paint protects the reel from corrosion
- Large hose capacity in a small footprint – Compact stand and reel fit in tight spaces and accommodate 91 to 228 metres (30-75 feet) of hose for a variety of applications
| Application: | Fat |
|---|---|
| Colour: | Metallic Blue |
| Frame type: | Double base |
| Hose included: | No |
| Hose length (m): | 15 |
| Hose reel type: | Reel without accessories |
| Inlet size (inch): | 1/2 |
| Inlet size (mm): | 12.7 |
| Inlet thread type: | NPSM |
| Inner diameter hose (inch): | 1/2 |
| Inner diameter hose (mm): | 12.7 |
| Maximum operating pressure (psi): | 5000 |
| Model: | XD |
| Mounting position: | Truck mount, work surface mounting |
| Outlet size (inch): | 1/2 |
| Outlet size (mm): | 12.7 |
| Recommended environment: | Indoor, For outdoor use |
| Recommended material type: | Fat |
| Reel thread type: | NPT |
| Series: | 30 |
| Single retractor: | 1 |
| Total height (mm): | 588.00 |
| Total length (mm): | 561.73 |
| Total width (mm): | 229 |
| Type: | Spring reel |
More information
- Product number: 1036327
- Manufacturer: Graco
- EAN: 00633955554061
- Weight: 37.146 kg
- Length: 670 mm
- Width: 270 mm
- Height: 650 mm
Technical details
Operating specifications
| UPC product | 6 3 3955554061 |
|---|---|
| Division | LED |
| Price Block | 1 5 0 |
| Country of origin | US |
| Unit of measurement | EA |
| Height | 65 CM |
| Length | 67 cm |
| Width | 27 cm |
| Volume | . 118 m³ |
| Shipping weight | 37.15 KG |
| HTS code (EU) | 8479899790 |
| HTS code (GB) | 8 4 79899790 |
Technical
| Dry Weight (lb) | 98 |
|---|---|
| Hose inside diameter (mm) | 12. 7 |
| Inlet Size (in) | 1/2 |
| Inlet size (mm) | 12. 7 |
| Maximum working pressure (psi) | 5 0 00 |
| Outlet Size (in) | 1/2 |
| Outlet Size (mm) | 12. 7 |
| Overall height (in) | 23. 10 |
| Overall height (mm) | 588 |
| Overall Length (in) | 22. 12 |
| Overall length (mm) | 561. 73 |
| Overall width (in) | 9 |
| Overall width (mm) | 229 |
| Series | 30 |
| Frame Type | Dual Pedestal |
| Reel thread type | NPT |
| Recommended fluid type | Gre ase |
| Hose reel type | Bare Reel |
| Model | XD |
| includes_hose | No |
