Manufacturer no.: 222902

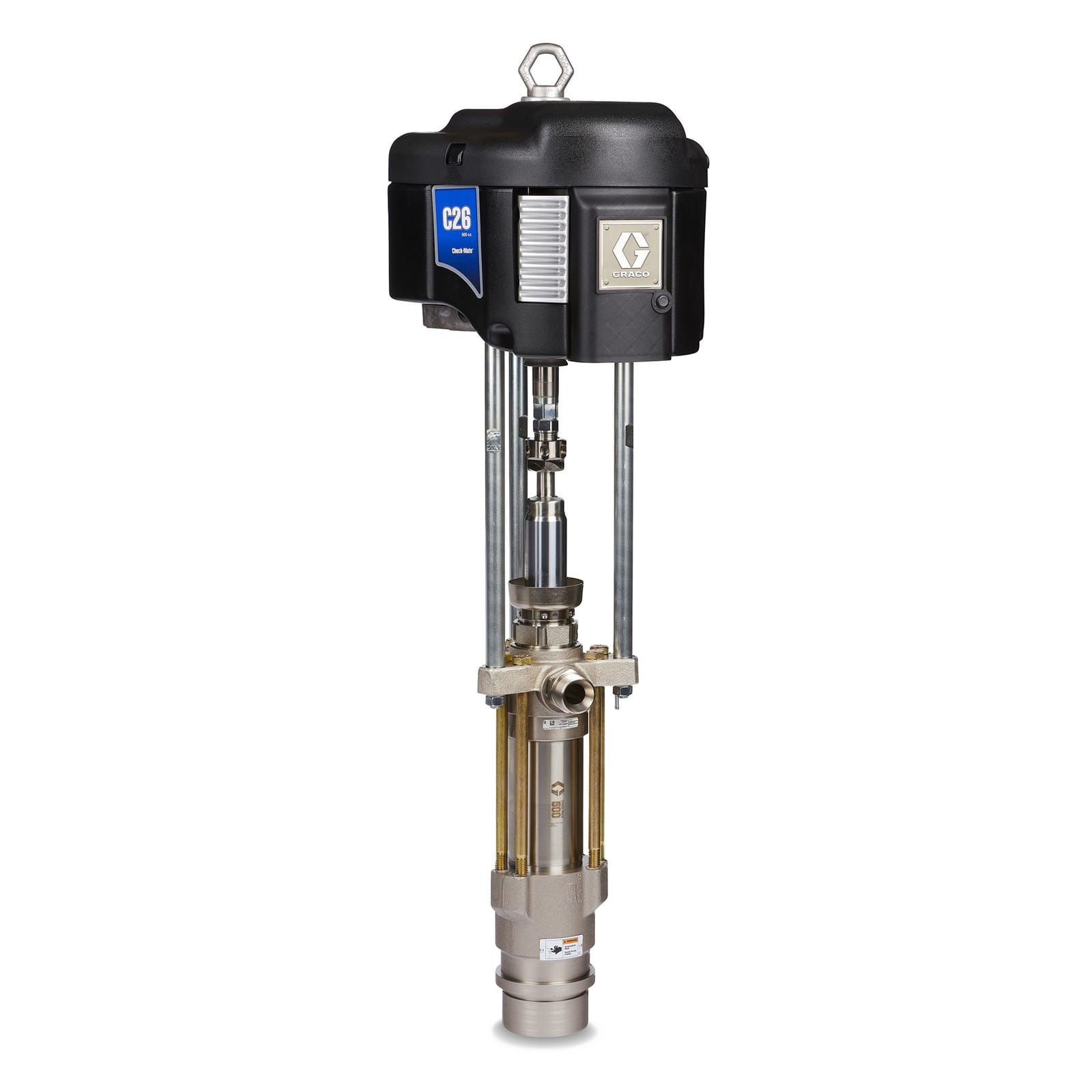

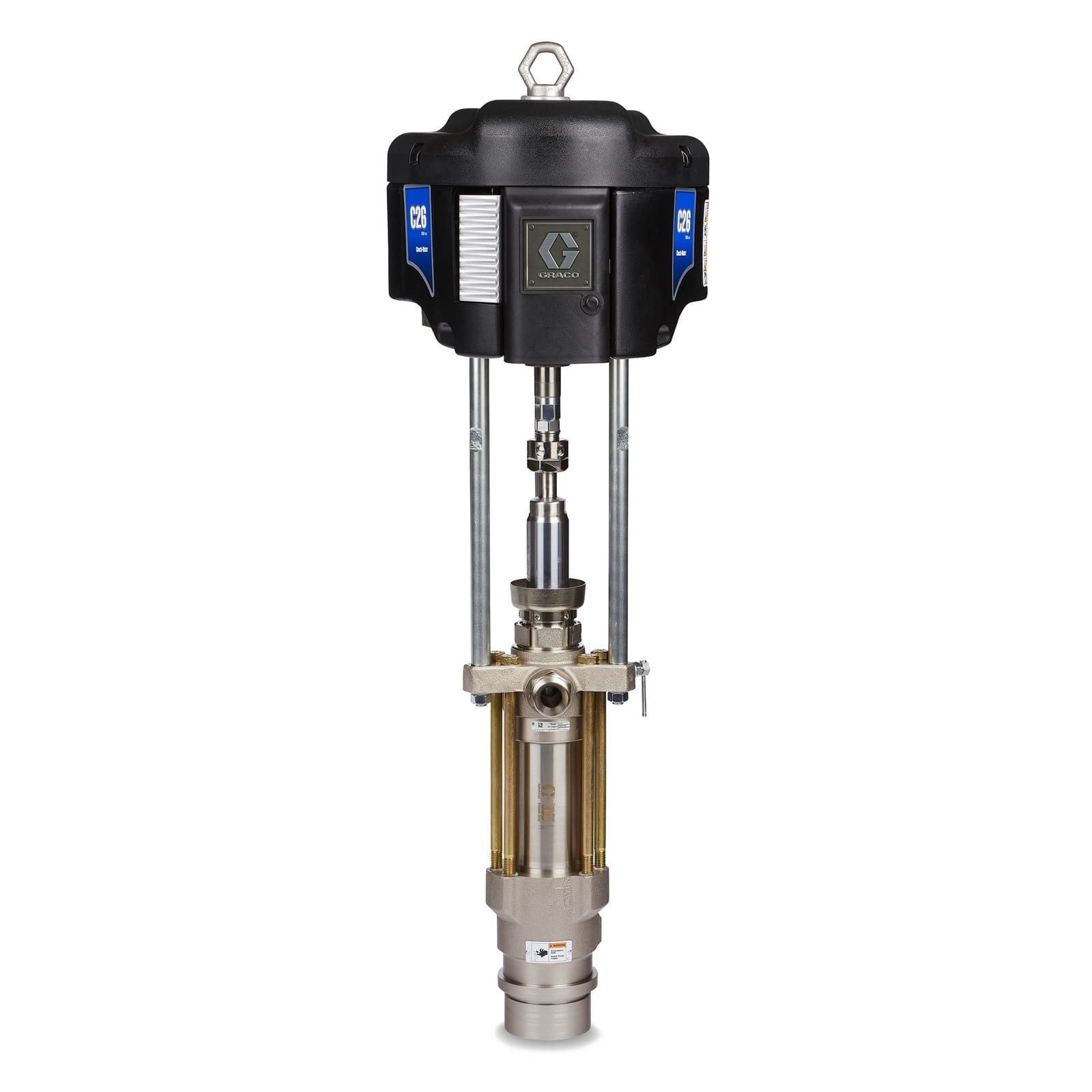

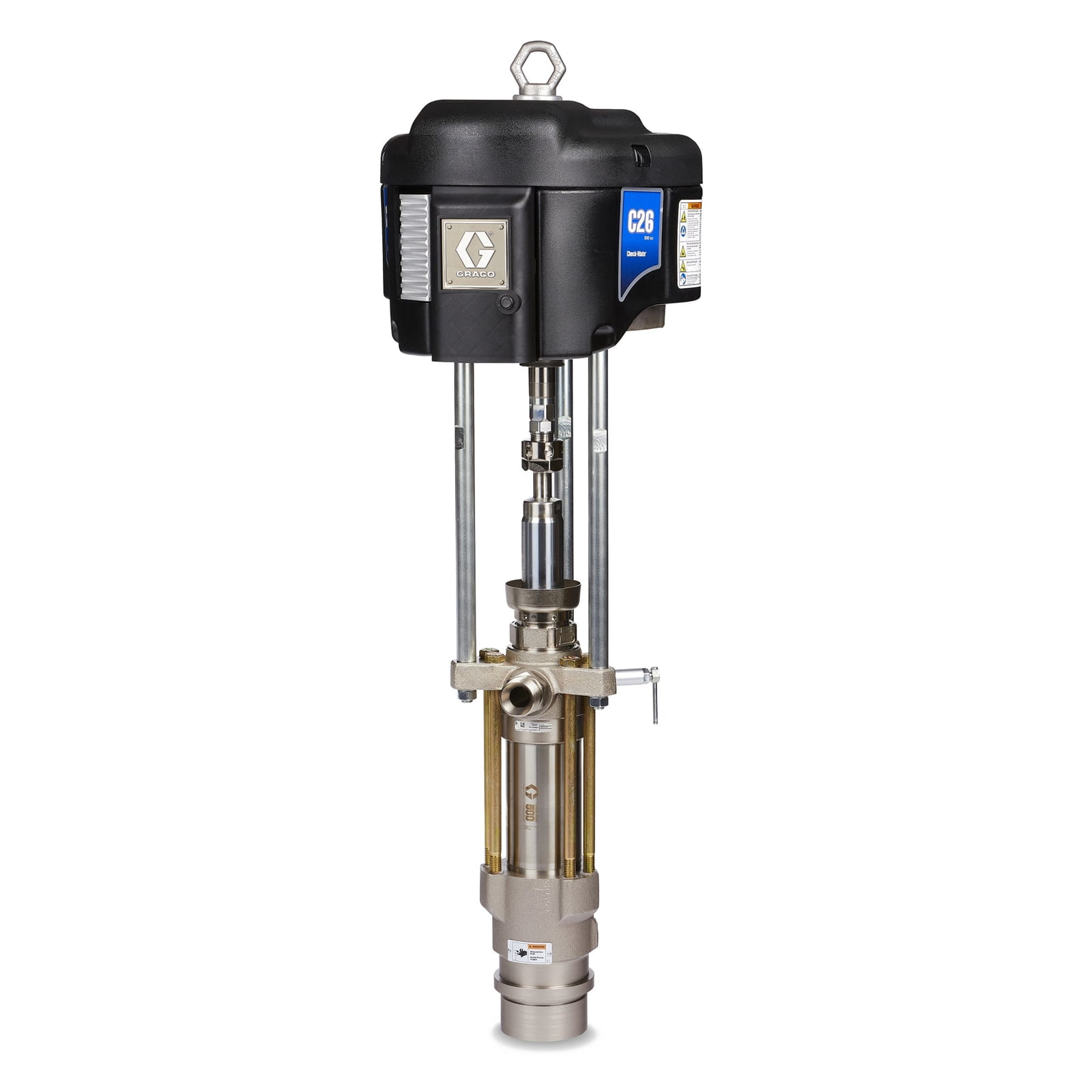

Viscount II hydraulic pump with 2.4:1 ratio

€13,002.94*

% €18,844.84* (31% saved)

Prices include VAT plus shipping costs

€10,926.84*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Tried and tested, energy efficient. When paired with a Graco priming piston pump, the Viscount II hydraulic air motor offers exceptional cost savings.

Built-in reliability - Self-lubricating vertical design for long life and reliable operation in high vibration environments
Quiet hydraulic motor - No additional silencers required
Highly efficient motor - Reduced hydraulic oil requirement

Application:	Bonding, sealing, sealing, potting, encapsulation, injection molding, spraying, liquid conveying, unloading, underfilling
Energy type:	Hydraulic
Gender of the material outlet thread:	External thread
Material:	Normal steel
Material outlet thread type:	NPT
Maximum continuous double stroke rate (DH/min):	60
Maximum delivery rate (L/min):	28.4
Maximum hydraulic fluid inlet pressure (bar):	103
Maximum hydraulic fluid inlet pressure (kPa):	10300
Maximum hydraulic fluid inlet pressure (psi):	1500
Maximum operating pressure (MPa):	15.9
Maximum operating pressure (kPa):	15900
Maximum operating pressure (psi):	2300
Maximum operating temperature (°C):	66
Model:	viscount
Permissible operating pressure (bar):	159
Portable:	Not portable
Series:	II
Size of the material outlet opening (inches):	1-1/2
Transmission ratio of the pump:	2.4:1
Type:	Hydraulic piston pump

More information

Product number: 1033733
Manufacturer: Graco
EAN: 00633955149427
Weight: 130 kg
Length: 1450 mm
Width: 406 mm
Height: 507 mm

Technical details

Specifications

Operating specifications

UPC product	6 3 3955149427
Division	IPD
Price Block	2 22
Country of Origin	US
Unit	EA
Height	50.7 CM
Length	145 CM
Width	40.6 CM
Volume	0 . 298 m³
Shipping weight	130 KG

Technical

Fluid outlet thread gender	Male
Maximum continuous cycle rate (CPM)	60
Maximum flow rate (L/min)	28. 4
Maximum hydraulic fluid inlet pressure (bar)	103
Maximum hydraulic fluid inlet pressure (kPa)	10 3 00
Maximum hydraulic fluid inlet pressure (psi)	1 5 00
Maximum operating temperature (°C)	66
Maximum operating temperature (°F)	1 5 0
Maximum working pressure (bar)	1 59
Maximum working pressure (kPa)	1 5 900
Maximum working pressure (psi)	23 00
Model	Viscount
Portable	Non-portable
Series	II
Maximum working pressure (MPa)	15. 9
