Manufacturer no.:
562527

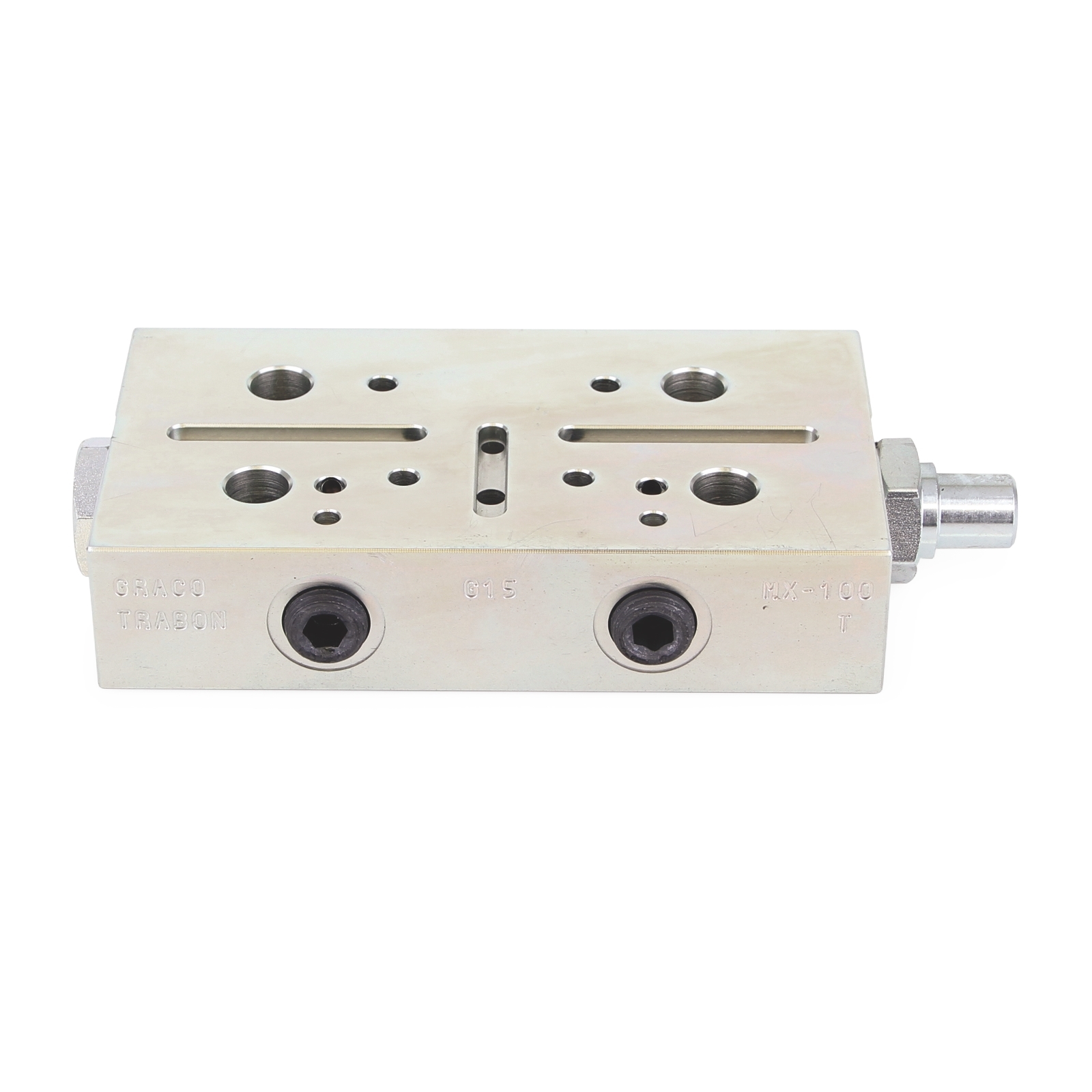

Trabon® MX inlet manifold with right-hand cycle indicator pin - MX-150T - 2.46 cm³ (0.150 in³)
€795.92*
% €865.13* (8% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The larger delivery volume for high performance requirements, together with its economical and compact design, makes the Trabon MX series ideal for use in steelworks and paper mills.
- Lubricates large bearings
- Delivers up to 4.92 cubic centimetres (0.3 cubic inches) per cycle and has extensive accessories for monitoring critical lubrication points
- Robust design withstands demanding environments and operating conditions
- Built-in outlet check valves ensure precise lubricant delivery every time
- Can be easily fitted with standard MSP magnetic and electronic proximity switches for cycle indication to provide positive assurance of successful lubrication
- As an option, outlets can be fitted with indicator pin for easier troubleshooting to eliminate guesswork when malfunctions occur
| Item type: | Verteiler |
|---|
More information
- Product number: 1033830
- Manufacturer: Graco
- EAN: 00633955346796
- Weight: 1.81 kg
- Length: 150 mm
- Width: 60 mm
- Height: 30 mm
Technical details
Operating specifications
| UPC product | 6 3 3955346796 |
|---|---|
| Division | LED |
| Price Block | 125 |
| Country of origin | US |
| Unit of measurement | EA |
| Height | 3 CM |
| Length | 15 cm |
| Width | 6 cm |
| Volume | 0 m3 |
| Shipping weight | 1 .81 KG |
Technical
| Maximum cycle rate (cycles/min) | 60 |
|---|---|
| Maximum working pressure (psi) | 3000 |
| Outlet Size (mm) | 6. 35 |
| Minimum working pressure (psi) | 2 00 |
| Outlet size (cm) | 0. 635 |
| Number of outlets | 2 |
| Maximum working pressure (bar) | 2 07 |
| Maximum operating temperature (°F) | 2 00 |
| Outlet Thread Gender | Female |
| Outlet Size (in) | 1/4 |
| Maximum working pressure (kPa) | 2 0 700 |
| Maximum NLGI Grade | #2 |
| Maximum operating temperature (°C) | 93 |
| Divider Valve Series | MX |
| Model | Trab on |
| Series | MX |
| Discharge per piston stroke (in³) | 0. 150 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 312497ZAB - Trabon Divider Valves, Instructions. English (English)
- 312497ZAB - Trabon Divider Valves, Instructions. English (日本語)
Verkaufsliteratur
