Manufacturer no.:
237537

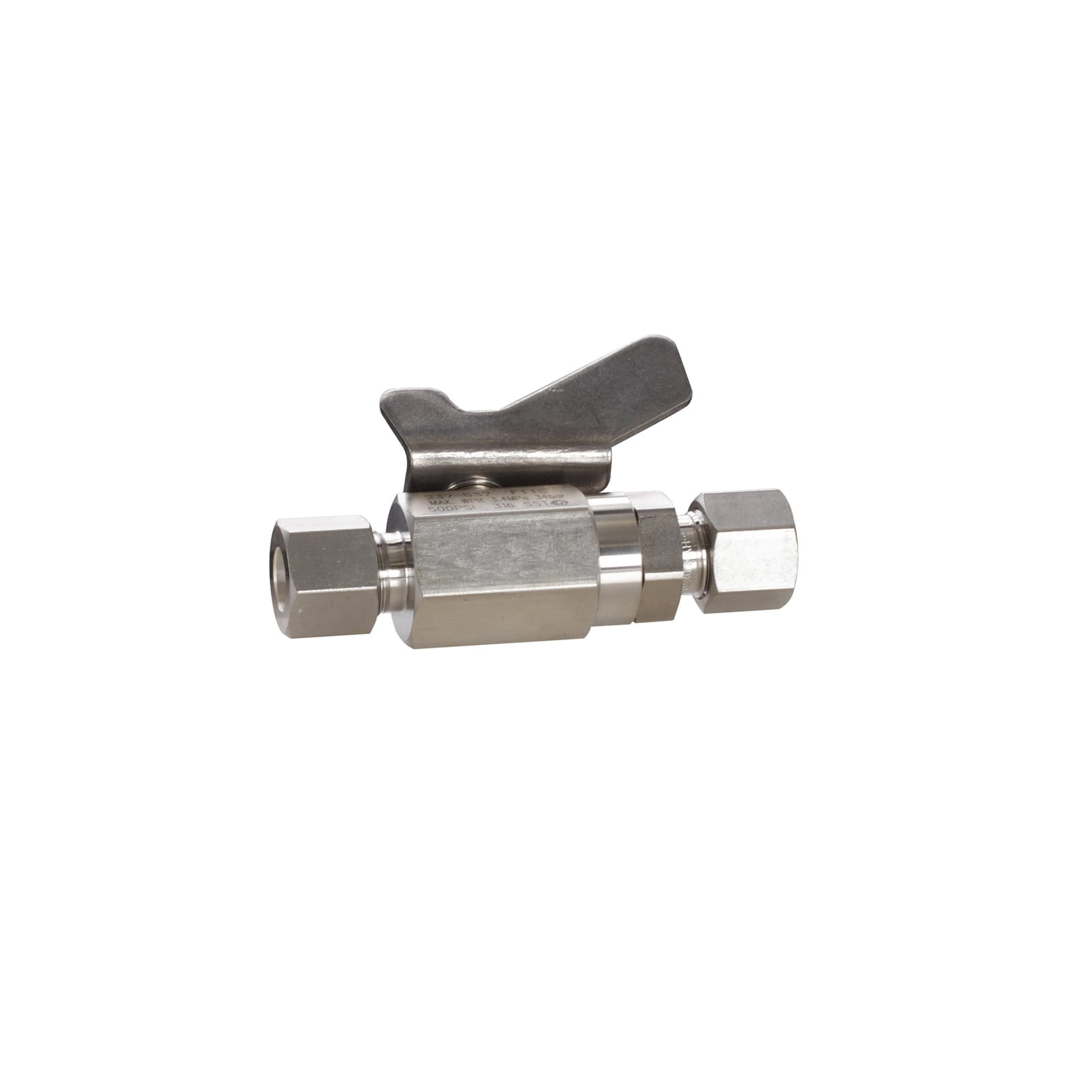

This low-pressure ball valve is suitable for stainless steel, catalyst and water-based materials, outer diameter pipe x 3/8 inch outer diameter pipe
€185.34*
% €211.82* (12.5% saved)Prices include VAT plus shipping costs
€155.75*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
Suitable for on-off regulation of the material supply. Enables even safer system operation through controlled fluid release or by shielding components from pressurisation during maintenance. Ball valves must be used in the fully open or fully closed position. The valve must not be throttled, as this could lead to premature deterioration of the sealing function.
- The stainless steel and PTFE products are suitable for use with catalyser and water-based finishing materials as well as other finishing materials
- Many different connection options for your specific needs
| Diffuser size (cm): | 9,525 |
|---|---|
| Handle type: | lever |
| Inlet size (cm): | 9,525 |
| Inlet size (inch): | 3/8 |
| Inlet size (mm): | 9,525 |
| Inlet thread type: | pipe end |
| Maximum operating pressure (MPa): | 3.5 |
| Maximum operating pressure (kPa): | 3500 |
| Maximum operating pressure (psi): | 500 |
| Outlet size (inch): | 3/8 |
| Outlet size (mm): | 9,525 |
| Outlet thread type: | pipe end |
| Permissible operating pressure (bar): | 35 |
| Sealing material: | PTFE |
| Type: | Ball valves |
More information
- Product number: 1034499
- Manufacturer: Graco
- EAN: 00633955451872
- Weight: 0.18 kg
- Length: 130 mm
- Width: 80 mm
- Height: 30 mm
Technical details
Operating specifications
| UPC product | 633955451872 |
|---|---|
| Division | IPD |
| Price Block | 028 |
| Country of Origin | KR |
| Unit of measurement | EA |
| Height | 3 CM |
| Length | 13 cm |
| Width | 8 cm |
| Volume | 0 m³ |
| Shipping weight | . 18 KG |
Technical
| Handle Type | L ever |
|---|---|
| Inlet Size (cm) | 0. 9525 |
| Inlet size (in) | 3/8 |
| Inlet Size (mm) | 9. 525 |
| Maximum working pressure (bar) | 35 |
| Maximum working pressure (kPa) | 3 5 00 |
| Maximum working pressure (psi) | 500 |
| Outlet Size (cm) | 0. 9525 |
| Outlet Size (in) | 3/8 |
| Outlet size (mm) | 9. 525 |
| Maximum working pressure (MPa) | 3. 5 |
