Manufacturer no.:
235460

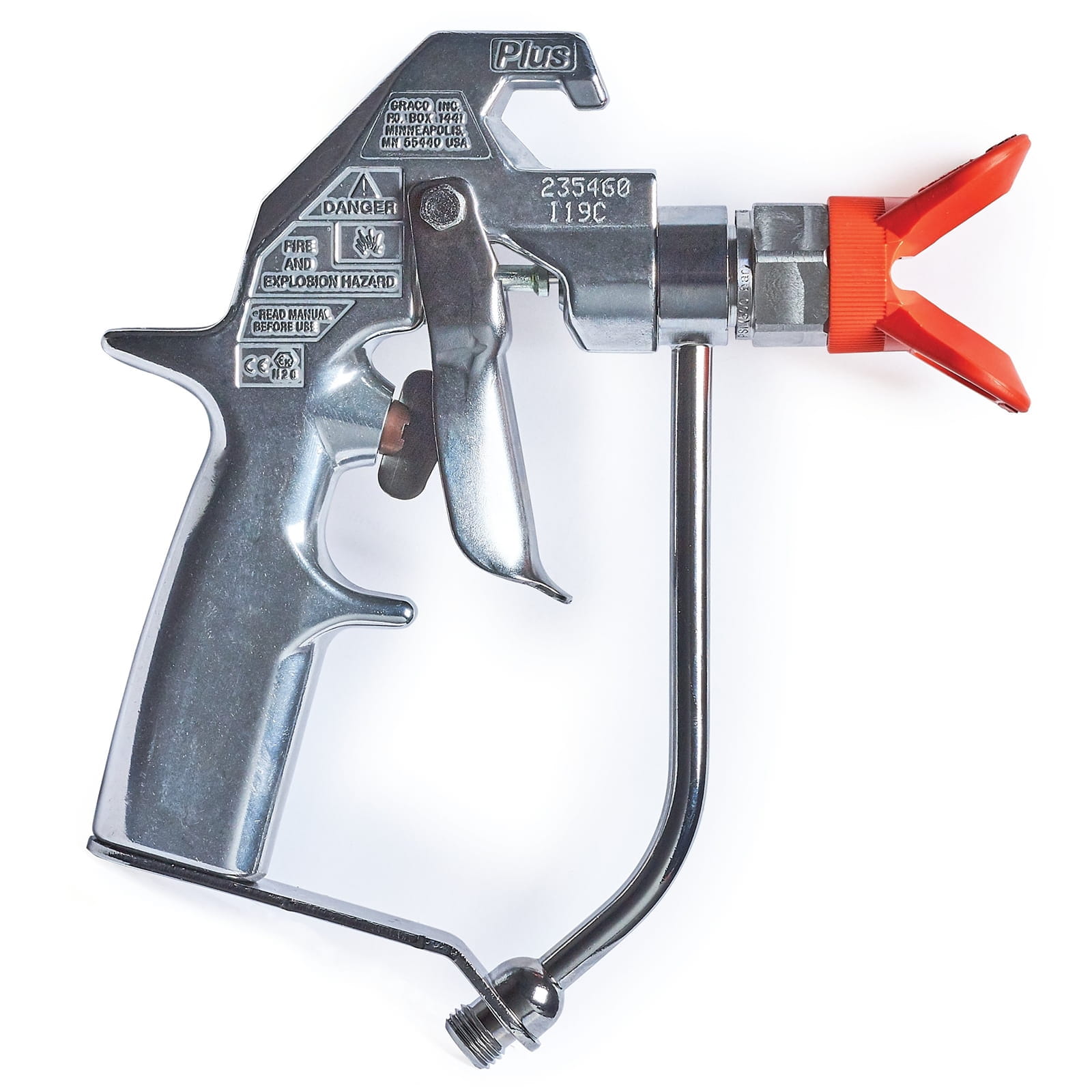

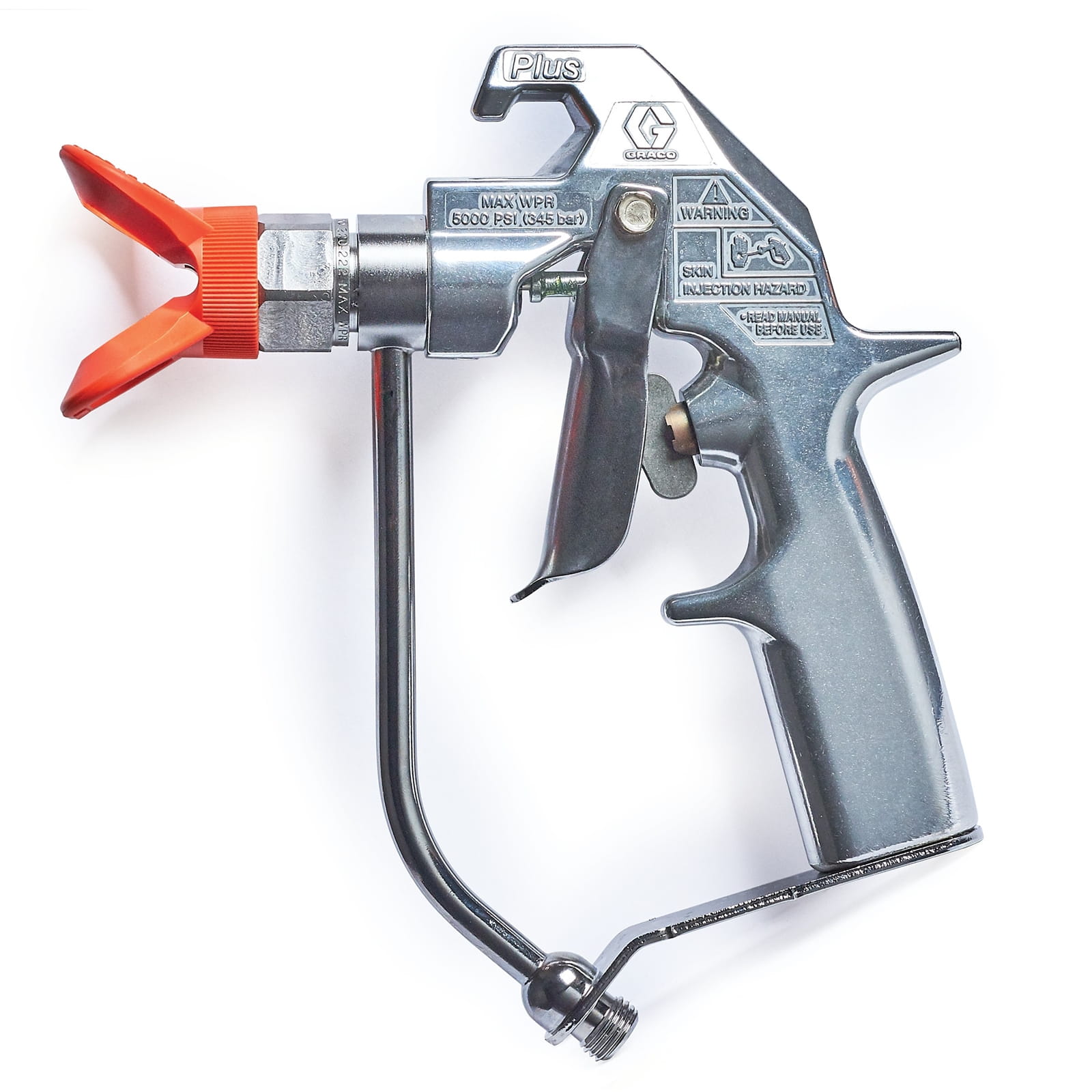

Silver Plus airless spray gun, 2-finger trigger, flat nozzle
€515.87*
% €687.82* (25% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The Silver Plus gun from Graco is characterised by its durability, long service life, efficient spraying performance and comfortable design. It is particularly suitable for high-pressure applications.
- Robust construction
- Durable forged aluminium withstands harsh working environments
- Lighter than competitor guns Polished body is easy to clean
- Exclusive needle design
- Factory-set needle eliminates the need for trigger adjustments
- Lifetime guarantee against breakage
- Maximum performance and long service life
- Stainless steel material tube
- Material flows through the gun's material tube directly to the nozzle
- Provides the ability to spray heavier materials
- Includes high solids and mastic coatings
- Needle set for light viscosity
- Provides faster shut-off to reduce spitting of light viscosity material
- Included in the Silver Plus gun (part no. 235462) or as an optional needle kit (part no. 235475)
| Actuation lock: | Lock |
|---|---|
| Air inlet size (inches): | 1/4 |
| Air inlet thread type: | NPSM |
| Applicator type: | Hand- |
| Compatible material: | Color, coating |
| Component A, inlet size (cm): | 635 |
| Component A, inlet size (inch): | 1/4 |
| Component A, inlet size (mm): | 6.35 |
| Component A, inlet thread type: | NPSM |
| Component type: | Single component |
| For use with: | High pressure application |
| Fume cupboard type: | Two-finger |
| Gender of the air inlet thread: | External thread |
| Gun activation: | Hand- |
| Gun included: | 1 |
| Gun type: | Airless spray gun |
| Gun weight (g): | 510 |
| Gun weight (kg): | 0.51 |
| Gun weight (oz): | 18 |
| Housing material: | aluminum |
| Includes: | Flat nozzle protection |
| Maximum material pressure (MPa): | 34.5 |
| Maximum material pressure (bar): | 345 |
| Maximum material pressure (kPa): | 34500 |
| Maximum material pressure (psi): | 5000 |
| Maximum material temperature (°C): | 50 |
| Model: | Silver Plus |
| Noise pressure level, (dB(A)): | 78 |
| Nozzle opening size (inches): | 90 |
| Product type: | spray gun |
| Rinsing method: | liquid |
| Series: | Airless spray gun |
| Size of the air inlet (cm): | 635 |
| Size of the air inlet (mm): | 6.35 |
| Size of the material opening (cm): | 229 |
| Size of the material opening (mm): | 2.29 |
| Sound level, (dB(A)): | 87 |
| Spraying technology: | Airless |
| Spray pattern: | Flat nozzle |
| Type: | spray gun |
| Wetted parts: | Stainless steel, polyethylene, polyurethane, nylon, PTFE |
More information
- Product number: 1035234
- Manufacturer: Graco
- EAN: 00633955051416
- Weight: 0.6 kg
- Length: 210 mm
- Width: 250 mm
- Height: 60 mm
Technical details
Operating specifications
| UPC product | 633955051416 |
|---|---|
| Division | CED |
| Price Block | 1 86 |
| Country of origin | US |
| Unit | EA |
| Height | 6 CM |
| Length | 21 cm |
| Width | 25 cm |
| Volume | . 003 m³ |
| Shipping weight | . 84 KG |
Technical
| Air inlet size (cm) | 0. 635 |
|---|---|
| Air inlet size (in) | 1/4 |
| Air inlet size (mm) | 6. 35 |
| Air inlet thread gender | Male |
| Component A inlet size (cm) | 0. 635 |
| Component A inlet size (in) | 1/4 |
| Component A inlet size (mm) | 6. 35 |
| Component A inlet thread type | NPSM |
| Component Type | Single Component |
| Fluid Orifice Size (cm) | 0. 229 |
| Fluid Orifice Size (mm) | 2. 29 |
| For use with | High Pressure Application |
| Gun Weight (g) | 510 |
| Gun Weight (kg) | 0. 51 |
| Gun weight (lb) | 1. 125 |
| Gun weight (oz) | 18 |
| Includes | Flat Tip Guard |
| Maximum fluid pressure (bar) | 3 45 |
| Maximum fluid pressure (kPa) | 3 4 500 |
| Maximum fluid pressure (psi) | 5 0 00 |
| Maximum fluid temperature (°C) | 50 |
| Maximum fluid temperature (°F) | 120 |
| Model | Silver Plus |
| Purge Method | L iquid |
| Series | Airless Spray Gun |
| Trigger lock | L ocking |
| Trigger Type | Mechanical |
| Product Type | Spray Gun |
| Sound pressure level (dB(A)) | 78 |
| Maximum fluid pressure (MPa) | 34. 5 |
