Manufacturer no.: 24V678

SD™ Blue container pump system - 1.5 m (5 ft) suction hose length - automatic nozzle - SST clamp fittings

€1,935.30*

% €2,150.33* (10% saved)

Prices include VAT plus shipping costs

€1,626.30*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Graco's SD Series DEF solutions are based on the versatility of a Husky 515 air-operated double diaphragm pump with a flow rate of up to 57 litres/min and an operating pressure of just 2.1 to 3.4 bar (30 to 50 psi). To increase productivity, this powerful pneumatic design provides superior suction and lifting in tanks, containers and drums. Whether a small workshop or large car dealer, Graco has a complete range of AdBlue for every application, enabling higher performance over longer run times.

Typical applications include automotive and truck dealerships, mining, service and quick lube centres, fleet maintenance, manufacturing plants and lubrication vehicles.

Fail-safe, low pulsation modular air valve - The fail-safe, low pulsation air valve provides smooth and fast changeover, resulting in increased efficiency and reduced downtime.
Robust construction with bolt-through material cover to prevent leaks and ensure safety and reliability
Robust construction - corrosion resistance for reliable performance and long product life
High efficiency air valves operate at a maximum of 28 scfm
Optional centre housing and end opening available
Up to 15 ft (4.57 m) suction height provides installation flexibility
5 year warranty See manufacturer's website for details.

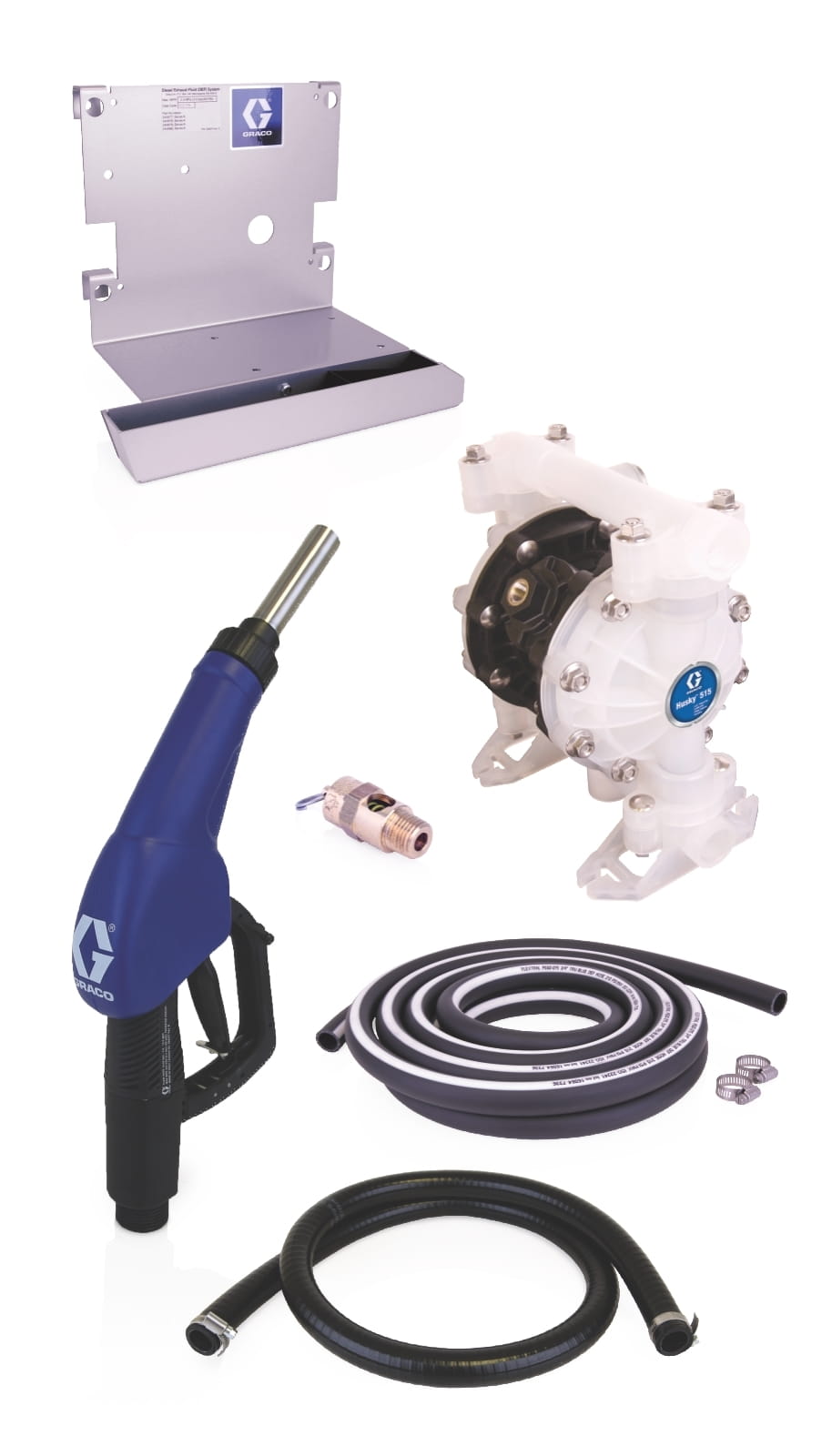

The complete unit includes: Husky 515 air operated double diaphragm pump (127643), SD tank/wall mount with nozzle holder, LD automatic nozzle with SST spout (127649), 6 m (20 ft) metering hose with 2 SST clamps (24W161), 1.5 m (5 ft) suction hose with 2 SST clamps (24W149) and 3.4 bar (50 psi) air safety valve (116306)

Artikel Art:	Behälter, Düse, Pumpe
Length:	150 cm

More information

Product number: 1036100
Manufacturer: Graco
EAN: 00633955688278
Weight: 19.026 kg
Length: 680 mm
Width: 680 mm
Height: 410 mm

Technical details

Specifications

Operating specifications

UPC product	6 3 3955688278
Division	LED
Price Block	003
Country of Origin	US
Unit	EA
Height	41 CM
Length	68 cm
Width	68 cm
Volume	. 19 m³
Shipping weight	19.03 kg
HTS code (GB)	8413508090
HTS code (EU)	8413508090

Technical

Fluid inlet size (cm)	1. 9050
Fluid inlet size (in)	3/4
Fluid inlet size (mm)	19. 05
Fluid inlet thread gender	Female
Fluid outlet size (cm)	1. 905
Fluid outlet size (mm)	19. 05
Fluid outlet thread gender	Female
For use with	DEF
Includes	Air-operated diaphragm pump, mounting bracket, LD automatic nozzle with SST spout, dispense hose and 2 clamps, suction hose and 2 clamps, air safety valve
Inlet Size (cm)	1. 905
Inlet size (in)	3/4
Inlet size (mm)	19. 05
Inlet thread gender	Female
Maximum air pressure (bar)	4
Maximum air pressure (kPa)	40
Maximum air pressure (psi)	50
Maximum cycle rate (CPM)	400
Maximum fluid pressure (bar)	3. 4
Maximum fluid pressure (kPa)	34
Maximum fluid pressure (psi)	50
Maximum solid size (cm)	0. 2381
Maximum solid size (in)	0. 09375
Maximum solid size (mm)	2. 3813
Maximum fluid pressure (MPa)	0. 35
Model	SD
