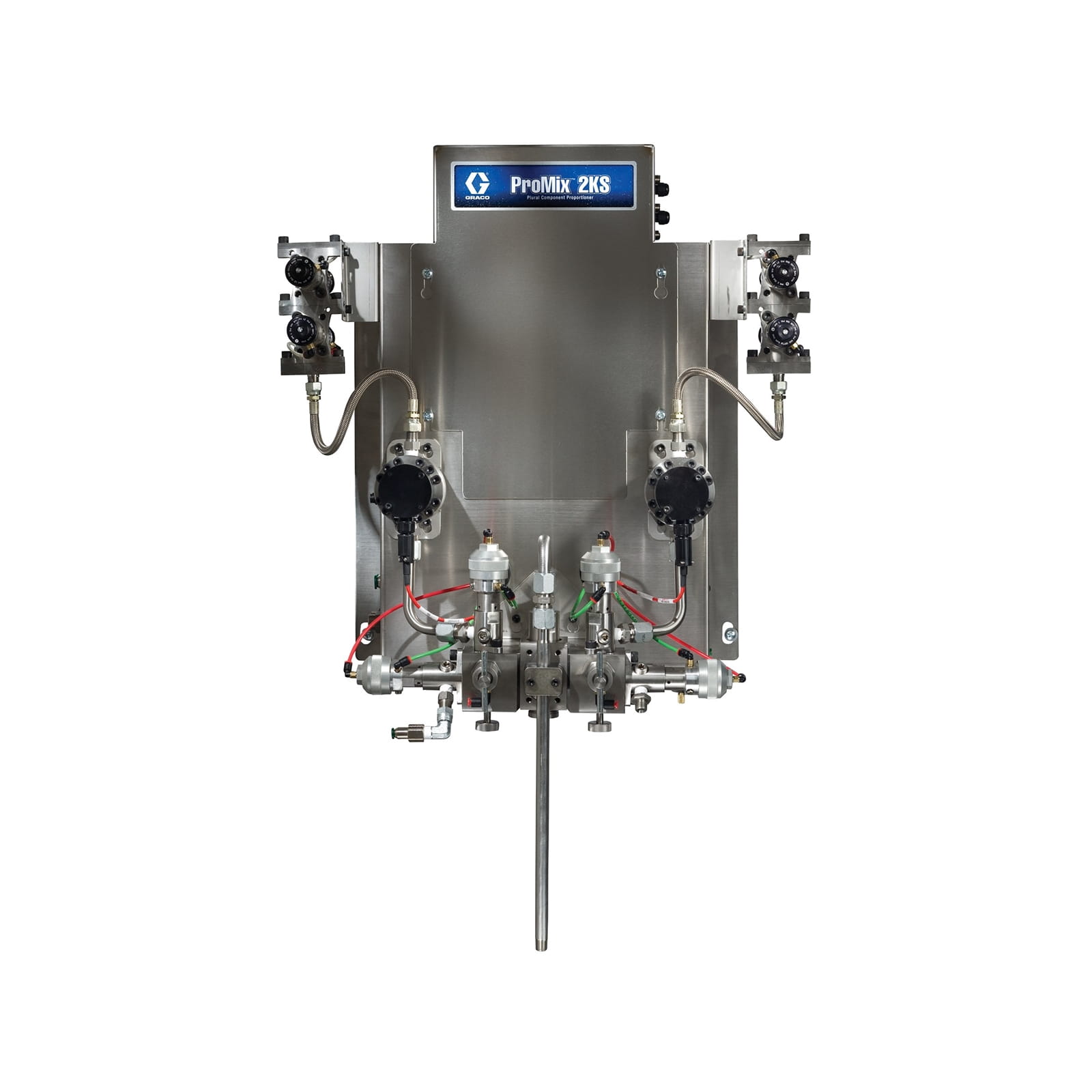

ProMix 2KS auto panel system for wall mounting, EasyKey, G3000 dosing unit (A and B), single catalyser
ProMix 2KS auto panel system for wall mounting, EasyKey, G3000 dosing unit (A and B), single catalyser
Product images may vary
Manufacturer no.: AE100N

ProMix 2KS auto panel system for wall mounting, EasyKey, G3000 dosing unit (A and B), single catalyser

Best price guarantee

Price on request

Ready for shipping in 5-8 days

14 days free exchange
Free shipping within Germany
Authorized Dealer
Trusted Shops


Request price
PDF offer
Create PDF offer for this product Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product number: 1034999
PDF offer
Create PDF offer for this product Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
  • Manufacturer: Graco
    • Our payment methods:

    Question about this product?

    We are here for you. Mon-Fri, 9am - 4pm

    +49 7546 3520019 Go to contact form
    Also interesting
    Product information

    User-friendly electronic dosing system for a wide range of solvent- and water-based or acid-catalysed materials: The ProMix 2KS system enables extremely precise adjustment of the mixing ratio - for superior results in manual or automatic operation. Efficient monitoring and reporting functions with efficient colour change for less material waste.

    • Optional flow control is neatly integrated without the need to install a measuring device in the mixing material line. The pressure and flow control loops ensure rapid changes with superior control behaviour.
    • The material distributor reduces the material volume, facilitates material passage and thus ensures a cleaner rinsing result
    • Intrinsically safe mixing panels allow installation in hazardous areas
    • High mixing ratio accuracy for excellent finish quality
    • The state-of-the-art web interface ensures comprehensive system management and reporting
    Item type: Automatisches Dosiergerät ProMix PD2K
    Number of catalytic converters: 1
    More information
    • Product number: 1034999
    • Manufacturer: Graco

    Technical details

    Operating specifications
    UPC product 633955371637
    Division IPD
    Price Block 039
    Country of Origin US
    Unit EA
    Height 76 CM
    Length 106 cm
    Width 89 cm
    Volume . 717 m³
    Shipping weight 72 KG
    HTS code (GB) 9026108100
    HTS code (EU) 9026108100
    Technical
    Air inlet size (cm) 0. 9525
    Air inlet size (in) 3/8
    Air inlet size (mm) 9. 525
    Air inlet thread gender Female
    Amperage (A) 2
    Component Type Two Component
    Fluid inlet size (cm) 0. 635
    Fluid inlet size (in) 1/4
    Fluid inlet size (mm) 6. 35
    Fluid inlet thread gender Female
    Fluid outlet thread gender Female
    Frequency (Hz) 50/60
    Material Type Two Component
    Maximum flow rate (cc/min) 3 7 90
    Maximum flow rate (L/min) 3. 79
    Maximum fluid viscosity (cP) 3000
    Maximum Mix Ratio 50: 1
    Maximum number of colours Up to 3
    Maximum working pressure (bar) 275. 8
    Maximum working pressure (kPa) 2 7 580
    Maximum working pressure (MPa) 27. 6
    Maximum working pressure (psi) 4 0 00
    Minimum flow rate (cc/min) 75
    Minimum flow rate (GPM) 0. 02
    Minimum flow rate (L/min) 0. 075
    Minimum fluid viscosity (cP) 20
    Minimum mix ratio 0.1: 1
    Mix Accuracy (%) 1
    Number of catalysts 1
    Number of colour valves No valves
    Number of colours 1
    Number of Resin Colours Up to 30
    Proportioner type Automatic Wall
    Sound pressure level (dB(A)) 70
    Model ProMix
    Series 2KS
