Manufacturer no.: 24F111

ProMix 2KE dosing unit, air, air-assisted Merkur pumps 30:1, USB reporting system, for hazardous areas

€29,224.02*

% €38,965.36* (25% saved)

Prices include VAT plus shipping costs

€24,558.00*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

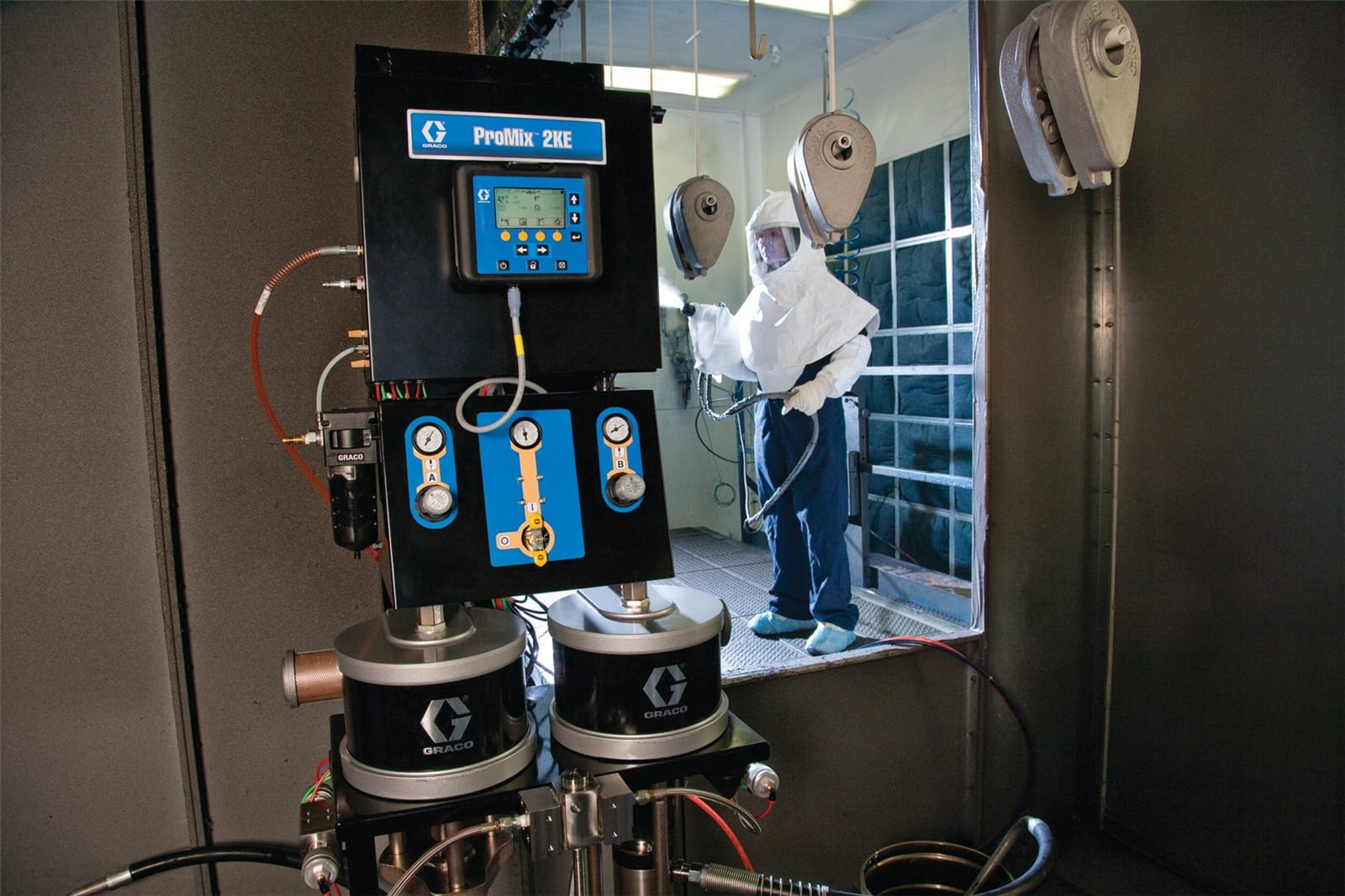

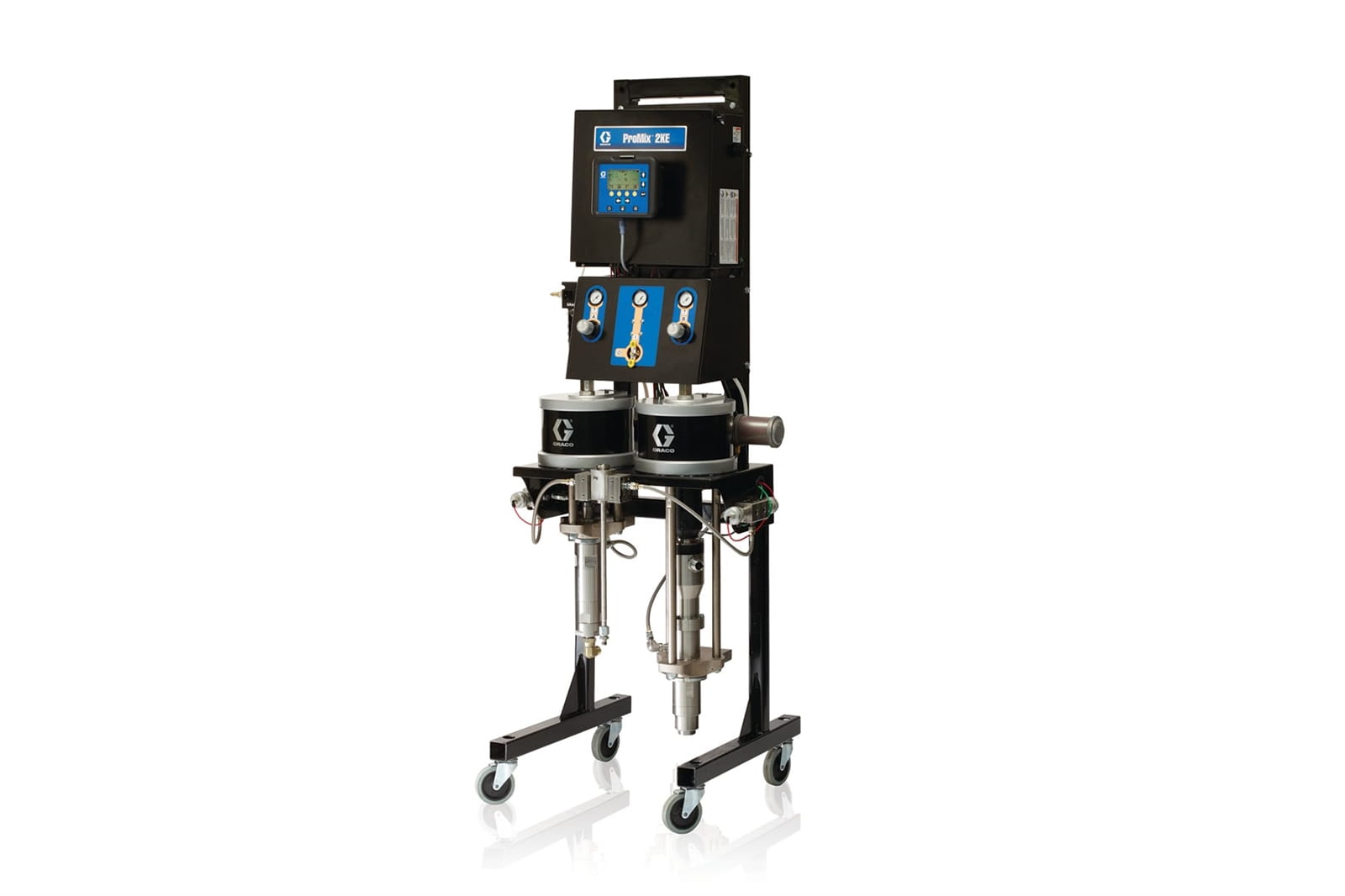

The ProMix-2KE dosing unit is suitable as an entry-level model: its user-friendly and compact multi-component system enables needs-based mixing for all spraying technologies.

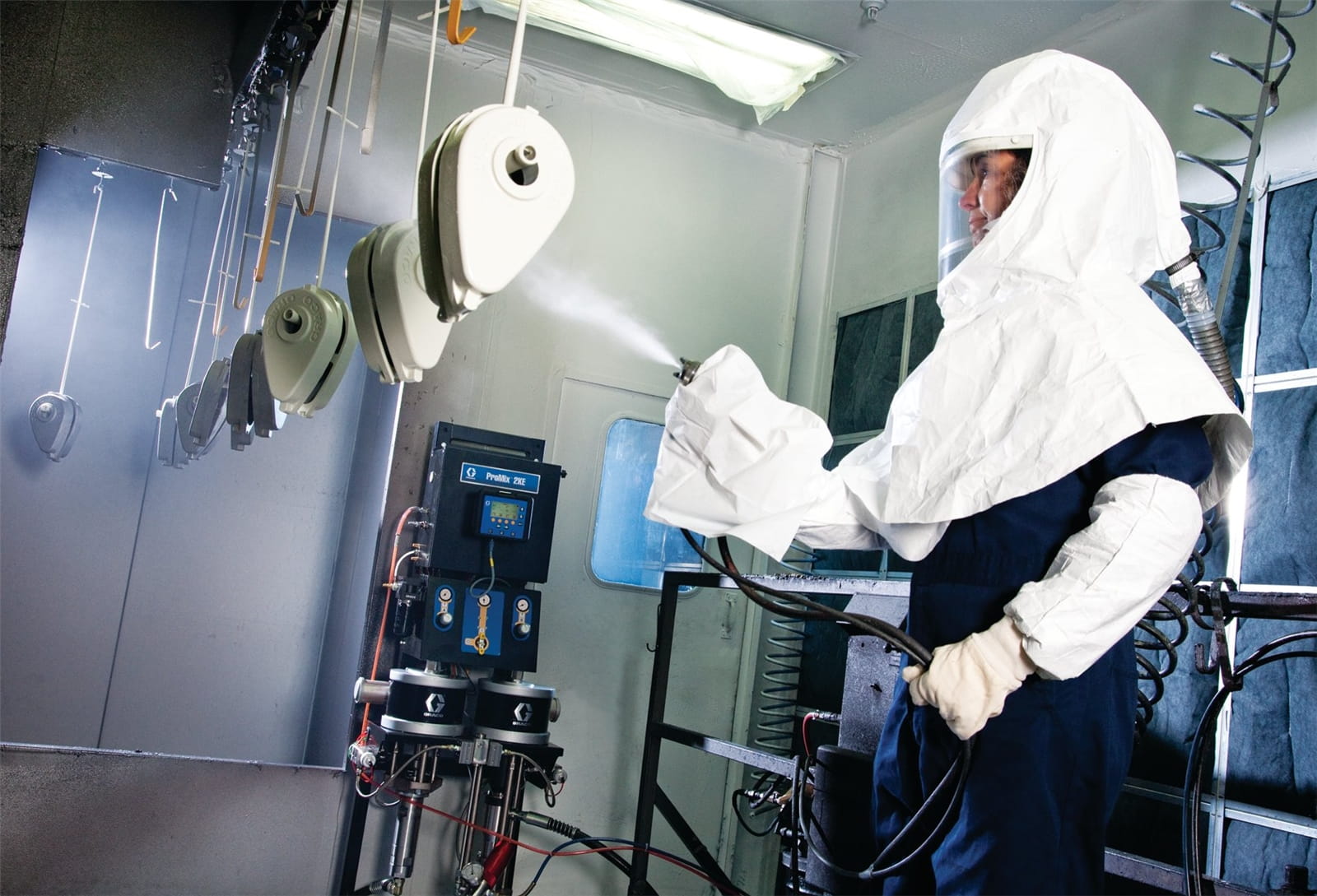

Designed for multi-colour two-component systems and applications in spray booths.
You can choose between pump- or meter-based multi-component systems with mixing ratios of up to 30:1
The mixing ratio is automatically kept within the specified tolerance limits, up to ±1 % for the volumetric meter version and ± 2 % for the pump version.
Incorrectly mixed material is prevented from being applied to the product - thus avoiding costly reworking.
The user-friendly LCD display enables monitoring of material consumption, mixing ratio, programme maintenance, control functions and much more

Artikel Art:	Dosiergerät ProMix 2KE

More information

Product number: 1030365
Manufacturer: Graco
EAN: 00633955585249
Weight: 140 kg
Length: 1800 mm
Width: 950 mm
Height: 700 mm

Technical details

Specifications

Operating specifications

UPC product	633955585249
Division	IPD
Price Block	002
Country of Origin	US
Unit	EA
Height	70 CM
Length	180 cm
Width	95 cm
Volume	1 .197 m³
Shipping weight	140 KG

Technical

Air inlet size (cm)	0. 9525
Air inlet size (in)	3/8
Air inlet size (mm)	9. 525
Air inlet thread gender	Female
Amperage (A)	2
Component Type	Two Component
Frequency (Hz)	50/60
Includes	Air motor, A-lower, B-lower, A-tie rod, B-tie rod, lower adapter, TSL reservoir
Material Type	Two Component
Maximum air inlet pressure (bar)	6. 9
Maximum air inlet pressure (kPa)	690
Maximum air inlet pressure (psi)	100
Maximum fluid viscosity (cP)	5 0 00
Maximum Mix Ratio	30: 1
Maximum number of colours	Up to 3
Maximum working pressure (bar)	2 06
Maximum working pressure (kPa)	2 0 600
Maximum working pressure (MPa)	20. 6
Maximum working pressure (psi)	3000
Minimum fluid viscosity (cP)	20
Minimum Mix Ratio	0.1: 1
Mix Accuracy (%)	1
Number of catalysts	1
Number of colour valves	N/A
Number of colours	1
Number of Resin Colours	1
Overall Depth (cm)	37. 6
Overall Depth (in)	14. 8
Overall Depth (mm)	376
Overall height (cm)	91. 7
Overall height (in)	36. 1
Overall height (mm)	917
Overall width (cm)	51. 1
Overall width (in)	20. 1
Overall width (mm)	511
Sound pressure level (dB(A))	70
Model	ProMix
Series	2KE
