Manufacturer no.: 262382

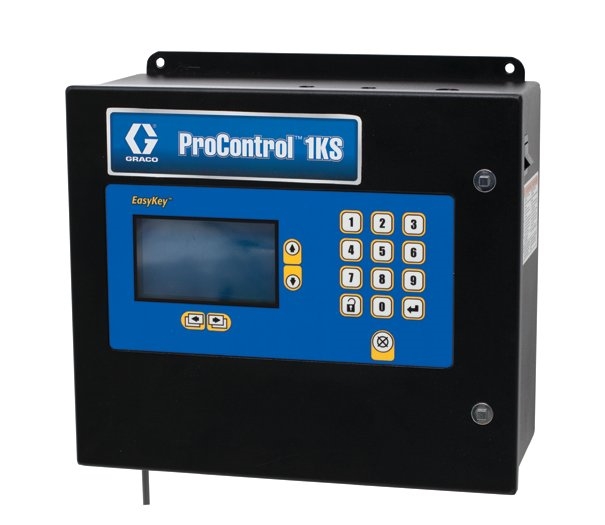

ProControl 1KS with G3000 dosing device and material pressure regulator

€17,160.17*

% €24,869.81* (31% saved)

€14,420.31*

Price excl. VAT

Ready for shipping in 5-8 days

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Closed-loop control for an outstanding finish with the proven technology of the ProMix® 2KS

Air inlet size (inches):	3/8
Air inlet thread type:	NPT
Frequency (Hz):	50/60
Gender of the air inlet thread:	Internal thread
Gender of the material inlet thread:	Internal thread
Gender of the material outlet thread:	Internal thread
Includes:	ProControl 1KS module, G3000 dosing device, material pressure regulator
Material inlet thread type:	NPT
Material outlet thread type:	NPT
Maximum air supply pressure (bar):	6.9
Maximum air supply pressure (kPa):	690
Maximum delivery rate (L/min):	3.79
Maximum flow rate (cm³/min):	3790
Maximum inlet air pressure (psi):	100
Maximum material viscosity (cP):	5000
Maximum number of colours:	Up to 30
Maximum operating pressure (MPa):	27.6
Maximum operating pressure (kPa):	27580
Maximum operating pressure (psi):	4000
Maximum operating temperature (°C):	50
Minimum flow rate (L/min):	75
Minimum flow rate (cm³/min):	75
Minimum material viscosity (cP):	20
Model:	ProControl
Noise pressure level, (dB(A)):	70
Permissible operating pressure (bar):	275.8
Series:	1KS
Size of the air inlet (cm):	9,525
Size of the air inlet (mm):	9,525
Size of the material inlet opening (cm):	635
Size of the material inlet opening (inches):	1/4
Size of the material inlet opening (mm):	6.35
Size of the material outlet opening (inches):	1/4
System type:	Material flow control
Type:	Dosing system
Wetted material:	303 stainless steel, 304 stainless steel, tungsten carbide, tungsten carbide with nickel alloy, perfluoroelastomer, PTFE

More information

Technical details

Air inlet size (cm)	0. 9525
Air inlet size (in)	3/8
Air inlet size (mm)	9. 525
Air inlet thread gender	Female
Amperage (A)	2
Fluid inlet size (cm)	0. 635
Fluid inlet size (in)	1/4
Fluid inlet size (mm)	6. 35
Fluid inlet thread gender	Female
Fluid outlet thread gender	Female
Frequency (Hz)	50/60
Includes	ProControl 1KS module, G3000 meter, fluid regulator
Maximum air inlet pressure (bar)	6. 9
Maximum air inlet pressure (kPa)	690
Maximum air inlet pressure (psi)	100
Maximum flow rate (cc/min)	3 7 90
Maximum flow rate (L/min)	3. 79
Maximum fluid viscosity (cP)	5 0 00
Maximum number of colours	Up to 30
Maximum operating temperature (°C)	50
Maximum operating temperature (°F)	1 22
Maximum working pressure (bar)	275. 8
Maximum working pressure (kPa)	2 7 580
Maximum working pressure (MPa)	27. 6
Maximum working pressure (psi)	4 0 00
Minimum flow rate (cc/min)	75
Minimum flow rate (GPM)	0. 02
Minimum flow rate (L/min)	0. 075
Minimum fluid viscosity (cP)	20
Sound pressure level (dB(A))	70
System Type	Fluid Flow Control
Model	ProControl
Series	1KS
