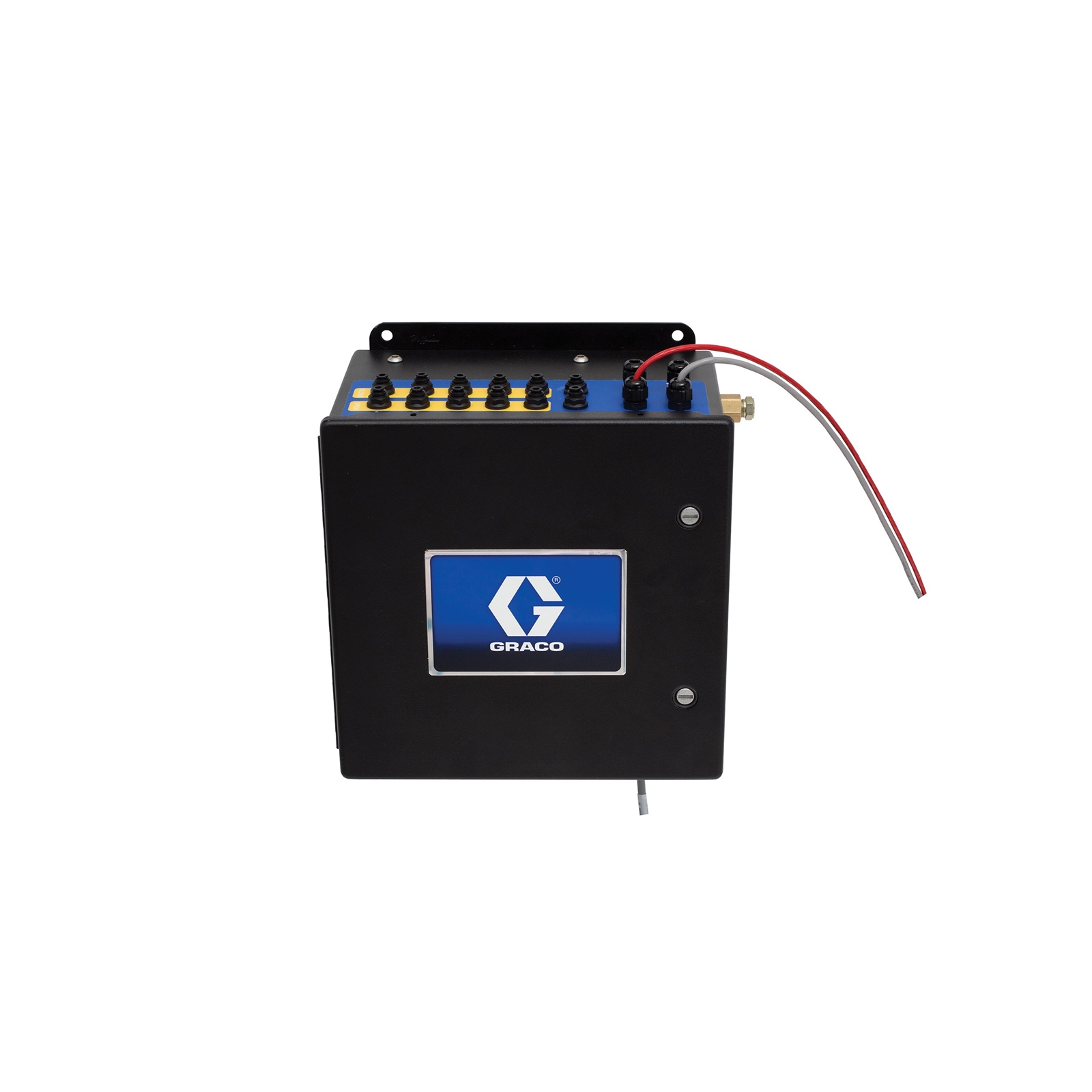

ProControl 1KS with Coriolis dosing device and material pressure regulator
ProControl 1KS with Coriolis dosing device and material pressure regulator
Product images may vary
Manufacturer no.: 262383

ProControl 1KS with Coriolis dosing device and material pressure regulator

Best price guarantee

Price on request

Ready for shipping in 5-8 days

14 days free exchange
Free shipping within Germany
Authorized Dealer
Trusted Shops


Request price
PDF offer
Create PDF offer for this product Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product number: 1030843
PDF offer
Create PDF offer for this product Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
  • Manufacturer: Graco
  • EAN: 00633955574052
  • Weight: 78.822 kg
  • Length: 1000 mm
  • Width: 900 mm
  • Height: 800 mm
    • Our payment methods:

    Question about this product?

    We are here for you. Mon-Fri, 9am - 4pm

    +49 7546 3520019 Go to contact form
    Also interesting
    Product information

    Closed-loop control for an outstanding finish with the proven technology of the ProMix® 2KS

    • Single-component dosing system

    • Integrated rinsing

    • Optional colour change modules

    • Flexible assembly

    Air inlet size (inches): 3/8
    Air inlet thread type: NPT
    Frequency (Hz): 50/60
    Gender of the air inlet thread: Internal thread
    Gender of the material inlet thread: Internal thread
    Gender of the material outlet thread: Internal thread
    Includes: ProControl 1KS module, Coriolis dosing device, material pressure regulator
    Material inlet thread type: NPT
    Material outlet thread type: NPT
    Maximum air supply pressure (bar): 6.9
    Maximum air supply pressure (kPa): 690
    Maximum delivery rate (L/min): 3.79
    Maximum flow rate (cm³/min): 3790
    Maximum inlet air pressure (psi): 100
    Maximum material viscosity (cP): 5000
    Maximum number of colours: Up to 30
    Maximum operating pressure (MPa): 15.9
    Maximum operating pressure (kPa): 15860
    Maximum operating pressure (psi): 2300
    Maximum operating temperature (°C): 50
    Minimum flow rate (L/min): 38
    Minimum flow rate (cm³/min): 38
    Minimum material viscosity (cP): 20
    Model: ProControl
    Noise pressure level, (dB(A)): 70
    Permissible operating pressure (bar): 158.6
    Series: 1KS
    Size of the air inlet (cm): 9,525
    Size of the air inlet (mm): 9,525
    Size of the material inlet opening (cm): 635
    Size of the material inlet opening (inches): 1/4
    Size of the material inlet opening (mm): 6.35
    Size of the material outlet opening (inches): 1/4
    System type: Material flow control
    Type: Dosing system
    Wetted material: 303 stainless steel, 304 stainless steel, tungsten carbide, tungsten carbide with nickel alloy, perfluoroelastomer, PTFE
    More information
    • Product number: 1030843
    • Manufacturer: Graco
    • EAN: 00633955574052
    • Weight: 78.822 kg
    • Length: 1000 mm
    • Width: 900 mm
    • Height: 800 mm

    Technical details

    Operating specifications
    UPC product 633955574052
    Division IPD
    Price Block 039
    Country of Origin US
    Unit EA
    Height 80 CM
    Length 100 CM
    Width 90 CM
    Volume . 72 m3
    Shipping weight 78.82 KG
    HTS code (EU) 9032890090
    HTS code (GB) 9032890090
    Technical
    Air inlet size (cm) 0. 9525
    Air inlet size (in) 3/8
    Air inlet size (mm) 9. 525
    Air inlet thread gender Female
    Amperage (A) 2
    Fluid inlet size (cm) 0. 635
    Fluid inlet size (in) 1/4
    Fluid inlet size (mm) 6. 35
    Fluid inlet thread gender Female
    Fluid outlet thread gender Female
    Frequency (Hz) 50/60
    Includes ProControl 1KS module, Coriolis meter, fluid regulator
    Maximum air inlet pressure (bar) 6. 9
    Maximum air inlet pressure (kPa) 690
    Maximum air inlet pressure (psi) 100
    Maximum flow rate (cc/min) 3 7 90
    Maximum flow rate (L/min) 3. 79
    Maximum fluid viscosity (cP) 5 0 00
    Maximum number of colours Up to 30
    Maximum operating temperature (°C) 50
    Maximum operating temperature (°F) 1 22
    Maximum working pressure (bar) 158. 6
    Maximum working pressure (kPa) 1 5 860
    Maximum working pressure (MPa) 15. 9
    Maximum working pressure (psi) 2 300
    Minimum flow rate (cc/min) 38
    Minimum flow rate (GPM) 0. 01
    Minimum flow rate (L/min) 0. 038
    Minimum fluid viscosity (cP) 20
    Sound pressure level (dB(A)) 70
    System Type Fluid Flow Control
    Model ProControl
    Series 1KS
