Manufacturer no.:
17E832

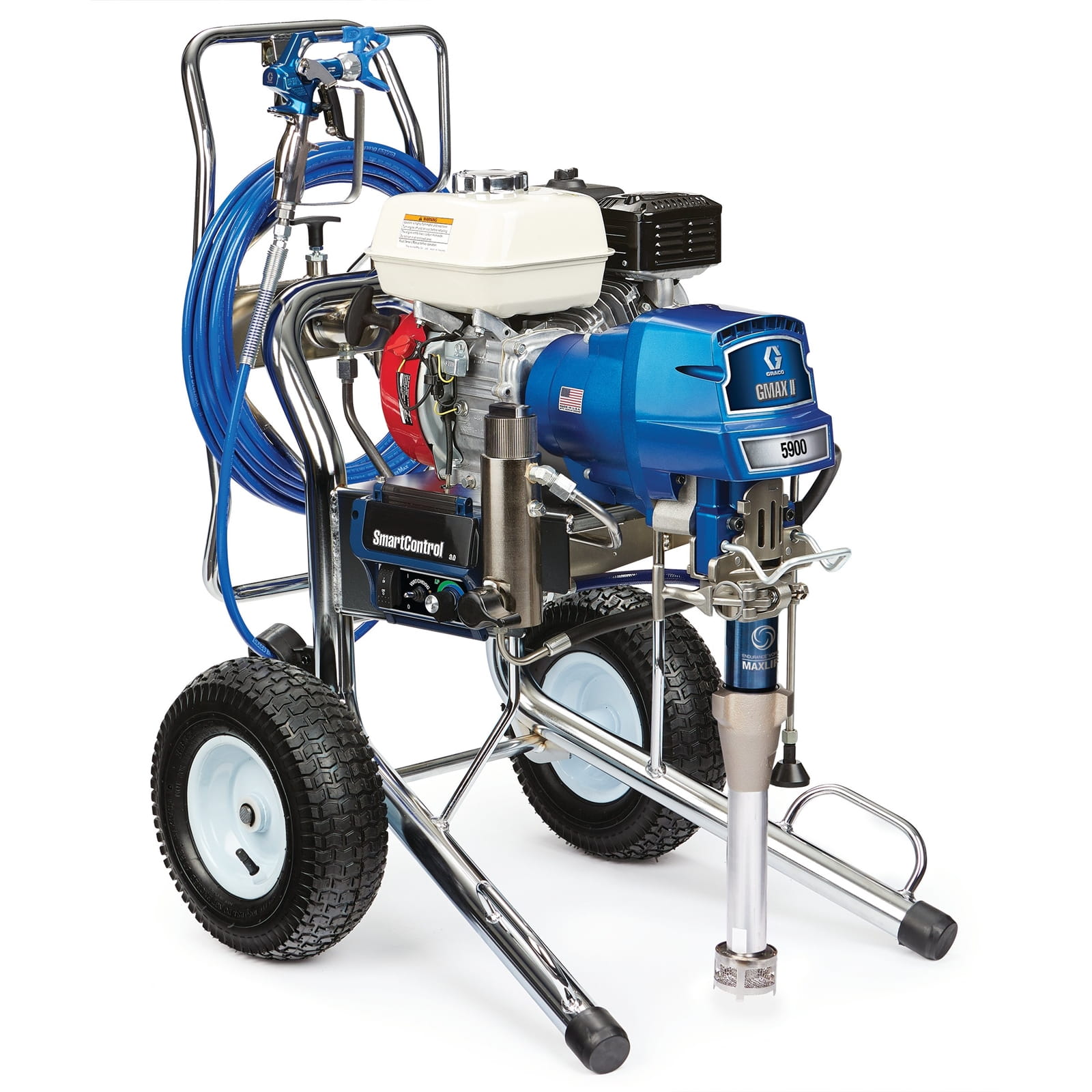

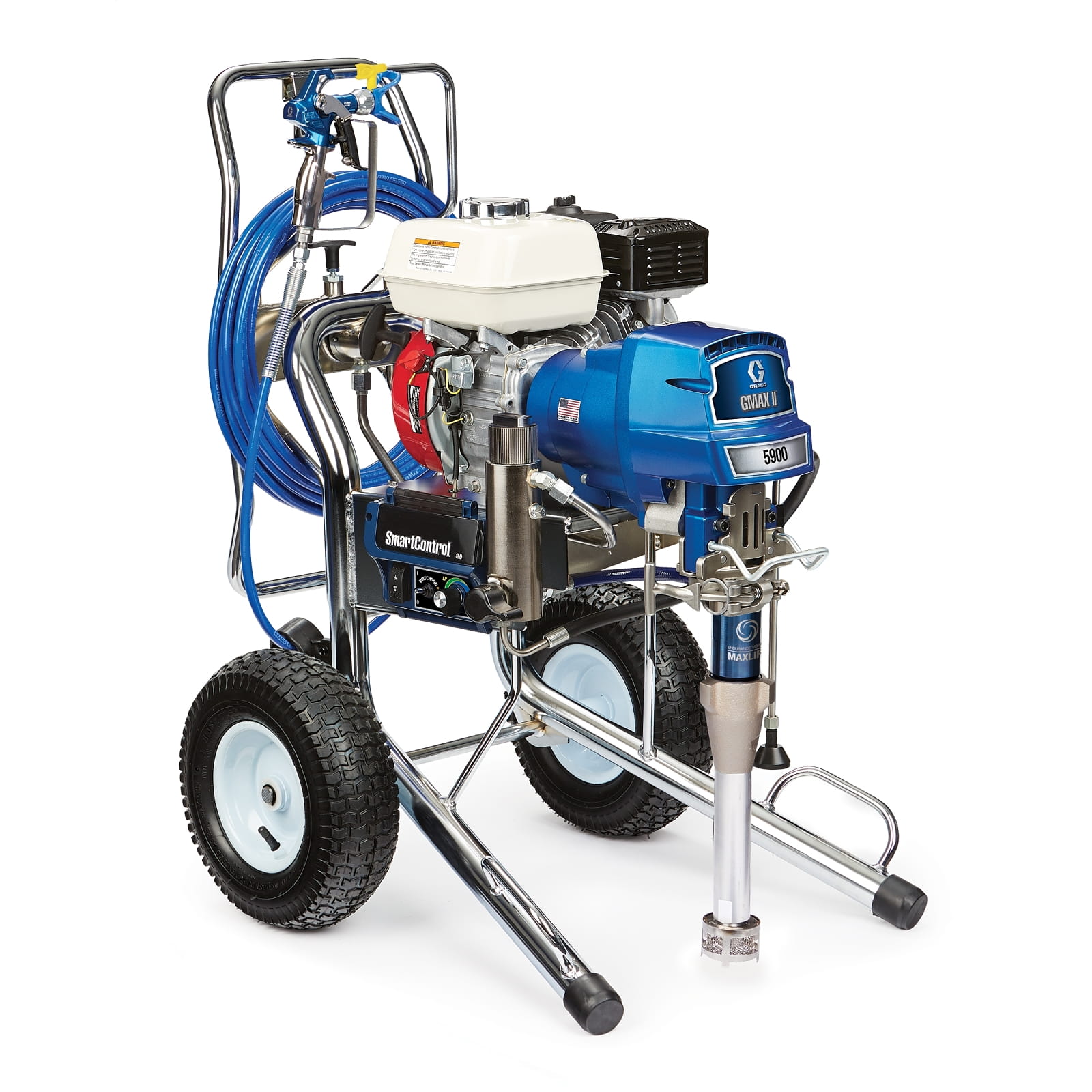

Petrol-powered airless sprayer from the GMAX II 5900 ProContractor series
€11,370.45*
% €15,160.60* (25% saved)Ready for shipping in 5-8 days
Also interesting
Product information
With a 200 cc Honda engine and a flow rate of up to 61 l/min (1.6 gallons per minute), the GMAX II 5900 is the industry standard for professionals looking to spray a variety of materials in residential, commercial and industrial construction.
Work smarter, get more jobs done Graco's GMAX ProContractor Series is designed for speed and performance to help you get to the next job site faster and increase your profits.
- Endurance Vortex MaxLife piston pump
- Outstanding pump life
- Groundbreaking Vortex torsion bar technology
- New QuikPak cartridge system allows you to replace the pump in minutes.
- Lasts 6x longer after each replacement thanks to innovative MaxLife technology
- Oversized passages for high flow to rotate the rod for even wear
- Replace pump in minutes with the new QuikPak cartridge repair system
- ProConnect 2 pump replacement system
- Pump replacement in 1 minute or less - no tools, pins or parts to lose
- No more costly downtime
- QuikReel hose management system
- Easy hose management
- Unwind and rewind up to 300 feet of hose in seconds.
- No twisting, kinking or coiling
- Use only as much hose length as needed - the rest stays on the reel
- Pressure-resistant inlet screen
- Durable filtration
- Withstands harsh conditions to maintain flow through the filter
- SmartControl 3.0
- Constant spray pattern and pressure control
- Handles the widest range of coatings with the most consistent spray pattern
- Lowest dead zone at any pressure
- WatchDog pump protection system
- Automatically prevents pump damage if the material supply is too low
- Advantage precision drive
- The drive with the longest service life
- Improved job site conditions with extremely quiet operation
- Honda® engine
- Reliable, powerful and easy to start
- Oil level warning switches off the engine to prevent damage if the oil level drops too low
- Favoured by users
- Contractor PC spray gun
- High spraying comfort and control - all day long
- Lightest spray gun in its class
- Up to 50 % less trigger force
- E-Z Fit Adjustable trigger length.
- Complete gun conversion in seconds with ProConnect cartridge
- Further information: graco.com/ContractorPC
- Additional features:
- Easy Out pump filter
- Robust suction valve
- LED display
- Durable chassis in robust design
| Compatible material: | Stains, oils, varnishes, primers, fillers, acrylic paints, interior emulsion paints, exterior emulsion paints, latex, anti-corrosion paints |
|---|---|
| Compatible replacement pump: | 17H824 |
| Convertible: | Not convertible |
| Features: | Endurance Vortex MaxLife Pump, SmartControl 3.0, QuikReel, Honda Motor, Advantage Drive, ProConnect 2, Easy Out Filter, Pressure Resistant Inlet Strainer, Heavy Duty Priming Valve, WatchDog, LED Display, Contractor PC Gun |
| Filter mesh size: | 60 |
| Frame configuration: | Hi boy |
| Hose inlet diameter (cm): | 635 |
| Hose inlet diameter (inch): | 1/4 |
| Hose inlet diameter (mm): | 6.35 |
| Hose reel type: | QuikReel |
| Includes: | Contractor PC Gun, RAC X LTX 517 Spray Tip, RAC |
| Inlet colour screen: | 8 mesh stainless steel strainer |
| Inner diameter of material hose (inch): | 1/4 |
| Material inlet thread type: | UN-2A |
| Material outlet size (mm): | 6.35 |
| Material outlet thread type: | NPSM |
| Maximum delivery rate (L/min): | 6.06 |
| Maximum hose length (m): | 45 |
| Maximum nozzle size (inch): | 43 |
| Maximum nozzle size 1 gun (inch): | 43 |
| Maximum nozzle size 2 guns (inch): | 56 |
| Maximum nozzle size 3 guns (inch): | 23 |
| Maximum operating pressure (MPa): | 22.8 |
| Maximum operating pressure (kPa): | 22800 |
| Maximum operating pressure (kg/cm²): | 22.7 |
| Maximum operating pressure (psi): | 3300 |
| Maximum sound pressure level (dB(A)): | 96 |
| Model: | GMAX II |
| Nominal power (cm³): | 200 |
| Number of guns: | 3 |
| Outlet colour screen: | 60 mesh stainless steel sieve |
| Permissible operating overpressure (psi): | 3300 |
| Permissible operating pressure (bar): | 228 |
| Pressure control type: | SmartControl 3.0 |
| Product series: | ProContractor |
| Pump mounting type: | ProConnect 2 |
| Pump rod type: | MaxLife |
| Pump sleeve material: | MaxLife |
| Pump type: | Endurance Vortex |
| Rated power (W): | 4847 |
| Rated power (kW): | 4.85 |
| Series: | 5900 |
| Size of the material inlet opening (inches): | 1-5/16 |
| Size of the material inlet opening (mm): | 33.34 |
| Size of the material outlet opening (inches): | 1/4 |
| Spray gun type: | Contractor PC Pro pistol |
| Spraying technology: | Airless |
| Supply voltage: | petrol |
| Total height (cm): | 96.5 |
| Total height (mm): | 965 |
| Total length (cm): | 83.1 |
| Total length (mm): | 831 |
| Total width (cm): | 62.0 |
| Total width (mm): | 620 |
| Type: | Airless sprayer |
| Weight (kg): | 73 |
| Wetted material: | Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc Plated Carbon Steel, Nickel Plated Carbon Steel |
More information
- Product number: 1032401
- Manufacturer: Graco
- EAN: 00755652817062
- Weight: 87.089 kg
- Length: 940 mm
- Width: 700 mm
- Height: 1050 mm
Technical details
Operating specifications
| UPC product | 755652817062 |
|---|---|
| Division | CED |
| Price Block | 2 06 |
| Country of Origin | US |
| Unit | EA |
| Height | 105 CM |
| Length | 94 CM |
| Width | 70 cm |
| Volume | . 691 m³ |
| Shipping weight | 87.09 KG |
Technical
| Compatible replacement pump | 1 7 H824 |
|---|---|
| Convertible | Non - convertible |
| Engine Brand | Honda |
| Engine size (HP) | 6. 5 |
| Fluid inlet size (in) | 1 -5/16 |
| Fluid inlet size (mm) | 33. 34 |
| Fluid outlet size (mm) | 6. 35 |
| Frame Configuration | Hi-Boy |
| Hose inlet diameter (cm) | 0. 635 |
| Hose inlet diameter (in) | 1/4 |
| Hose inlet diameter (mm) | 6. 35 |
| Hose reel type | QuikReel |
| Includes | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 3/8 in x 50 ft (15 m) BlueMax II Airless Hose, 1/4 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL 4 oz (118 ml ) |
| Maximum flow rate (L/min) | 6. 06 |
| Maximum Hose Length (ft) | 150 |
| Maximum Hose Length (m) | 45 |
| Maximum sound pressure level (dB(A)) | 96 |
| Maximum tip size (in) | 0. 043 |
| Maximum tip size gun 1 (in) | 0. 043 |
| Maximum working pressure (psi) | 3 3 00 |
| Maximum working pressure (kPa) | 2 2 800 |
| Power Rating (HP) | 6. 5 |
| Power Rating (kW) | 4. 85 |
| Power rating (W) | 4 8 47 |
| Maximum working pressure (MPa) | 22. 8 |
| Pressure control type | SmartControl 3. 0 |
| Overall Width (mm) | 620 |
| Model | GMAX II |
| Maximum working pressure (bar) | 228 |
| Overall Height (cm) | 96. 5 |
| Overall height (in) | 38 |
| Weight (kg) | 73 |
| Overall height (mm) | 965 |
| Overall length (cm) | 83. 1 |
| Overall width (in) | 24. 4 |
| Overall Length (in) | 32. 7 |
| Series | 5 9 00 |
| Overall Length (mm) | 831 |
| Overall width (cm) | 62 |
| Maximum working pressure (kg/cm²) | 22. 7 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Outlet Paint Filter | 60 mesh stainless steel screen |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife |
| Number of Guns | 3 |
| Filter Mesh Size | 60 |
| Maximum tip size gun 2 (in) | 0. 056 |
| Recommended annual usage | Up to 1,000 gallons per week |
| Maximum tip size gun 3 (in) | 0. 023 |
| Power Rating (cc) | 2 00 |
| Product Series | ProContractor |
