Manufacturer no.: 562830

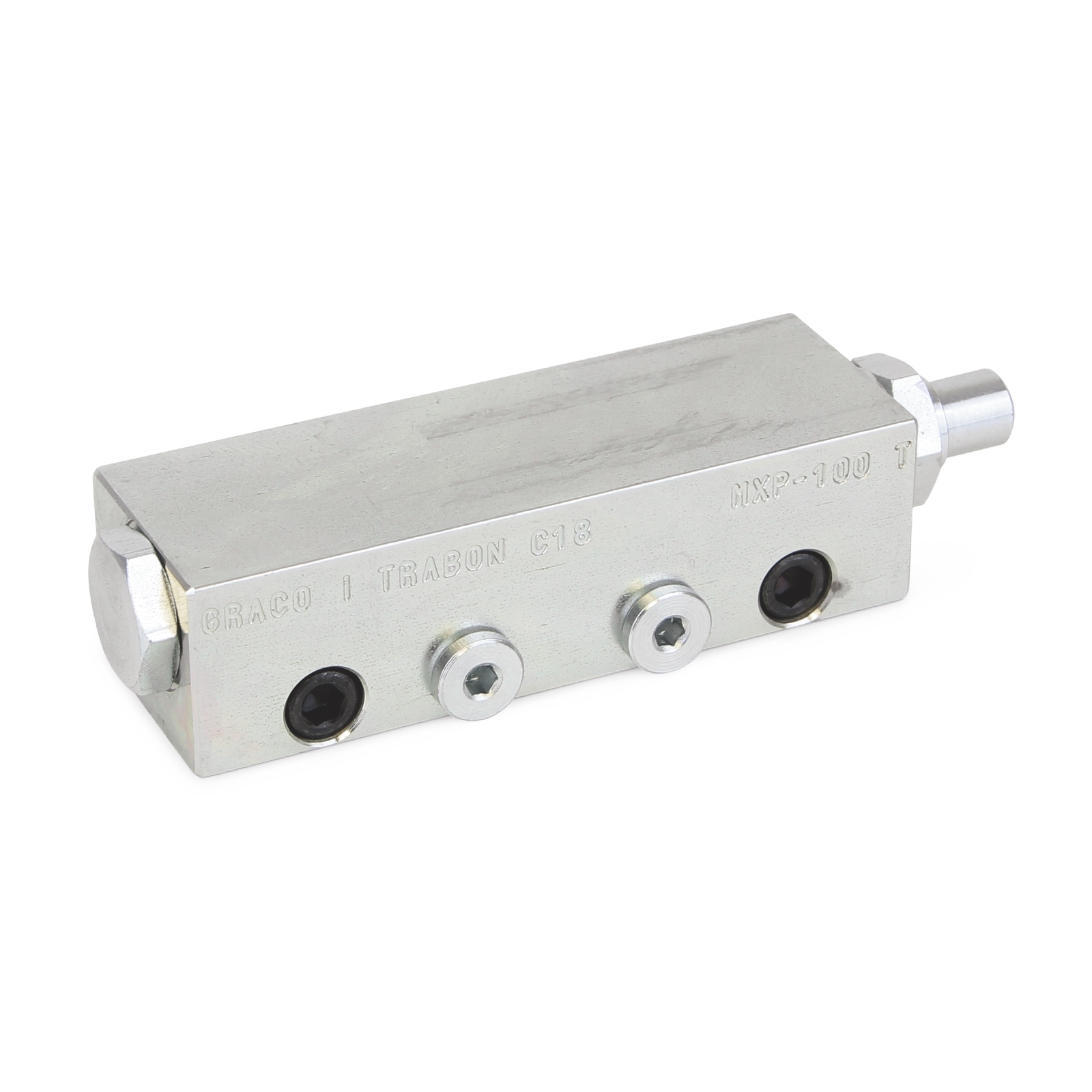

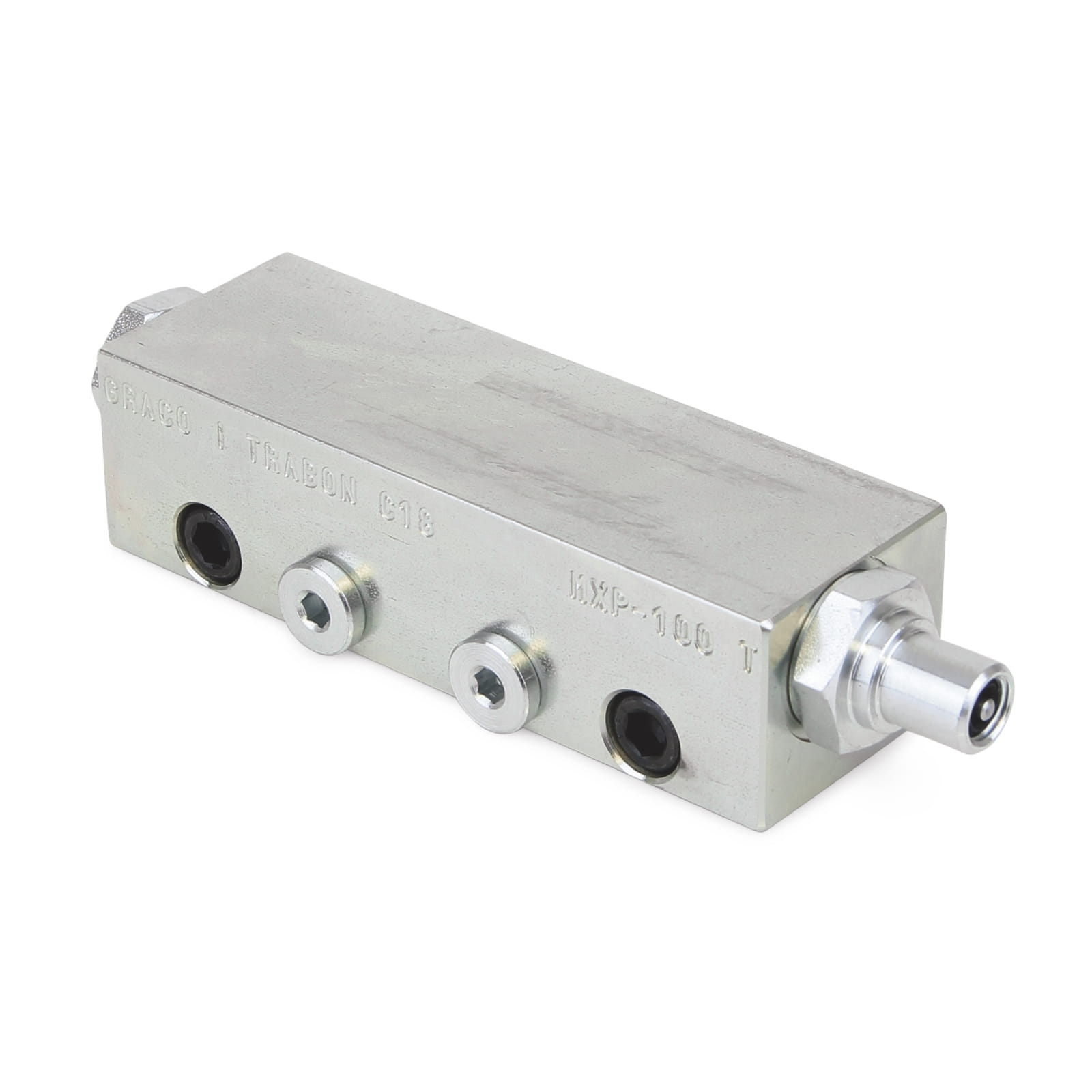

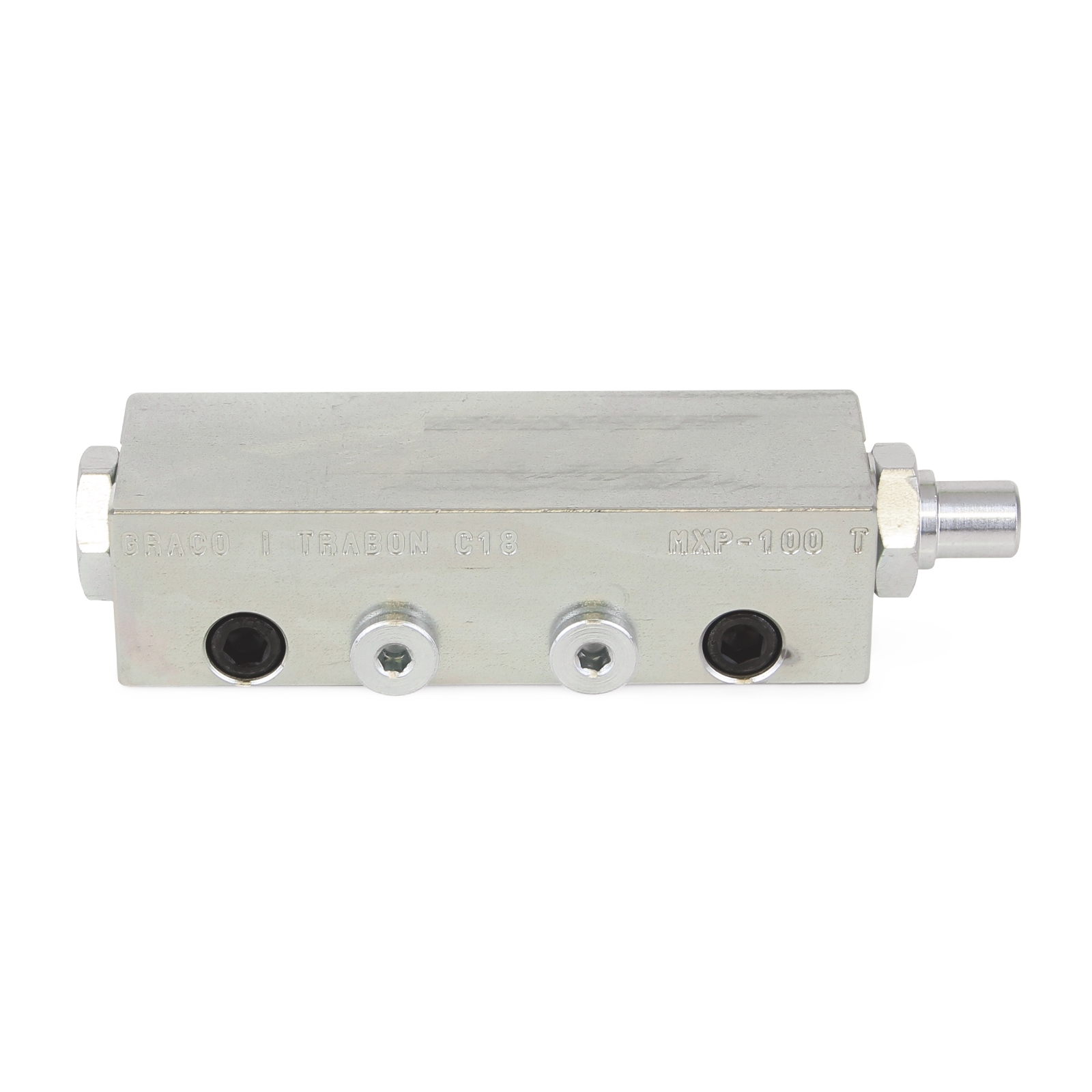

Modular Trabon® MXP metering valve with indicator - MXP-50S - 1.64 cm³ (0.100 in³)

€319.16*

% €354.62* (10% saved)

Prices include VAT plus shipping costs

€268.20*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

The Trabon MXP series offers the largest outlet available in a progressive system. It can be easily equipped with cycle indicators with magnetic and electronic proximity switches to confirm successful lubrication.

This makes it ideal for challenging and large bearing applications with a wide temperature range and high-volume requirements.

The Quick-Change valve segments can be removed from the base unit without disconnecting the lubrication lines. This minimises labour costs and increases machine uptime.
Optional outlets can be fitted with indicator pins for easier troubleshooting – no more guesswork when sorting out faults
Nearly indestructible rugged construction for use in the most extreme environments

Application:	Off-road vehicles, machines in manufacturing plants
Compatible material:	oil, fat
Cycle display:	Cycle display
Distributor valve series:	MXP
Material:	Normal steel
Maximum NLGI grade:	No. 2
Maximum double stroke rate (cycles/min):	60
Maximum operating pressure (kPa):	20700
Maximum operating pressure (psi):	3000
Maximum operating temperature (°C):	176
Minimum operating pressure (psi):	200
Model:	Trabon
Number of outlets:	1
Permissible operating pressure (bar):	207
Series:	MXP
Type:	distributor

More information

Product number: 1037295
Manufacturer: Graco
EAN: 00633955330023
Weight: 1.245 kg
Length: 130 mm
Width: 40 mm
Height: 40 mm

Technical details

Specifications

Operating specifications

UPC product	633955330023
Division	LED
Price Block	125
Country of Origin	US
Unit	EA
Height	4 CM
Length	13 cm
Width	4 cm
Volume	0 m³
Shipping weight	1 .25 KG
HTS code (EU)	8 4 81809990
HTS code (GB)	8 4 81809990

Technical

Maximum cycle rate (cycles/min)	60
Maximum working pressure (psi)	3000
Minimum working pressure (psi)	2 00
Number of outlets	1
Maximum working pressure (bar)	2 07
Maximum operating temperature (°F)	350
Maximum working pressure (kPa)	2 0 700
Maximum NLGI grade	#2
Maximum operating temperature (°C)	1 76
Divider Valve Series	MXP
Model	Trab on
Series	MXP
Discharge per piston stroke (in³)	0. 100
