Manufacturer no.:
G35B03

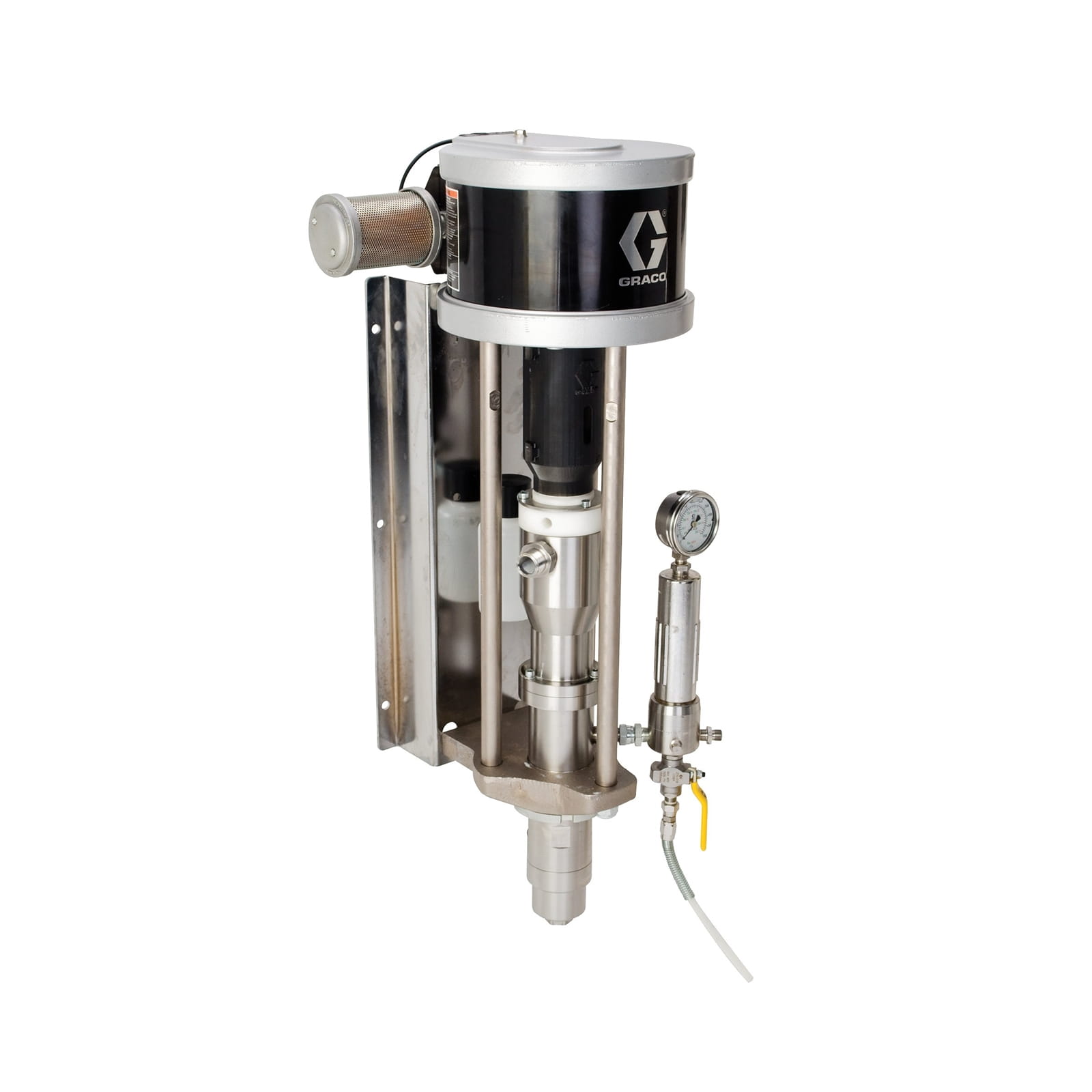

Merkur bellows model, complete air-assisted airless unit with 35:1 ratio and V-seal, wall mounting, material filter, hoses, G40 spray gun
€8,675.99*
% €11,567.99* (25% saved)Ready for shipping in 5-8 Werktage
Also interesting
Product information
Graco's Merkur bellows piston pumps are characterised by their low maintenance requirements, as the seals do not come into contact with the outside air. Due to their design, these pumps do not require a conventional throat seal; this ensures particularly high reliability with moisture-sensitive materials.
- Air motor with state-of-the-art technology
- Low air consumption for improved efficiency
- The simple design of the air motor with just a few components shortens repair times
- Optimised design for easy flushing, enables quick colour changes and reduces material loss
- Pump is made from 300 grade stainless steel for superior durability
- Fewer parts and hot-swappable bellows seals for ease of maintenance, lower total cost of ownership and less downtime
| Application: | supply |
|---|---|
| Assembly: | Wall mounting |
| Compatible material: | Water Based, Solvent Based, High Solids, Xirallic, CARC, Metal, Top Coats, Stains, Lacquer, UV Coating |
| Convertible: | Not convertible |
| Frame configuration: | Wall |
| Gun included: | 1 |
| Gun technology: | Air-assisted |
| Gun type: | Air-assisted |
| Includes: | Pump and gun air regulators, drain valves, fluid filters, V-seal |
| Material inlet thread type: | NPT |
| Material outlet size (cm): | 9,525 |
| Material outlet size (mm): | 9,525 |
| Material outlet thread type: | NPT |
| Maximum hose length (m): | 7 |
| Maximum operating pressure (MPa): | 24.1 |
| Maximum operating pressure (kPa): | 24100 |
| Maximum operating pressure (psi): | 3500 |
| Model: | Mercury |
| Motor type: | Pneumatic |
| Number of guns: | 1 |
| Outlet colour screen: | 60 mesh stainless steel sieve |
| Permissible operating pressure (bar): | 241 |
| Pistol model: | G40 |
| Print type: | High pressure |
| Product type: | Complete spraying device |
| Pump type: | Pneumatic piston pump |
| Series: | Bellows |
| Size of the material inlet opening (cm): | 1,905 |
| Size of the material inlet opening (inches): | 3/4 |
| Size of the material inlet opening (mm): | 19.05 |
| Size of the material outlet opening (inches): | 3/8 |
| Supply voltage: | Air |
| Transmission ratio of the pump: | 35:1 |
| Type: | Pneumatic piston pump |
| Weight (kg): | 43.5 |
| Wetted material: | stainless steel |
More information
- Product number: 1035672
- Manufacturer: Graco
- EAN: 00633955085404
- Weight: 56 kg
- Length: 1000 mm
- Width: 600 mm
- Height: 500 mm
