Manufacturer no.:
G35B23

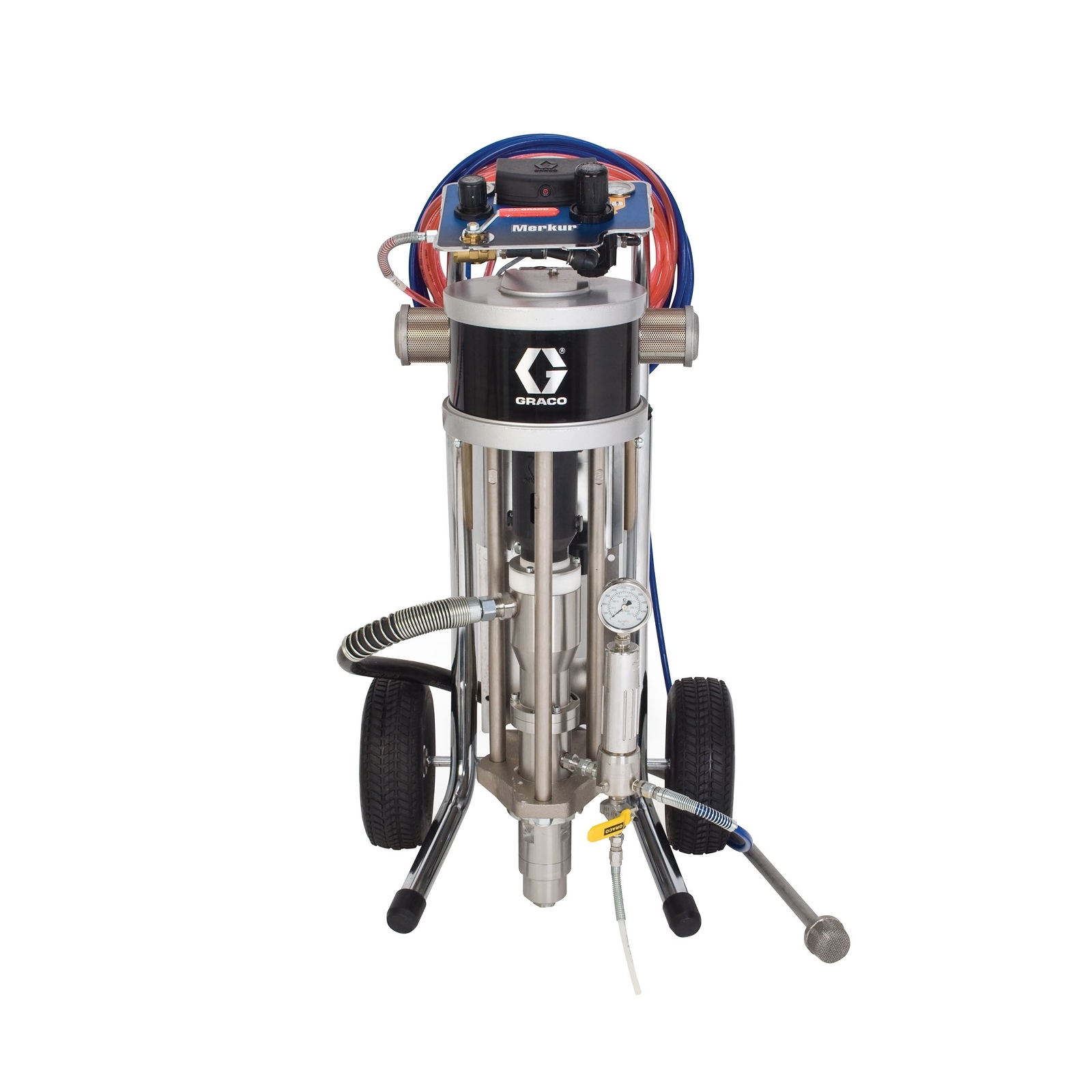

Merkur™ 35:1 ratio air-assisted airless U-cup bellows model, cart-mounted, G40 spray gun
€9,177.58*
% €12,236.77* (25% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The gentle pumping action of the Merkur bellows pump, along with minimised seal surfaces, ensures optimal handling of shear-sensitive materials, such as UV coatings and water-based materials.
Merkur air motor technology
- Air motor with the latest technology
- Low air consumption for even greater efficiency
- The straightforward design of the air motor with only a few components reduces repair times
Leak-free displacement pump
- The optimised design for easy flushing enables quick colour changes and reduces material waste.
- The pump is made of 300 series stainless steel for superior durability
- Fewer parts and field-replaceable bellows packings make maintenance easier, reduce overall operating costs and minimise downtime.
Reduced pulsation for optimal results
- Merkur units have smooth, fast stroke changes, enabling better, more consistent surface quality and fatigue-free working
Air Valve
- Enables smooth and fast stroke changes
Quick-disconnect coupling
- for easy removal of the lower pump from the air motor
Quick-release coupling
- for easy removal of the lower pump from the air motor
Improved bellows seal
- No packing gland lubrication, no leakage
Overflow chamber (optional)
- The D-shaped seal and overflow chamber inside the pump collects any leaking materials in the event of a leaky bellow.
Neck and piston seals
- Spring-energised for extended seal life – no adjustments required
- Available with V-seals for abrasive materials or U-seals for UV-curing materials
| Application: | supply |
|---|---|
| Compatible material: | Water Based, Solvent Based, High Solids, Xirallic, CARC, Metal, Top Coats, Stains, Lacquer, UV Coating |
| Convertible: | Not convertible |
| Frame configuration: | chassis |

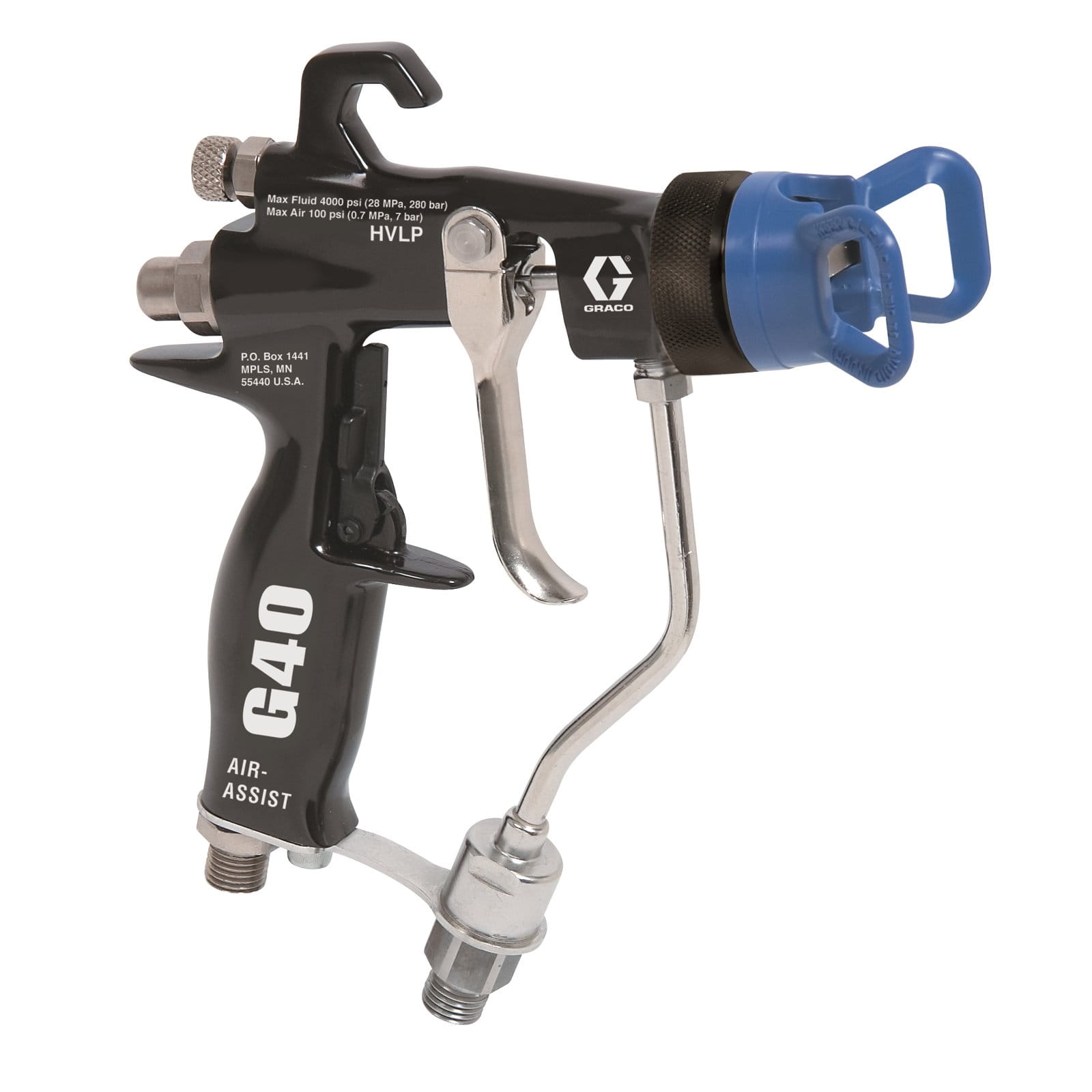

| Includes: | Pump and air gun control, G40 gun, fluid hose, gun fluid hose, gun air hose, suction hose and pipe, drain valve, fluid filter |
| Material inlet thread type: | NPT |
| Material outlet size (cm): | 9,525 |
| Material outlet size (mm): | 9,525 |
| Material outlet thread type: | NPT |
| Maximum hose length (m): | 7 |
| Maximum operating pressure (MPa): | 24.1 |
| Maximum operating pressure (kPa): | 24100 |
| Maximum operating pressure (psi): | 3500 |
| Model: | Mercury |
| Motor type: | Pneumatic |
| Number of guns: | 1 |
| Outlet colour screen: | 60 mesh stainless steel sieve |
| Permissible operating pressure (bar): | 241 |
| Pump type: | Pistons |
| Series: | Bellows |
| Size of the material inlet opening (cm): | 1,905 |
| Size of the material inlet opening (inches): | 3/4 |
| Size of the material inlet opening (mm): | 19.05 |
| Size of the material outlet opening (inches): | 3/8 |
| Supply voltage: | Air |
| Type: | Air Assisted Airless Sprayers |
| Weight (kg): | 56.7 |
| Wetted material: | PEEK, PTFE, stainless steel, tungsten carbide, UHMWPE |
More information
- Product number: 1035259
- Manufacturer: Graco
- EAN: 00633955097605
- Weight: 67.044 kg
- Length: 550 mm
- Width: 500 mm
- Height: 1070 mm
Technical details
Operating specifications
| UPC product | 633955097605 |
|---|---|
| Division | IPD |
| Price Block | 0 53 |
| Country of Origin | US |
| Unit | EA |
| Height | 107 CM |
| Length | 55 CM |
| Width | 50 cm |
| Volume | . 294 m³ |
| Shipping weight | 67.04 KG |
Technical
| Convertible | Non - convertible |
|---|---|
| Fluid inlet size (cm) | 1. 905 |
| Fluid inlet size (in) | 3/4 |
| Fluid inlet size (mm) | 19. 05 |
| Fluid outlet size (cm) | 0. 9525 |
| Fluid outlet size (mm) | 9. 525 |
| Frame Configuration | Cart |
| Includes | Pump and gun air controls, G40 gun, fluid hose, gun fluid hose, gun air hose, suction hose and tube, drain valve, fluid filter |
| Maximum Hose Length (ft) | 2 3 |
| Maximum hose length (m) | 7 |
| Maximum working pressure (bar) | 2 41 |
| Maximum working pressure (kPa) | 2 4 100 |
| Maximum working pressure (psi) | 3 5 00 |
| Model | M erkur |
| Number of Guns | 1 |
| Outlet paint filter | 60 mesh stainless steel screen |
| Series | Bell ows |
| Weight (kg) | 56. 7 |
| Maximum working pressure (MPa) | 24. 1 |
