Manufacturer no.:
25R488

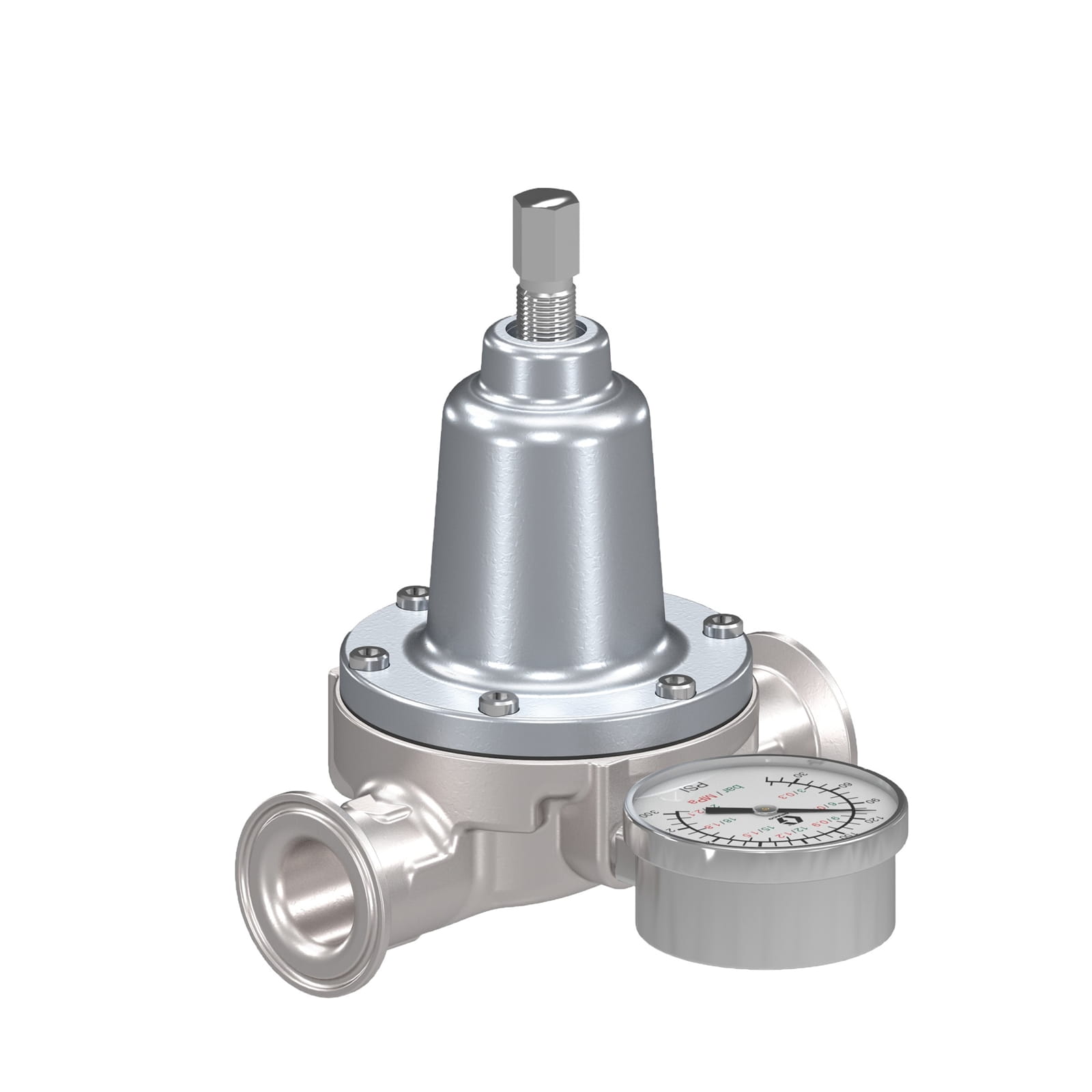

Low shear material back pressure regulator, max. 21.1 bar, max. flow rate 38 l/min, stainless steel, mechanical, very wear resistant, hygienic inlet/outlet
€905.89*
% €1,035.30* (12.5% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Graco's low-shear back pressure regulator minimises shear and prevents the loss of paint quality, enabling manufacturers to achieve a consistent finish quality.
- The innovative flow path geometry provides industry-leading shear resistance
- Ceramic-coated seats and flow directors in the Ultralife series significantly increase wear resistance and service life
- Best-in-class performance maintains constant pressure during flow rate change
| Compatible material: | Water based, Solvent based |
|---|---|
| Diffuser size (cm): | 3.8 |
| Inlet size (cm): | 3.8 |
| Inlet size (inch): | 1.5 |
| Inlet size (mm): | 38 |
| Inlet thread type: | Hygienic flange |
| Maximum delivery rate (L/min): | 38 |
| Maximum operating pressure (kPa): | 2068 |
| Maximum operating pressure (kg/cm²): | 21.1 |
| Maximum operating pressure (psi): | 300 |
| Maximum operating temperature (°C): | 50 |
| Maximum regulated pressure (bar): | 17.6 |
| Maximum regulated pressure (kPa): | 1724 |
| Maximum regulated pressure (kg/cm²): | 17.6 |
| Maximum regulated pressure (psi): | 250 |
| Maximum viscosity (cP): | 1000 |
| Minimum controlled pressure (kg/cm²): | 1.8 |
| Minimum operating temperature (°C): | 0 |
| Minimum regulated pressure (MPa): | 0.17 |
| Minimum regulated pressure (bar): | 1.8 |
| Minimum regulated pressure (kPa): | 172 |
| Minimum regulated pressure (psi): | 25 |
| Outlet size (inch): | 1.5 |
| Outlet size (mm): | 38 |
| Outlet thread type: | Hygienic flange |
| Permissible operating pressure (bar): | 21.1 |
| Pressure gauge opening: | NPT |
| Size of the pressure gauge opening (cm): | 635 |
| Size of the pressure gauge opening (inches): | 1/4 |
| Size of the pressure gauge opening (mm): | 6.35 |
| Type: | Back pressure regulator |
| Wetted material: | Stainless steel, tungsten carbide |
More information
- Product number: 1038854
- Manufacturer: Graco
- EAN: 00769946064667
- Weight: 3.265 kg
- Length: 340 mm
- Width: 220 mm
- Height: 170 mm
Technical details
Operating specifications
| UPC product | 7 6 9946064667 |
|---|---|
| Division | IPD |
| Price Block | 093 |
| Country of Origin | US |
| Unit | EA |
| Height | 17 CM |
| Length | 34 cm |
| Width | 22 cm |
| Volume | . 013 m³ |
| Shipping weight | 3 .27 KG |
Technical
| Gauge Port Size (cm) | 0. 635 |
|---|---|
| Gauge port size (in) | 1/4 |
| Port size (mm) | 6. 35 |
| Gauge port type | NPT |
| Inlet Size (cm) | 3. 8 |
| Inlet size (in) | 1. 5 |
| Inlet Size (mm) | 38 |
| Maximum flow rate (L/min) | 38 |
| Maximum operating temperature (°C) | 50 |
| Maximum operating temperature (°F) | 1 22 |
| Maximum Regulated Pressure (bar) | 17. 6 |
| Maximum Regulated Pressure (kg/cm²) | 17. 6 |
| Maximum regulated pressure (kPa) | 1 7 24 |
| Maximum Regulated Pressure (psi) | 2 50 |
| Maximum viscosity (cP) | 1 0 00 |
| Maximum working pressure (bar) | 21. 1 |
| Maximum working pressure (kg/cm²) | 21. 1 |
| Maximum working pressure (kPa) | 2068 |
| Maximum working pressure (psi) | 300 |
| Minimum operating temperature (°C) | 0 |
| Minimum operating temperature (°F) | 32 |
| Minimum Regulated Pressure (bar) | 1. 8 |
| Minimum Regulated Pressure (kg/cm²) | 1. 8 |
| Minimum regulated pressure (kPa) | 1 72 |
| Minimum Regulated Pressure (psi) | 25 |
| Outlet Size (cm) | 3. 8 |
| Outlet size (in) | 1. 5 |
| Outlet size (mm) | 38 |
| Minimum Regulated Pressure (MPa) | 0. 17 |
Further manufacturer information
Produkthandbücher
- 3A8243D, Handbuch, Gegendruckregler mit geringer Scherwirkung, Anleitung-Teile (Deutsch)
- 3A8243D, Handbuch, Gegendruckregler mit geringer Scherwirkung, Anleitung-Teile (English)
- 3A8243D, Handbuch, Gegendruckregler mit geringer Scherwirkung, Anleitung-Teile (Italiano)
- 3A8243D, Handbuch, Gegendruckregler mit geringer Scherwirkung, Anleitung-Teile (Français)
- 3A8243D, Handbuch, Gegendruckregler mit geringer Scherwirkung, Anleitung-Teile (Polski)
- 3A8243D, Handbuch, Gegendruckregler mit geringer Scherwirkung, Anleitung-Teile (Español)
- 3A8243D, Handbuch, Gegendruckregler mit geringer Scherwirkung, Anleitung-Teile (中文)
- 3A8243D, Handbuch, Gegendruckregler mit geringer Scherwirkung, Anleitung-Teile (한국어)
- 3A8243D, Handbuch, Gegendruckregler mit geringer Scherwirkung, Anleitung-Teile (日本語)
