Manufacturer no.:
237653

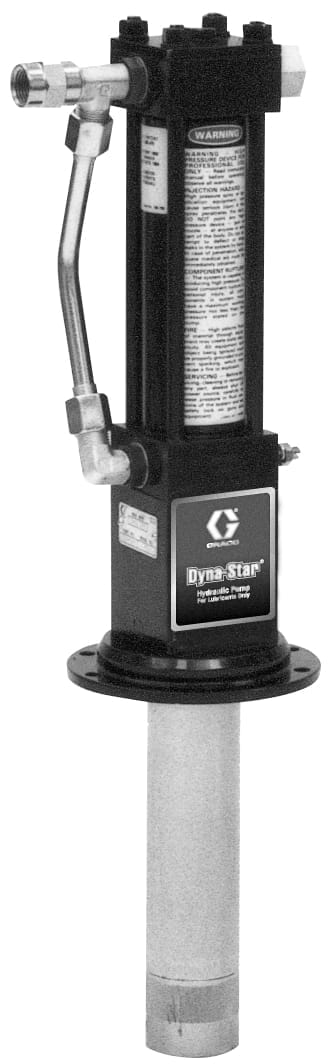

Hydraulic universal oil pump Dyna-Star® 1:1 made of stainless steel
€8,571.57*
Ready for shipping in 5-8 days
Also interesting
Product information
High-Flo Dyna-Star pumps provide reliable, quiet, ice-free performance at maximum pressure and low flow rates and are up to three times more energy efficient than comparable compressed air systems.
Built-in reliability
- Self-lubricating vertical design for long life and reliable operation in high vibration environments
Quiet hydraulic motor
- No need for additional silencers.
Highly efficient motor
- Requires less hydraulic oil.
| Application: | On-road vehicles, off-road vehicles |
|---|---|
| Compatible material: | oil |
| Energy type: | Hydraulic |
| For use with: | Mineral and synthetic oils (engine, transmission and ATF) |
| Gender of the material inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |
| Material: | stainless steel |
| Material inlet thread type: | NPT |
| Material outlet size (cm): | 1.27 |
| Material outlet size (mm): | 12.7 |
| Material outlet thread type: | NPT |
| Maximum continuous double stroke rate (DH/min): | 60 |
| Maximum delivery rate (L/min): | 11.36 |
| Maximum hydraulic fluid inlet pressure (bar): | 68.9 |
| Maximum hydraulic fluid inlet pressure (kPa): | 6890 |
| Maximum hydraulic fluid inlet pressure (psi): | 1000 |
| Maximum intermittent double stroke rate (CPM): | 60 |
| Maximum material feed pressure (psi): | 1000 |
| Maximum operating pressure (MPa): | 6.9 |
| Maximum operating pressure (kPa): | 6900 |
| Maximum operating pressure (psi): | 1000 |
| Model: | Dyna Star |
| Permissible material outlet pressure (bar): | 69 |
| Permissible operating pressure (bar): | 69 |
| Size of the material inlet opening (cm): | 1,905 |
| Size of the material inlet opening (inches): | 3/4 |
| Size of the material inlet opening (mm): | 19.05 |
| Size of the material outlet opening (inches): | 1/2 |
| Transmission ratio of the pump: | 1:1 |
| Type: | Hydraulic piston pump |
| Wetted material: | Steel, copper, leather |
More information
- Product number: 1033736
- Manufacturer: Graco
- EAN: 00633955641242
- Weight: 14.949 kg
- Length: 762 mm
- Width: 274 mm
- Height: 244 mm
Technical details
Operating specifications
| UPC product | 633955641242 |
|---|---|
| Division | LED |
| Price Block | 180 |
| Country of origin | US |
| Unit | EA |
| Height | 24.4 CM |
| Length | 76.2 CM |
| Width | 27.4 CM |
| Volume | . 051 m³ |
| Shipping weight | 14.95 KG |
Technical
| Fluid inlet size (in) | 3/4 |
|---|---|
| Fluid inlet size (mm) | 19. 05 |
| Fluid inlet thread gender | Female |
| Fluid outlet size (mm) | 12. 7 |
| Fluid outlet thread gender | Female |
| For use with | Petroleum- and synthetic-based oils (motor, gear and ATF ) |
| Maximum continuous cycle rate (CPM) | 60 |
| Maximum flow rate (L/min) | 11. 36 |
| Maximum fluid output pressure (psi) | 1 0 00 |
| Maximum hydraulic fluid inlet pressure (bar) | 68. 9 |
| Maximum hydraulic fluid inlet pressure (kPa) | 6890 |
| Maximum hydraulic fluid inlet pressure (psi) | 1 0 00 |
| Maximum intermittent cycle rate (CPM) | 60 |
| Maximum working pressure (bar) | 69 |
| Maximum working pressure (kPa) | 6 900 |
| Maximum working pressure (psi) | 1 0 00 |
| Model | Dyna-Star |
| Maximum working pressure (MPa) | 6. 9 |
| maximum fluid output pressure bar | 69 |
