Manufacturer no.: 24A918

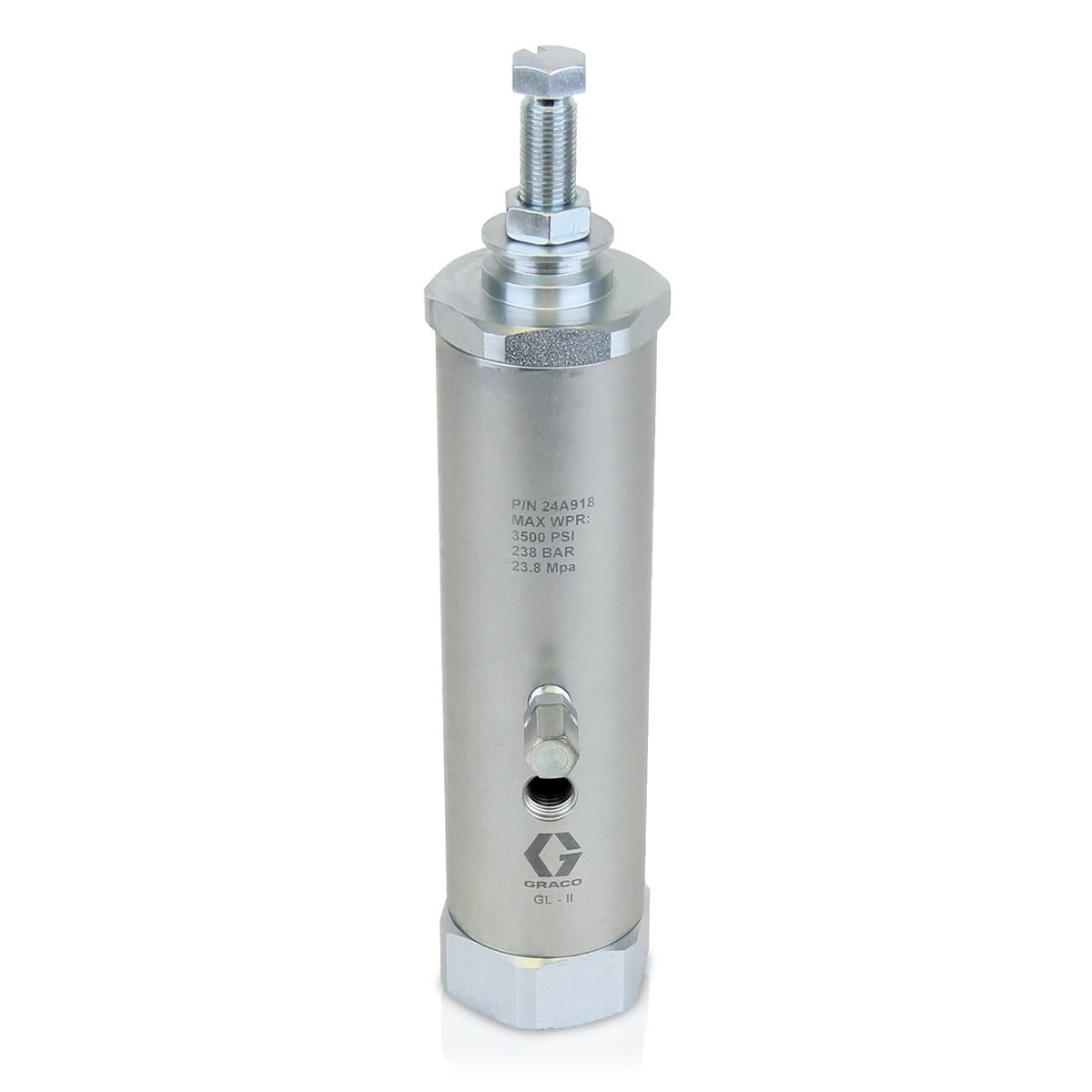

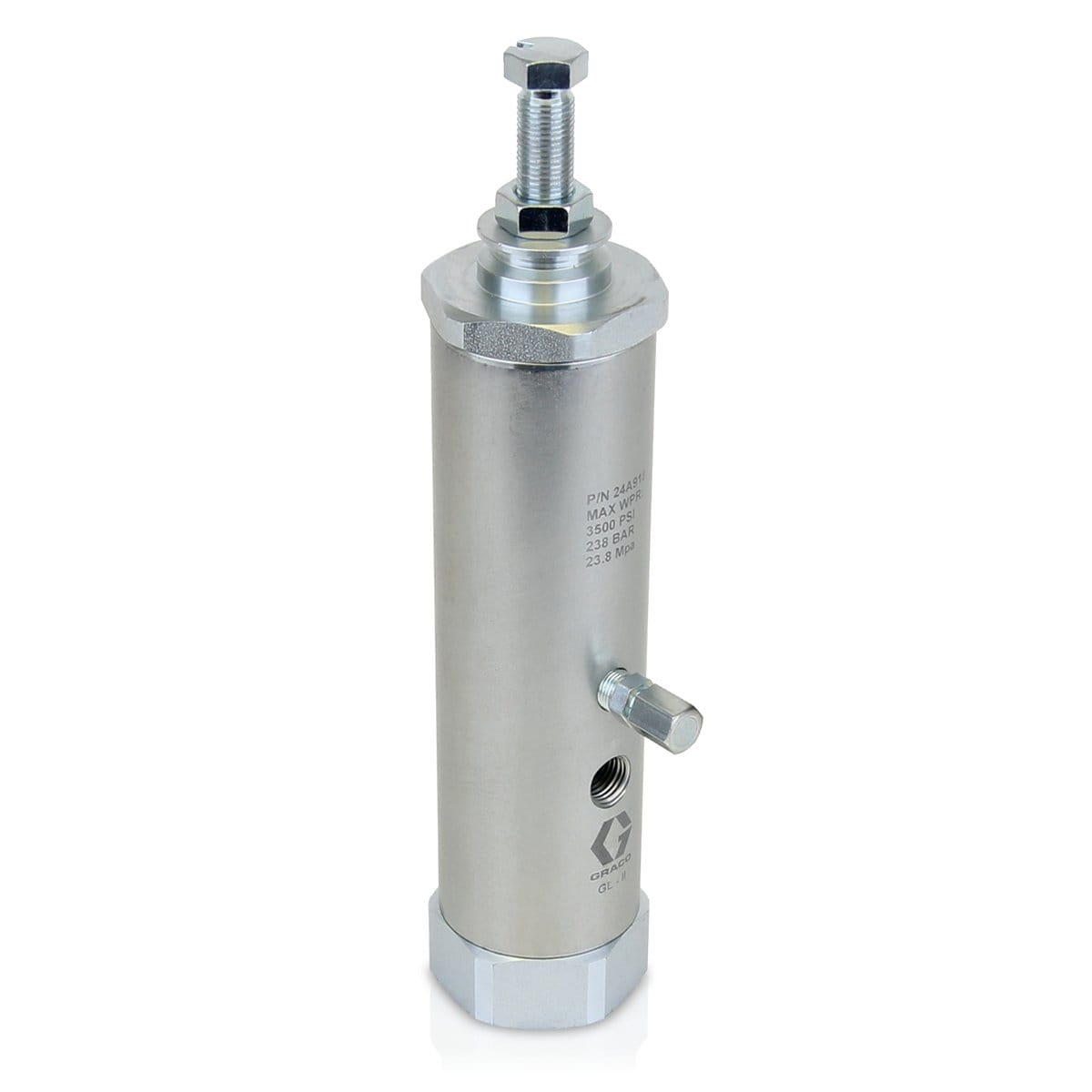

GL-11™ grease injection system

€731.49*

% €812.77* (10% saved)

Prices include VAT plus shipping costs

€614.70*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

High discharge volumes at high pressures for demanding applications

Robust medium-pressure metering system for pumping grease; ideal for more demanding applications such as mobile mining vehicles, milling machines, cement mixing machines or material processing machines

Adjustable dispense volumes allow the system to be customised for each lubrication point
Convenient visual indicator pin provides quick confirmation that the metering valve is operating properly
Adjustment with hex head that is easy to turn from almost any position

Adjustable:	Adjustable
Application:	Machines in manufacturing plants, off-road vehicles
Compatible dosing system:	Multi-line system
Compatible material:	Fat
For use with:	Automatic multi-line lubrication systems
Gender of the outlet thread:	Internal thread
Inlet size (cm):	1.27
Inlet size (inch):	1/2
Inlet size (mm):	12.7
Inlet thread type:	NPT
Maximum NLGI grade:	No. 2
Maximum operating pressure (MPa):	24.1
Maximum operating pressure (kPa):	24100
Maximum operating pressure (psi):	3500
Maximum reset pressure (psi):	600
Minimum operating pressure (psi):	1000
Model:	GL-11
Outlet size (inch):	1/4, 1/8
Outlet thread type:	Air hose
Permissible operating pressure (bar):	241
Recommended operating pressure (psi):	2500
Type:	Grease injection system
Wetted material:	Mild steel, stainless steel, copper, fluoroelastomer

More information

Product number: 1032996
Manufacturer: Graco
EAN: 00633955470460
Weight: 2.7 kg
Length: 280 mm
Width: 105 mm
Height: 105 mm

Technical details

Specifications

Operating specifications

UPC product	633955470460
Division	LED
Price Block	128
Country of origin	US
Unit	EA
Height	10.5 CM
Length	28 cm
Width	10.5 cm
Volume	. 003 M3
Shipping weight	2 .7 KG

Technical

Adjustable	Adjustable
For use with	Single Line Parallel Automatic Lubrication Systems
Inlet size (cm)	1. 27
Inlet size (in)	1/2
Inlet size (mm)	12. 7
Maximum NLGI grade	#2
Maximum output volume (in³)	0. 5
Maximum working pressure (bar)	2 41
Maximum working pressure (kPa)	2 4 100
Maximum working pressure (psi)	3 5 00
Minimum output volume (in³)	0. 05
Outlet Size (in)	1/4, 1/8
Outlet thread gender	Female
Maximum operating pressure (psi)	3 5 00
Minimum operating pressure (psi)	1 0 00
Maximum reset pressure (psi)	600
Recommended operating pressure (psi)	2 500
Maximum working pressure (MPa)	24. 1
Model	GL-11
