Manufacturer no.:
273167

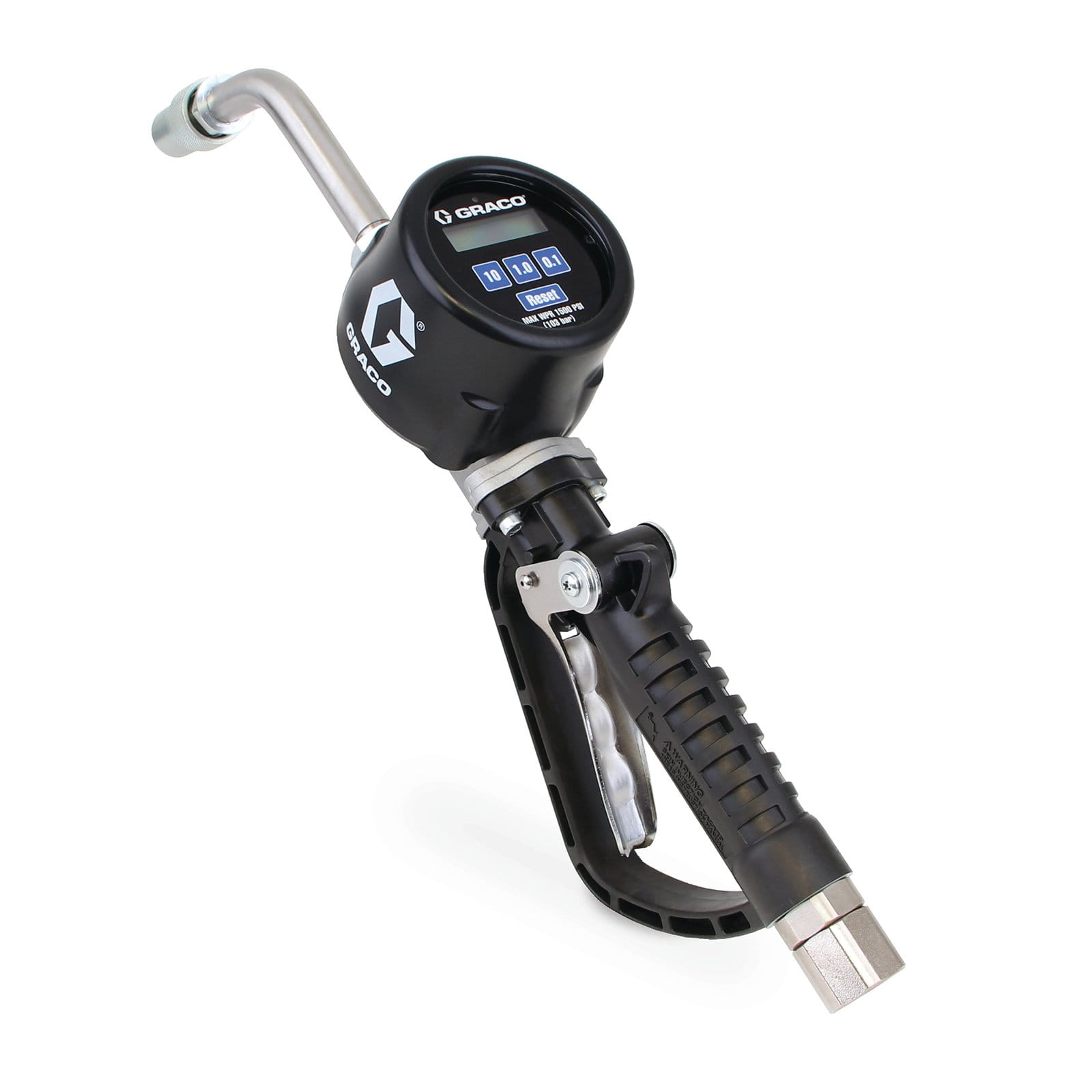

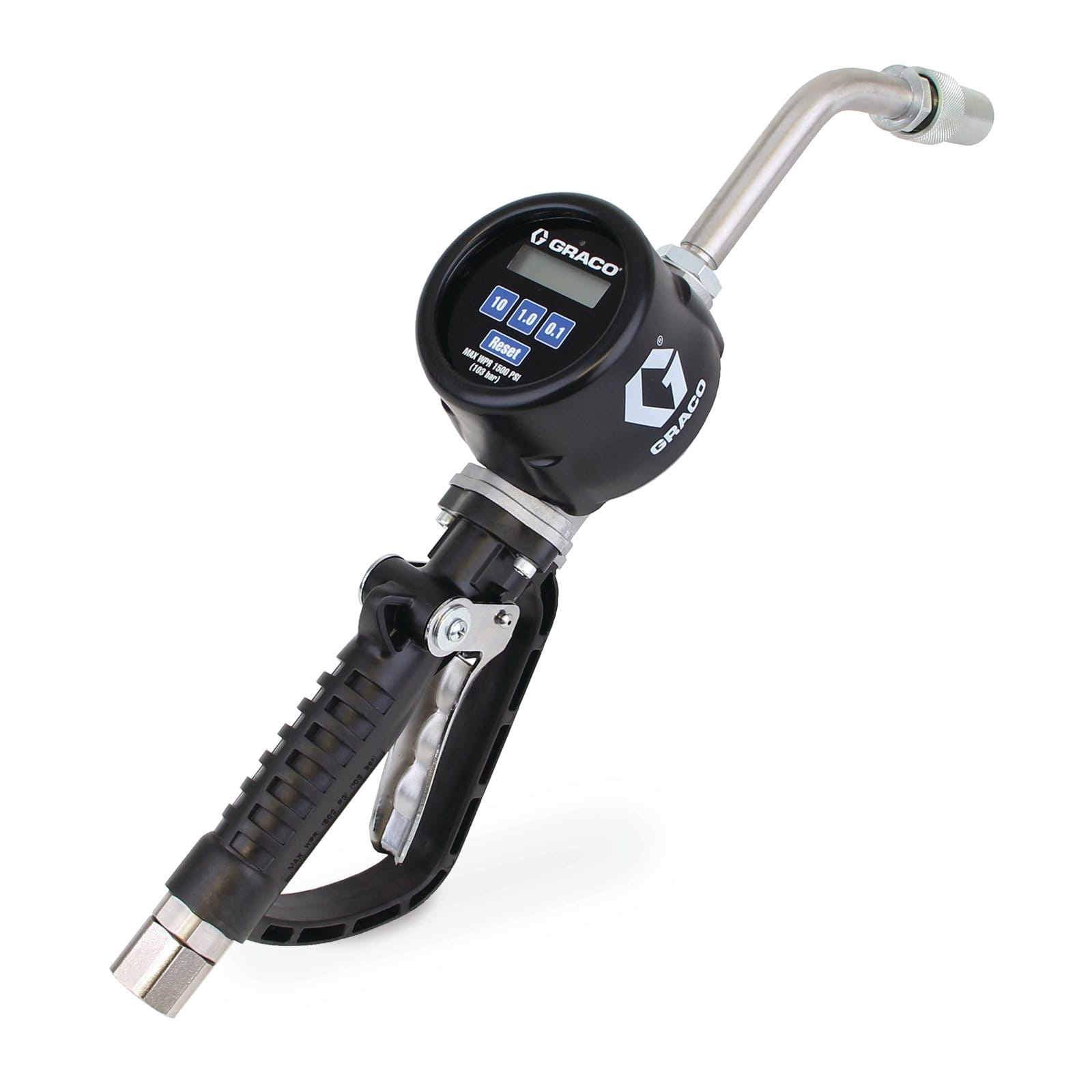

Electronic oil meter with preselection option PM™ 20 – fixed spout – 19 mm inlet – NPT
€803.58*
% €873.46* (8% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Use Graco PM8 and PM20 electronic metering pumps with preselection option to dispense fluids quickly, reliably and precisely into vehicles, trucks and construction equipment, even in the most difficult, extreme working environments.
Proven in harsh conditions – Sealed electronics (IP69K) protect against direct high-pressure cleaning and dust.
Twist-on shut-off nozzle prevents spills – Multiple extensions available including rigid, flexible and transmission fluid.
Valve design for longer service life: Poppet valve design provides exceptional valve life in the most demanding applications.
Smooth valve operation – Ergonomic four-finger trigger for comfortable operation, with full-length rugged trigger guard protection.
Durable cast housing – Designed for heavy-duty and rugged applications.
High flow rates – up to 75.7 L/min.
Long battery life - With four easily replaceable AA batteries.
| Item type: | Zähler |
|---|---|
| Length: | 19 cm |
More information
- Product number: 1034179
- Manufacturer: Graco
- EAN: 00769946175899
- Weight: 2.948 kg
- Length: 419.1 mm
- Width: 127 mm
- Height: 228.6 mm
Technical details
Operating specifications
| UPC product | 769946175899 |
|---|---|
| Division | LED |
| Price Block | 1 52 |
| Country of origin | CN |
| Unit | EA |
| Height | 22.86 CM |
| Length | 41.91 CM |
| Width | 12.7 CM |
| Volume | 0 . 012 m³ |
| Shipping weight | 2 .95 KG |
| HTS code (GB) | 8 4 81109990 |
| HTS code (EU) | 8 4 81109990 |
Technical
| Calibration Type | Factory calibrated |
|---|---|
| Dispense Type | Pres et |
| Display Type | Electronic |
| Extension Type | R igid |
| Fluid inlet thread gender | Female |
| Fluid outlet thread gender | Female |
| Includes | Nozzle, Extension |
| Inlet Size (cm) | 1. 91 |
| Inlet size (in) | 3/4 |
| Inlet size (mm) | 19. 05 |
| IP Rating | 69K |
| Maximum flow rate (cc/min) | 75708 |
| Maximum flow rate (L/min) | 75. 7 |
| Maximum flow rate (cc/sec) | 1 2 62 |
| Maximum operating temperature (°C) | 52 |
| Maximum operating temperature (°F) | 125 |
| Maximum recorded dispense | 1 9 999 |
| Maximum storage temperature (°F) | 1 85 |
| Maximum storage temperature (°C) | 85 |
| Maximum working pressure (psi) | 1 5 00 |
| Maximum working pressure (kPa) | 1 0 340 |
| Maximum working pressure (bar) | 1 02 |
| Meter Accuracy (%) | ±0. 5 |
| Meter Pressure Loss (psi) | 150 PSI at 12 G PM |
| Meter pressure loss (bar) | 10.3 bar at 12 GPM |
| Overall Height (cm) | 18. 3 |
| Overall height (in) | 7. 2 |
| Overall height (mm) | 1 83 |
| Overall Length (cm) | 54. 4 |
| Overall Length (in) | 21. 4 |
| Overall Length (mm) | 5 44 |
| Overall width (cm) | 10. 4 |
| Overall width (in) | 4. 1 |
| Overall width (mm) | 103. 5 |
| Meter Technology | Oval Gear |
| Metering Gun Weight (lb) | 5. 2 |
| Metering gun weight (kg) | 2. 4 |
| Minimum flow rate (GPM) | 0. 25 |
| Warranty | 5 years structural components, 3 years electronics, 1 year wear parts |
| Trigger Protection Type | Lock Off Button |
| Trigger lock | L ocking |
| Series | 20 |
| Outlet size (cm) | 1. 905 |
| Outlet size (mm) | 19. 05 |
| Outlet size (in) | 3/4 |
| Minimum operating temperature (°F) | - 20 |
| Minimum operating temperature (°C) | -29 |
| Valve Type | M eter ed |
| Maximum working pressure (MPa) | 10 |
| Maximum totalizer | 1 9 999 |
| Meter Accuracy | ±0. 5 |
Further manufacturer information
Produkthandbücher
- 3A8694F, Handbuch, PM8 und PM20 Zähler, Betrieb, Teile (Deutsch)
- 3A8694F, Handbuch, PM8 und PM20 Zähler, Betrieb, Teile (English)
- 3A8694F, Handbuch, PM8 und PM20 Zähler, Betrieb, Teile (Español)
- 3A8694F, Handbuch, PM8 und PM20 Zähler, Betrieb, Teile (Français)
- 3A8694F, Handbuch, PM8 und PM20 Zähler, Betrieb, Teile (русский)
- 3A8694F, Handbuch, PM8 und PM20 Zähler, Betrieb, Teile (中文)
- 3A8694F, Handbuch, PM8 und PM20 Zähler, Betrieb, Teile (한국어)
- 3A8694F, Handbuch, PM8 und PM20 Zähler, Betrieb, Teile (日本語)
