Manufacturer no.:
26C357

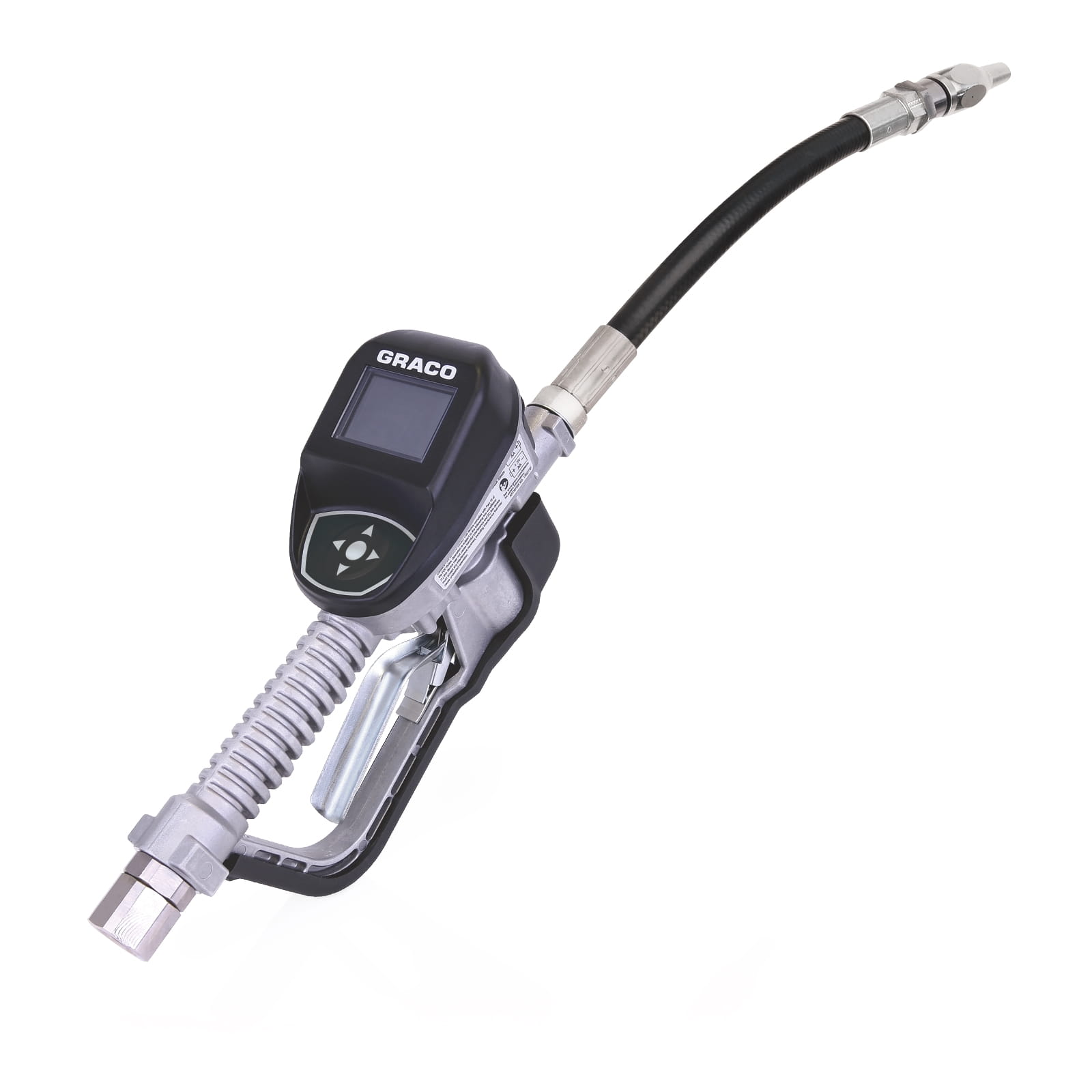

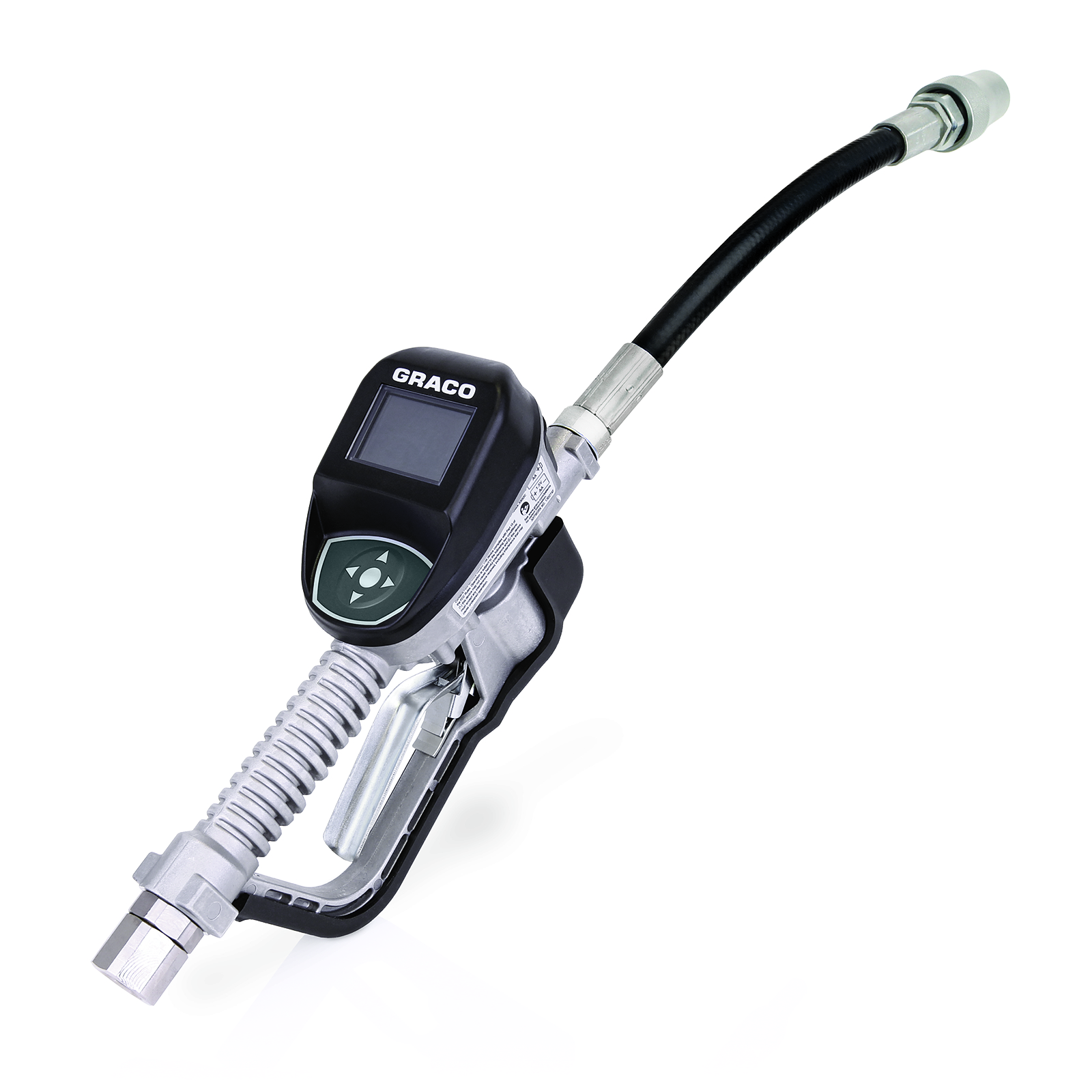

Electronic oil/antifreeze meter with preselection option from the SDP18 series – flexible outlet – 1/2" inlet
€1,515.47*
% €1,683.85* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Graco premium SD meters have been designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large, high-contrast LCD screen that makes it easy to view dispenses under any lighting condition.
Upgradeable – SD dispensers with preselection capability are compatible with the PULSE FC material control system
Large, intuitive display – high-contrast display for low and bright lighting conditions
Long-life valve – the cartridge spool valve is specifically designed to reduce wear and tear and costly downtime.
Ergonomic – four-finger trigger and user-friendly keypad reduce operator fatigue
Reliable – time-tested Graco engineering
Durable – With thick cast aluminium housing, this meter stands up to harsh and heavy applications.
Long battery life – uses easily replaceable 4 AA batteries
| Artikel Art: | Zähler |
|---|
More information
- Product number: 1031112
- Manufacturer: Graco
- EAN: 00755652855378
- Weight: 3.084 kg
- Length: 400 mm
- Width: 170 mm
- Height: 140 mm
Technical details
Operating specifications
| UPC product | 755 6 52855378 |
|---|---|
| Division | LED |
| Price Block | 1 52 |
| Country of origin | US |
| Unit | EA |
| Height | 14 CM |
| Length | 40 cm |
| Width | 17 cm |
| Volume | . 01 m³ |
| Shipping weight | 3 .08 KG |
| HTS code (EU) | 9 0 26102100 |
| HTS code (GB) | 9 0 26102100 |
Technical
| Dispense Type | Pres et |
|---|---|
| Display Type | Electronic |
| Extension Type | Flex ible |
| Fluid inlet thread gender | Female |
| Fluid outlet thread gender | Female |
| Includes | Nozzle, Flexible Extension |
| Inlet Size (cm) | 1. 27 |
| Inlet size (in) | 1/2 |
| Inlet size (mm) | 12. 7 |
| Maximum flow rate (L/min) | 68 |
| Maximum operating temperature (°C) | 70 |
| Maximum operating temperature (°F) | 158 |
| Maximum recorded dispense | 9999 |
| Maximum storage temperature (°F) | 158 |
| Maximum storage temperature (°C) | 70 |
| Maximum working pressure (psi) | 1 5 00 |
| Maximum working pressure (kPa) | 1 0 340 |
| Maximum working pressure (bar) | 103. 4 |
| Meter Accuracy (%) | ±0. 5 |
| Overall height (cm) | 14. 6 |
| Overall height (in) | 5. 75 |
| Overall height (mm) | 1 46 |
| Overall Length (cm) | 33 |
| Overall Length (in) | 13 |
| Overall Length (mm) | 330 |
| Overall width (cm) | 9. 5 |
| Overall width (in) | 3. 75 |
| Overall width (mm) | 95 |
| Meter Technology | Oval Gear |
| Metering Gun Weight (lb) | 5. 3 |
| Metering Gun Weight (kg) | 2. 4 |
| Minimum flow rate (GPM) | 0. 25 |
| Minimum flow rate (L/min) | 0. 9 |
| Warranty | 5 years structural components, 3 years electronics, 1 year wear parts |
| Trigger protection type | Guard |
| Trigger lock | L ocking |
| Minimum operating temperature (°C) | 4 |
| Minimum operating temperature (°C) | -16 |
| Valve Type | M eter ed |
| Maximum Working Pressure (MPa) | 10. 3 |
| Product Type | Meter |
| Model | SDP18 |
Further manufacturer information
Produkthandbücher
- 3A6673G,SDP8/SDP18 Preset Metered Dispense Valve, Pulse FC Enabled, Manual, English (English)
- 3A6673G,SDP8/SDP18 Preset Metered Dispense Valve, Pulse FC Enabled, Manual, English (Français)
- 3A6673G,SDP8/SDP18 Preset Metered Dispense Valve, Pulse FC Enabled, Manual, English (Español)
- 3A6673G,SDP8/SDP18 Preset Metered Dispense Valve, Pulse FC Enabled, Manual, English (中文)
Zertifizierungen
