Manufacturer no.: P06LCK

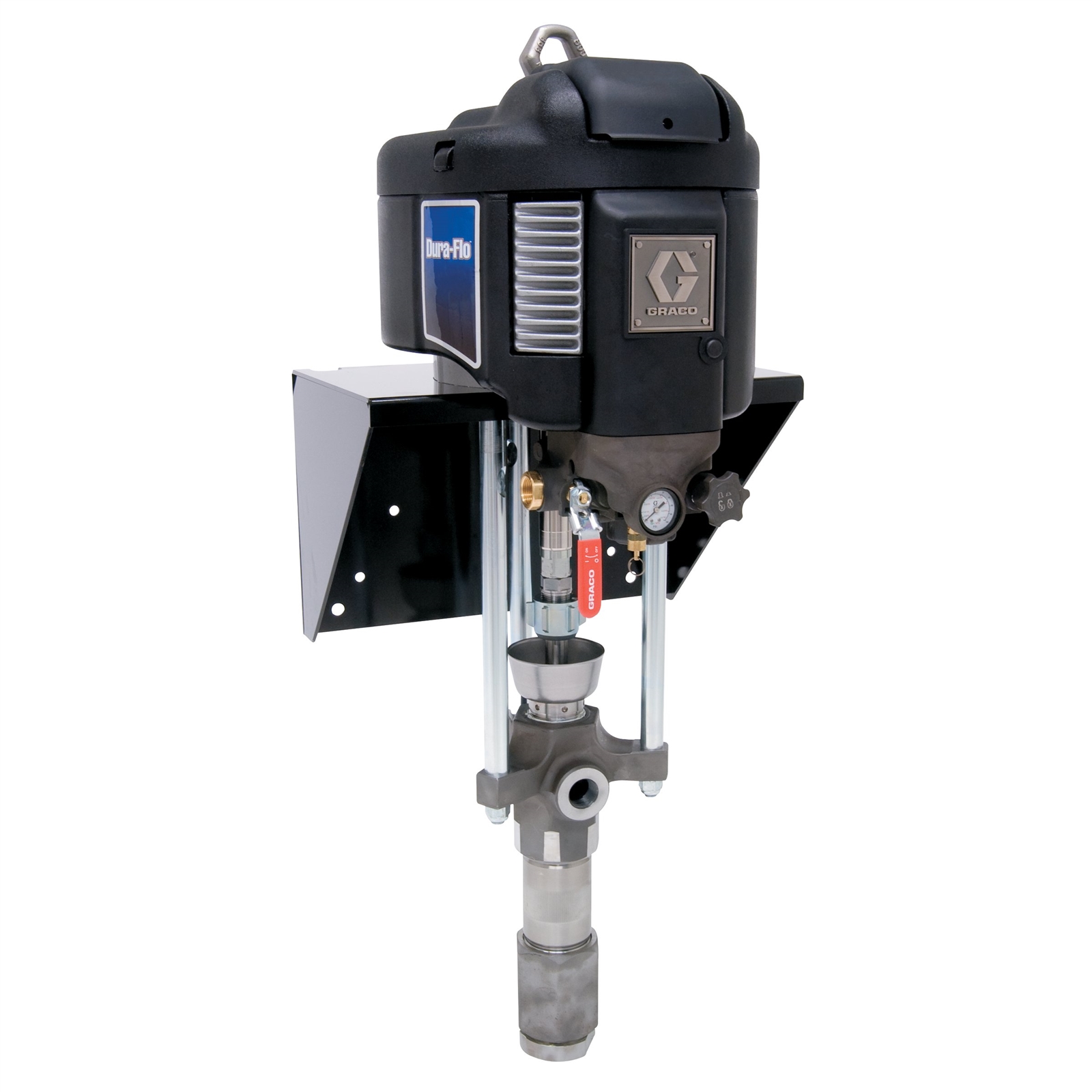

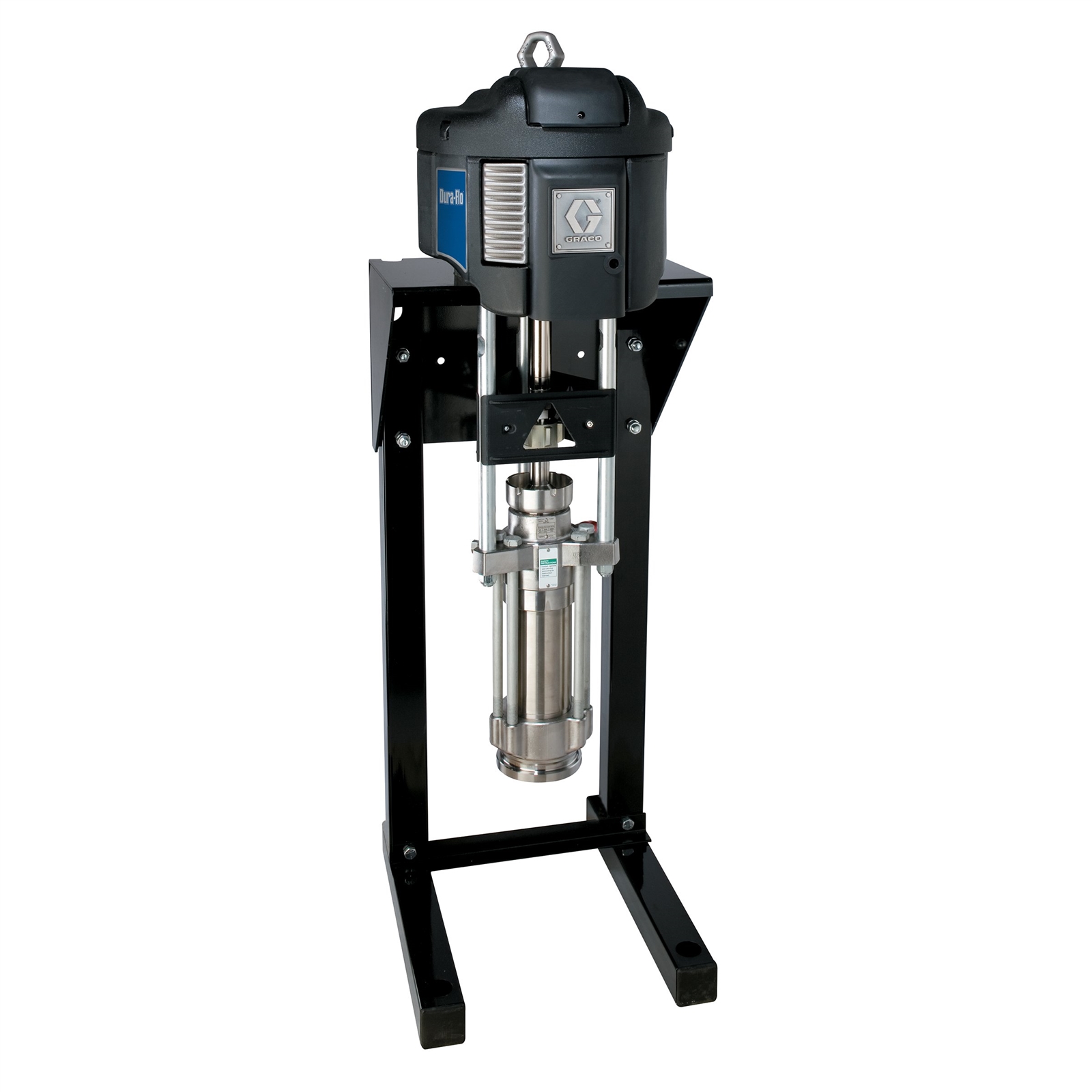

Dura-Flo NXT 2-ball piston pump, 6:1, quiet exhaust motor, carbon steel, UHMW and leather gaskets

€9,933.67*

% €12,226.06* (18.75% saved)

Prices include VAT plus shipping costs

€8,347.62*

Price excl. VAT

Ready for shipping in 5-8 Werktage

14 days free exchange

Free shipping within Germany

Also interesting

Product information

Graco's Dura-Flo pumps with NXT technology provide consistent and easy-to-regulate material delivery. These durable pumps are ideal for supply applications, feature an NXT motor, and can cover an even higher pressure range without sacrificing flow.

Positive displacement design with 2-ball pistons provides consistent and easy-to-regulate dispensing
High pump pressure and flow to handle a wide range of paints and coatings
Improved serviceability with fewer parts, faster repairs and low total cost of ownership
Monitor and protect your pumps with DataTrak technology

Application:	supply
Assembly:	Wall or free-standing installation
Compatible material:	Solvent-based, High Solids, Xirallic, CARC, Metal, Stain, Lacquer
Gender of the material outlet thread:	Internal thread
Includes:	Carbon steel pump, quiet exhaust motor, UHMW and leather seals
Material:	Normal steel
Material outlet size (mm):	38.1
Material outlet thread type:	NPT
Material section type:	2-ball
Maximum air supply pressure (bar):	6.9
Maximum air supply pressure (kPa):	690
Maximum continuous double stroke rate (DH/min):	60
Maximum delivery rate (L/min):	65.87
Maximum inlet air pressure (psi):	100
Maximum operating pressure (MPa):	4.3
Maximum operating pressure (kPa):	4300
Maximum operating pressure (psi):	620
Maximum operating temperature (°C):	66
Model:	Dura Flo
Motor type:	Quiet NXT
Permissible operating pressure (bar):	43
Portable:	Not portable
Sealing material:	UHMW, leather
Series:	2-Ball
Size of the material outlet opening (inches):	1-1/2
Transmission ratio of the pump:	6:1
Type:	Pneumatic piston pump
Wetted material:	Normal steel
