Manufacturer no.: P06MCK

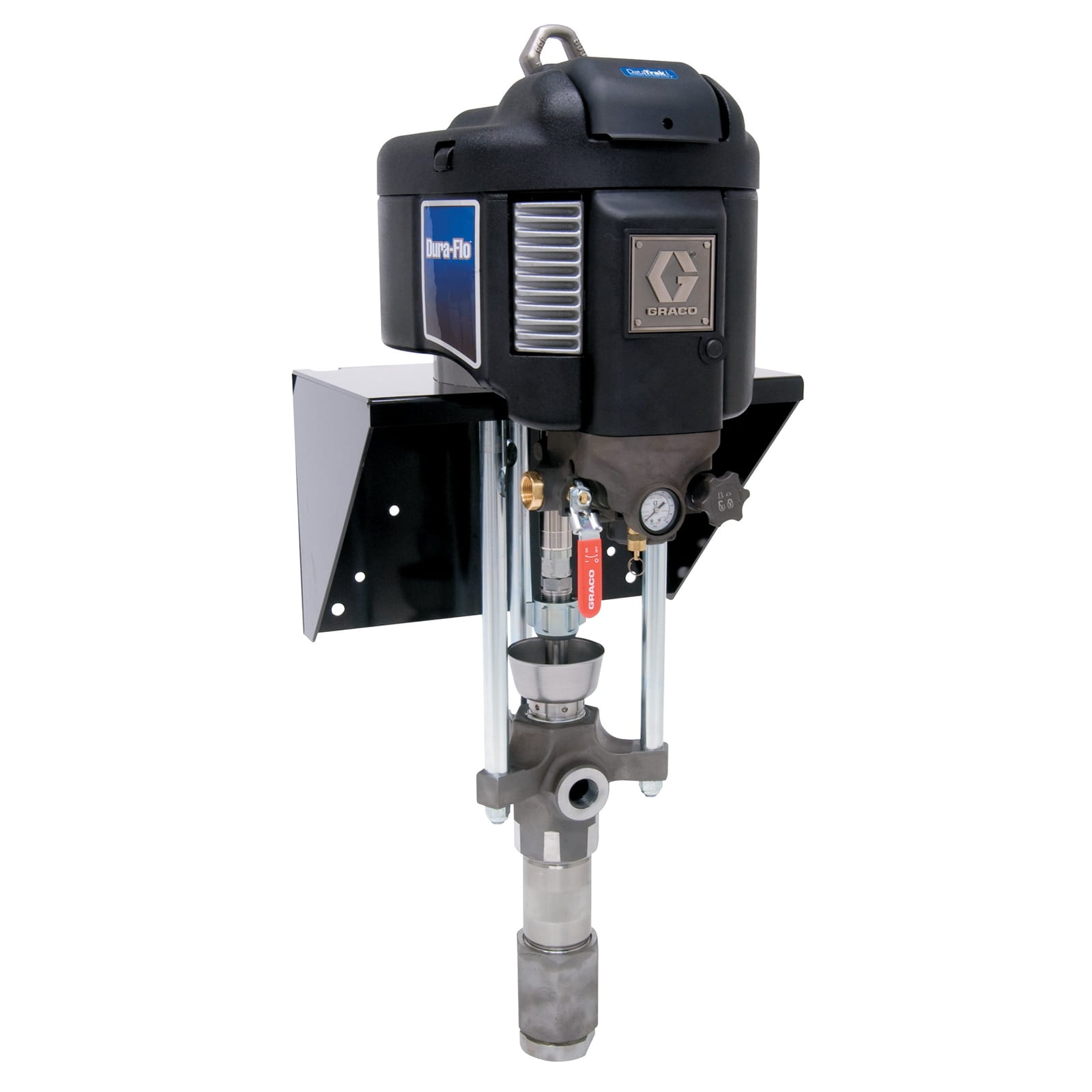

Dura-Flo NXT 2 ball piston pump, 6:1, low-noise exhaust air motor, DataTrak, carbon steel, UHMW and leather seals

€11,260.26*

% €14,075.32* (20% saved)

Prices include VAT plus shipping costs

€9,462.40*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Graco's Dura-Flo pumps with NXT technology provide a consistent and easy to control material delivery. Ideal for feed applications, these heavy-duty pumps feature an NXT motor and can handle an even higher pressure range without sacrificing flow.

The positive displacement, 2-ball piston design provides a consistent and easy to control delivery
High pump pressure and high flow to handle a wide range of colours and coatings
Improved maintainability with fewer parts, faster repairs and low total cost of ownership
Monitor and protect your pumps with DataTrak technology

Artikel Art:	Kolbenpumpe
Dichtung Typ:	Leder, UHMWPE
Verhältnis:	6:1

More information

Product number: 1033123
Manufacturer: Graco
EAN: 00633955185920
Weight: 65 kg
Length: 1500 mm
Width: 420 mm
Height: 480 mm

Technical details

Specifications

Operating specifications

UPC product	633955185920
Division	IPD
Price Block	0 77
Country of Origin	US
Unit	EA
Height	48 CM
Length	150 cm
Width	42 cm
Volume	. 302 m³
Shipping weight	65 KG

Technical

Fluid outlet size (mm)	38. 1
Fluid outlet thread gender	Female
Includes	Carbon steel pump, low noise exhaust motor, DataTrak monitor, UHMW/leather packings
Maximum Air Inlet Pressure (bar)	6. 9
Maximum air inlet pressure (kPa)	690
Maximum air inlet pressure (psi)	100
Maximum continuous cycle rate (CPM)	60
Maximum flow rate (L/min)	65. 87
Maximum operating temperature (°C)	66
Maximum operating temperature (°F)	150
Maximum working pressure (bar)	4 3
Maximum working pressure (kPa)	4 3 00
Maximum working pressure (psi)	620
Model	D ura-Flo
Mount Type	Wall or Stand Mount
Portable	Non-portable
Series	2-Ball
Maximum working pressure (MPa)	4. 3
