Manufacturer no.: P23LCD

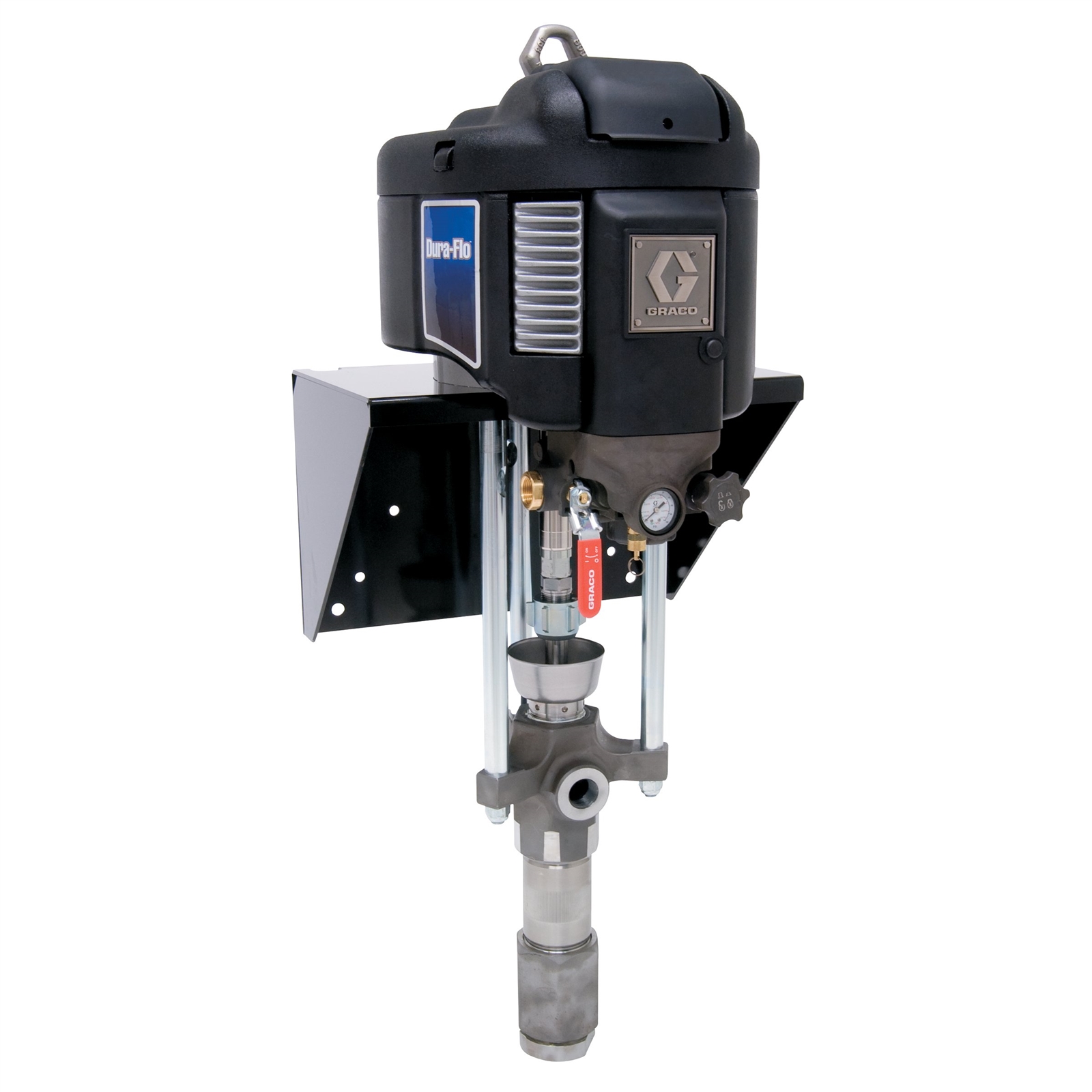

Dura-Flo NXT 2 ball piston pump, 23:1, low-noise exhaust air motor, carbon steel, 3 PTFE and 2 leather seals

€11,816.18*

% €14,542.99* (18.75% saved)

Prices include VAT plus shipping costs

€9,929.56*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Worldwide Shipping

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Graco's Dura-Flo pumps with NXT technology provide a consistent and easy to control material delivery. Ideal for feed applications, these heavy-duty pumps feature an NXT motor and can handle an even higher pressure range without sacrificing flow.

The positive displacement, 2-ball piston design provides a consistent and easy to control delivery
High pump pressure and flow to handle a wide range of colours and coatings
Improved maintainability with fewer parts, faster repairs and low total cost of ownership
Monitor and protect your pumps with DataTrak technology

Application:	supply
Assembly:	Wall or free-standing installation
Compatible material:	Solvent-based, High Solids, Xirallic, CARC, Metal, Stain, Lacquer
Gender of the material outlet thread:	Internal thread
Includes:	Carbon steel pump, low noise exhaust motor, 3 PTFE and 2 leather seals
Material:	Normal steel
Material outlet size (cm):	3.81
Material outlet size (mm):	38.1
Material outlet thread type:	NPT
Material section type:	2-ball
Maximum air supply pressure (bar):	6.9
Maximum air supply pressure (kPa):	690
Maximum continuous double stroke rate (DH/min):	60
Maximum delivery rate (L/min):	34.83
Maximum inlet air pressure (psi):	100
Maximum operating pressure (MPa):	16.4
Maximum operating pressure (kPa):	16400
Maximum operating pressure (psi):	2380
Maximum operating temperature (°C):	66
Model:	Dura Flo
Motor type:	Quiet NXT
Permissible operating pressure (bar):	164
Portable:	Not portable
Sealing material:	PTFE, leather
Series:	2-Ball
Size of the material outlet opening (inches):	1-1/2
Transmission ratio of the pump:	23:1
Type:	Pneumatic piston pump
Wetted material:	Normal steel

More information

Product number: 1033672
Manufacturer: Graco
EAN: 00633955186101
Weight: 77 kg
Length: 1500 mm
Width: 420 mm
Height: 480 mm

Technical details

Specifications

Operating specifications

UPC product	633955186101
Division	IPD
Price Block	0 77
Country of Origin	US
Unit	EA
Height	48 CM
Length	150 cm
Width	42 cm
Volume	. 302 m³
Shipping weight	77 KG

Technical

Fluid outlet size (mm)	38. 1
Fluid outlet thread gender	Female
Includes	Carbon steel pump, low noise exhaust motor, 3 PTFE/2 leather packings
Maximum air inlet pressure (bar)	6. 9
Maximum air inlet pressure (kPa)	690
Maximum air inlet pressure (psi)	100
Maximum continuous cycle rate (CPM)	60
Maximum flow rate (L/min)	34. 83
Maximum operating temperature (°C)	66
Maximum operating temperature (°F)	150
Maximum working pressure (bar)	1 64
Maximum working pressure (kPa)	1 6 400
Maximum working pressure (psi)	2380
Model	D ura-Flo
Mount Type	Wall or Stand Mount
Portable	Non-portable
Series	2-Ball
Maximum Working Pressure (MPa)	16. 4
