Manufacturer no.: P10DCK

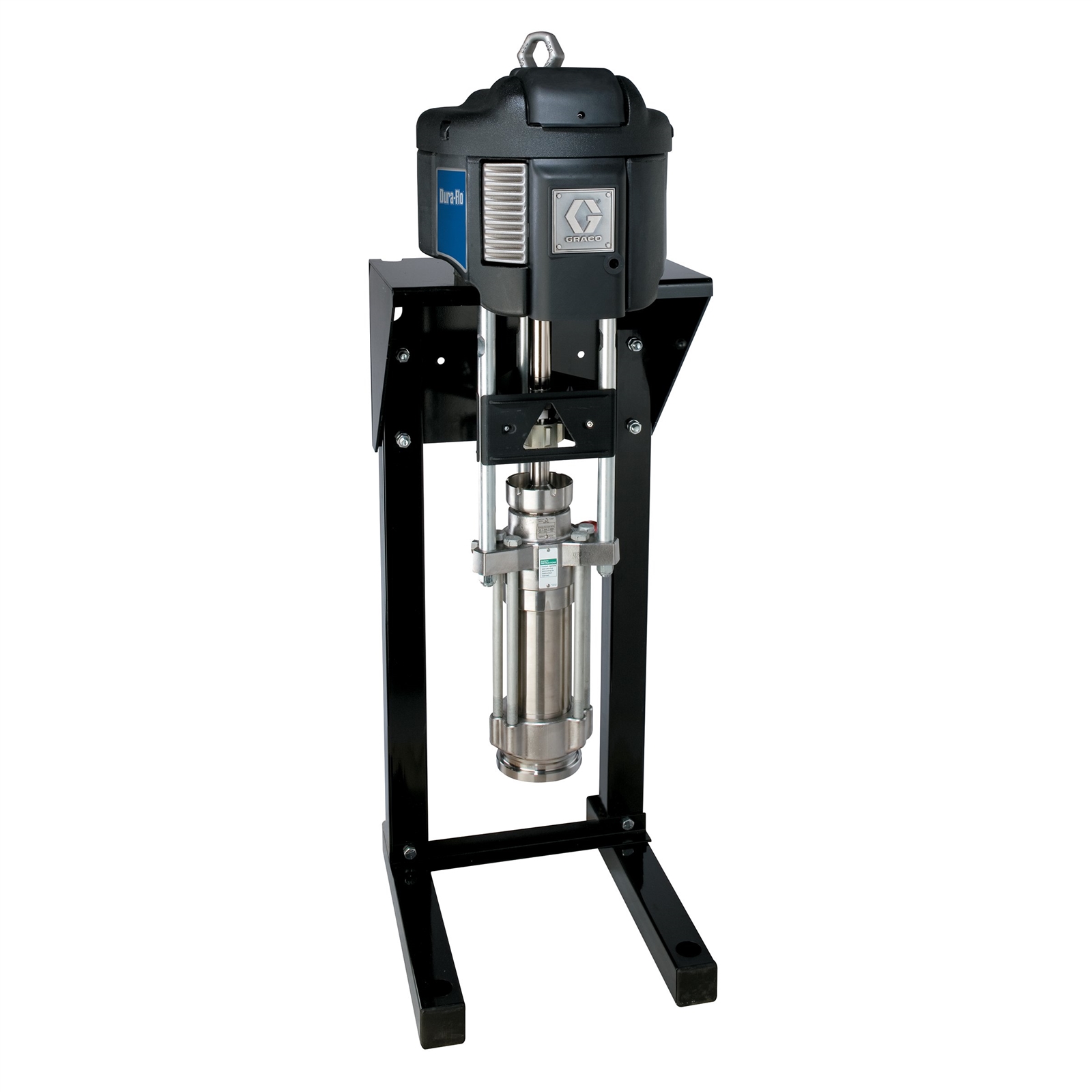

Dura-Flo NXT 2 ball piston pump, 10:1, de-icing exhaust motor, carbon steel, UHMW and leather seals

€10,355.23*

% €12,744.90* (18.75% saved)

Prices include VAT plus shipping costs

€8,701.87*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Worldwide Shipping

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Graco's Dura-Flo pumps with NXT technology provide a consistent and easy to control material delivery. Ideal for feed applications, these heavy-duty pumps feature an NXT motor and can cover an even higher pressure range without sacrificing flow.

The positive displacement, 2-ball piston design provides a consistent and easy to control delivery
High pump pressure and flow to handle a wide range of colours and coatings
Improved maintainability with fewer parts, faster repairs and low total cost of ownership
Monitor and protect your pumps with DataTrak technology

Application:	supply
Assembly:	Wall or free-standing installation
Compatible material:	Solvent-based, High Solids, Xirallic, CARC, Metal, Stain, Lacquer
Gender of the material outlet thread:	Internal thread
Includes:	Carbon steel pump, de-icing exhaust motor, UHMW and leather seals
Material:	Normal steel
Material outlet size (cm):	3.81
Material outlet size (mm):	38.1
Material outlet thread type:	NPT
Material section type:	2-ball
Maximum air supply pressure (bar):	6.9
Maximum air supply pressure (kPa):	690
Maximum continuous double stroke rate (DH/min):	60
Maximum delivery rate (L/min):	65.87
Maximum inlet air pressure (psi):	100
Maximum operating pressure (MPa):	8.2
Maximum operating pressure (kPa):	8200
Maximum operating pressure (psi):	1190
Maximum operating temperature (°C):	66
Model:	Dura Flo
Motor type:	De-icing NXT
Permissible operating pressure (bar):	82
Portable:	Not portable
Sealing material:	UHMW, leather
Series:	2-Ball
Size of the material outlet opening (inches):	1-1/2
Transmission ratio of the pump:	10:1
Type:	Pneumatic piston pump
Wetted material:	Normal steel

More information

Product number: 1030545
Manufacturer: Graco
EAN: 00633955225466
Weight: 73 kg
Length: 1500 mm
Width: 420 mm
Height: 480 mm

Technical details

Specifications

Operating specifications

UPC product	633955225466
Division	IPD
Price Block	180
Country of Origin	US
Unit	EA
Height	48 CM
Length	150 cm
Width	42 cm
Volume	. 302 m³
Shipping weight	73 KG

Technical

Fluid outlet size (mm)	38. 1
Fluid outlet thread gender	Female
Includes	Carbon steel pump, de-icing exhaust motor, UHMW/leather packings
Maximum Air Inlet Pressure (bar)	6. 9
Maximum air inlet pressure (kPa)	690
Maximum air inlet pressure (psi)	100
Maximum continuous cycle rate (CPM)	60
Maximum flow rate (L/min)	65. 87
Maximum operating temperature (°C)	66
Maximum operating temperature (°F)	1 5 0
Maximum working pressure (bar)	82
Maximum working pressure (kPa)	8200
Maximum working pressure (psi)	1190
Model	D ura-Flo
Mount Type	Wall or Stand Mount
Portable	Non-portable
Series	2-Ball
Maximum working pressure (MPa)	8. 2
