Manufacturer no.: 24Z492

CSP inlet manifold, 1/8" NPT, 18 outlets

€327.73*

% €364.14* (10% saved)

€275.40*

Price excl. VAT

Ready for shipping in 5-8 days

EU B2B: net prices with valid VAT ID

Also interesting

Product information

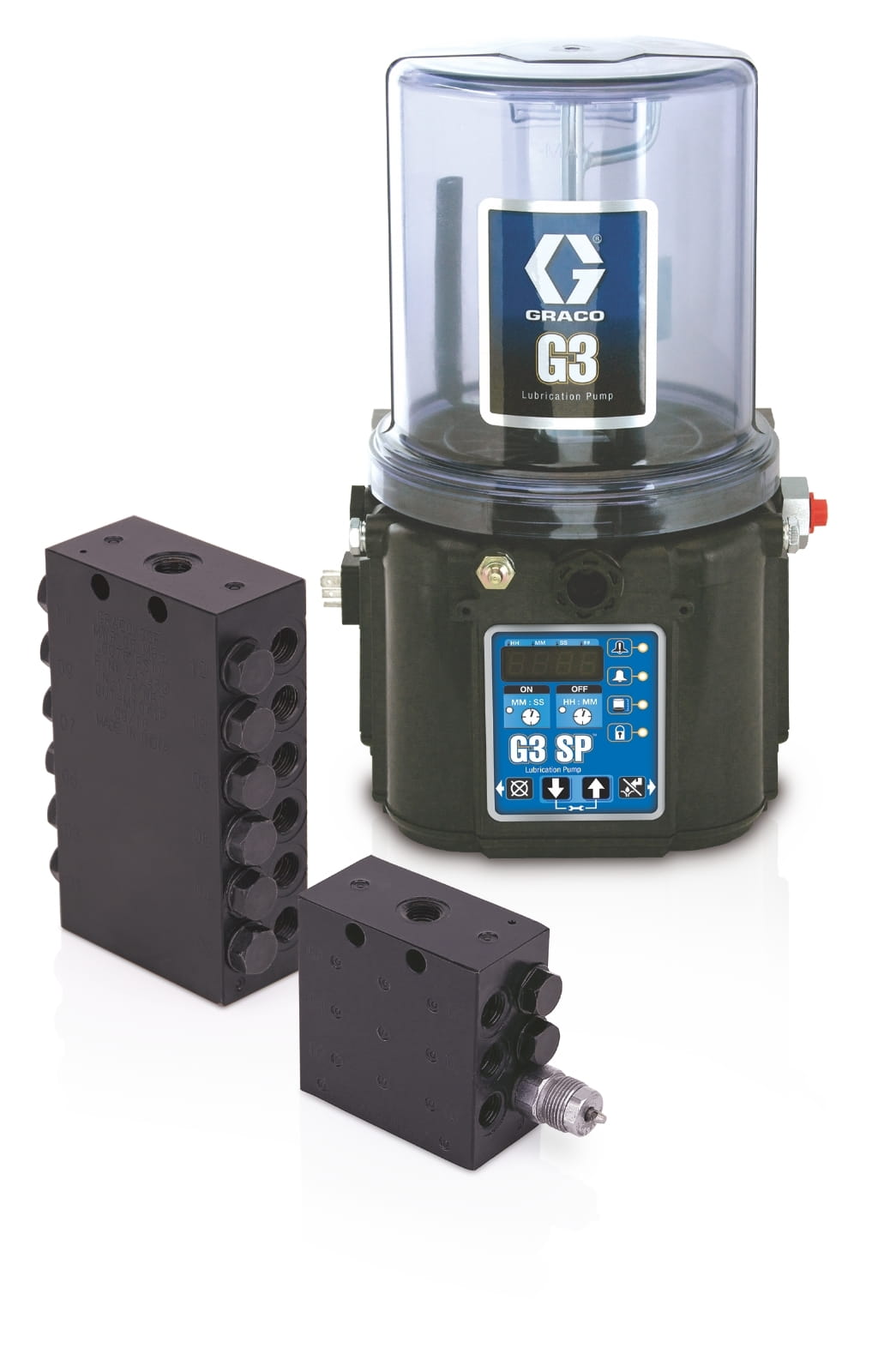

Progressive manifold in block design (CSP) for various applications. Can be combined with the proven G-series pumps as a complete system.

1/8" NPT inlet.
Space-saving design with 18 outlets, without display.
Outlets can be collapsed for larger bearings
Built-in durability with zinc-iron coating to withstand harsh environments
High outlet pressure - maximum working pressure of 350 bar (5,076 psi) for both oil and grease

Artikel Art:	Verteiler

More information

Technical details

Minimum working pressure (bar)	15
Maximum working pressure (psi)	5 0 76
Outlet size (mm)	M10
Minimum working pressure (psi)	217. 5
Inlet size (in)	0. 125
Number of outlets	18
Minimum output volume (cm³)	0. 2
Maximum working pressure (bar)	350
Maximum operating temperature (°F)	2 12
Outlet Thread Gender	Female
Minimum Working Pressure (kPa)	1 5 00
Maximum working pressure (kPa)	349 74
Maximum NLGI grade	#2
Inlet Size (mm)	3. 1750
Maximum operating temperature (°C)	100
Inlet Size (cm)	0. 3175
Divider Valve Series	C SP
Model	Trabon
Series	C SP
Discharge per piston stroke (in³)	N/A
