Manufacturer no.: 24Z016

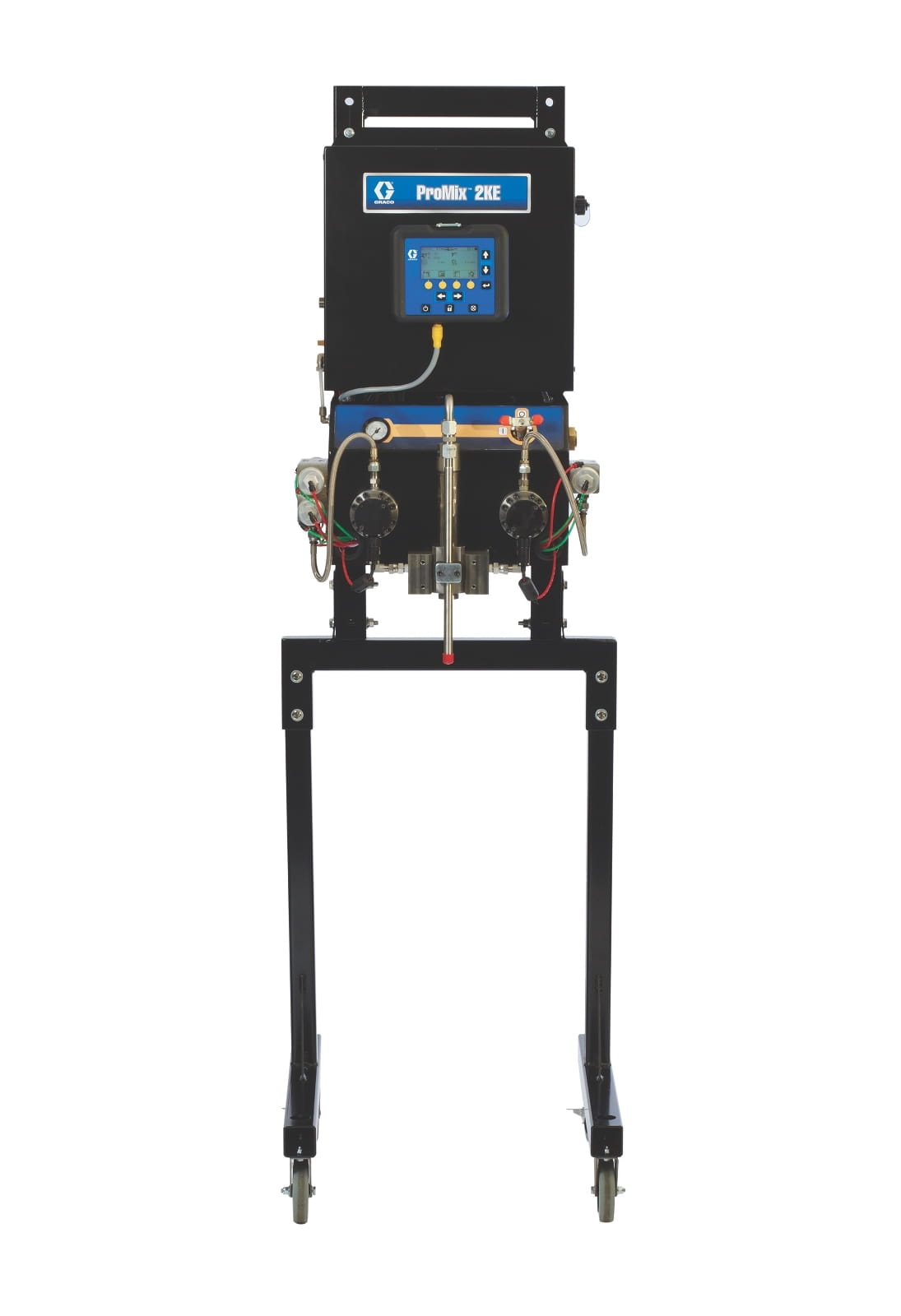

Acid catalyst dosing device ProMix 2KE, 3 colours; 1 hardener; non-intrinsically safe AC power supply

€23,730.98*

% €29,207.36* (18.75% saved)

Prices include VAT plus shipping costs

€19,942.00*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Worldwide Shipping

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Due to its design, the ProMix 2KE dosing unit is also suitable for demanding acid catalyst applications, such as cabinet systems or bar counter surfaces. The corrosion-resistant material housing and the intelligent material dosing plate with 316 or 17-4 SST catalyst section easily withstand even strong acid catalysts.

Designed for multi-colour two-component systems and spray booth applications.
You can choose between pump or metered multi-component systems with mixing ratios of up to 30:1
The mixing ratio is automatically kept within the specified tolerance limits, up to ±1 % for the volumetric meter version and ± 2 % for the pump version.
Incorrectly mixed material is prevented from being applied to the product - thus avoiding costly reworking.

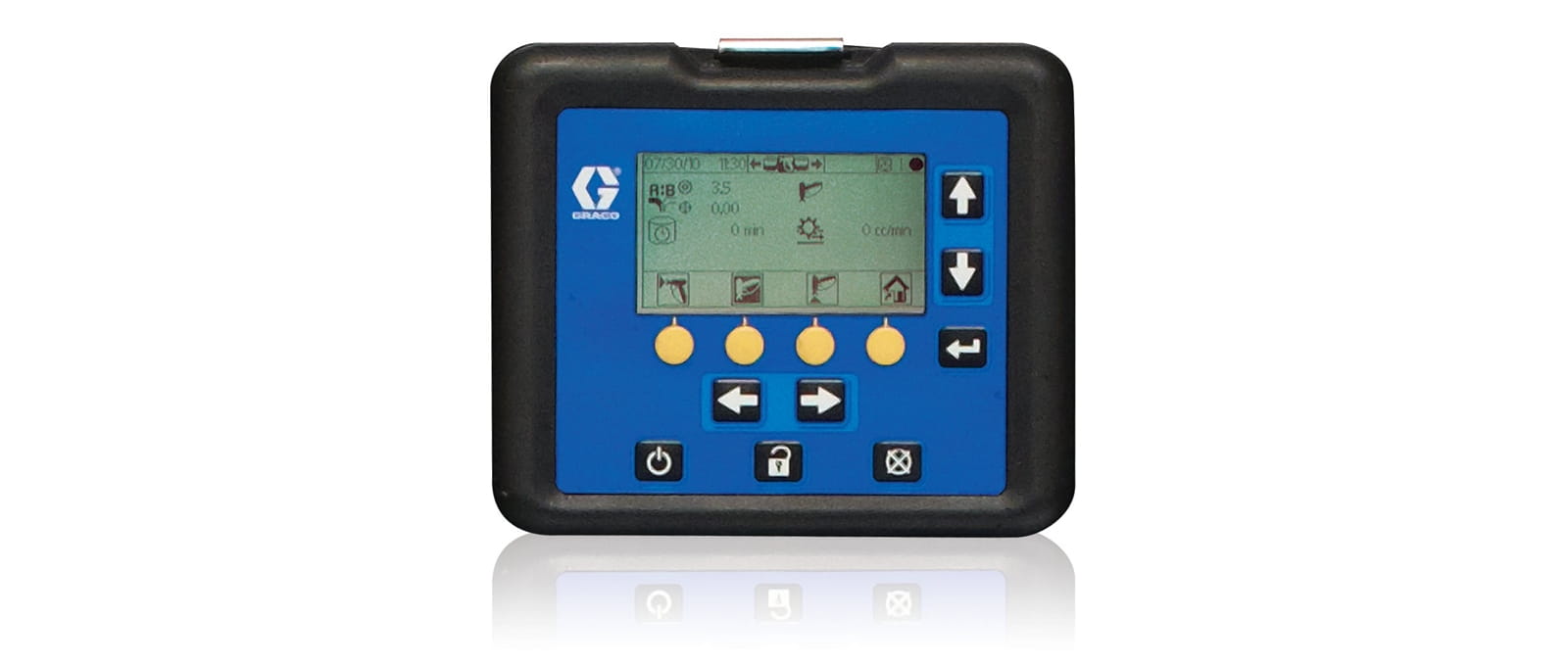

The user-friendly LCD display enables monitoring of material consumption, mixing ratio, programme maintenance, control functions and much more

Air inlet size (inches):	3/8
Air inlet thread type:	NPT
Component type:	Two-component
Dosage type:	Manual Electronic
Frequency (Hz):	50/60
Gender of the air inlet thread:	Internal thread
Gun activation:	Hand-
Includes:	Volume meter dependent 2KE dosing device, G3000 (A), G3000A (B), 3 colors, 1 hardener, non-intrinsically safe AC power supply
Material type:	Two-component
Maximum air supply pressure (bar):	6.9
Maximum air supply pressure (kPa):	690
Maximum inlet air pressure (psi):	100
Maximum material viscosity (cP):	5000
Maximum number of colours:	Up to 3
Maximum operating pressure (MPa):	20.7
Maximum operating pressure (kPa):	20680
Maximum operating pressure (psi):	3000
Measurement type:	Volume counter
Minimum material viscosity (cP):	20
Minimum mixing ratio:	0.1:1
Mixing accuracy (%):	1
Model:	ProMix
Noise pressure level, (dB(A)):	70
Number of colours:	3
Number of colour valves:	n.a.
Number of hardeners:	1
Number of resin colours:	3
Permissible operating pressure (bar):	206.8
Series:	2KE
Sink type:	solvent
Size of the air inlet (cm):	9,525
Size of the air inlet (mm):	9,525
Sound level, (dB(A)):	85
Supply voltage:	Electric
Transmission ratio of the pump:	Counters only
Type:	Dosing system

More information

Product number: 1039019
Manufacturer: Graco

Technical details

Specifications

Operating specifications

UPC product	755652367680
Division	IPD
Price Block	002
Country of Origin	US
Unit	EA
Height	0 CM
Length	0 CM
Width	0 CM
Volume	0 M3
Shipping weight	0 KG

Technical

Air inlet size (cm)	0. 9525
Air inlet size (in)	3/8
Air inlet size (mm)	9. 525
Air inlet thread gender	Female
Amperage (A)	2
Component Type	Two Component
Frequency (Hz)	50/60
Includes	2KE Meter-Based Proportioner, G3000 (A), G3000A (B), 3 Colour, 1 Catalyst, Non-Intrinsically Safe AC Power ed
Material Type	Two Component
Maximum Air Inlet Pressure (bar)	6. 9
Maximum air inlet pressure (kPa)	690
Maximum air inlet pressure (psi)	100
Maximum fluid viscosity (cP)	5 0 00
Maximum number of colours	Up to 3
Maximum working pressure (bar)	206. 8
Maximum working pressure (kPa)	2 0 680
Maximum working pressure (MPa)	20. 7
Maximum working pressure (psi)	3000
Minimum fluid viscosity (cP)	20
Minimum Mix Ratio	0.1: 1
Mix Accuracy (%)	1
Number of catalysts	1
Number of colour valves	N/A
Number of colours	3
Number of resin colours	3
Sound pressure level (dB(A))	70
Model	ProMix
Series	2KE
