Manufacturer no.:
25P771

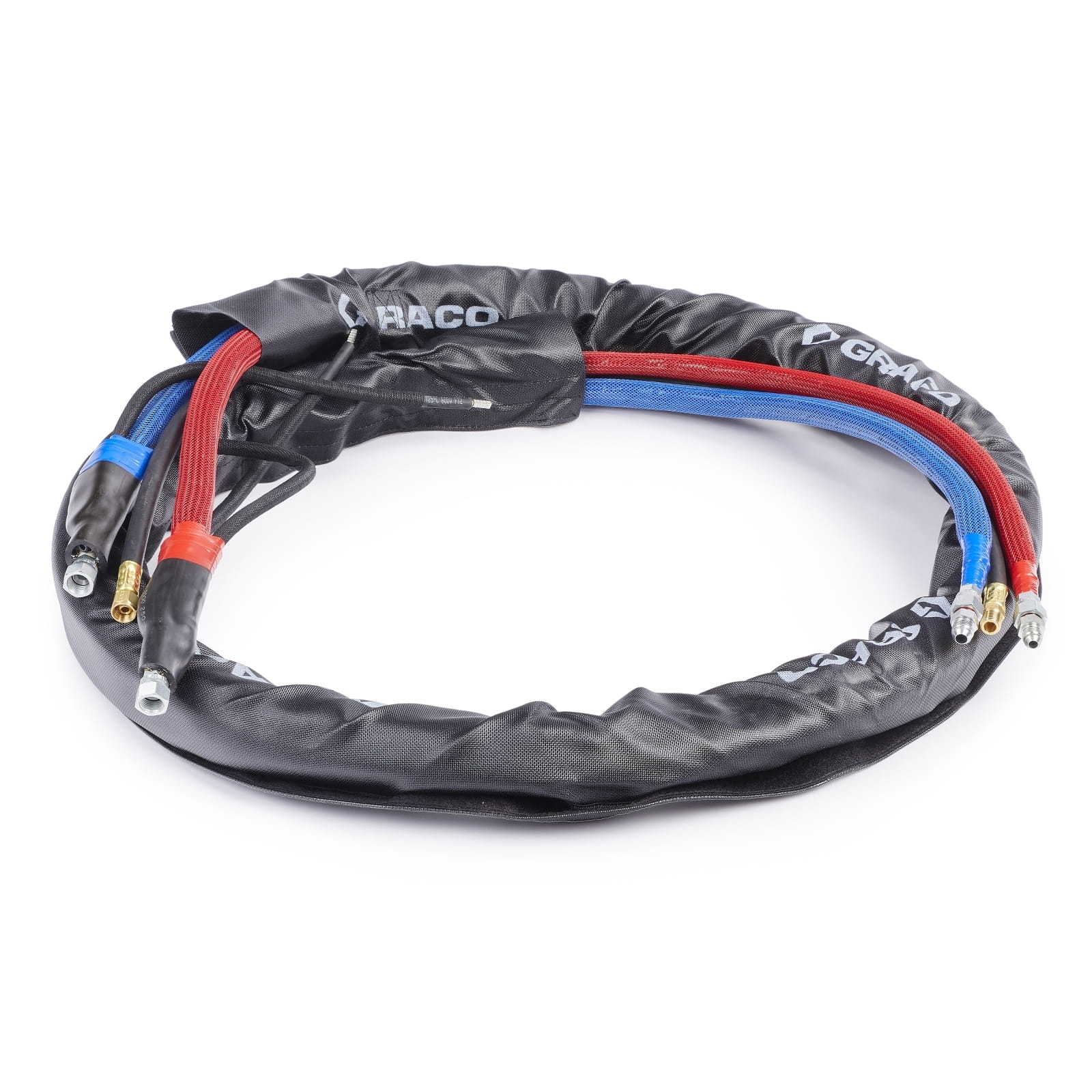

6 m (20 ft) LP 138 bar (2000 psi) Improved flexible whip end with 6.3 mm (1/4") inner diameter
€1,696.94*
Ready for shipping in 5-8 days
Also interesting
Product information
Graco's improved flexible heated hoses are specially designed for use with Reactor appliances. Hoses are a central component for the entire system. It is therefore important to achieve precise and uniform heating to ensure the best possible application.
For Reactor dispensers
- Improved flexible design that facilitates spraying in tight areas
- 20% lighter than the previous whip end
- Includes 24" insulated, non-heated hose section near the gun
- Compatible with all heated hoses in the Graco Reactor system
- With the reliable Xtreme Wrap wear protection
| Connection type: | Male thread x female thread |
|---|---|
| Hose diameter (inch): | 1/4" |
| Hose diameter (mm): | 6.35 |
| Hose heater type: | Externally heated |
| Hose length (m): | 6 |
| Inner diameter (inch): | 1/4 |
| Material: | PTFE |
| Maximum operating pressure (MPa): | 13.8 |
| Maximum operating pressure (psi): | 2000 |
| Maximum temperature (°C): | 82 |
| Model: | Reactor 1 |
| Permissible operating pressure (bar): | 138 |
| Series: | Xtreme wrap |
| Type: | Hose whip |
More information
- Product number: 1031489
- Manufacturer: Graco
- EAN: 00755652976431
- Weight: 8.164 kg
- Length: 680 mm
- Width: 680 mm
- Height: 200 mm
Technical details
Operating specifications
| UPC product | 755652976431 |
|---|---|
| Division | CED |
| Price Block | 046 |
| Country of origin | US |
| Unit | EA |
| Height | 20 CM |
| Length | 68 CM |
| Width | 68 cm |
| Volume | 0. 092 m³ |
| Shipping weight | 7 .52 KG |
| HTS code (GB) | 39 1 7330090 |
| HTS code (EU) | 39 1 7330090 |
Technical
| Hose heating type | External Heated |
|---|---|
| Maximum Temperature (°C) | 82 |
| Maximum temperature (°F) | 180 |
| Maximum working pressure (psi) | 2 0 00 |
| Maximum working pressure (bar) | 138 |
| Maximum working pressure (MPa) | 13. 8 |
| Hose diameter (in) | 1/4 " |
| Hose diameter (mm) | 6. 35 |
| Model | Reactor 1 |
| Series | Xtreme Wrap |
| Compatible sprayer | Reactor 1 & 2 |
| Scuff Guard Type | Xtreme Wrap |
| Temperature Wire | Without Cable |
Further manufacturer information
Produkthandbücher
- 309572j , Power-Lock Beheizter Schlauch (Deutsch)
- 309572j , Power-Lock Beheizter Schlauch (Nederlands)
- 309572j , Power-Lock Beheizter Schlauch (русский)
- 309572j , Power-Lock Beheizter Schlauch (Italiano)
- 309572j , Power-Lock Beheizter Schlauch (Français)
- 309572j , Power-Lock Beheizter Schlauch (Español)
- 309572j , Power-Lock Beheizter Schlauch (English)
