Manufacturer no.: G23W07

23:1 Merkur airless complete system, material flow rate: 6 l/min (1.6 gal/min), wall mounting, XTR-5 gun, pump air control, gun material hose, material filter

€4,041.67*

% €6,123.74* (34% saved)

€3,396.36*

Price excl. VAT

Ready for shipping in 5-8 days

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Merkur Fine Finish pumps increase productivity, reduce costs, lower emissions and provide high-quality finishes for your most demanding applications.

Proven superiority over conventional pumps in their class
Air motor with the latest technology
Low air consumption for improved efficiency
Silencer ensures a low noise level during operation
External valve access allows for easy maintenance, in-service replacement and reduced downtime
Control panel within easy reach of the operator for effortless adjustment and monitoring
Neck seal and rod housing protect the pumped material and oil cup from contamination and can be easily removed for inspection and maintenance

More information

Technical details

Convertible	Non - convertible
Fluid inlet size (in)	3/4
Fluid inlet size (mm)	19. 05
Fluid outlet size (mm)	9. 525
Hose inlet diameter (cm)	0. 5
Hose inlet diameter (in)	3/16
Hose inlet diameter (mm)	5
Includes	Pump Only Air Controls, Gun Hose, Suction Hose, Fluid Filter
Maximum flow rate (L/min)	6
Maximum Hose Length (ft)	25
Maximum Hose Length (m)	7. 5
Maximum working pressure (psi)	2 300
Maximum working pressure (kPa)	1 5 900
Maximum working pressure (MPa)	15. 9
Model	M erkur
Maximum working pressure (bar)	1 59
Weight (kg)	38
Number of guns	1
Mount type	Wall mount
Gun Technology	Air less

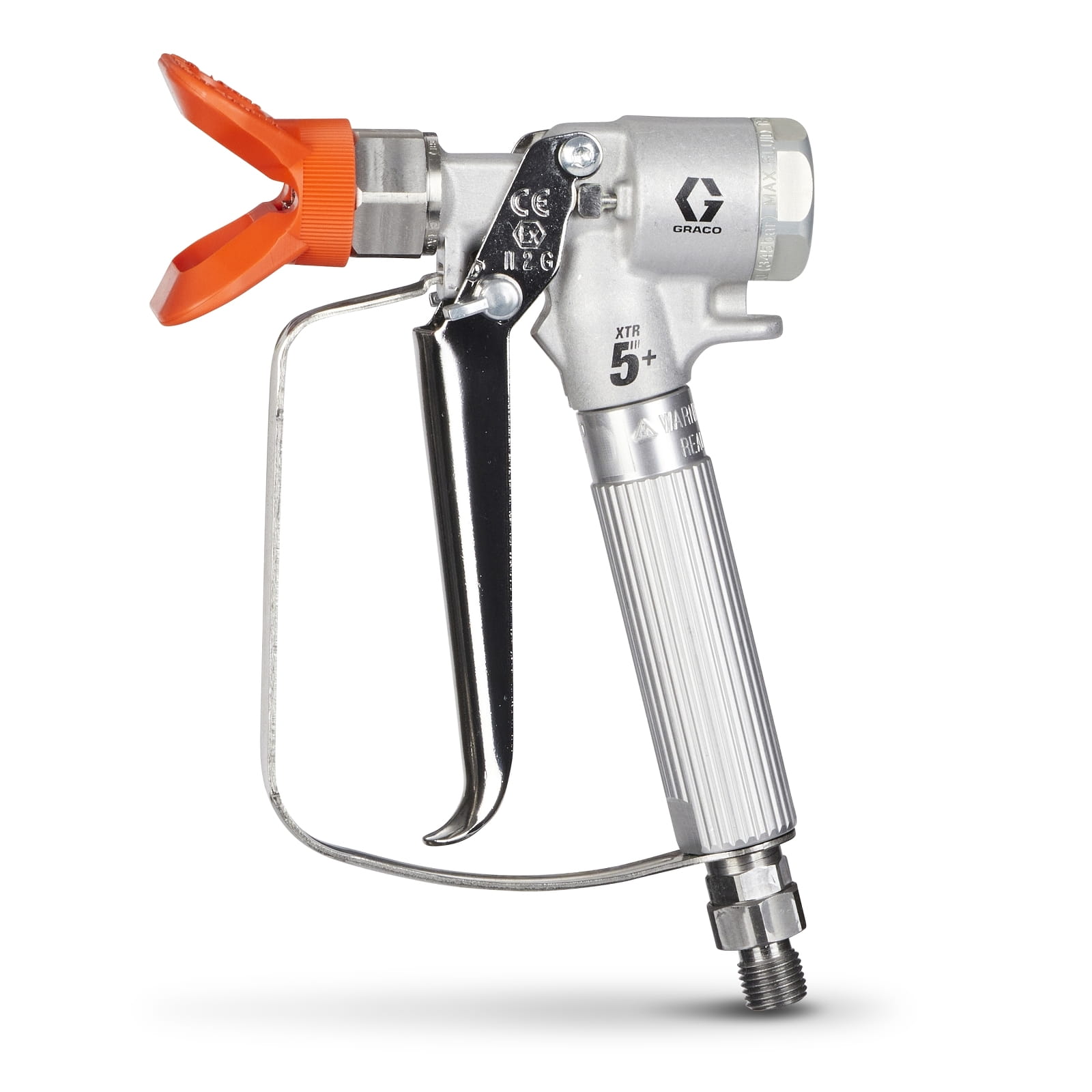

Gun Model	XTR5+
Product Type	Spray Package
Technology Type	Air less
