Manufacturer no.:
19M404

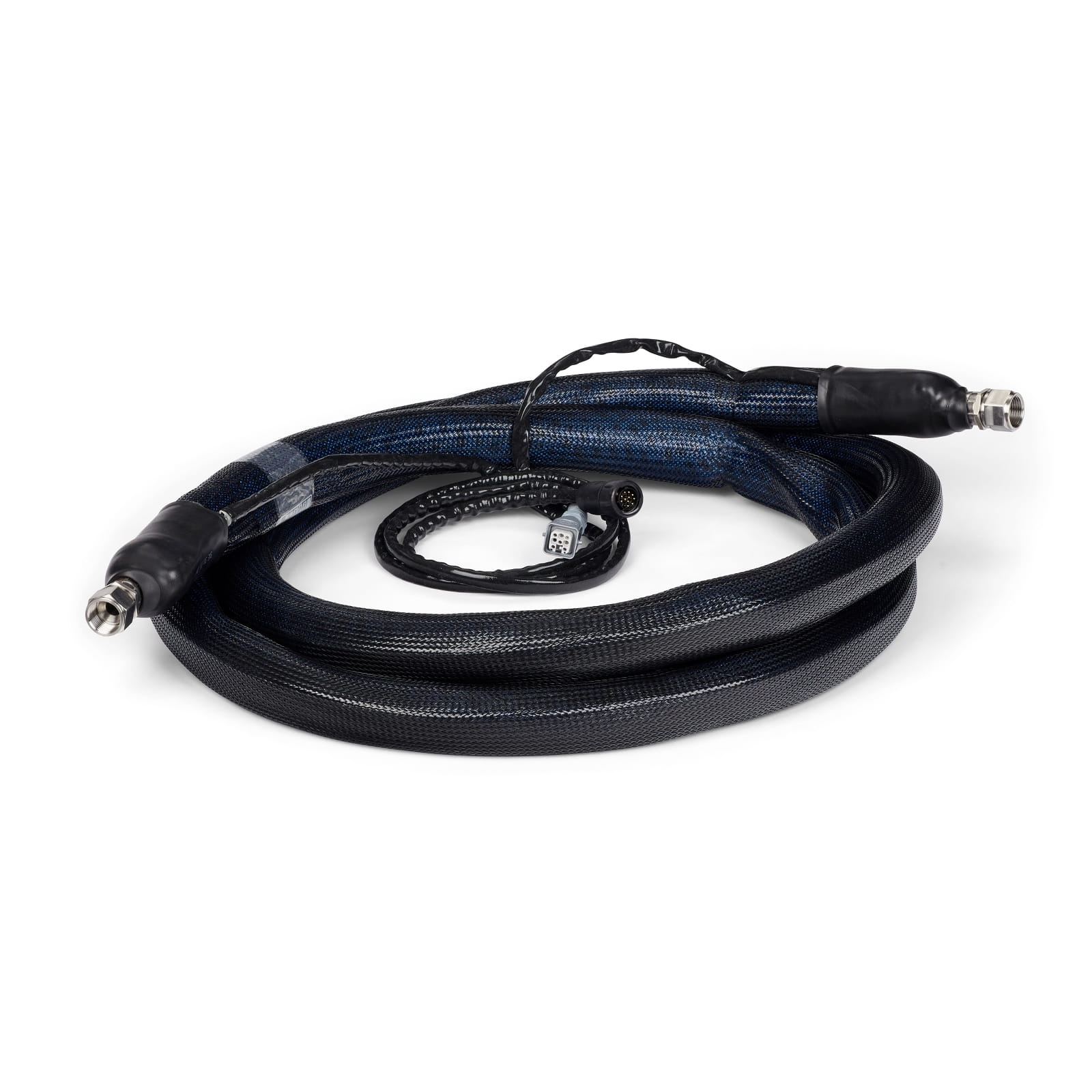

1.8 m (6') insulated, stainless steel-sheathed, PTFE hot-melt/hot-weld heating hose, No. 10 (12.6 mm/0.495" ID)
€3,447.58*
% €3,940.09* (12.5% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Graco heated hoses are designed to provide accurate and consistent temperature control for your sealing and adhesive applications. Use these hoses to keep your material at the ideal temperature for the best possible dispensing quality.
- For use with Graco temperature control systems for warm and hot melt adhesives and sealants.
- Maximum fluid working pressure is dependent on operating temperature.
- Rated at 27.6 MPa (276 bar, 4000 psi) for temperatures from -65°F to 212°F (-54°C to 100°C)
- Rated at 20.7 MPa (207 bar, 3000 psi) for temperatures up to 204°C (400°F)
| Gender of the thread: | Internal thread |
|---|---|
| Hose heater type: | WITH HEATER |
| Hose length (m): | 1.8 |
| Inner diameter (inch): | 495 |
| Inner diameter (mm): | 12.6 |
| Material: | Stainless steel wire mesh with PTFE lining |
| Maximum operating pressure (MPa): | 27.6 |
| Maximum operating pressure (psi): | 4000 |
| Maximum temperature (°C): | 204 |
| Permissible operating pressure (bar): | 276 |
| Thread type: | 37° JIC swivel |
| Type: | Heated hose |
| Voltage (V): | 230 |
More information
- Product number: 1037260
- Manufacturer: Graco
- EAN: 00755652584896
- Weight: 4.535 kg
- Length: 660 mm
- Width: 670 mm
- Height: 170 mm
Technical details
Operating specifications
| UPC product | 755652584896 |
|---|---|
| Division | IPD |
| Price Block | 223 |
| Country of Origin | US |
| Unit | EA |
| Height | 17 CM |
| Length | 66 cm |
| Width | 67 cm |
| Volume | 0. 075 m³ |
| Shipping weight | 4 .54 kg |
| HTS code (EU) | 4009320090 |
| HTS code (GB) | 4009320090 |
Technical
| Heating type | Heated |
|---|---|
| Inside diameter (mm) | 12. 6 |
| Maximum temperature (°C) | 2 04 |
| Maximum temperature (°F) | 400 |
| Maximum working pressure (psi) | 4 0 00 |
| Maximum working pressure (bar) | 2 76 |
| Maximum working pressure (MPa) | 27. 6 |
