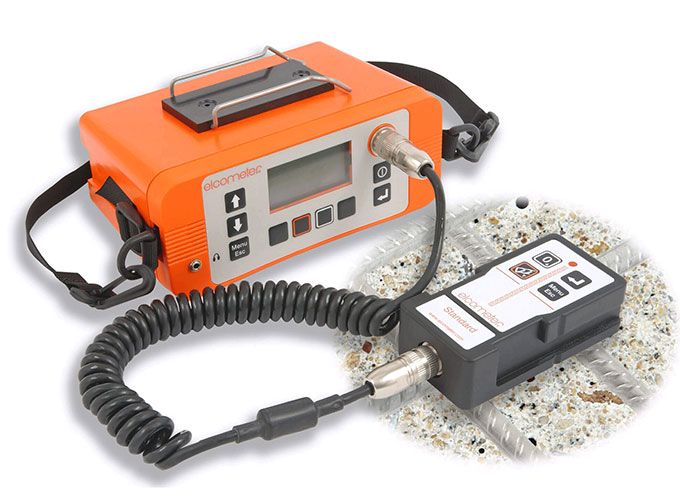

The Elcometer 331 Series (BH, SH, TH, THD) combines concrete cover measurement, rebar detection and half-cell measurement in a single high-performance tester. It enables the precise analysis of rebar location, concrete cover and corrosion risk in concrete structures and is ideal for inspection, maintenance and structural diagnostics.
System & Application
The instruments combine several testing methods in a single system: location and alignment of reinforcing steel, measurement of concrete cover, and assessment of corrosion potential using half-cell measurement. Graphical display and evaluation functions allow critical areas to be quickly identified and documented. :contentReference[oaicite:0]{index=0}
Model overview
W331BH--4 (Model BH): Entry-level model with half-cell measurement, without extended data memory
W331SH--4 (Model SH): With data memory (up to 10 batches of 1,000 readings) and statistical functions
W331TH--4 (Model TH): Extended memory with up to 240,000 measured values (grid and line mode)
W331THD-4 (Model THD): As TH, additionally suitable for stainless steel and high-strength reinforcement
Features & Benefits
Combination of concrete cover meter and half-cell measurement
Rapid location and determination of the reinforcement position
Graphical display and limit value assessment
Statistical analysis directly in the device
One-handed operation via 4 function keys

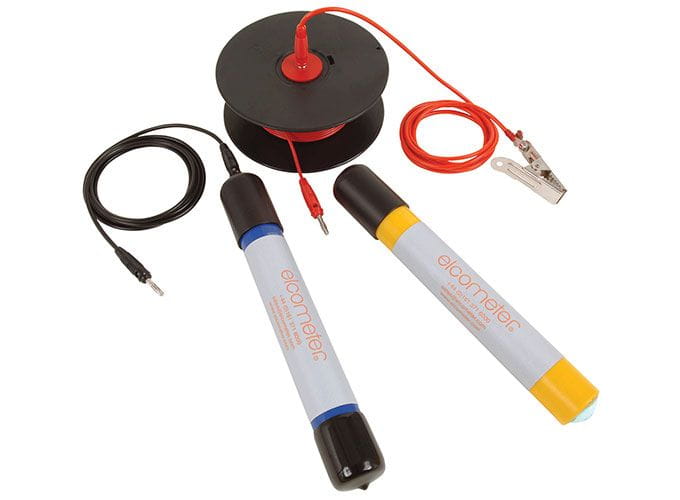

Interchangeable search heads and probes for flexible applications
Robust, waterproof housing (IP65)
Compatible with CoverMaster™ software for data analysis
Technical specifications
Half-cell measurement range: -999 mV to +999 mV
Accuracy: ±5 mV
Operating temperature: 0 to 50 °C
Power supply: 7.4 V rechargeable battery (up to 32 hours’ runtime)
Charging time: approx. 4 hours
Dimensions: 230 x 130 x 125 mm
Weight: approx. 1.6 kg
Display: backlit graphic display
Contents

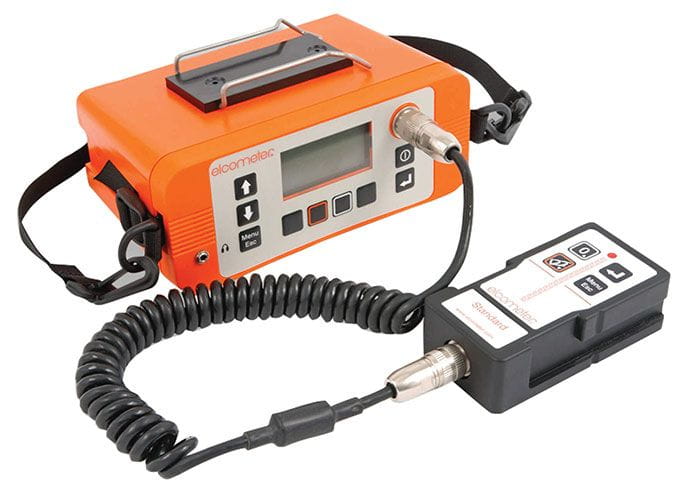

Elcometer 331 meter (depending on model: BH / SH / TH / THD)
Probe connection cable
Battery & charger (UK, US & EU)
Earphones
Shoulder strap
Carrying case
User manual
(For SH, TH, THD models: software & PC cable)
- Product number: 2189740
- Manufacturer: Elcometer
