Pressure vessel 10 litre stainless steel - no agitator
€2,103.92*
% €2,629.90* (20% saved)Prices include VAT plus shipping costs
Price excl. VAT
Ready for shipping in 1-3 days
Scope of delivery

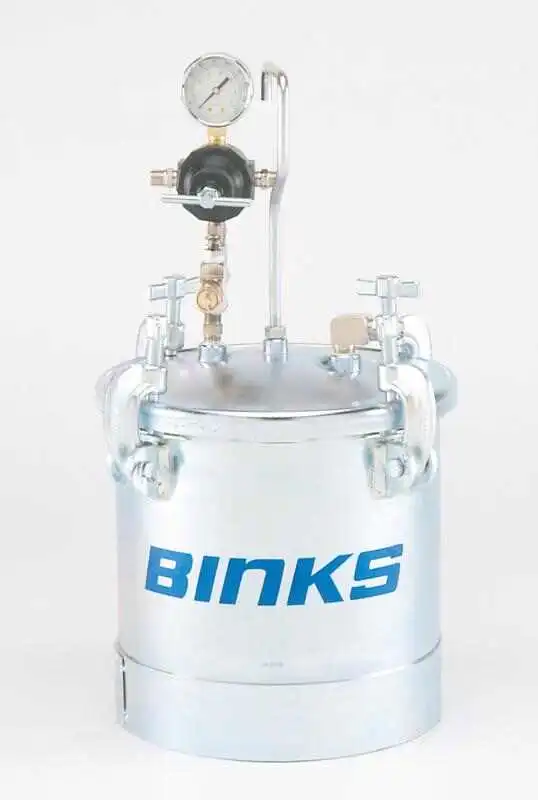

Binks Pressure Tank 10 L (183S Stainless Steel) – ASME-Code Pressure Tank, High Chemical Resistance, Ideal for Water-Based Coatings (Without Agitator)
The Binks pressure tank of the 183S series is a stainless steel pressure tank manufactured to ASME standards and offers very high chemical resistance. It is particularly suitable for water-based coatings. The 10-liter class is defined by the internal volume (approx. 2.8 gal / ~10.6 L). Configuration: without agitator, ideal when the material remains well dispersed or does not require continuous agitation.
- Stainless steel (183S) – excellent chemical resistance, suitable for water-based coatings
- ASME-code pressure tank – manufactured in accordance with ASME standards
- Max. operating pressure 110 psi (7.5 bar)
- Fill opening, locating pins for lid alignment & larger handles for comfortable carrying
Details & Information
Product Features
- 183S stainless steel tank with very high chemical resistance
- Suitable for water-based coatings
- All 183S tanks feature a fill opening (easy refilling/cleaning)
- Locating pins for correct lid alignment
- Larger handles for more comfortable carrying
- Without agitator – ideal when the material remains well dispersed over longer periods

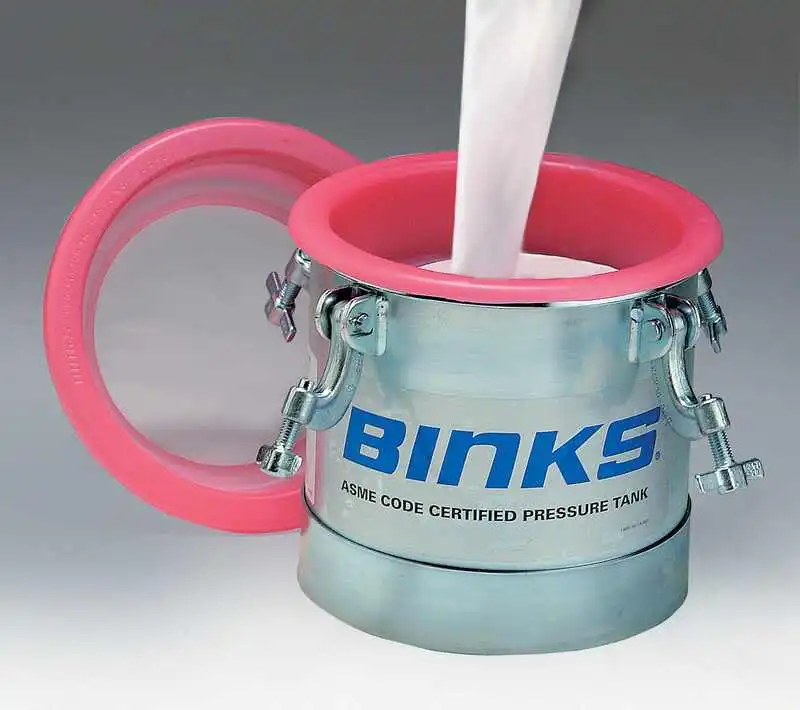

- Optional: Bottom outlet kit, disposable inner containers/liners (depending on process/material)
Variants Overview – Material
In addition to the stainless steel version (183S), galvanized tanks (183G) are also available depending on the application. Agitators are optional (direct drive or gear reduction). For this product: stainless steel – no agitator.
| Variant | Tank Material | Agitator | Typical Recommendation |
|---|---|---|---|
| Stainless steel – no agitator | 183S (stainless steel) | None | When the material remains stably dispersed or continuous agitation is not required |
| Stainless steel – pneumatic agitator, direct drive | 183S (stainless steel) | Direct drive | For low viscosity or small volumes |
| Stainless steel – pneumatic agitator, gear reduction drive | 183S (stainless steel) | Gear reduction (15:1) | For higher viscosity, larger volumes, or when air entrainment should be avoided |
| Galvanized – no agitator | 183G (galvanized steel) | None | Flexible solution for many solvent-based applications |
Tip: If you tell us the material type (water- or solvent-based) and viscosity, we will recommend the suitable tank/agitator combination.
Purpose / Applications
- Material supply for spray guns (e.g. spray booths, spray stations)
- Water-based coatings (recommendation: 183S stainless steel)
- Solvent-based coatings (galvanized versions also possible depending on corrosion requirements)
- When long material runs, defined material pressure, or stable material supply is required
Product Flyer
Further technical details and options (e.g. regulators, bottom outlet, agitator versions) can be found in the official Pressure Tanks (PDF) .
- Product number: 1015012
- Manufacturer: Binks
- Weight: 16.6 kg
Technical details
| Manufacturer number | Capacity | Am. gallons | Agitator | Pressure vessel construction | Material outlet | Air inlet | Max. pressure (bar) |
| 183G-1010-CE | 40 | 11.8 | No agitator | galvanised | 3/8 inch | 1/4 inch | 7.6 |
| 183G-1012-CE | 40 L | 11.8 | Manual agitator | galvanised | 3/8 inch | 1/4 inch | 7.6 |
| 183G-1013-CE | 40 L | 11.8 | Pneumatic agitator | galvanised | 3/8 inch | 1/4 inch | 7.6 |
| 183S-1010-CE | 40 L | 11.8 | No agitator | Stainless steel | 3/8 inch | 1/4 inch | 7.6 |
| 183S-1012-CE | 40 L | 11.8 | Manual agitator | Stainless steel | 3/8 inch | 1/4 inch | 7.6 |
| 183S-1013-CE | 40 L | 11.8 | Pneumatic agitator | Stainless steel | 3/8 inch | 1/4 inch | 7.6 |
| 183S-1510-CE | 60 L | 19.8 | No agitator | Stainless steel | 3/8 inch | 1/4 inch | 7.6 |
| 183S-1512-CE | 60 L | 19.8 | Manual agitator | Stainless steel | 3/8 inch | 1/4 inch | 7.6 |
| 183S-1513-CE | 60 L | 19.8 | Pneumatic agitator | Stainless steel | 3/8 inch | 1/4 inch | 7.6 |
| 183S-210-CE | 10 L | 2.8 | No agitator | Stainless steel | 3/8 inch | 1/4 inch | 7.6 |
| 183S-211-CE | 10 L | 2.8 | Pneumatic agitator with direct drive | Stainless steel | 3/8 inch | 1/4 inch | 7.6 |
| 183S-212-CE | 10 L | 2.8 | Manual agitator | Stainless steel | 3/8 inch | 1/4 inch | 7.6 |
| 183S-213-CE | 10 L | 2.8 | Pneumatic agitator Reduction gear | Stainless steel | 3/8 inch | 1/4 inch | 7.6 |
| 83C-210-CE | 10 L | 2.8 | No agitator | galvanised | 3/8 inch | 1/4 inch | 5.5 |
| 83C-211-CE | 10 L | 2.8 | Pneumatic agitator with direct drive | galvanised | 3/8 | 1/4 inch | 5.5 |
| 83Z-210-CE | 10 L | 2.8 | No agitator | Stainless steel lid and material-carrying parts | 3/8 inch | 1/4 inch | 5.5 |
| 83Z-211-CE | 10 | 2.8 | Pneumatic agitator Direct drive | Stainless steel lid and material-carrying parts | 3/8 inch | 1/4 inch | 5.5 |
