Beschichtpunkt quick-connect coupling, 48 mm

Rapid quick-connect couplings made of steel have been developed for the fast, secure and durable connection of nozzle and material-handling systems. Thanks to their robust steel construction, they are particularly suitable for demanding industrial applications involving high mechanical loads. When used in combination with the appropriate seals, they ensure a reliable connection and a secure seal during operation.

Applications

The quick-connect couplings are used in coating, spraying and material conveyance systems where components need to be changed or serviced regularly. The Rapid system enables quick assembly and disassembly without time-consuming changeovers, whilst ensuring a stable connection between the system components.

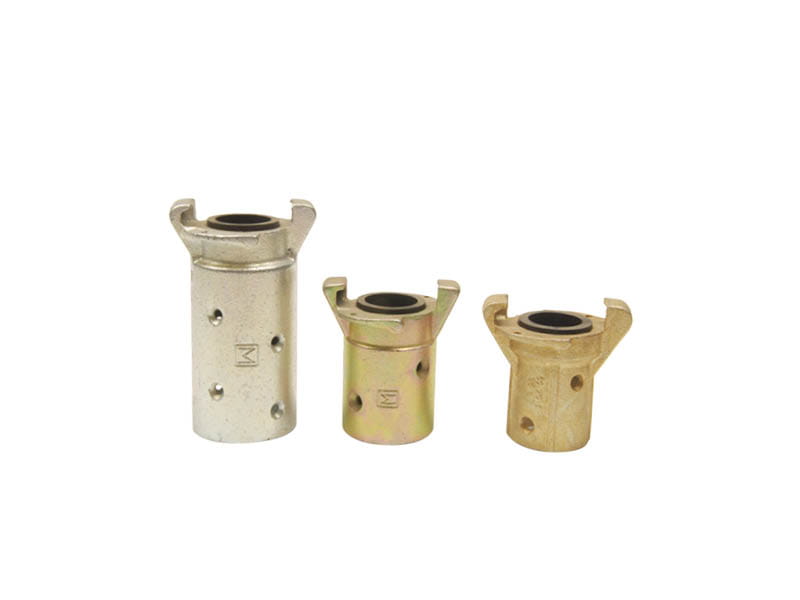

Available versions

OX4010 – 40 mm steel quick-connect coupling
OX4810 – 48 mm steel quick-connect coupling
OX5410 – 54 mm steel quick-connect coupling
OX0010 – Nylon seal for Rapid

Technical specifications

Product type: Quick-connect couplings and sealing components for Rapid systems
Quick-connect fitting material: steel
Seal material: Nylon
Available sizes: 40 mm, 48 mm and 54 mm
OX4010: 40 mm steel quick-connect fitting
OX4810: 48 mm steel quick-connect coupling
OX5410: 54 mm steel quick-connect fitting
OX0010: Nylon seal for Rapid systems
Function: Quick connection and secure sealing of nozzle and material delivery systems
Applications: Coating, spraying and material handling technology
Features: High mechanical strength, long service life and ease of use
Special feature: Robust steel construction for industrial applications involving frequent tool changes and maintenance work
