Setup Guide

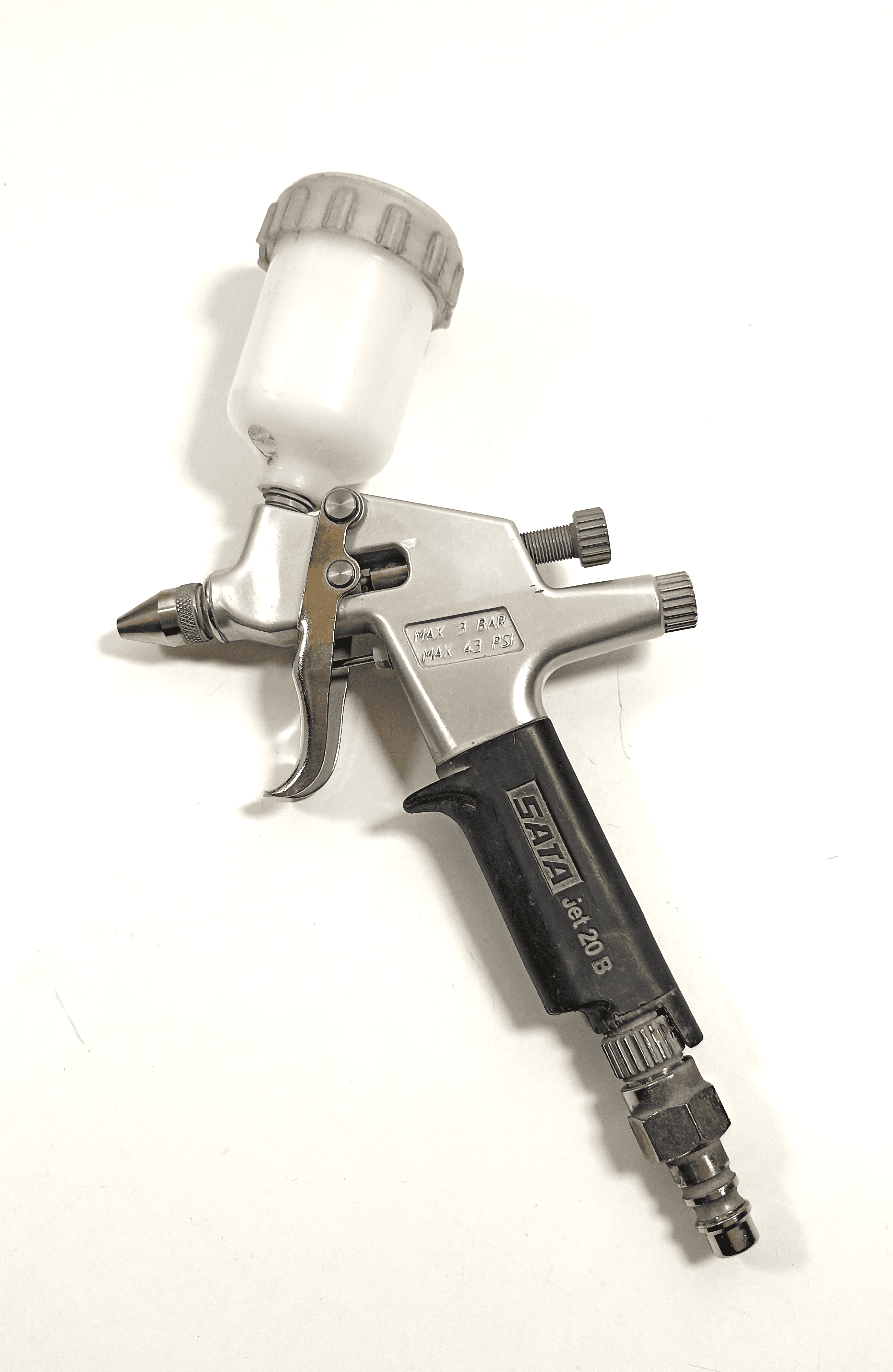

Nozzle Sets & Basic Settings of the SATAjet 20 B
For a perfect spray pattern, the SATAjet 20 B depends not only on the correct pressure – the choice of the right nozzle set also plays a decisive role. Here you’ll find all relevant parameters and practical guidance on adjustment and nozzle replacement.
Technical Basic Settings (Reference Values)
- Inlet pressure: approx. 1.0 bar
- Air consumption: approx. 40 Nl/min at 1.5 bar
- Spray distance: variable, depending on application
- Weight: only 250 g – comfortable handling
- Cup sizes: 65 ml plastic or glass
Changing the Nozzle Set
When changing sizes, the entire nozzle set must always be replaced:
- Install paint nozzle first
- Then insert paint needle
- Finally mount the air nozzle and align correctly
This ensures an even spray pattern and prevents wear.
Practical Tip: With too little needle stroke and high material pressure, wear can increase significantly. In this case, a smaller nozzle set is the better choice.
Application Recommendations
| Nozzle Set | Typical Application |
|---|---|
| 0.2 mm | Extremely fine spot repair work, minimal paint quantities |
| 0.35 mm | Small surfaces, blending, detail work |
| 0.5 mm | Standard nozzle for universal applications with 65 ml cup |
Conclusion: With the right nozzle sets and optimal basic settings, the SATAjet 20 B can be perfectly adapted to any detailed work. Whether 0.2 mm for the finest spot repairs or 0.5 mm for universal applications – the spray gun impresses with precision and flexibility.
