Maspra Airless Pump EP19 on carrying frame including 5 litre upper container - Compact airless pumps
Scope of delivery
With a maximum nozzle size of 0.019 inches and a delivery rate of 1.5 l/min, the EP19 is particularly suitable for repairs, smaller areas, workshop work and mobile applications with manageable material requirements.
System & operating principle
The EP19 operates as an electric diaphragm pump and ensures
even, low-pulsation material delivery. The compact carrying frame
enables easy transport and flexible use
on construction sites and in workshops.
Depending on the model, the EP19 can be operated either via a
flexible suction system or via a
5-litre top container.
Typical areas of application
• Repair and touch-up work
• Small airless coatings
• Workshop and service applications
• Interior finishing and renovation
• Processing of low to medium viscosity materials
Variants & designs of the EP19
The EP19 is available as a basic unit and as a SprayPack – optionally with a flexible suction system or with a 5-litre upper container.
| Product | Model | Suction system / container | Features | Performance data |
|

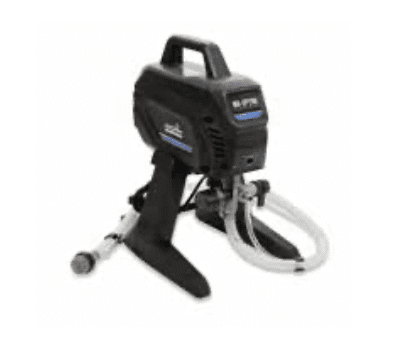

EP19 on support frame | Flexible suction system | Basic unit |
Max. nozzle: 0.019" Flow rate: 1.5 l/min Weight: approx. 8 kg |
|

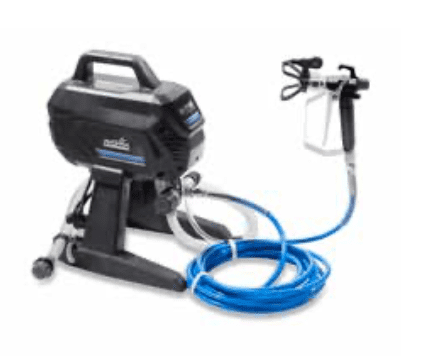

SprayPack Airless | Flexible suction system |
Hose 3/16" – 7.5 m – 1/4" NPS Gun 250 bar – 5 mm ball Filter: white Nozzle & holder: MT-U – 517 |
Max. nozzle: 0.019" Flow rate: 1.5 l/min Weight: approx. 11 kg |
|

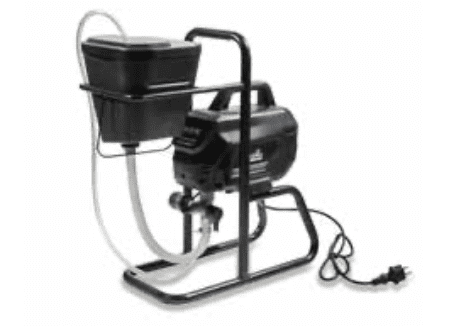

EP19 with upper container | 5 litre upper container | Basic unit |
Max. nozzle: 0.019" Flow rate: 1.5 l/min Weight: approx. 9 kg |
|

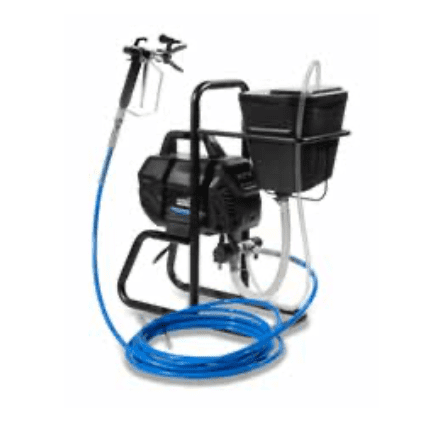

SprayPack Airless | 5 litre upper container |
Hose 3/16" – 7.5 m – 1/4" NPS Gun 250 bar – 5 mm ball Filter: white Nozzle & holder: MT-U – 517 |
Max. nozzle: 0.019" Flow rate: 1.5 l/min Weight: approx. 12 kg |
- Product number: 2187541
- Manufacturer: Maspra
- Weight: 9 kg
