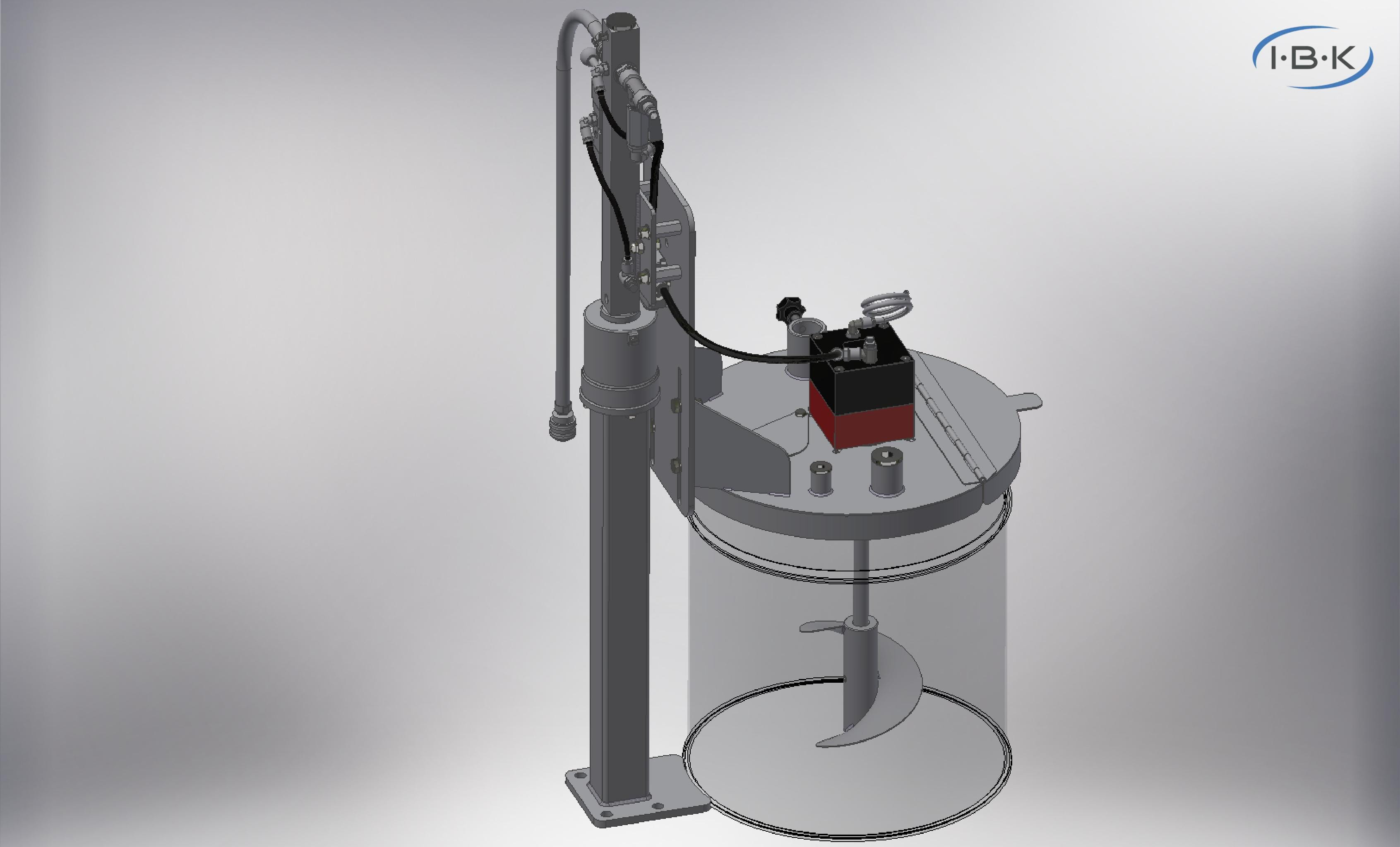

Pneumatic lifting station unit Eco Line - stationary-MAX 50kg-425 stroke - for 30 litre hobbock
€3,492.65*
Ready for shipping in 1-3 days
Pneumatic lifting station unit Eco Line - stationary-MAX 50kg-425 stroke - for 30 litre hobbock
Item number: 4503000
Product description:
- Consisting of:
- Pneumatic lifting station stationary up to max 50kg-425mm stroke
- Safety control: Agitator only rotates in the lower end position of the lifting station to protect the user.
- Container lid 30 litres incl. universal drilling pattern for motor, openings for rigid and flexible suction, 3/8i and 3/4i sockets for measuring systems or material return; diameter 350mm
- Compressed air Eco Line agitator type 3Nm
- Connecting piece: Øi 14 - 16
- Agitator shaft Ø 16 - 300mm length
- Agitator screw Ø 125a E54 Ø 16i - height 125 - right-handed
- For 30 litre containers or similar containers
Motor centring: Ø80 - LK Ø 100 - 4x M5; - Energy-saving, low-maintenance, oil-free and quiet operation; regulating valve for speed control, incl. hose silencer
- Product number: 2012834
- Manufacturer: IBK
- Weight: 20.6 kg
