Manufacturer no.: XDM6DF

XDX™ 20, oil, 13 mm (1/2") inlet, without accessories (13 mm X 15 m (1/2" X 50 ft) capacity), NPT, mounting on truck bed or workbench, yellow

€947.84*

% €1,053.15* (10% saved)

Prices include VAT plus shipping costs

€796.50*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

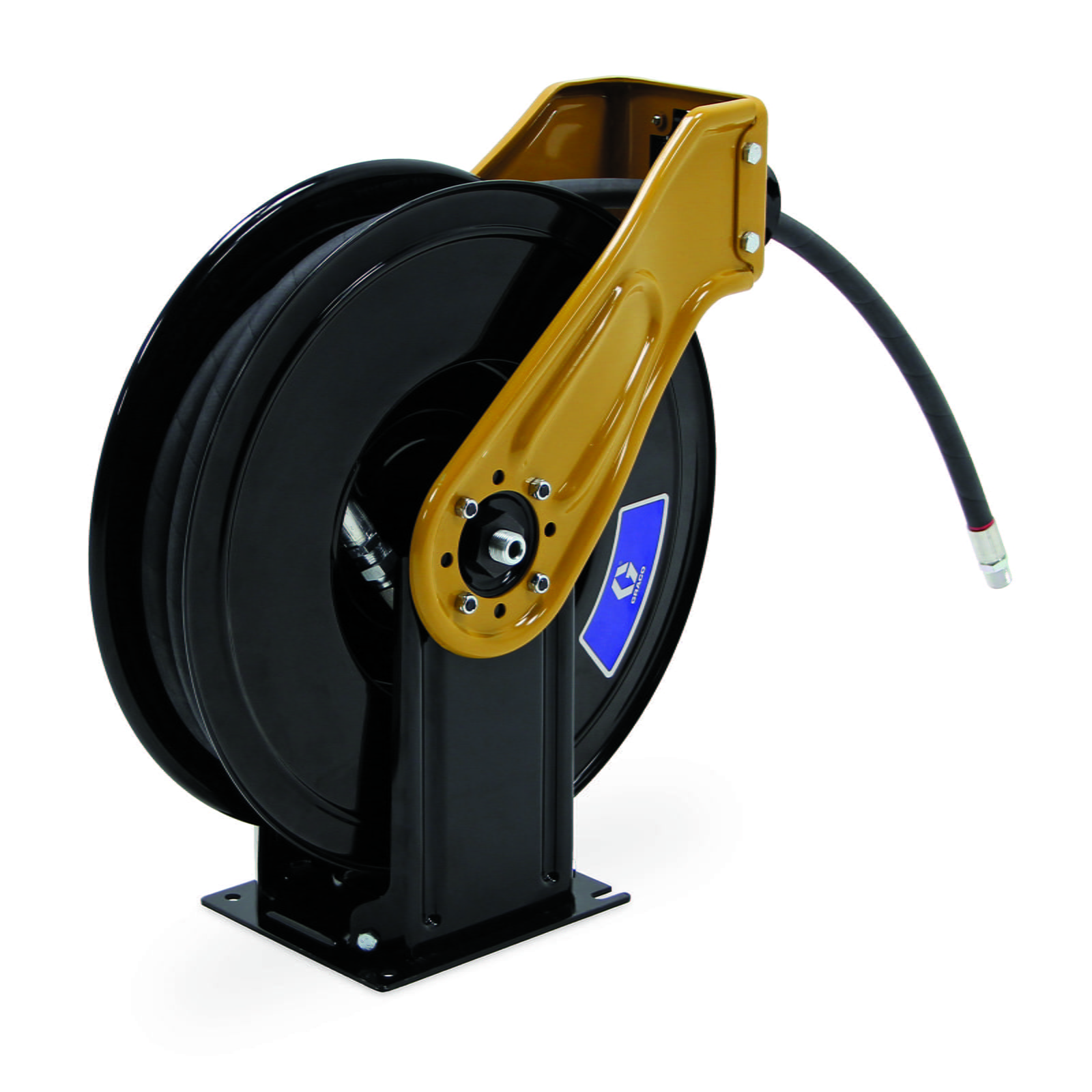

Graco's rugged XDX hose reel features a heavy-duty, robust double upright; a steel reel; sealed components and an innovative swivel design for high-quality performance in even the most demanding applications.

Ideal for indoor and outdoor use at heavy-duty vehicle dealerships, fleet maintenance, public garages, construction vehicle maintenance, agricultural vehicles and emergency vehicles.

Spring adjustment - Increase or decrease spring tension while the retractor is pressurised with material.
Full flow swivel - Maximise material flow with minimal pressure drop for faster filling - increasing throughput in your workshop.
Optional adjustable arm - Easily change the arm position for your application, order with arm (HS models) or without arm (HN models)
Durable finish - baked enamel paint protects the reel from corrosion
Large hose capacity in a small footprint - The compact stand and reel fit into tight spaces and can accommodate 10.7-19.8 metres (35-65 feet) of hose for numerous applications

Farben:	Gelb
Size:	M

More information

Product number: 1033912
Manufacturer: Graco
EAN: 00769946210385
Weight: 24.948 kg
Length: 616 mm
Width: 241.3 mm
Height: 660.4 mm

Technical details

Specifications

Operating specifications

UPC product	769946210385
Division	LED
Price Block	1 5 0
Country of origin	US
Unit of measurement	EA
Height	66.04 CM
Length	61.6 CM
Width	24.13 CM
Volume	0 . 098 m³
Shipping weight	24.95 KG
HTS code (GB)	4009220090
HTS code (EU)	4009220090

Technical

Inner diameter of hose (mm)	12. 7
Inlet size (in)	1/2
Inlet size (mm)	12. 7
Maximum temperature (°C)	87
Maximum temperature (°F)	1 90
Maximum working pressure (psi)	2 0 00
Minimum temperature (°C)	-28
Minimum temperature (°F)	- 20
Outlet size (in)	1/2
Outlet size (mm)	12. 7
Overall height (in)	20
Overall height (mm)	508
Overall Length (in)	2 1
Overall length (mm)	533
Overall width (in)	7. 7
Overall width (mm)	1 96
Series	20
Frame Type	Dual Pedestal
Reel Thread Type	NPT
Inlet thread gender	Male
Outlet thread gender	Male
Recommended fluid type	Oil
Hose reel type	Bare reel
includes hose	No
