Manufacturer no.:
24R857

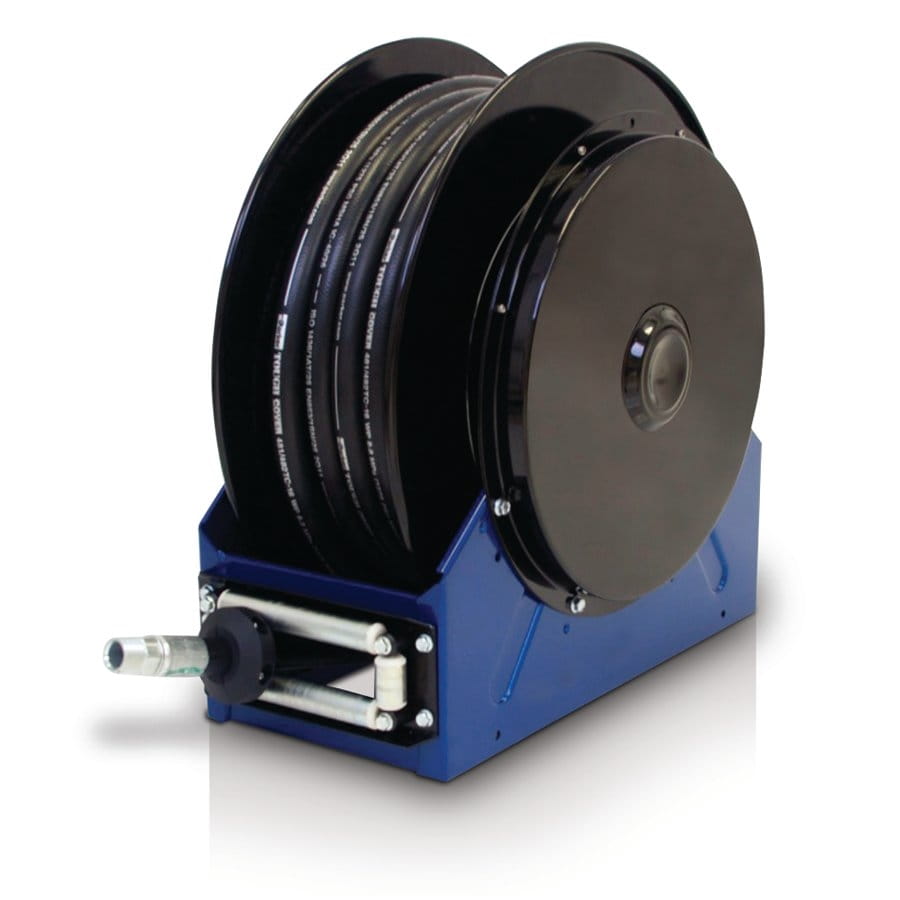

XD40™, oil, 25 mm (1") inlet, 19 mm x 23 m (3/4" x 75') hose, NPT, metallic blue
Price on request
Ready for shipping in 5-8 days
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product number:
1036219
PDF offer
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Our payment methods:
Custom image 1
Question about this product?
We are here for you. Mon-Fri, 9am - 4pm
Also interesting
Product information
Graco XD40 and XD50 series hose reels are built to last and perform when you need them. Choose from multiple colour options, thread types, and hoses. Typical materials include: petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, and waste oil.
Ideal for use in both indoor and outdoor applications at heavy-duty vehicle dealerships, fleet maintenance, public works, construction vehicle maintenance, agricultural vehicle maintenance and emergency service.
- Wide range of hose options – standard models come complete with hoses factory installed on the reel, with a wide selection of optional reels for various applications
- Full flow swivel – Maximise fluid flow with minimal pressure drop for faster filling – increasing throughput in your workshop.
- Rugged and durable body – heavy-duty welded reel and ribbed frame for added strength and resistance to wear
- Meets worldwide requirements - comes standard with 90° elbow with NPT threads
| Colours: | Blau |
|---|---|
| Item type: | Schlauch |
| Length: | 230 cm |
| Size: | M |
More information
- Product number: 1036219
- Manufacturer: Graco
- EAN: 00633955159839
- Weight: 88.788 kg
- Length: 470 mm
- Width: 770 mm
- Height: 850 mm
Technical details
Operating specifications
| UPC product | 633955159839 |
|---|---|
| Division | LED |
| Price Block | 1 5 0 |
| Country of origin | US |
| Unit of measurement | EA |
| Height | 85 CM |
| Length | 47 CM |
| Width | 77 cm |
| Volume | . 308 m³ |
| Shipping weight | 88.79 KG |
| HTS code (EU) | 4 0 09420090 |
| HTS code (GB) | 4 0 09420090 |
Technical
| Dry Weight (lb) | 1 34 |
|---|---|
| Hose inside diameter (mm) | 19. 05 |
| Inlet size (in) | 1 |
| Inlet size (mm) | 25. 4 |
| Maximum working pressure (psi) | 1530 |
| Outlet Size (in) | 1 |
| Outlet Size (mm) | 25. 4 |
| Overall height (in) | 26. 13 |
| Overall height (mm) | 664 |
| Overall Length (in) | 26. 4 |
| Overall Length (mm) | 671 |
| Overall width (in) | 17. 47 |
| Overall width (mm) | 444 |
| Series | 40 |
| Frame type | Box Frame |
| Reel Thread Type | NPT |
| Recommended fluid type | Oil |
| Hose reel type | Reel with hose |
| Model | XD |
| Includes hose | Yes |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (Deutsch)
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (English)
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (Français)
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (Español)
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (Italiano)
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (русский)
Verkaufsliteratur
- 303245ENEU Vehicle Service Equipment Buyer's Guide (English (UK))
- 303245ENEU Vehicle Service Equipment Buyer's Guide (русский)
Zertifizierungen
