Manufacturer no.:
HSM6DB
XD20™, oil, 13 mm (1/2") inlet, without accessories (13 mm x 15 m (1/2" X 50') capacity), NPT, mounting on lorry bed or workbench, metallic blue
€953.19*
% €1,059.10* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information

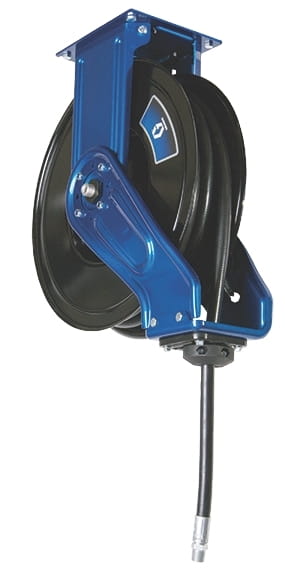

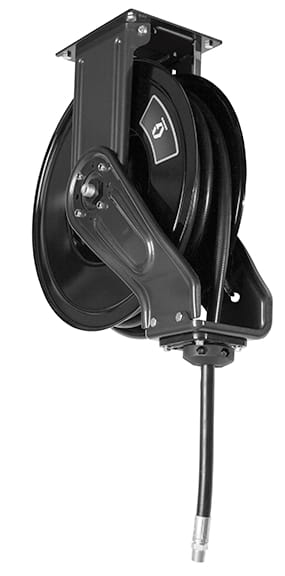

The XD10 and XD20 series heavy-duty hose reels feature rugged dual stands for reliable performance in extreme applications. The compact upright and reel fit into tight spaces and accommodate 10.7 to 19.8 metres (35-65 feet) of hose for numerous applications Typical materials include: Petroleum and synthetic based oils, air, water, grease, antifreeze and windscreen washer fluid
Ideal for indoor and outdoor use at heavy-duty vehicle dealerships, fleet maintenance, public garages, construction vehicle maintenance, agricultural vehicles and emergency vehicles.
- Spring adjustment - Increase or decrease spring tension while the retractor is pressurised with material.
- Full flow swivel - Maximise material flow with minimal pressure drop for faster filling - increasing throughput in your workshop.
- Optional adjustable arm - Easily change the arm position for your application, order with arm (HS models) or without arm (HN models)
- Durable finish - baked enamel paint protects the reel from corrosion
- Large hose capacity in a small footprint - The compact stand and reel fit into tight spaces and can accommodate 107 to 198 metres (35-65 feet) of hose for numerous applications
| Application: | oil |
|---|---|
| Colour: | Metallic Blue |
| Frame type: | Double base |
| Gender of the inlet thread: | External thread |
| Gender of the outlet thread: | External thread |
| Hose included: | No |
| Hose length (m): | 15 |
| Hose reel type: | Reel without accessories |
| Inlet size (inch): | 1/2 |
| Inlet size (mm): | 12.7 |
| Inlet thread type: | NPSM |
| Inner diameter hose (inch): | 1/2 |
| Inner diameter hose (mm): | 12.7 |
| Maximum operating pressure (psi): | 2000 |
| Maximum temperature (°C): | 87 |
| Minimum temperature (°C): | -28 |
| Model: | XD |
| Mounting position: | Truck mount, work surface mounting |
| Outlet size (inch): | 1/2 |
| Outlet size (mm): | 12.7 |
| Recommended environment: | Indoor, For outdoor use |
| Recommended material type: | oil |
| Reel thread type: | NPT |
| Series: | 20 |
| Single retractor: | 1 |
| Total height (mm): | 508 |
| Total length (mm): | 533 |
| Total width (mm): | 196 |
| Type: | Spring reel |
| Wetted parts: | Galvanised steel, anodised aluminium, nitrile rubber |
More information
- Product number: 1035219
- Manufacturer: Graco
- EAN: 00633955428119
- Weight: 22.922 kg
- Length: 610 mm
- Width: 244 mm
- Height: 610 mm
Technical details
Operating specifications
| UPC product | 633955428119 |
|---|---|
| Division | LED |
| Price Block | 150 |
| Country of origin | US |
| Unit of measurement | EA |
| Height | 61 CM |
| Length | 61 cm |
| Width | 24.4 cm |
| Volume | 0 . 091 m³ |
| Shipping weight | 22.92 KG |
| HTS code (EU) | 8 4 79899790 |
| HTS code (GB) | 8479899790 |
Technical
| Inner diameter of hose (mm) | 12. 7 |
|---|---|
| Inlet size (in) | 1/2 |
| Inlet size (mm) | 12. 7 |
| Maximum temperature (°C) | 87 |
| Maximum temperature (°F) | 1 90 |
| Maximum working pressure (psi) | 2 0 00 |
| Minimum temperature (°C) | -28 |
| Minimum temperature (°F) | -20 |
| Outlet size (in) | 1/2 |
| Outlet size (mm) | 12. 7 |
| Overall height (in) | 20 |
| Overall height (mm) | 508 |
| Overall Length (in) | 2 1 |
| Overall length (mm) | 5 33 |
| Overall width (in) | 7. 7 |
| Overall width (mm) | 1 96 |
| Series | 20 |
| Frame Type | Dual Pedestal |
| Reel Thread Type | NPT |
| Inlet thread gender | Male |
| Outlet thread gender | Male |
| Recommended fluid type | Oil |
| Hose reel type | Bare reel |
| Model | XD |
| includes hose | No |
