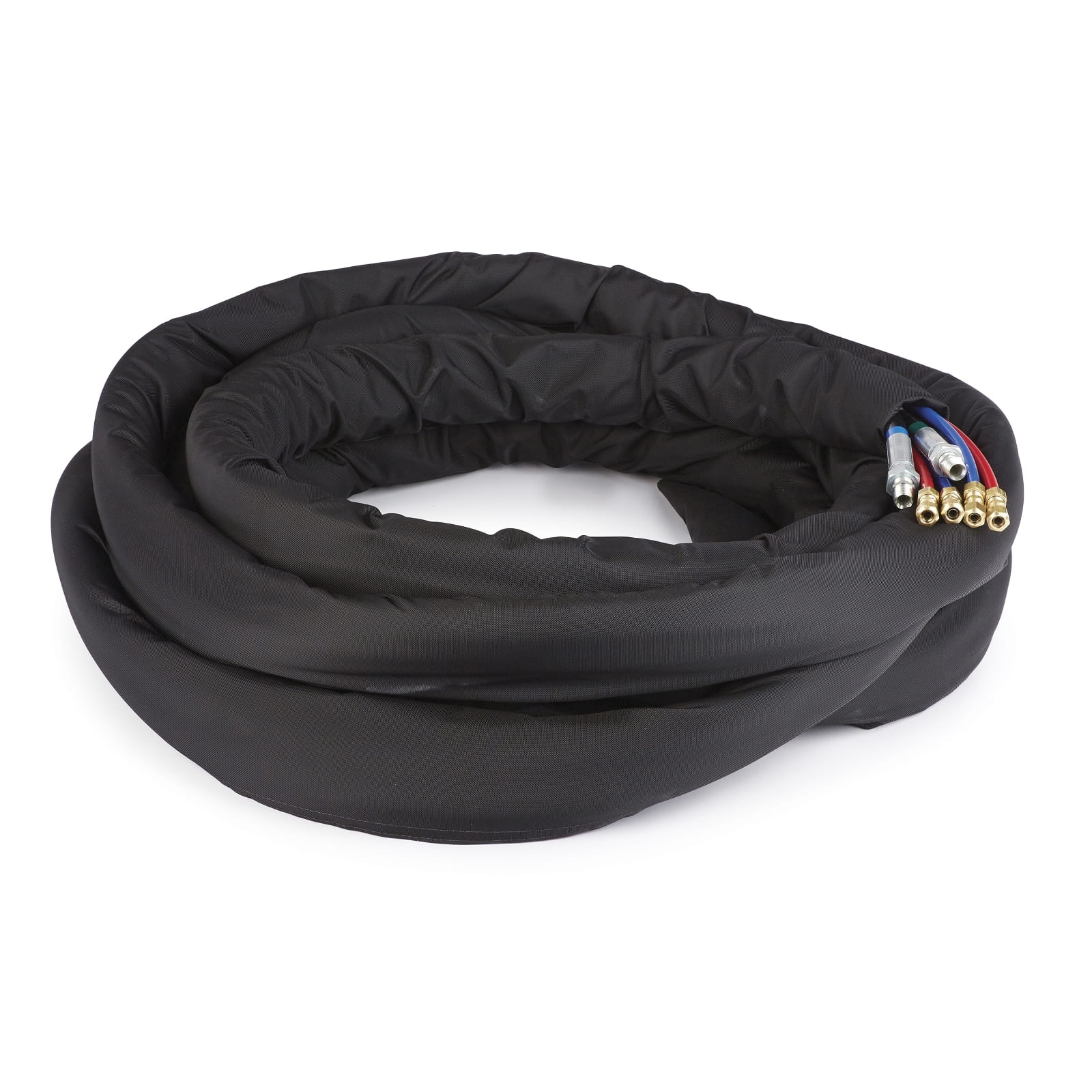

Water-heated hose, 130 bar (7400 psi), 1/2"; 15 m (50 ft)

€5,377.02*

% €6,145.16* (12.5% saved)

Prices include VAT plus shipping costs

€4,518.50*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Worldwide Shipping

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Water heated hoses are designed for use with multi-component airless equipment for high pressure applications, such as Graco's XP and XM sprayers.

The water heater is a safe and effective way to maintain the temperature between the primary heaters on an XP or XM dispenser and a decentralised mixing manifold.

- Four (4) water-heated hoses ensure optimum heat transfer
- Resealable (Velcro) wear protection and insulation - easy to change A/B hose sizes for ratio equalisation - saves time and money
- Repairable - easy to maintain and replace components
- Brass water fittings suitable for pumping remain tight and prevent leaks
- Lightweight nylon water hoses - robust and easy to cut to length
- Colour-coded A/B hose ends - Prevents material backflow and incorrect connections
- Xtreme-Wrap wear protection - glides easily, does not snag, protects the hose, is water repellent
- Overlapping ends - protection for water and paint connections
- Nominal pressure of 345 and 500 bar (5000 and 7250 psi) - corresponds to the nominal pressures of the XP and XM sprayers
- Large bundle diameter - Add up to two ½" return lines for remote circulation

For use with:	Multi-component sprayers
Hose heater type:	Water/glycol
Hose length (m):	15
Maximum operating pressure (MPa):	50
Maximum operating pressure (psi):	7250
Minimum temperature (°C):	0
Permissible operating pressure (bar):	500
Type:	material hose

More information

Product number: 1039631
Manufacturer: Graco
EAN: 00633955042582
Weight: 21.5 kg
Length: 815 mm
Width: 780 mm
Height: 270 mm

Technical details

Specifications

Operating specifications

UPC product	633955042582
Division	CED
Price Block	0 93
Country of Origin	US
Unit	EA
Height	27 CM
Length	81.5 cm
Width	78 cm
Volume	. 172 m³
Shipping weight	21.5 KG
HTS code (GB)	39 1 7310090
HTS code (EU)	39 1 7310090

Technical

For Use With	Plural Component Sprayers
Hose Heating Type	Water / Glycol
Maximum working pressure (psi)	7250
Minimum Temperature (°C)	0
Minimum temperature (°F)	32
Maximum working pressure (bar)	500
Maximum working pressure (MPa)	50
