Manufacturer no.:
26C063

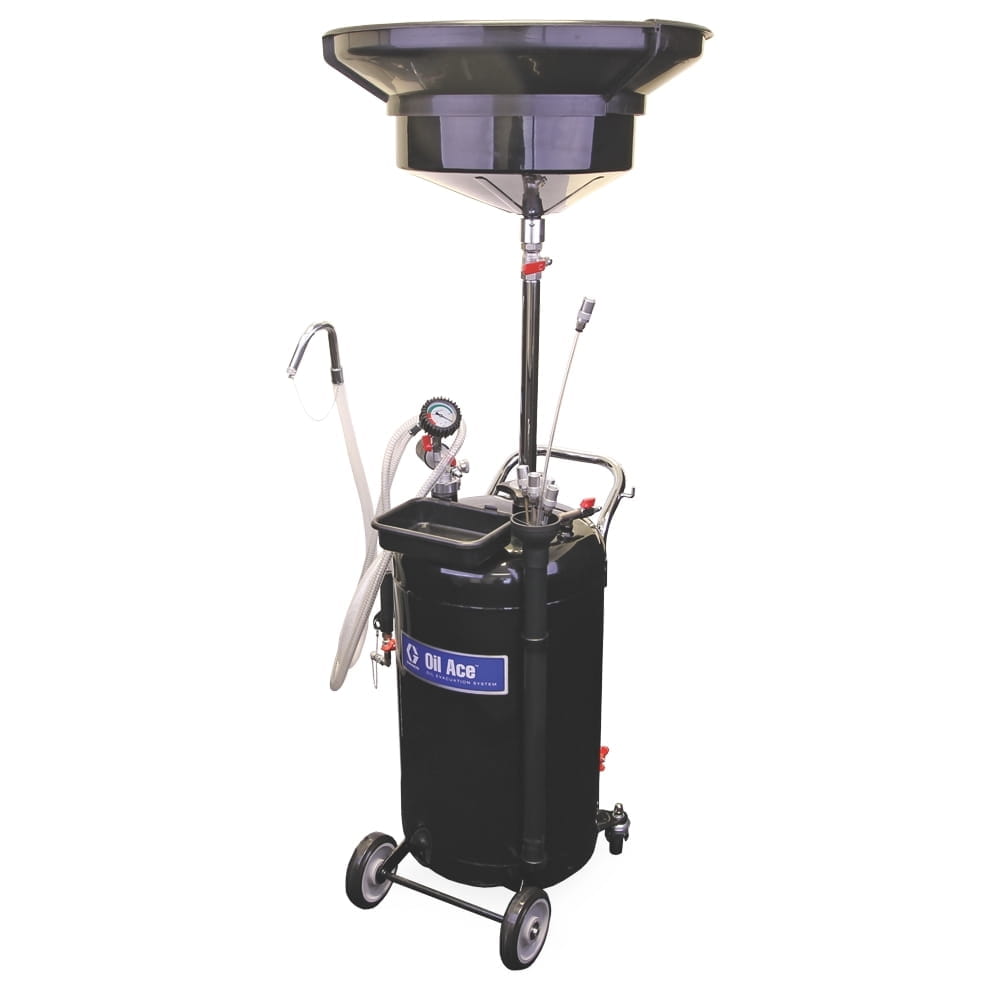

Waste oil draining system with steel tank 90 litres (24 gallons), suction sensor, sight glass, oil drain funnel and adapters
€905.89*
% €966.28* (6.25% saved)Prices include VAT plus shipping costs
€761.25*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
Workshops that need flexibility in removing used fluids use Graco's multi-purpose used oil draining system.
Large offset drip tray - The wide offset drip tray prevents splashing.
Vacuum gauge - Ensure peak performance with an easy-to-read vacuum gauge.
Easy to drain - Pressurise with workshop air for easy oil draining.
Vacuum gauge - including a variety of flexible suction attachments and adapters.
Large collection container with a capacity of 90 litres (24 gallons) - Perfect for small to large workshops without a draining system.
| Compatible liquid: | Waste oil;ATF |
|---|---|
| Maximum operating temperature (°C): | 90 |
| Minimum operating temperature (°C): | -1 |
| Model: | Oil Ace |
| Tank capacity (L): | 90 |
| Total height (cm): | 135 to 180 |
| Total length (cm): | 61 |
| Total length (mm): | 609.6 |
| Total width (cm): | 40.6 |
| Total width (mm): | 4,064,000 |
| Type: | Complete material dosing device |
| Weight (kg): | 28.6 |
| Wetted parts: | Steel, copper, PVC plastic, rubber, aluminium |
More information
- Product number: 1033810
- Manufacturer: Graco
- EAN: 00755652702498
- Weight: 30.844 kg
- Length: 1060 mm
- Width: 470 mm
- Height: 450 mm
Technical details
Operating specifications
| UPC product | 755652702498 |
|---|---|
| Division | LED |
| Price Block | 003 |
| Country of Origin | CN |
| Unit | EA |
| Height | 45 CM |
| Length | 106 CM |
| Width | 47 cm |
| Volume | . 224 m³ |
| Shipping weight | 30.84 KG |
Technical
| Compatible fluid | Used oil; ATF |
|---|---|
| Overall Height (cm) | 135 to 180 |
| Overall length (cm) | 61 |
| Overall height (in) | 53.1 to 70. 8 |
| Overall Length (in) | 2 4 |
| Overall Length (mm) | 609. 6 |
| Overall width (cm) | 40. 6 |
| Overall width (in) | 16 |
| Overall width (mm) | 406. 4000 |
| Maximum operating temperature (°C) | 90 |
| Maximum operating temperature (°F) | 1 94 |
| Minimum operating temperature (°C) | -1 |
| Minimum operating temperature (°F) | 30 |
| Weight (kg) | 28. 6 |
| Model | Oil Ace |
