Manufacturer no.: 17E637

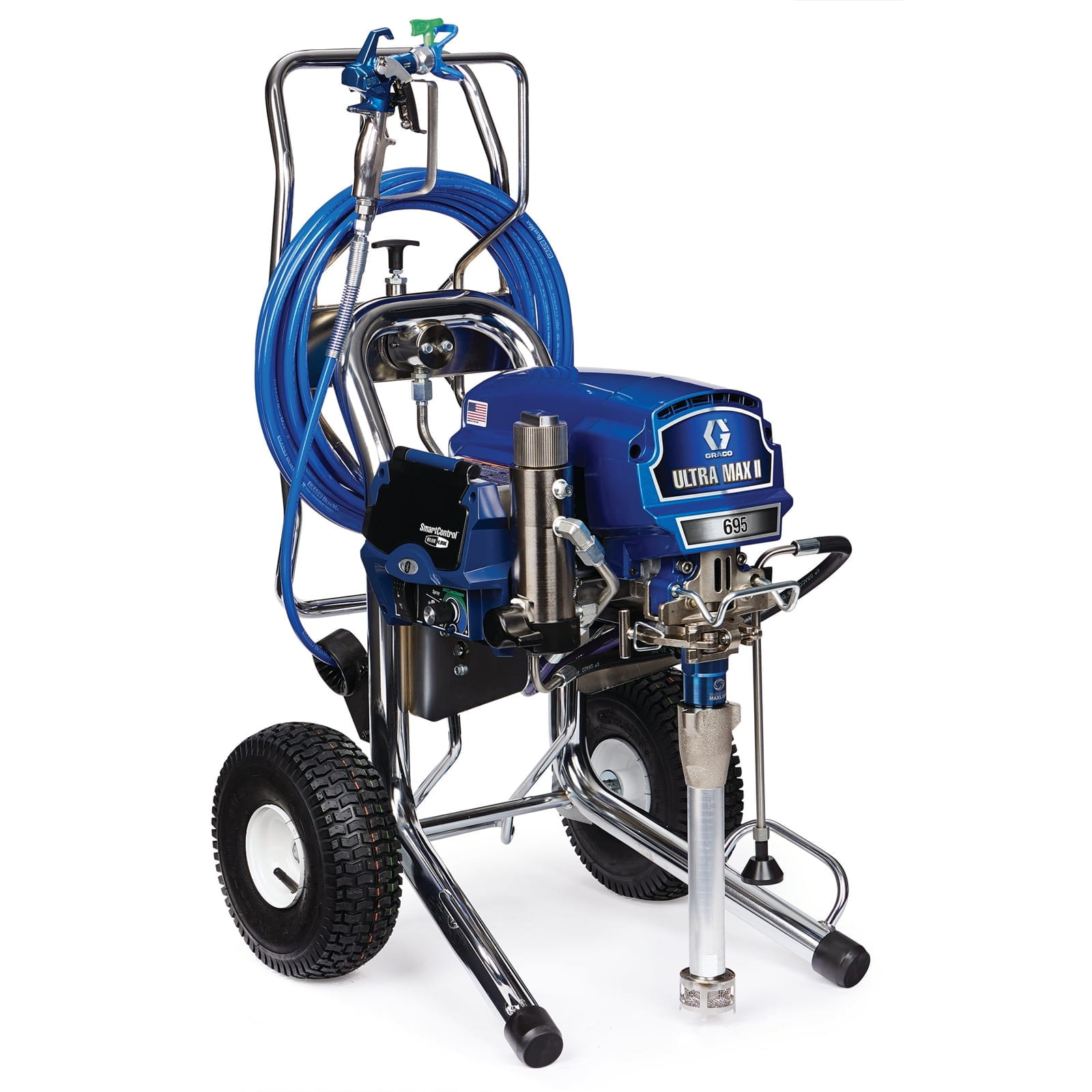

Ultra Max II 695 ProContractor Series Electric airless sprayer, 110V, UK

€6,850.83*

% €9,134.44* (25% saved)

Prices include VAT plus shipping costs

€5,757.00*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange
Shape Created with Sketch. Free shipping within Germany
Product question
Also interesting
Product information

Graco Ultra Max II 695 ProContractor – professional airless performance, smart control, maximum efficiency on the jobsite

Graco Ultra Max II 695 ProContractor – professional electric airless sprayer for demanding residential, renovation and commercial coating applications featuring the Endurance Vortex MaxLife pump, ProConnect 2, BlueLink management, SmartControl 4.0 with ProGuard and QuickReel hose management system.

The Ultra Max II 695 ProContractor is designed for professional users who require a consistent spray pattern, high operational reliability, fast maintenance and greater productivity per workday on larger projects. The ProContractor version combines the proven features of the standard series with exclusive upgrades for even more efficient work and reduced downtime.

  • Endurance Vortex MaxLife pump – longer service life and even wear thanks to rotating rod technology
  • ProConnect 2 – fast pump replacement directly on the jobsite without tools
  • QuickReel hose reel – clean, controlled hose handling and increased efficiency for single-operator use
  • BlueLink app – jobsite and equipment management with productivity and maintenance tracking
  • SmartControl 4.0 with ProGuard – consistent pressure and protection against voltage fluctuations

Details & Information

Product Features
  • Electric airless sprayer from the ProContractor series for professional coating applications
  • Endurance Vortex MaxLife pump with MaxLife coating for extended maintenance intervals
  • ProConnect 2 for fast pump replacement without pins and without tools
  • BlueLink management app for tracking location, productivity and maintenance status
  • SmartControl 4.0 with ProGuard for controlled pressure and protection against power fluctuations
  • FastFlush 2 for significantly faster cleaning with reduced water consumption
  • WatchDog pump protection to prevent dry running and material loss
  • Contractor PC gun with light trigger pull and tool-free needle replacement
  • MaxPower brushless DC motor with high torque
  • Advantage Drive with durable precision gears for quiet and long-lasting operation
  • Easy Out pump filter for fewer tip clogs and high finish quality
  • Bright LED display with job, lifetime, liter counter and self-diagnostics
Practical advantage: The ProContractor version is ideal for professional painting contractors who require more performance, less downtime and better control over maintenance and jobsite productivity.
Model Overview – Configuration & System Design

The Ultra Max II 695 ProContractor model is the high-performance professional version within the electric Ultra Max II series and is particularly suited for larger residential and commercial projects where reliability, ease of maintenance and clean handling are essential.

Component Typical Benefit
Endurance Vortex MaxLife pump High durability, even wear and longer service intervals
ProConnect 2 Fast pump replacement directly during operation
QuickReel with 15 m hose Less hose clutter, controlled unwinding and faster work
BlueLink app Overview of equipment, productivity, maintenance and jobsite status
Contractor PC gun High ease of use, reduced fatigue and precise material control
Note: The unit is delivered complete and ready to spray, including Contractor PC gun, RAC X guard, Easy-Out 60 gun filter, BlueMax II 1/4" x 15 m hose and LP517 + LP621 tips.
Setup & Commissioning

To ensure the Ultra Max II 695 ProContractor delivers its full performance safely and consistently, a quick system check before startup is recommended:

  • Check material supply and intake area for clean, consistent flow
  • Ensure hose, gun and tip are properly assembled and secure
  • Adjust pressure via SmartControl 4.0 according to material and application
  • Check filter condition of pump and gun filters before use
  • Use BlueLink and LED display to monitor equipment data and maintenance alerts
  • Actively use the WatchDog function to prevent dry running and unnecessary material loss
Tip: The QuickReel system is especially helpful for mobile applications and frequent repositioning, as only the required hose length needs to be used.
Applications / Use Cases
  • Professional airless applications in painting and coating trades
  • Larger residential and renovation projects
  • Commercial coating applications for interior and exterior use
  • Wall, ceiling and façade coatings
  • Jobsites with high demands on productivity and serviceability
  • Applications with long hose runs and professional material processing
Compatible material: Primers, stains, acrylic paints, enamels, latex, interior paint, exterior paint
Compatible replacement pump: 248205
Convertible: Not convertible
Filter mesh size: 60
Frame configuration: Hi boy
Frequency (Hz): 50
Hose diameter (inch): 1/4
Hose inlet diameter (cm): 635
Hose inlet diameter (inch): 1/4
Hose inlet diameter (mm): 6.35
Inner diameter of material hose (inch): 1/4
Material outlet size (mm): 6.35
Material outlet thread type: NPSM
Maximum delivery rate (L/min): 3.6
Maximum hose length (m): 60
Maximum nozzle size (inch): 31
Maximum nozzle size 1 gun (inch): 31
Maximum nozzle size 2 guns (inch): 54
Maximum operating pressure (kPa): 2270
Maximum operating pressure (kg/cm²): 22.7
Maximum operating pressure (psi): 3300
Maximum sound pressure level (dB(A)): 82
Minimum generator output (W): 5000
Minimum generator output (kW): 0
Model: Ultra Max II
Motor size (kW): 1.3
Motor type: Brushless, DC
Number of guns: 1
Outlet colour screen: 60 mesh stainless steel sieve
Permissible operating overpressure (psi): 3300
Permissible operating pressure (bar): 227
Phases: 1
Pressure control type: SmartControl
Product series: ProContractor
Pump mounting type: ProConnect
Pump rod type: MaxLife
Pump sleeve material: MaxLife
Pump type: Endurance Vortex
Rated power (kW): 1.3
Region Plug type: UK region (plug type G)
Series: 695
Size of the material outlet opening (inches): 1/4
Spray gun type: Contractor PC Pro pistol
Spraying technology: Airless
Supply voltage: Electric
Total height (cm): 99
Total height (mm): 10,033,000
Total length (cm): 75
Total length (mm): 749.3
Total width (cm): 57.2
Total width (mm): 5,715,000
Type: Airless sprayer
Voltage (V): 110
Weight (kg): 50
Wetted material: Galvanized Carbon Steel, Nickel Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass
More information
  • Product number: 1036620
  • Manufacturer: Graco
  • EAN: 00755652817307
  • Weight: 68.946 kg
  • Length: 680 mm
  • Width: 820 mm
  • Height: 1080 mm

Technical details

Betriebsspezifikationen
UPC Produkt 755652817307
Division CED
Price Block 205
Country of Origin US
Maßeinheit EA
Höhe 108 CM
Länge 68 CM
Breite 82 CM
Volumen .602 M3
Shipping Weight 68.95 KG
Technische Daten
Compatible Replacement Pump 248205
Convertible Non-Convertible
Engine Size (HP) 1.75 Brushless DC
Engine Size (kW) 1.3
Fluid Outlet Size (mm) 6,35
Frame Configuration Hi-Boy
Hose Inlet Diameter (cm) 0.635
Hose Inlet Diameter (in) 1/4
Hose Inlet Diameter (mm) 6.35
Maximum Flow Rate (L/min) 3.6
Maximum Hose Length (ft) 200
Maximum Hose Length (m) 60
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (in) 0.031
Maximum Tip Size Gun 1 (in) 0.031
Maximum Working Pressure (psi) 3300
Maximum Working Pressure (kPa) 2270
Power Rating (HP) 1.75
Power Rating (kW) 1.3
Pressure Control Type SmartControl
Overall Width (mm) 571.5000
Model Ultra Max II
Maximum Working Pressure (bar) 227
Overall Height (cm) 99
Overall Height (in) 39.5
Weight (kg) 50
Overall Height (mm) 1003.3000
Overall Length (cm) 75
Overall Width (in) 22.5
Overall Length (in) 29.5
Series 695
Overall Length (mm) 749.3
Overall Width (cm) 57.2
Maximum Working Pressure (kg/cm²) 22.7
Hose Diameter (in) 1/4
Fluid Hose Inside Diameter (in) 1/4
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Minimum Generator Power (kW) 0
Frequency (Hz) 50
Pump Mount Type ProConnect
Pump Rod Type MaxLife
Minimum Generator Power (W) 5000
Number of Guns 1
Filter Mesh Size 60
Maximum Tip Size Gun 2 (in) 0.023
Product Series ProContractor
region_plug_type UK region (Type G plug)
