Manufacturer no.:
TRA315

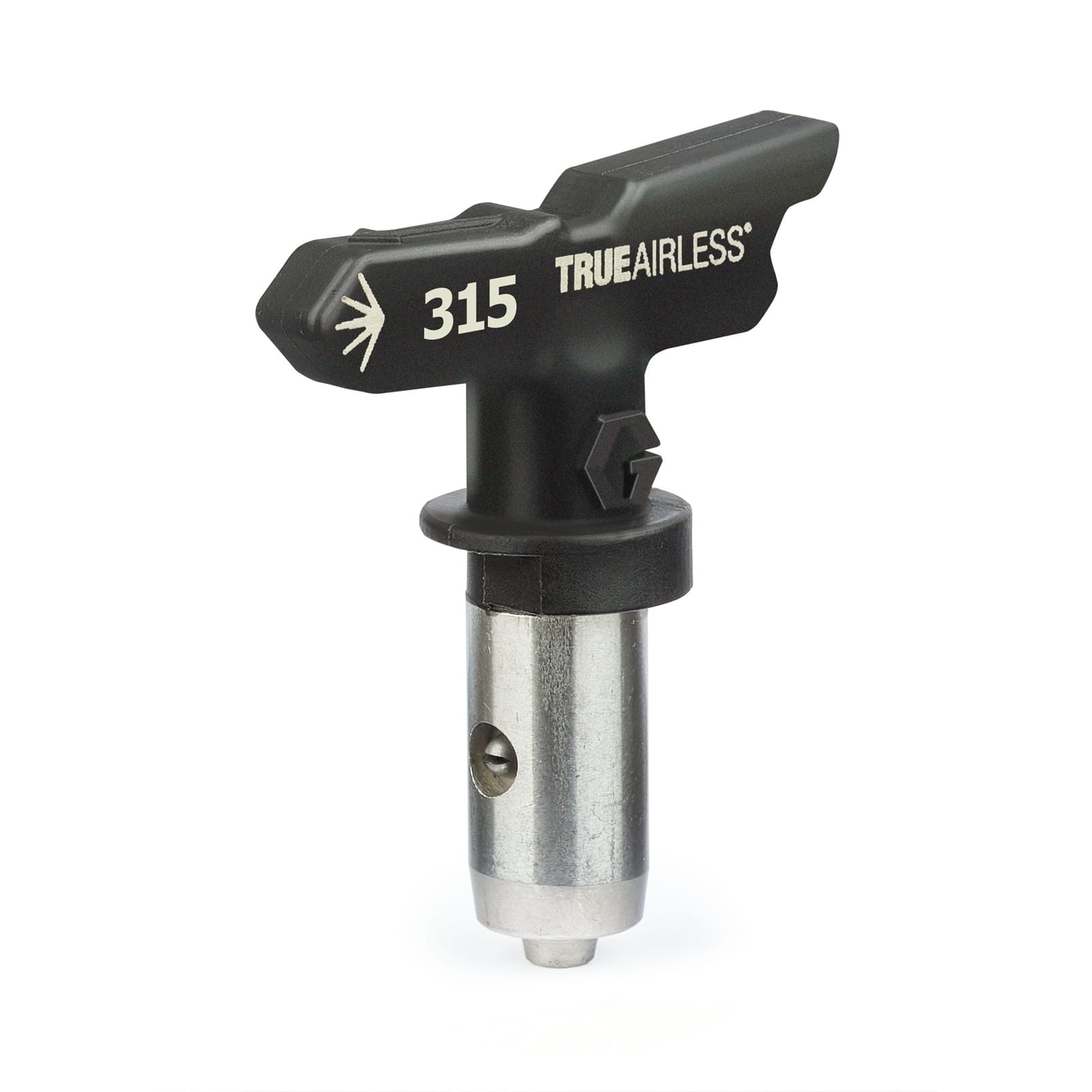

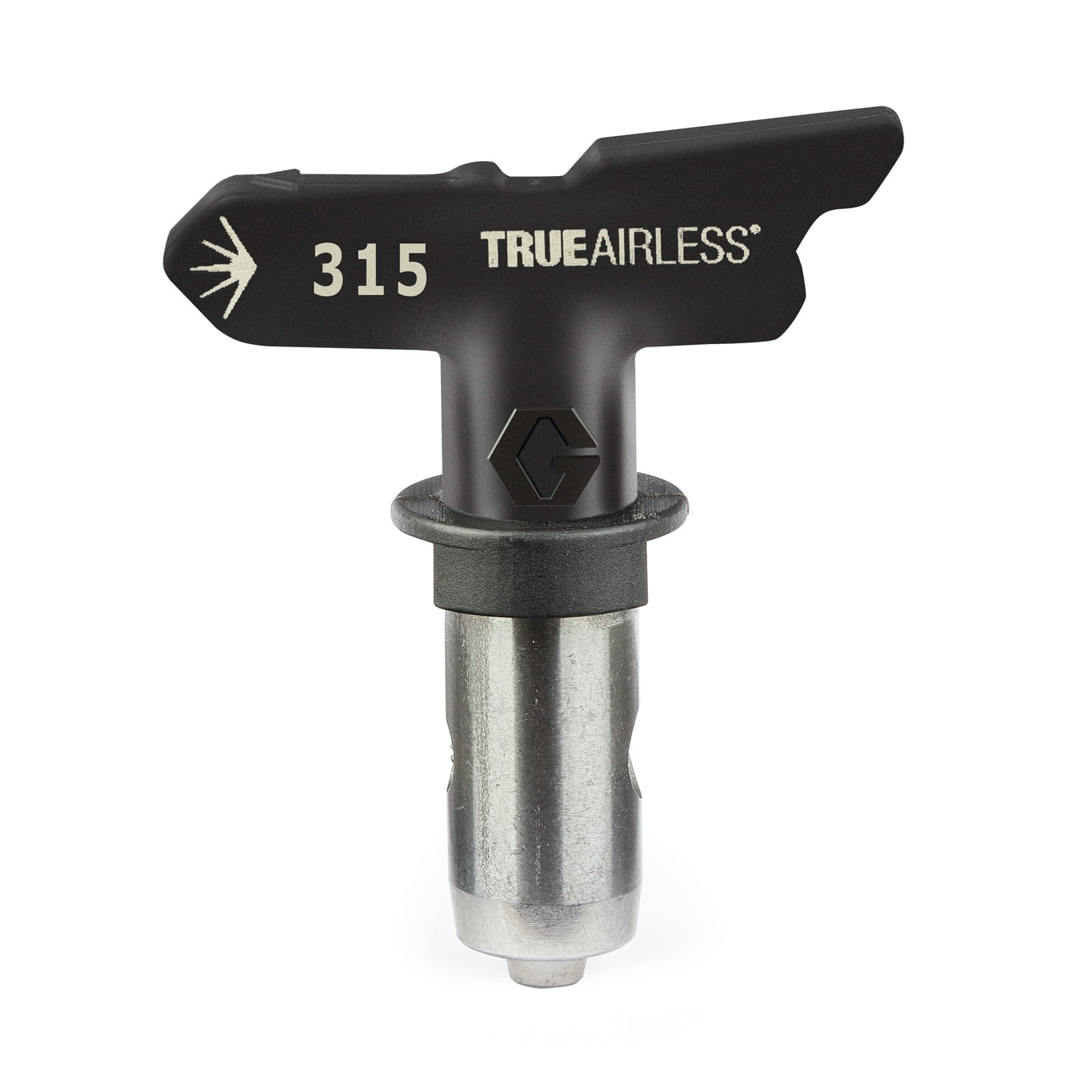

TrueAirless 315 spray nozzle
€115.43*
Ready for shipping in 5-8 days
Also interesting
Product information
The TrueAirless spray nozzle with SoftSpray technology delivers a softer spray pattern that makes it easier to achieve a professional quality finish. Ensure more control and less overspray on a variety of surfaces with a wide range of finishes, from stains to exterior paints.
The 152mm spray pattern is ideal for narrow surfaces such as mouldings, fences and decking. The 0.015" hole size is optimal for spraying medium sized materials such as interior/exterior latex, primers, solid colours or paints. Less overspray reduces clean-up time and material waste.
- Graco-exclusive SoftSpray technology provides better control to easily blend each spray pass for a superior finish
- Reverse function quickly clears spray nozzle clogs by simply rotating the spray nozzle and spraying in the reverse position
- The intuitive design enables quick recognition of the spraying direction
- Uncomplicated and tool-free assembly on the spray gun
- Replacement single seal included
| Compatible material: | Matt/semi-gloss wall and ceiling paints, general primers |
|---|---|
| For use with: | Magnum A5 COMPACT DS, Magnum A10 PRO COMPACT, Magnum A20 PLUS, Magnum A30 PRO PLUS, Magnum A45 PRO PLUS, Magnum A60 PRO PLUS, Magnum A80 PRO PLUS, Magnum A100 PRO PLUS |
| Material: | Tungsten carbide |
| Maximum spray width (cm): | 15 |
| Maximum spray width (inches): | 6 |
| Maximum spray width (mm): | 152 |
| Model: | TrueAirless |
| Nozzle type: | Airless |
| Series: | Spray tip |
| Size of the material opening (inches): | 0.015 |
| Type: | spray nozzle |
More information
- Product number: 1038734
- Manufacturer: Graco
- EAN: 00755652829034
- Weight: 0.031 kg
- Length: 140 mm
- Width: 70 mm
- Height: 30 mm
Technical details
Operating specifications
| UPC product | 755652829034 |
|---|---|
| Division | CED |
| Price Block | 0 99 |
| Country of Origin | US |
| Unit | EA |
| Height | 3 CM |
| Length | 14 cm |
| Width | 7 cm |
| Volume | 0 m³ |
| Shipping weight | . 03 KG |
Technical
| Orifice diameter (in) | 0. 015 |
|---|---|
| For use with | Magnum A20 Plus, Magnum A30 ProPlus, Magnum A45 ProPlus, Magnum A60 ProPlus, Magnum A80 ProPlus, Magnum A100 ProPlus, Magnum ProS19 ProPlus, Magnum ProS21 ProPlus, RAC 5 HandTite Tip Guard |
| Maximum fan width (in) | 6 |
| Maximum fan width (mm) | 1 52 |
| Tip Type | Air less |
| Maximum fan width (cm) | 15 |
| Model | True Airless |
| Series | Spray Tip |
