Manufacturer no.: 233748

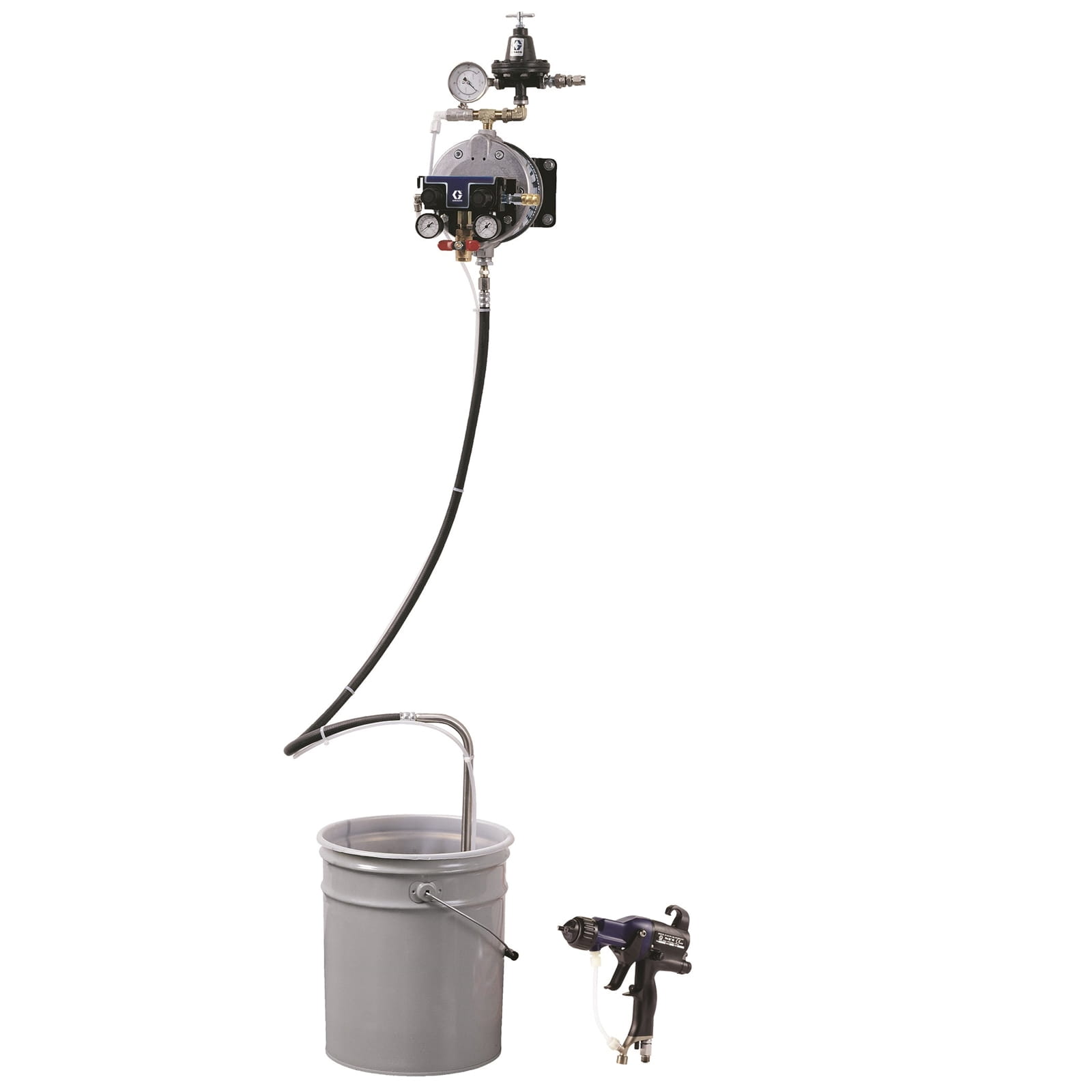

Triton Alum Spray Package, wall-mounted, 60 psi fluid pressure regulator, Pro-Xp40 electrostatic gun, air and fluid hoses

€5,429.17*

% €8,043.21* (32.5% saved)

Prices include VAT plus shipping costs

€4,562.33*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

The Triton system is an air-operated diaphragm sprayer designed for low-pressure painting applications. It is a more effective alternative to conventional pressure tanks and standard diaphragm pumps.

Excellent finish quality for conventional, HVLP and compliant or electrostatic applications.
Delivers up to 35% more air to the gun for optimum atomisation.
Saves material and time when rinsing and priming, as well as when changing colours
Delivers consistent spray pattern and application coverage
Quick colour change and material refills save time and money
Robust stainless steel or aluminium pump for a wide range of materials
Quick colour changes and material refills save time and money
Robust stainless steel or aluminium pump for a wide range of materials

Application:	metal
Assembly:	Wall mounting
Compatible material:	CARC, Enamel Paints, Epoxy, High Solids, Latex, Lacquers, Metal, Stains, Single Component, Solvent Based Paints, Solvent Based, Paint Primers
Gun included:	1
Gun technology:	Electrostatic
Gun type:	Electrostatics
Includes:	25ft air hose, 25ft fluid hose, regulator, applicator
Material inlet thread type:	NPT
Material outlet size (cm):	9,525
Material outlet size (mm):	9,525
Material outlet thread type:	NPT
Maximum air supply pressure (bar):	7
Maximum air supply pressure (kPa):	700
Maximum delivery rate (L/min):	32
Maximum inlet air pressure (psi):	100
Maximum operating pressure (kPa):	700
Maximum operating pressure (psi):	100
Model:	Triton
Mounting position:	Wall mounting
Permissible operating pressure (bar):	7

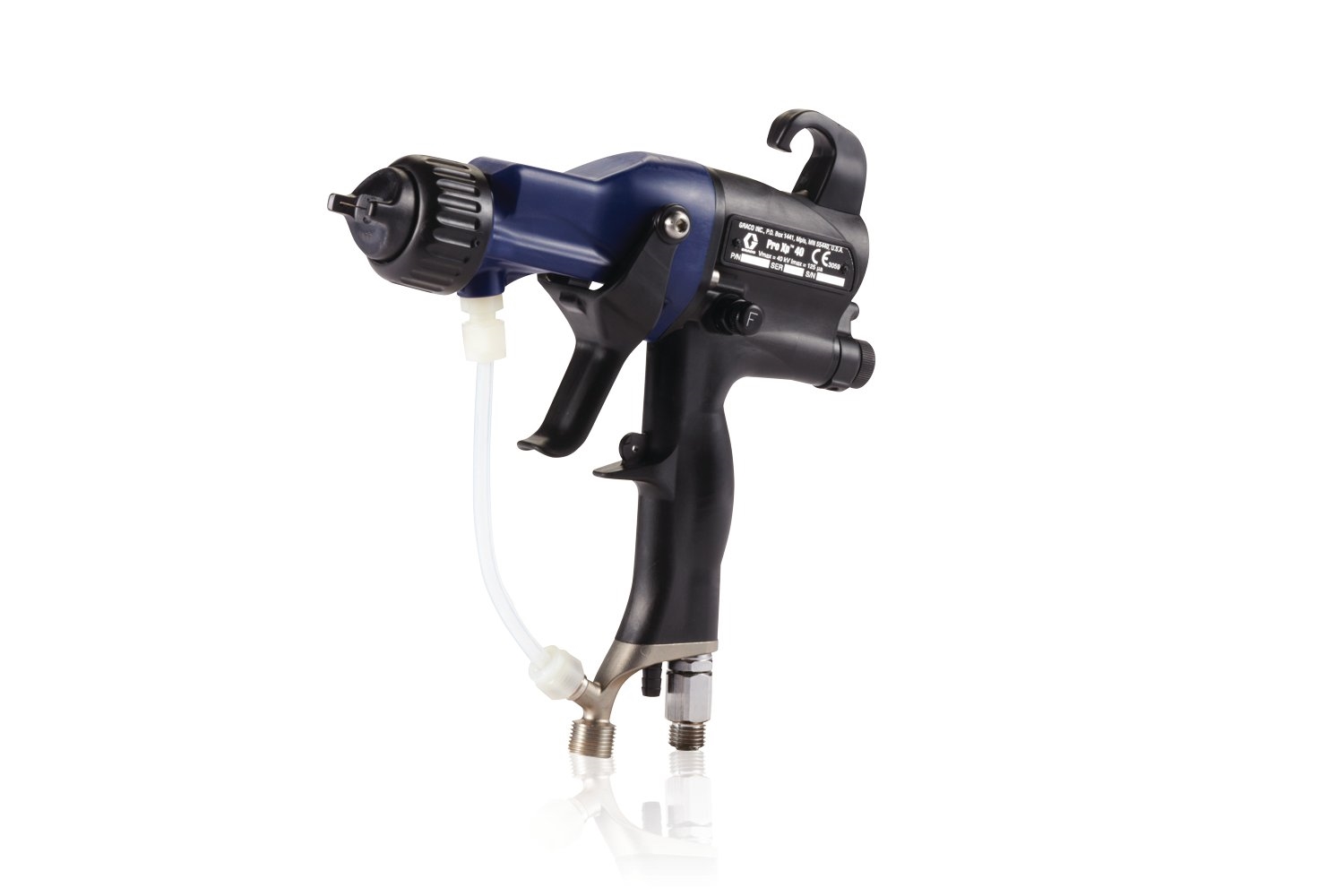

Pistol model:	Pro Xp 40 kV Standard
Print type:	Low pressure
Product type:	Complete spraying device
Pump type:	Pneumatic diaphragm pump
Series:	308
Size of the material inlet opening (cm):	1,905
Size of the material inlet opening (inches):	3/4
Size of the material inlet opening (mm):	19.05
Size of the material outlet opening (inches):	3/8
Spraying technology:	Electrostatics
Supply voltage:	Air
Technology type:	Air spraying
Transmission ratio of the pump:	1:1
Type:	Air powered sprayer
Weight (kg):	8.6

More information

Product number: 1031073
Manufacturer: Graco
EAN: 00633955767720
Weight: 14.82 kg
Length: 540 mm
Width: 410 mm
Height: 415 mm

Technical details

Specifications

Operating specifications

UPC product	633955767720
Division	IPD
Price Block	063
Country of Origin	US
Unit	EA
Height	41.5 CM
Length	54 cm
Width	41 cm
Volume	. 092 m³
Shipping weight	14.82 KG

Technical

Fluid inlet size (cm)	1. 905
Fluid inlet size (in)	3/4
Fluid inlet size (mm)	19. 05
Fluid outlet size (cm)	0. 9525
Fluid outlet size (mm)	9. 525
Includes	25 ft air hose, 25 ft fluid hose, regulator, applic ator
Maximum air inlet pressure (bar)	7
Maximum air inlet pressure (kPa)	700
Maximum air inlet pressure (psi)	100
Maximum flow rate (L/min)	32
Maximum working pressure (bar)	7
Maximum working pressure (kPa)	700
Maximum working pressure (psi)	100
Series	308
Sprayer Type	Air Spray Electrostatic
Weight (kg)	8. 6
Mount type	Wall Mount
Model	Triton
Product Type	Spray Package
Technology Type	Air Spray
Gun Model	Pro Xp 40 kV Standard
Gun Technology	Elect rostatic
