Manufacturer no.:
233741

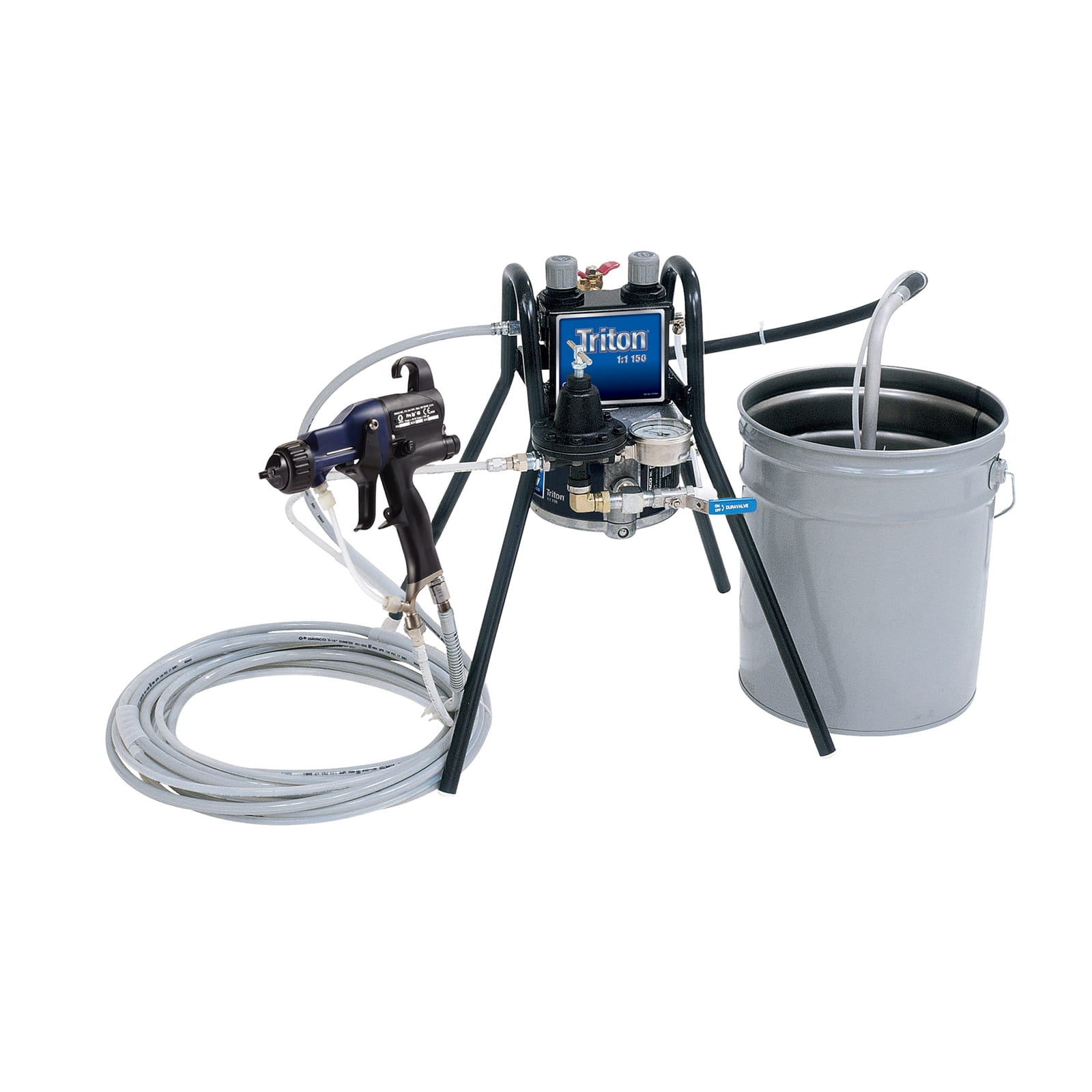

Triton Alum Spray Package, pail, 60 psi fluid pressure regulator, Pro-Xp40 electrostatic gun, suction manifold, air and fluid hoses
€5,991.35*
% €7,988.47* (25% saved)Ready for shipping in 5-8 Werktage
Also interesting
Product information
The Triton system is an air-operated diaphragm sprayer designed for low-pressure painting applications. It is a more effective alternative to conventional pressure tanks and standard diaphragm pumps.
- Excellent finish quality for conventional, HVLP and compliant or electrostatic applications.
- Delivers up to 35% more air to the gun for optimum atomisation.
- Saves material and time when rinsing and priming, as well as when changing colours
- Delivers consistent spray pattern and application coverage
- Quick colour changes and material refills save time and money
- Robust stainless steel or aluminium pump for a wide range of materials
- Quick colour changes and material refills save time and money
- Robust stainless steel or aluminium pump for a wide range of materials
| Application: | metal |
|---|---|
| Assembly: | Bucket holder |
| Compatible material: | CARC, Enamel Paints, Epoxy, High Solids, Latex, Lacquers, Metal, Stains, Single Component, Solvent Based Paints, Solvent Based, Paint Primers |
| Feed type: | suction hose |
| Gun included: | 1 |
| Gun technology: | Electrostatic |
| Gun type: | Electrostatics |
| Includes: | 25ft air hose, 25ft fluid hose, regulator, applicator |
| Material inlet thread type: | NPT |
| Material outlet size (cm): | 9,525 |
| Material outlet size (mm): | 9,525 |
| Material outlet thread type: | NPT |
| Maximum air supply pressure (bar): | 7 |
| Maximum air supply pressure (kPa): | 700 |
| Maximum delivery rate (L/min): | 32 |
| Maximum inlet air pressure (psi): | 100 |
| Maximum operating pressure (kPa): | 700 |
| Maximum operating pressure (psi): | 100 |
| Model: | Triton |
| Mounting position: | Bucket holder |
| Permissible operating pressure (bar): | 7 |

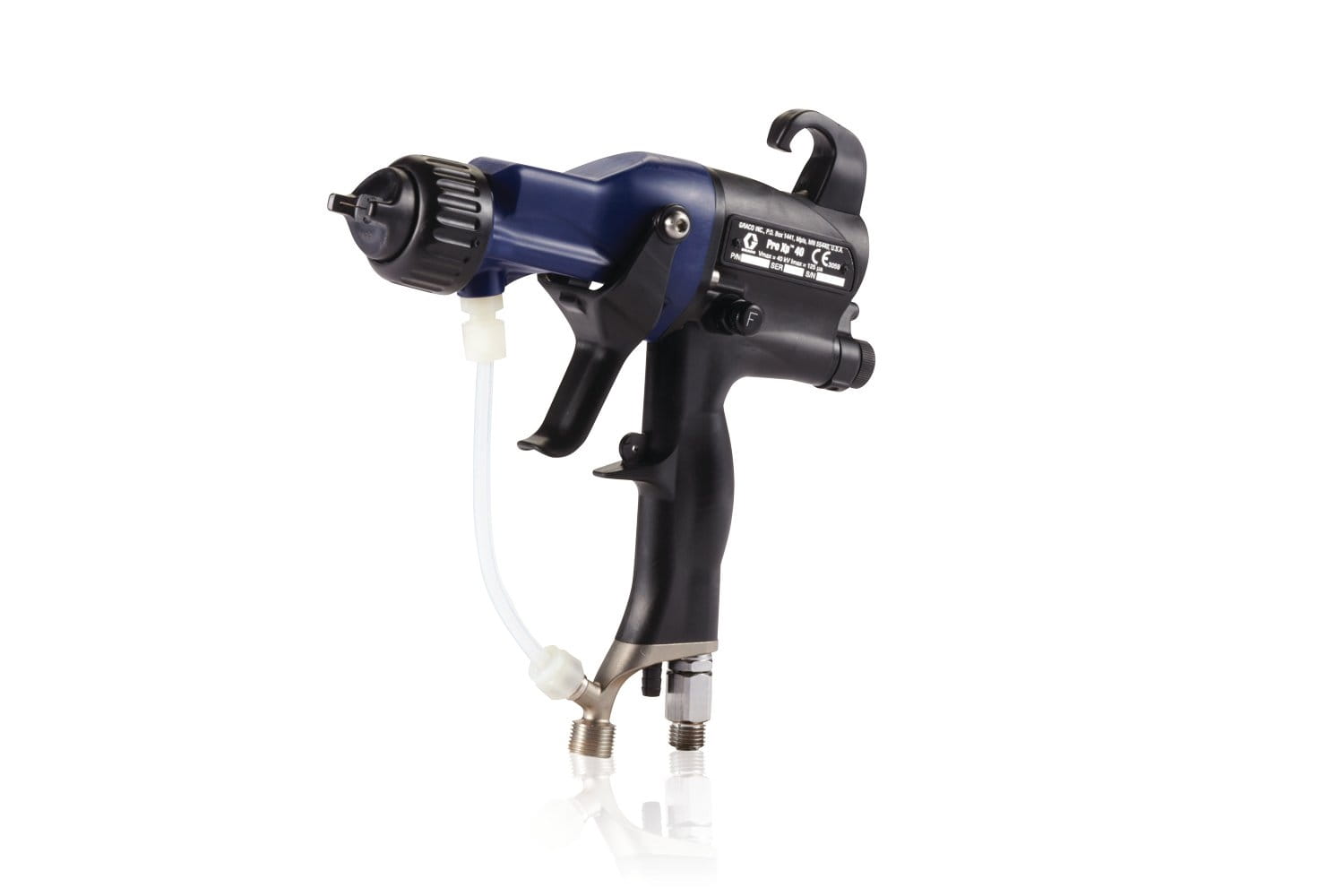

| Pistol model: | Pro Xp 40 kV Standard |
| Print type: | Low pressure |
| Product type: | Complete spraying device |
| Pump type: | Pneumatic diaphragm pump |
| Series: | 308 |
| Size of the material inlet opening (cm): | 1,905 |
| Size of the material inlet opening (inches): | 3/4 |
| Size of the material inlet opening (mm): | 19.05 |
| Size of the material outlet opening (inches): | 3/8 |
| Spraying technology: | Electrostatics |
| Supply voltage: | Air |
| Technology type: | Air spraying |
| Transmission ratio of the pump: | 1:1 |
| Type: | Air powered sprayer |
| Weight (kg): | 10 |
More information
- Product number: 1036384
- Manufacturer: Graco
- EAN: 00633955767393
- Weight: 25 kg
- Length: 490 mm
- Width: 530 mm
- Height: 640 mm
