Manufacturer no.: 562503

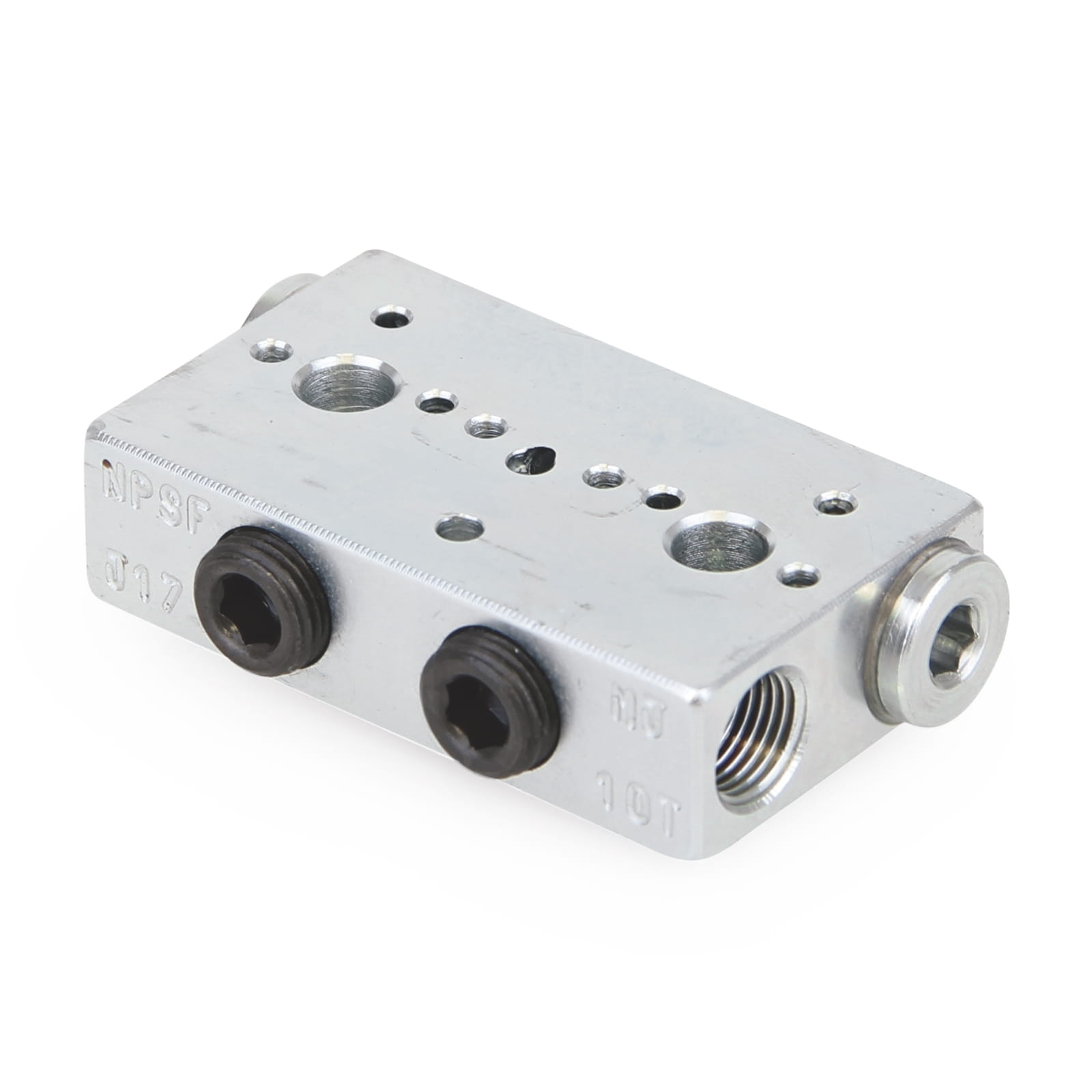

Trabon® single-line distributors of the MJ-Flo series - MJ-5T - 0.082 cm³ (0.005 in³)

€152.08*

% €168.98* (10% saved)

Prices include VAT plus shipping costs

€127.80*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

EU B2B: net prices with valid VAT ID

Also interesting

Product information

The Trabon MJ series is a compact and easily customisable design that can be easily tailored to a variety of specialised lubrication needs. It can deliver grease up to NLGI grade 1.

Compact and customisable single-line distributor series for machine tools, production equipment or presses.

Space-saving – from 6 to 16 points from a block group
Built-in check valves in outlets ensure constant lubricant supply
Optional indicator pin outlets for easier troubleshooting – takes the guesswork out of troubleshooting
Can be easily equipped with cycle indicators with magnetic and electronic proximity switches to confirm successful lubrication.

Artikel Art:	Verteiler

More information

Product number: 1038829
Manufacturer: Graco
EAN: 00633955346550
Weight: 0.18 kg
Length: 30 mm
Width: 50 mm
Height: 30 mm

Technical details

Specifications

Operating specifications

UPC product	633955346550
Division	LED
Price Block	125
Country of origin	US
Unit	EA
Height	3 CM
Length	3 cm
Width	5 cm
Volume	0 M3
Shipping weight	. 16 KG
HTS code (EU)	8 4 81809990
HTS code (GB)	8 4 81809990

Technical

Maximum cycle rate (cycles/min)	2 00
Maximum Working Pressure (psi)	200
Outlet size (mm)	3, 175
Minimum working pressure (psi)	2 00
Outlet size (cm)	0. 3175
Number of outlets	2
Maximum working pressure (bar)	138
Maximum operating temperature (°F)	2 00
Outlet Thread Gender	Female
Outlet Size (in)	1/8
Maximum working pressure (kPa)	1 3 800
Maximum NLGI grade	#1
Maximum operating temperature (°C)	93
Divider Valve Series	MJ
Model	Trab on
Series	MJ
Discharge per piston stroke (in³)	0. 005
