Manufacturer no.:
562518

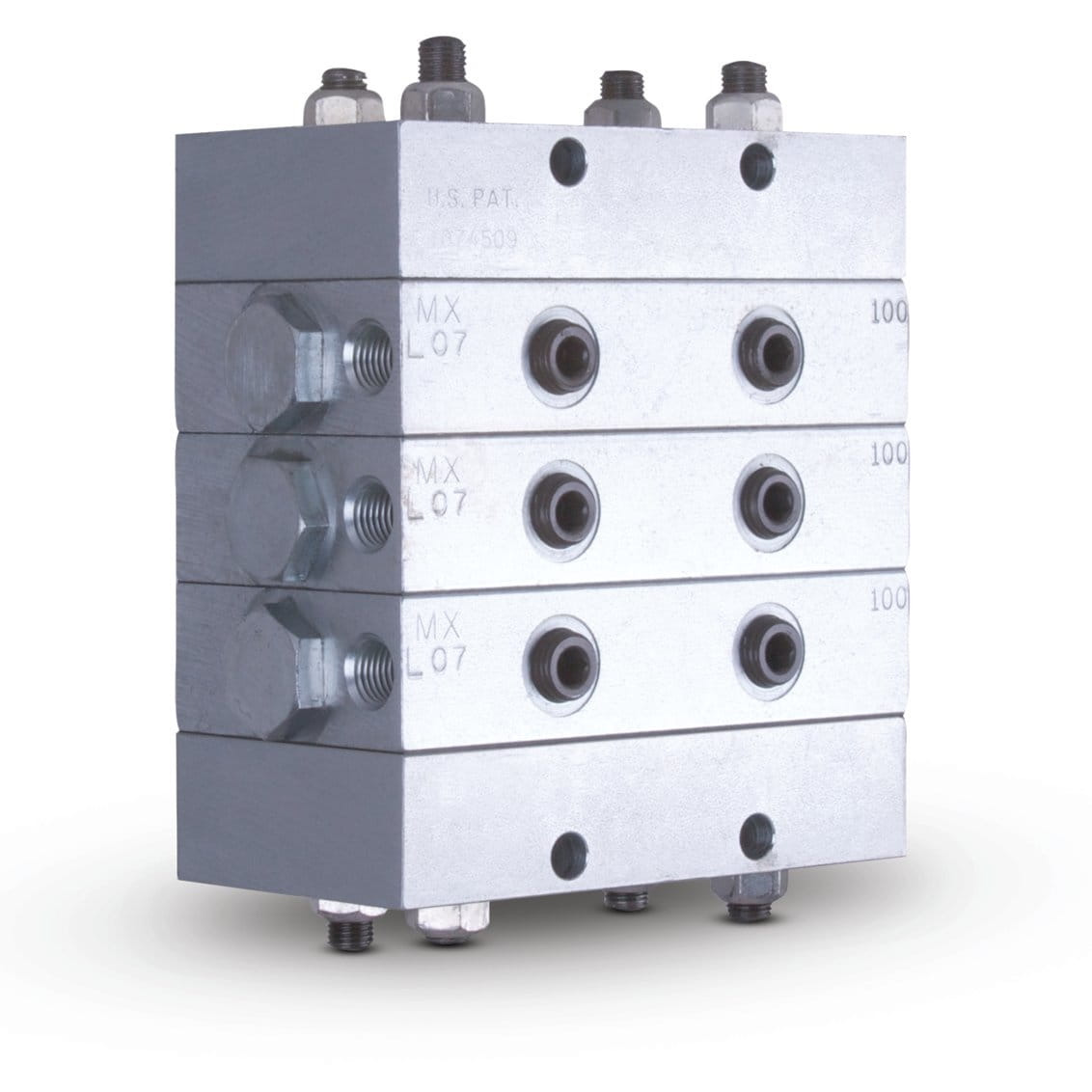

Trabon® MX inlet manifold with right-hand cycle indicator pin - MX-50S - 1.64 cm³ (0.100 in³)
€811.06*
% €865.13* (6.25% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The larger delivery volume for high performance requirements, together with its economical and compact design, makes the Trabon MX series ideal for use in steelworks and paper mills.
- Lubricates large bearings
- Pumps up to 4.92 cubic centimetres (0.3 cubic inches) per cycle and has extensive accessories for monitoring critical lubrication points
- Robust design withstands demanding environments and operating conditions
- Built-in outlet check valves ensure precise lubricant delivery every time
- Can easily be fitted with magnetic and electronic proximity switch cycle indicators to confirm successful lubrication
- As an option, outlets can be fitted with indicator pin for easier troubleshooting - taking the guesswork out of troubleshooting
| Application: | Machines in manufacturing plants |
|---|---|
| Compatible material: | oil, fat |
| Cycle display: | Cycle display |
| Diffuser size (cm): | 635 |
| Distributor valve series: | MX |
| Gender of the outlet thread: | Internal thread |
| Material: | Normal steel |
| Maximum NLGI grade: | No. 2 |
| Maximum double stroke rate (cycles/min): | 60 |
| Maximum operating pressure (kPa): | 20700 |
| Maximum operating pressure (psi): | 3000 |
| Maximum operating temperature (°C): | 93 |
| Minimum operating pressure (psi): | 200 |
| Model: | Trabon |
| Number of outlets: | 1 |
| Outlet size (inch): | 1/4 |
| Outlet size (mm): | 6.35 |
| Outlet thread type: | NPSF |
| Permissible operating pressure (bar): | 207 |
| Series: | MX |
| Type: | distributor |
More information
- Product number: 1037882
- Manufacturer: Graco
- EAN: 00633955328600
- Weight: 1 kg
- Length: 120 mm
- Width: 60 mm
- Height: 30 mm
Technical details
Operating specifications
| UPC product | 633955328600 |
|---|---|
| Division | LED |
| Price Block | 125 |
| Country of origin | US |
| Unit | EA |
| Height | 3 CM |
| Length | 12 cm |
| Width | 6 cm |
| Volume | 0 m³ |
| Shipping weight | 1 kg |
| HTS code (EU) | 8 4 81809990 |
| HTS code (GB) | 8 4 81809990 |
Technical
| Maximum cycle rate (cycles/min) | 60 |
|---|---|
| Maximum working pressure (psi) | 3000 |
| Outlet Size (mm) | 6. 35 |
| Minimum working pressure (psi) | 2 00 |
| Outlet size (cm) | 0. 635 |
| Number of outlets | 1 |
| Maximum working pressure (bar) | 2 07 |
| Maximum operating temperature (°F) | 2 00 |
| Outlet Thread Gender | Female |
| Outlet Size (in) | 1/4 |
| Maximum working pressure (kPa) | 2 0 700 |
| Maximum NLGI Grade | #2 |
| Maximum operating temperature (°C) | 93 |
| Divider Valve Series | MX |
| Model | Trab on |
| Series | MX |
| Discharge per piston stroke (in³) | 0. 100 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 312497ZAB - Trabon Divider Valves, Instructions. English (English)
- 312497ZAB - Trabon Divider Valves, Instructions. English (日本語)
Verkaufsliteratur
